How Does Insulation Work to Reduce Heat Transfer?

Heat doesn’t leak. It sneaks through gaps, screws, and thin spots. Then plastics warp, adhesives soften, and your thermal test fails on Friday night. That hurts. Insulation is how we slow heat down before it turns a small hotspot into rework, delayed shipments, and angry meetings for your team today.

Insulation reduces heat transfer by attacking three routes: conduction, convection, and radiation. We slow conduction by adding low-conductivity layers and keeping thickness stable under compression. We stop convection by sealing air paths so “still air” stays still. We manage radiation with reflective barriers when a surface has line-of-sight to plastics or labels. In production, the best insulation is the one that installs, stays bonded, and performs reliably the same after aging, vibration, and heat cycling—without surprises.

Most insulation failures aren’t about the material. They’re about gaps, compression, and inconsistent placement. I’ll show you how we design die-cut insulation parts that survive real assembly and real heat.

How does insulation reduce conduction in real products?

Conduction is heat moving through solids.
Metal brackets, frames, and fasteners are the usual shortcuts.

We slow conduction by inserting a layer that does not like to pass heat.
Foam, non-woven, rubber, and film stacks all work when they keep their structure.

Thickness matters.
But “installed thickness” matters more.

If a pad is squeezed flat, you lose the air pockets.
Then the pad behaves like a denser bridge.
That is why we ask where screws clamp, where ribs touch, and how much squeeze the design creates.

When we build a stack, we also watch contact area.
A small change in pad outline can break a direct solid-to-solid path.
That often reduces a hot spot without redesigning the entire housing.

How does insulation block convection, and why do tiny gaps ruin it?

Convection is heat carried by moving air.
If air can circulate, heat can travel.

Insulation blocks convection by trapping still air and sealing the routes that let air flow.
That is why gaps are expensive.

A 1 mm edge gap can behave like a chimney.
Hot air rises.
Cooler air replaces it.
Now you have a loop that bypasses your barrier.

This is where many teams lose weeks.
The material is “good.”
The installation is not repeatable.

We design parts to cover edges, overlap seams, and stay placed.
A die-cut outline keeps the seal consistent.
It also keeps the airflow path closed when the product is shaken, shipped, and assembled by different hands.

How does radiation heat your parts even without contact?

Radiation is infrared energy leaving a hot surface.
It is the reason a nearby wall warms even when it is not touching.

Radiation becomes a problem when there is line-of-sight.
Power components near plastics.
Heaters near covers.
Battery modules near trims.

A reflective layer can reduce that radiant hit.
But the setup matters.

A shiny barrier works best with an air gap.
If you press it tight against a hot plate, conduction dominates and the benefit drops.

This is also a cosmetic story.
When radiation is uncontrolled, labels curl, films warp, and plastics haze.
Those are warranty-looking problems, even when the electronics work fine.

Why does insulation fail after compression, aging, and vibration?

Most failures are time failures.
Not day-one failures.

Foams take a compression set.
Adhesives soften, then creep.
Films shrink.
Edges lift.

Vibration adds another layer.
It pumps corners.
It rubs surfaces.
It turns small gaps into larger ones.

That is why we validate with dwell time and stress.
We do not stop at “looks fine right now.”

We also design corners on purpose.
Sharp corners lift first.
A small radius is boring, but it is a hero.

And yes, I care about boring.
I run BeeChair in my imagination.
Comfort comes from predictable support, not dramatic surprises.

Which insulation materials work best for electronics, appliances, and automotive?

There is no single “best” insulation.
There is only best for your conditions.

Electronics usually need thin constructions.
They need clean handling.
They often need controlled adhesion so parts do not migrate during assembly.

Appliances usually fight heat plus humidity.
They also fight cost pressure.
The material must still be easy for operators to apply quickly.

Automotive programs fight long life and cycling.
Heat, vibration, and chemicals show up together.
Compression set and stable bonding become the difference between “quiet” and “why is this rattling?”

We start with your use case and your surface.
Then we choose a stack that survives it.
If you tell us your failure history, we can usually prevent a repeat.

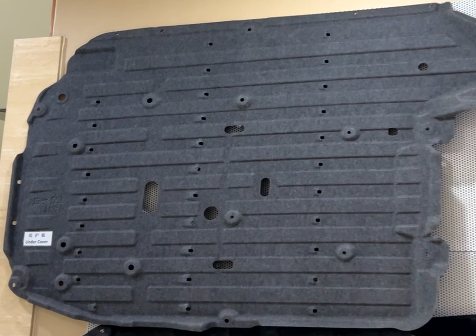

How do die-cut insulation parts improve consistency and reduce rework?

Loose insulation is hard to control.
It shifts.
It wrinkles.
It creates gaps.

Die-cut insulation parts solve that by making geometry repeatable.
We cut the outline, holes, and clearances so the part nests in the right place.
That reduces operator variation.

We can also build multi-layer stacks as one component.
Foam plus adhesive plus film.
One part number.
One placement.
Fewer suppliers.

This matters to OEM buyers who hate managing five “small” vendors.
Every extra vendor is another lead time and another quality argument.

A good die-cut format also protects takt time.
Kiss-cut parts peel cleanly.
Counted sheets reduce picking errors.
Kits reduce missing pieces.
That is how “insulation” stops being a hidden production tax.

What should you send us so we can engineer the right insulation quickly?

Send the hot spot story.
Where is it?
When does it appear?
After how long?

Send the boundary conditions.
Temperature range.
Duty cycle.
Nearby materials.

Send the mechanical reality.
Where is the part clamped?
How much compression is expected?
What tolerances can crush the layer?

Send the application method.
Manual.
Semi-automatic.
Or automated.

Finally, send the geometry.
A drawing, a cut line, or a photo with dimensions.

If you do that, we can recommend a stack-up and a die-cut format that installs fast and stays stable.
That is how you get fewer test loops and more shipped units.

More related questions

Does thicker insulation always reduce heat transfer?
Often, yes, if thickness survives assembly. If it crushes, conduction rises and hot spots return.

Why do insulation pads lift at the edges?
Corner stress, contamination, shrink, and adhesive mismatch. Fix the geometry, surface prep, and adhesive behavior.

What is the fastest way to fix a hot spot without redesigning the housing?
Block the shortcut. Seal the gap, add a die-cut barrier pad, or add a reflective layer with an air gap.

What makes insulation fail during ramp-up?
Inconsistent placement, uncontrolled compression, silent material changes, and skipping dwell-time validation.

How do we start a project with Sanken?
Send your drawing and conditions. Tell us your biggest pain. We’ll propose a stack-up and format designed for your line.

Conclusion

Insulation reduces heat transfer by slowing conduction, blocking convection, and managing radiation. In real factories, gaps, compression, and aging create most failures. Share your hot spot and installation details, and we’ll design a die-cut insulation part that stays stable at volume and keep your line stable day one.
