http://www.sankensk.com# How to Know If My Parts Are Manufacturable or Machinable?

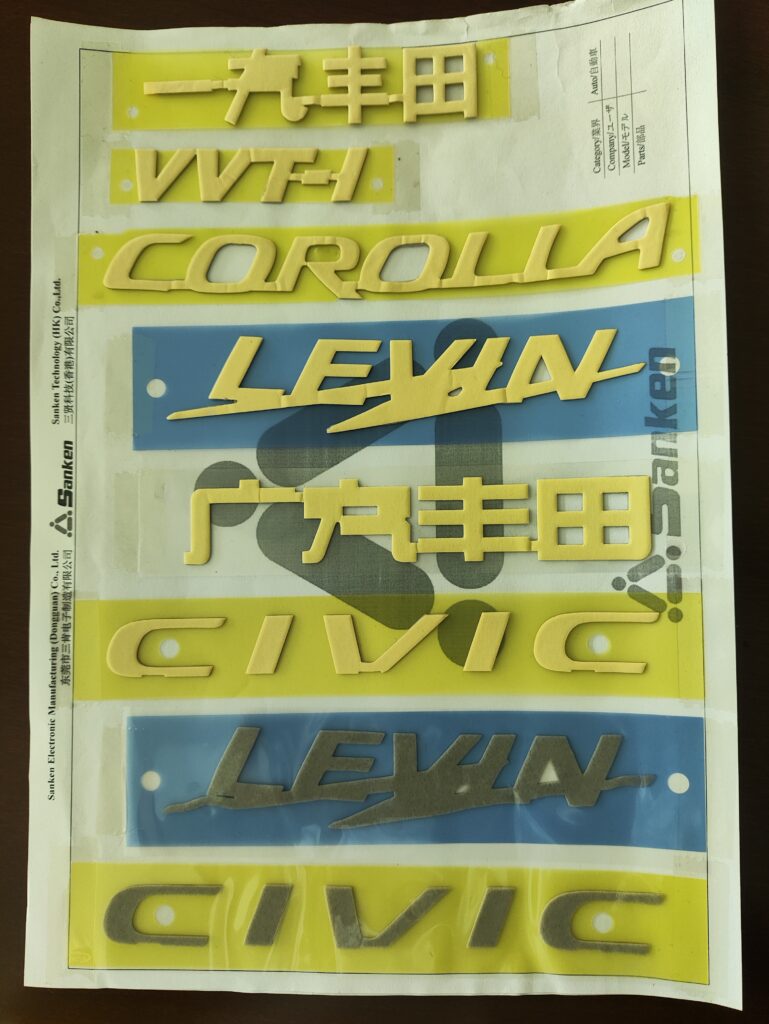

Many product designs fail not because the concept is wrong—but because the parts cannot be produced efficiently, consistently, or at scale. A component may look perfect in CAD yet become expensive, unstable, or impossible to manufacture once real tooling, materials, and tolerances are involved.
This guide explains how to evaluate whether your parts are truly manufacturable and machinable, using practical Design for Manufacturability (DFM) checkpoints that engineers, buyers, and product teams can apply before prototyping or mass production begins.
1. Start with DFM Screening: Can the Design Be Produced Repeatedly at Scale?
Insight:
Manufacturability is not simply about whether a factory can make a part once—it is about whether the part can be produced consistently, economically, and with stable quality across thousands of cycles. Early DFM screening reduces redesign risk by identifying geometry conflicts, tolerance mismatches, and process limitations before tooling investment begins.
Key early warning signs include:
- Extremely thin wall thickness
- Deep narrow holes with high aspect ratios
- Sharp internal corners
- Unnecessary tight tolerances
- Complex undercuts
- Multi-layer assemblies without alignment references
A useful rule:
If a feature cannot be measured easily, it usually cannot be manufactured reliably.
Early supplier collaboration at the drawing stage can eliminate 60–80% of manufacturability risks before sampling.
2. Evaluate Geometry Accessibility: Can Cutting Tools or Dies Reach the Features?
Insight:
Most machinability problems are caused by tool-access limitations—not material selection. Even small geometry adjustments can dramatically improve production feasibility and reduce machining time.
Common geometry checks:
| Feature Type | Recommended Adjustment | Why It Matters |
|---|---|---|
| Internal corners | Add fillet radius | Standard cutters cannot create sharp internal corners |
| Deep holes | Limit depth-to-diameter ratio | Prevents drill deflection |
| Narrow slots | Increase slot width slightly | Improves cutter access |
| Tall thin walls | Increase support thickness | Prevents vibration and deformation |
| Undercuts | Avoid unless required | Requires special tooling |
For die-cut components such as foam, tapes, films, and gaskets:
- avoid ultra-small bridges
- maintain minimum spacing between cut paths
- align grain direction with stress direction
- consider kiss-cut vs through-cut strategy
These changes improve yield without affecting product function.
3. Check Material Compatibility with the Intended Manufacturing Process
Insight:
The same geometry can be easy or difficult to manufacture depending on material behavior. Designers often optimize shape first and material second—but the correct workflow should evaluate both together.
Typical process–material matching examples:
| Process | Suitable Materials |
|---|---|
| CNC machining | Aluminum, stainless steel, engineering plastics |
| Injection molding | Thermoplastics |
| Die cutting | PET, foam, rubber, adhesive tapes, non-woven fabrics |
| Compression molding | Silicone rubber, elastomers |
| Laminating & converting | Multi-layer insulation stacks |
For example:
- Rubber compresses during cutting
- Foam rebounds after die penetration
- Adhesive laminates stretch during release
- Thin plastics may warp under heat
Ignoring these behaviors often leads to dimensional instability during production.
4. Review Tolerances Strategically: Avoid Over-Engineering the Drawing
Insight:
One of the most common manufacturability issues is over-tolerancing. Applying tight tolerances everywhere increases machining cost, inspection time, and scrap rate without improving product performance.
Instead, divide dimensions into three categories:
Critical dimensions
Affect sealing, alignment, electrical insulation, or mechanical fit
Functional dimensions
Support assembly stability but allow moderate variation
Reference dimensions
Used for positioning but not performance-critical
Recommended approach:
Apply tight tolerances only where function requires them.
This reduces machining complexity and improves production efficiency significantly.
5. Match the Design to the Right Production Method Early
Insight:
Many manufacturability issues occur because the wrong manufacturing process is selected first—and the design is forced to adapt later. Instead, choose the process that naturally fits the geometry and material combination.
Example selection logic:
| Design Type | Recommended Process |
|---|---|
| Precision rigid components | CNC machining |
| High-volume plastic housings | Injection molding |
| Sealing layers and insulation stacks | Die cutting |
| Flexible vibration interfaces | Foam converting |
| Multi-layer EMI shielding parts | Laminating + die cutting |
If a part includes foam, adhesive tape, or insulation layers, machining may not be the optimal solution. Converting processes often provide better repeatability and lower cost.
6. Validate Manufacturability with Prototyping Before Tooling Investment
Insight:
Even experienced engineers cannot predict every production variable from CAD alone. Prototyping confirms whether the design behaves correctly under real process conditions.
Recommended validation steps:
Rapid prototypes
Verify geometry feasibility and assembly alignment
First Article Inspection (FAI)
Confirms dimensional accuracy versus drawing specification
Tolerance stack-up testing
Ensures multi-part assemblies fit consistently
Pilot production runs
Evaluate yield stability before scaling volume
These steps dramatically reduce production risk and improve supplier communication clarity.
FAQ: Common Questions About Part Machinability and Manufacturability
1. What is the fastest way to check if my part is machinable?
Review tool accessibility first. If cutting tools cannot easily reach internal features, deep holes, or narrow slots, redesign is recommended.
2. Does material choice affect machinability more than geometry?
Both matter equally. Geometry controls tool access, while material determines cutting stability, surface finish quality, and dimensional repeatability.
3. Are tight tolerances always better for manufacturing quality?
No. Overly tight tolerances increase cost and scrap risk. Only functional features require precision control.
4. Can one part require multiple manufacturing processes?
Yes. Many modern components combine CNC machining, die cutting, laminating, and molding processes within one assembly structure.
5. When should suppliers be involved in manufacturability review?
Ideally before prototyping begins. Early supplier input improves tooling strategy, reduces redesign cycles, and shortens development timelines.
6. Why do simple-looking parts sometimes become expensive to manufacture?
Hidden complexity such as inaccessible features, layered materials, or unrealistic tolerances often increases machining time and inspection requirements.
7. What is the biggest mistake designers make in early-stage manufacturability planning?
Designing only for appearance or function without considering tooling accessibility, process capability, and material behavior together.
A manufacturable part is not defined by whether it can be produced once—it is defined by whether it can be produced repeatedly with stable quality, predictable cost, and scalable efficiency. Applying DFM thinking early ensures your design moves smoothly from concept to production without unexpected delays.
