Die cut protective films are used in electronics and display modules to protect sensitive surfaces during manufacturing, inspection, transportation, and final assembly. They help prevent scratches, dust, fingerprints, adhesive contamination, and handling damage on display glass, touch panels, lens covers, sensor windows, plastic housings, coated surfaces, and optical components.
For OEM engineers and purchasing teams, choosing the right protective film is not only about finding a clear plastic film. The material must match the surface, adhesion requirement, thickness, die cut shape, liner release, cleanliness level, removal process, and packaging method. If the wrong protective film is selected, the final product may face residue, bubbles, peeling, scratches, misalignment, or poor assembly efficiency.
At Sanken, we support OEM customers with precision die cutting, protective film converting, adhesive lamination, PET and PI insulation films, light-blocking films, double-sided tape parts, OCA-related adhesive structures, foam spacers, rubber pads, release liner structures, and multilayer converted components for electronics, display modules, optical assemblies, automotive electronics, sensors, and industrial devices.
Why Protective Films Are Important in Electronics and Display Modules
Electronics and display modules often include surfaces that are easy to damage. During assembly, parts may be touched, stacked, inspected, transported, or placed into fixtures. Without proper surface protection, scratches or dust may appear before the final product reaches the customer.
Protective films are commonly used on:
- Display glass
- Touch panels
- Camera lens covers
- Sensor windows
- Plastic frames
- Coated metal surfaces
- Automotive display panels
- Medical device screens
- Consumer electronics housings
- Optical module surfaces
- Backlight-related parts
- Industrial control panels
For display products, even a small scratch or particle may cause visual rejection. For optical modules, dust near a window or lens can affect performance. For adhesive bonding areas, contamination may reduce bonding strength.
Start With the Surface Material
The first step in choosing a die cut protective film is identifying the surface that needs protection. Different surfaces require different adhesion levels and adhesive types.
| Surface Material | Protective Film Consideration |
|---|---|
| Glass | Clean adhesion, no residue, easy removal |
| Touch panel surface | Low contamination and smooth peeling |
| PC or PMMA plastic | Adhesive must not leave marks |
| ABS plastic housing | May need stronger adhesion on textured surfaces |
| Coated metal | Adhesive must not damage coating |
| Painted surface | Residue-free removal is important |
| Optical window | Clean, scratch-free, dust-free protection |
| Textured plastic | Higher tack may be required |
A film that works well on smooth glass may not stay stable on rough plastic. A film that protects a molded housing may be too strong for a coated display surface. Testing on the actual surface is always better than testing only on a standard flat sample.
Choose the Right Adhesion Level
Adhesion is one of the most important factors.
If the adhesion is too low, the film may lift, curl, shift, or fall off during production. If the adhesion is too high, the film may become difficult to remove or leave residue.
The adhesion level should be selected based on:
- Surface material
- Surface roughness
- Application pressure
- Storage time
- Transportation condition
- Removal timing
- Assembly temperature
- Operator handling method
- Final surface appearance requirement
For display glass and touch panels, clean removal is critical. For textured plastic housings, stable holding may be more important. For optical windows, both cleanliness and residue control must be carefully reviewed.
Select the Film Material and Thickness
Protective films can be made from different base materials. The right choice depends on the product surface, protection level, and application method.
Common protective film materials include:
- PET protective film
- PE protective film
- PP protective film
- Low-tack protective film
- Anti-static protective film
- Transparent surface protection film
- Temporary assembly protection film
PET protective film usually offers good dimensional stability and clean handling. PE protective film is often more flexible and may be useful for temporary protection. Anti-static protective film may be selected when dust attraction is a concern.
Film thickness affects both protection and handling. A thicker film may provide stronger physical protection, while a thinner film may be easier to apply on flat display surfaces. The film should protect the surface without creating pressure, curling, or assembly interference.

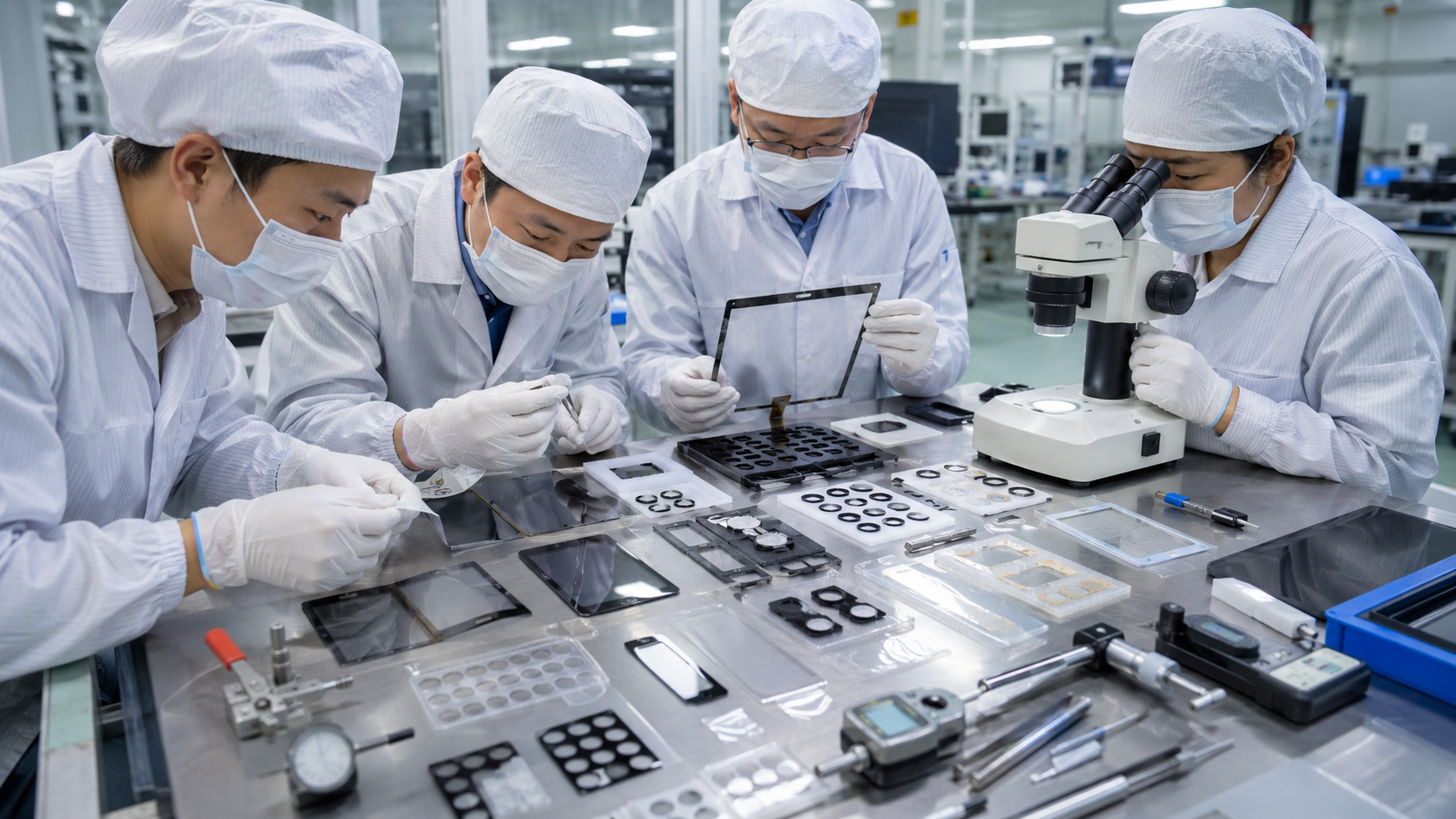

Die Cut Design: Shape, Holes, Tabs, and Liners
Protective films are usually die cut into custom shapes to match the protected surface.
Common die cut features include:
| Feature | Purpose |
|---|---|
| Outer profile | Matches the display, housing, or optical window shape |
| Camera or sensor holes | Keeps functional areas open |
| Pull tab | Helps operators remove the film easily |
| Extended liner | Prevents fingers from touching adhesive |
| Split liner | Supports easier application on larger surfaces |
| Positioning holes | Improves assembly alignment |
| Kiss-cut sheet format | Supports clean manual application |
| Roll format | Supports automated or semi-automated use |
For OEM assembly, small design details can make a big difference. A pull tab can reduce handling time. A split liner can make large films easier to apply. A well-designed carrier liner can prevent film stretching or adhesive contamination.
Cleanliness Requirements for Display and Optical Parts
Cleanliness is critical for protective films used in display modules and electronics.
Common contamination risks include:
- Dust particles
- Fibers
- Fingerprints
- Scratches
- Static attraction
- Adhesive residue
- Liner debris
- Edge particles
- Poor packaging cleanliness
- Film curling from storage
For display glass, touch panels, camera windows, and sensor areas, dust or scratches may become visible after final assembly. For adhesive bonding areas, contamination can affect bonding performance.
A qualified die cutting supplier should control material handling, cutting tools, waste removal, liner protection, inspection, and packaging. Clean trays, protective bags, anti-static handling, and proper stacking can help reduce surface defects.
Liner Release and Application Efficiency
Protective films often use release liners. The liner protects the adhesive surface before application and helps operators handle the part.
Poor liner release can create problems such as:
- Film stretching
- Wrinkles during application
- Adhesive contamination
- Edge lifting
- Misalignment
- Operator handling difficulty
- Longer assembly time
- Higher rejection rate
For small protective film parts, liner design is especially important. If the part is hard to peel, operators may touch the adhesive surface or deform the film. For larger display films, liner peeling direction and application sequence should be reviewed before mass production.
Sanken can help review pull tabs, split liners, extended liners, sheet formats, and roll formats based on the customer’s assembly process.

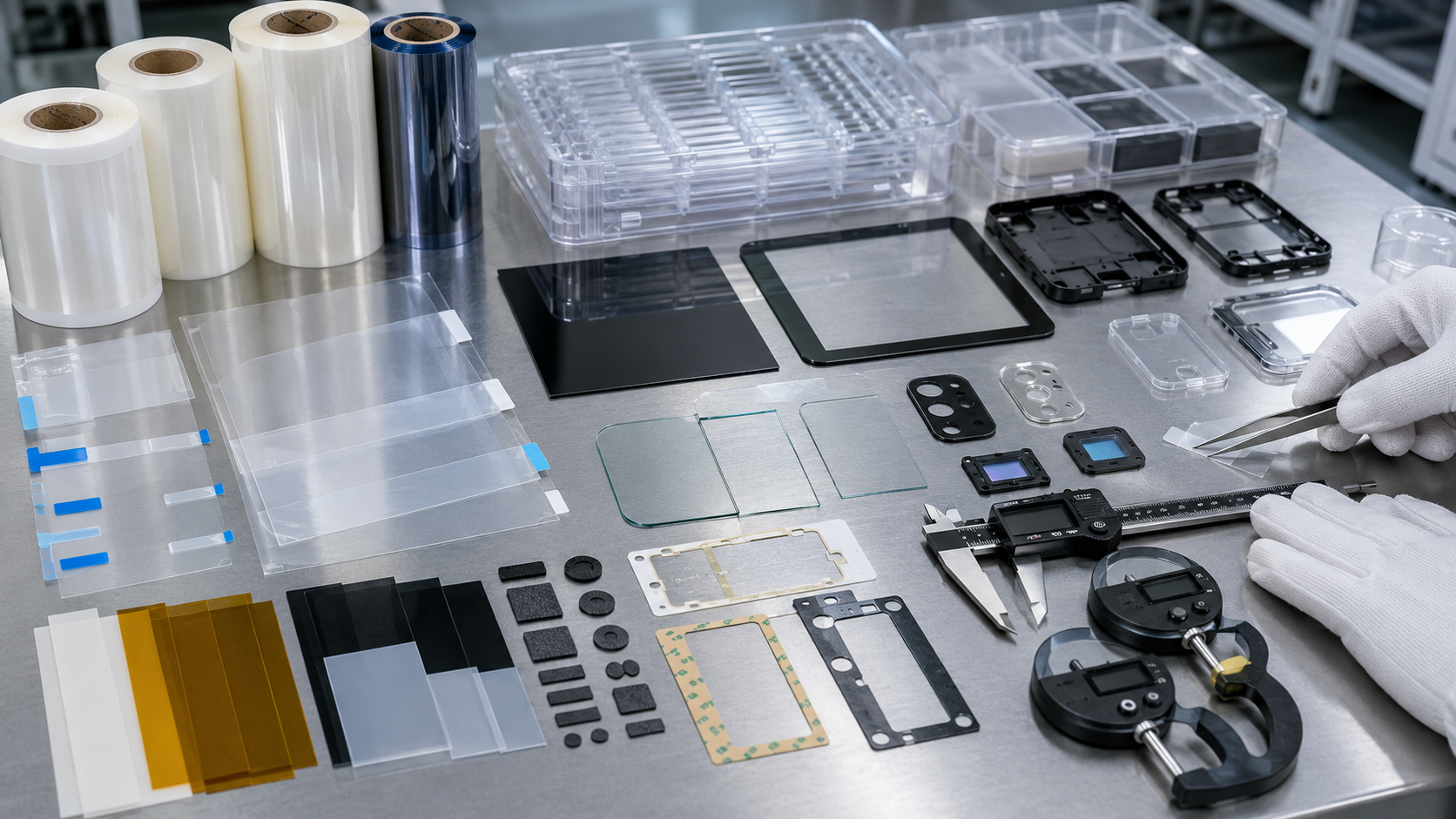

Protective Films Often Work With Other Die Cut Materials
Protective films are only one part of the display and electronics assembly material system. They often work together with other die cut components.
| Material | Function |
|---|---|
| Protective film | Prevents scratches, dust, and handling damage |
| PET film | Electrical insulation and spacing |
| PI film | Heat-resistant insulation |
| Light-blocking film | Reduces light leakage |
| Double-sided tape | Bonding and positioning |
| OCA-related adhesive | Transparent optical bonding |
| Foam spacer | Cushioning and gap filling |
| Rubber pad | Damping and stable contact |
| Release liner | Clean handling and application support |
For example, a display module may use protective film on the glass surface, black light-blocking film around the border, PET insulation film inside the module, double-sided adhesive tape for frame bonding, and foam spacers for cushioning.
If these materials are designed separately, interference may appear during assembly. A protective film tab may overlap with an adhesive frame. A foam spacer may press against a display surface. A PET insulation film may not align with a molded housing.
A complete material review helps prevent these problems early.

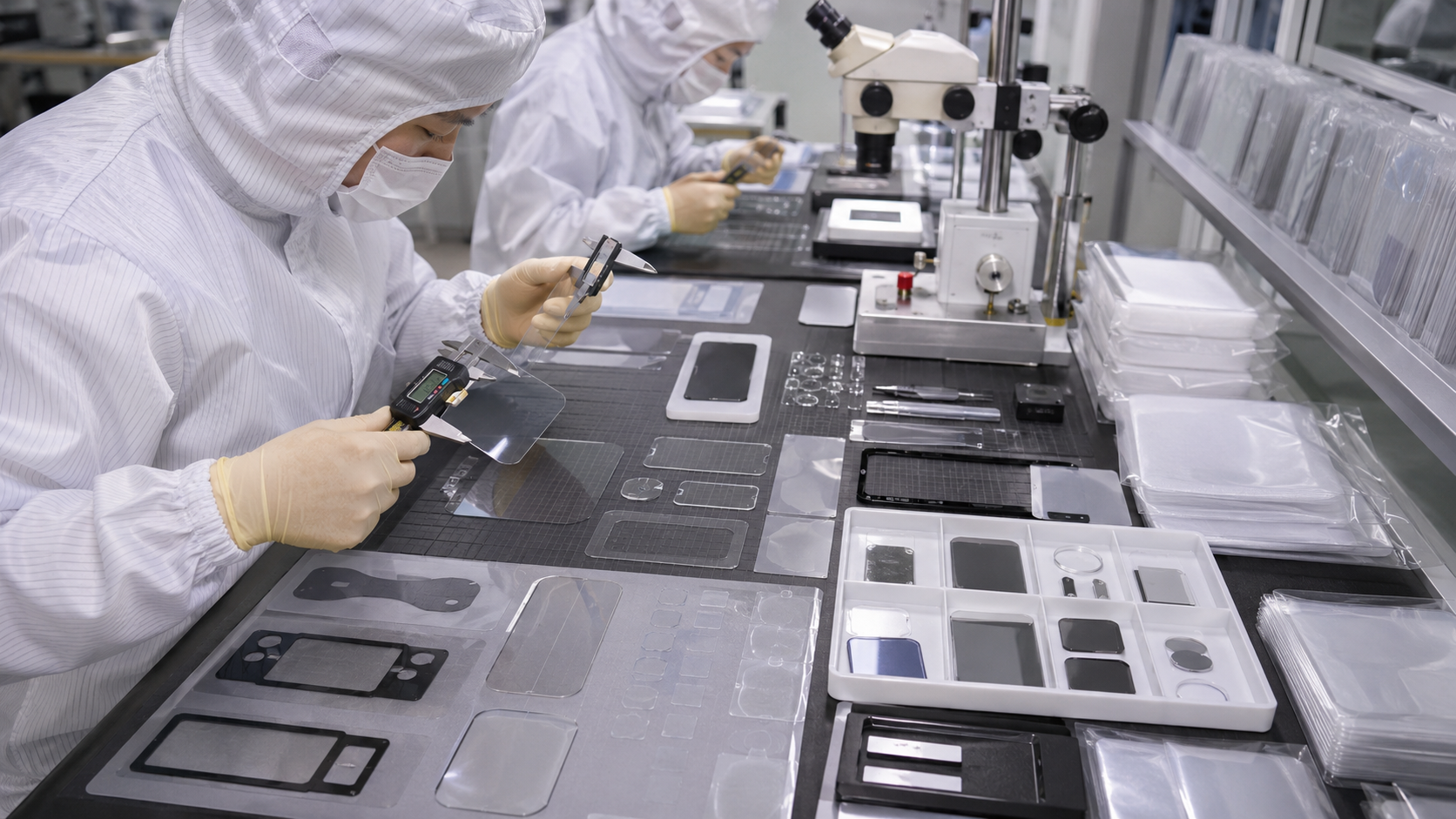

Quality Control Checklist for Die Cut Protective Films
Before approving protective film samples, OEM buyers should check both product dimensions and real application performance.
| Inspection Item | Why It Matters |
|---|---|
| Outer dimensions | Confirms correct surface coverage |
| Hole and window alignment | Avoids blocking cameras, sensors, or connectors |
| Film thickness | Affects protection and handling |
| Surface cleanliness | Prevents visible defects |
| Adhesion level | Keeps the film stable during production |
| Residue after removal | Protects final surface quality |
| Liner release | Improves assembly efficiency |
| Film flatness | Reduces bubbles and wrinkles |
| Edge cleanliness | Reduces particles |
| Pull tab position | Supports easy removal |
| Packaging condition | Prevents scratches and dust |
Testing should be done on the actual surface whenever possible. A protective film may behave differently on glass, coated plastic, textured housing, or painted metal.
Common Protective Film Problems and Prevention
| Problem | Possible Cause | Prevention |
|---|---|---|
| Film lifting | Adhesion too low or surface too rough | Match adhesion to actual surface |
| Residue after removal | Adhesive too strong or wrong adhesive type | Test removal on real parts |
| Bubbles | Dust, poor flatness, poor application | Improve cleanliness and liner design |
| Scratches | Poor handling or packaging | Use clean trays and protective stacking |
| Misalignment | Poor die cut accuracy or application method | Define critical dimensions |
| Curling | Film stress or poor storage | Improve material and packaging control |
| Hard peeling | Poor liner release | Adjust liner or tab design |
| Dust attraction | Static or dirty handling | Use anti-static handling and clean packaging |
Most problems can be prevented through early material review, real surface testing, sample validation, die cut tolerance control, and packaging design.
How Sanken Supports Die Cut Protective Film Projects
Sanken Manufacturing Co., Ltd. supports OEM customers with custom die cut protective films and related converted materials for electronics and display modules.
Our support includes:
- PET protective films
- PE protective films
- Anti-static protective films
- Custom die cut protective film shapes
- Pull tab and liner design
- PET and PI insulation films
- Light-blocking films
- Double-sided adhesive tape parts
- OCA-related adhesive structures
- Foam spacers
- Rubber pads
- Multilayer converted materials
- Sample development
- Quality inspection
- Assembly-ready packaging
For each project, we review surface material, film thickness, adhesion level, die cut shape, hole alignment, liner release, cleanliness risk, packaging method, and final application process.
Our goal is to help customers reduce scratches, dust contamination, residue, bubbles, lifting, misalignment, poor liner release, repeated sampling, and unstable mass production.
What Buyers Should Provide Before Starting a Project
To choose the right die cut protective film, buyers should provide:
- 2D drawing
- Surface material
- Product application
- Film material preference
- Thickness requirement
- Adhesion requirement
- Areas that must be protected
- Areas that must remain uncovered
- Pull tab requirement
- Liner preference
- Cleanliness requirement
- Application method
- Removal timing
- Packaging format
- Expected quantity
- Sample or reference part if available
Clear information helps the supplier recommend the correct protective film structure and reduce unnecessary trial-and-error.
FAQ
What are die cut protective films used for?
Die cut protective films are used to protect electronics and display module surfaces from scratches, dust, fingerprints, handling damage, and contamination during production and assembly.
What materials are used for protective films?
Common materials include PET protective film, PE protective film, PP protective film, low-tack protective film, anti-static protective film, and transparent surface protection film.
How do I choose the right protective film adhesion?
Choose adhesion based on the surface material, surface roughness, handling process, storage time, removal timing, and residue requirement. Testing on the actual surface is recommended.
Why do protective films leave residue?
Residue may occur when the adhesive is too strong, the adhesive type does not match the surface, the film is stored too long, or the removal condition is not suitable.
Why are pull tabs used on protective films?
Pull tabs help operators peel and remove protective films more easily without touching the protected surface or damaging the film edge.
Can Sanken support custom die cut protective films?
Yes. Sanken supports custom die cut protective films, PET and PI films, light-blocking films, adhesive tape parts, OCA-related adhesive structures, foam spacers, rubber pads, and multilayer converted materials for electronics and display modules.
Conclusion
Choosing die cut protective films for electronics and display modules requires careful review of surface material, adhesion level, film thickness, die cut shape, liner release, cleanliness, application method, removal process, and packaging. A suitable protective film should protect the surface during production and remove cleanly when needed.
For OEM display and electronics projects, protective films should also be reviewed together with related die cut materials such as PET films, PI films, light-blocking films, double-sided tapes, OCA-related adhesives, foam spacers, rubber pads, and release liners.
At Sanken, we help OEM customers develop custom die cut protective films and related converted components that are clean, accurate, easy to apply, and stable from prototype to mass production.
