Modern vehicles are expected to be quieter and more comfortable than ever before. Whether driving a gasoline vehicle, hybrid, or electric vehicle (EV), customers expect minimal road noise, reduced vibration, and a refined cabin experience. To achieve this, automotive manufacturers rely on carefully selected NVH (Noise, Vibration, and Harshness) materials throughout the vehicle.
Precision die cut NVH materials are widely used to absorb noise, isolate vibration, seal gaps, reduce rattles, and improve overall driving comfort. Selecting the right material requires balancing acoustic performance, compression behavior, durability, weight, operating temperature, and manufacturing efficiency.
At Sanken, we manufacture precision die cut non-woven felt, foam gaskets, rubber isolators, adhesive tape components, PET insulation films, protective films, and multilayer laminated NVH components for automotive interiors, battery packs, doors, dashboards, body structures, HVAC systems, and electronic modules.
Why NVH Materials Matter in Modern Vehicles
Noise and vibration originate from many sources inside a vehicle, including:
- Engine or electric motor
- Road surface
- Tires
- Wind
- HVAC systems
- Compressors
- Cooling fans
- Door panels
- Plastic trim
- Wiring harnesses
- Battery systems
Without proper NVH materials, vehicles may experience:
- Cabin noise
- Plastic rattles
- Vibration transmission
- Squeaks
- Buzzing sounds
- Passenger discomfort
- Lower perceived vehicle quality
Precision die cut NVH components help isolate these unwanted noises while improving overall driving comfort.

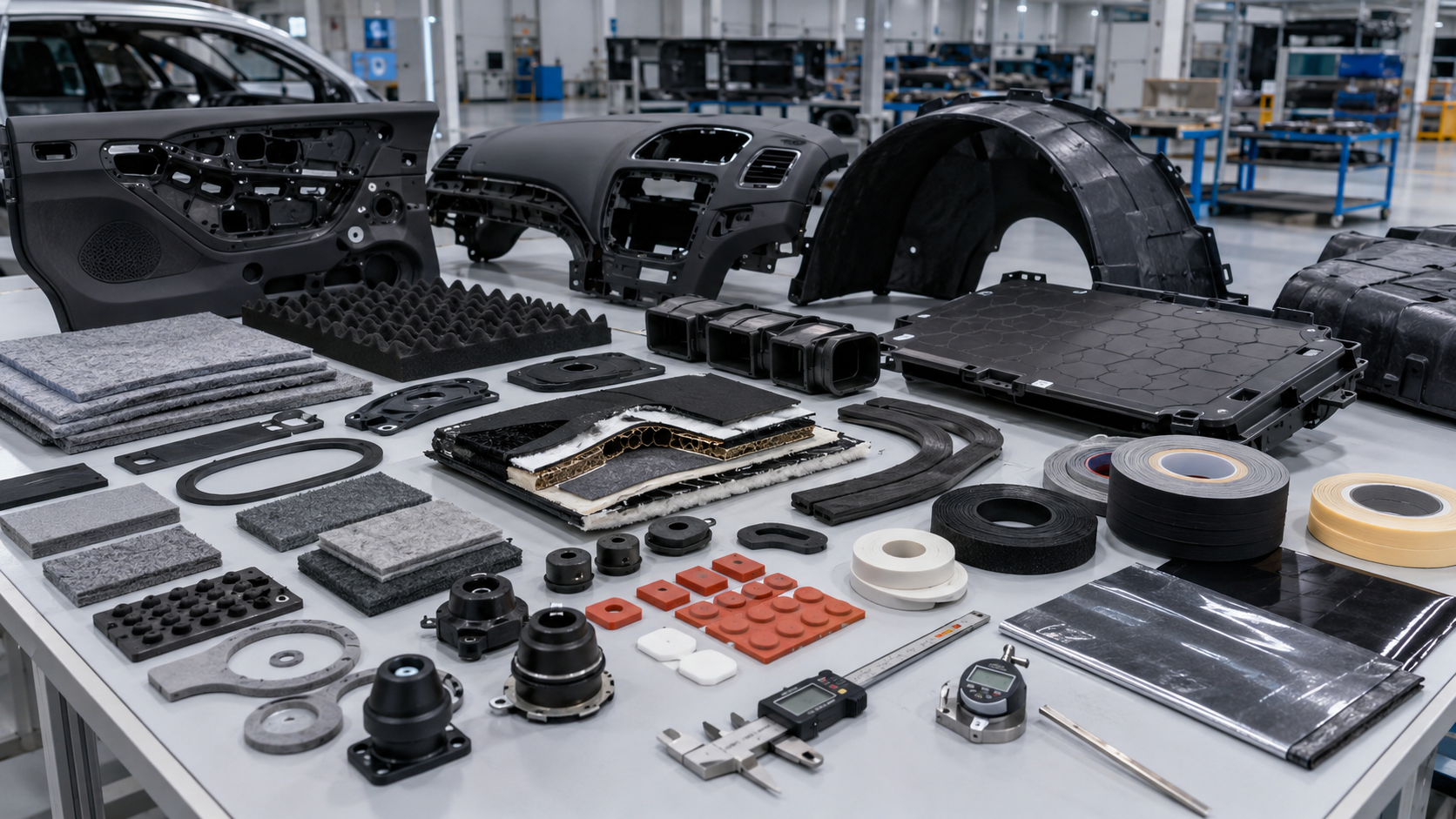

Common Automotive NVH Materials
Different vehicle areas require different NVH solutions.
| Material | Main Function |
|---|---|
| Non-Woven Felt | Noise absorption and anti-rattle |
| EVA Foam | Cushioning and sealing |
| PE Foam | Gap filling and vibration reduction |
| EPDM Foam | Sealing and vibration isolation |
| PU Foam | Acoustic absorption |
| EPDM Rubber | Vibration isolation |
| Silicone Rubber | High-temperature vibration damping |
| PET Film | Electrical insulation and protection |
| Double-Sided Adhesive Tape | Bonding and positioning |
| Protective Film | Surface protection |
| Multilayer Laminates | Combined acoustic and sealing performance |
Material selection depends on vehicle location, vibration frequency, operating temperature, moisture exposure, and assembly method.
Non-Woven Felt for Noise Reduction
Needle-punched non-woven felt is one of the most widely used NVH materials in automotive manufacturing.
Typical applications include:
- Door panels
- Instrument panels
- Headliners
- Pillar trim
- Center consoles
- Wheel arch liners
- Trunk trim
- Battery covers
- Wiring harness protection
Non-woven felt helps:
- Absorb airborne noise
- Prevent plastic squeaks
- Reduce panel vibration
- Protect contacting surfaces
- Eliminate rattles
- Improve cabin comfort
Selection factors include:
- Thickness
- Density
- Fiber weight
- Compression resistance
- Wear resistance
- Moisture resistance
- Flame resistance
Higher density does not always provide better acoustic performance. Material selection should match the target noise frequency and installation location.
Foam Materials for Sealing and Vibration Isolation
Foam materials perform multiple NVH functions while remaining lightweight.
Common foam materials include:
- EVA foam
- PE foam
- EPDM foam
- PU foam
- Silicone foam
Typical applications include:
- Door sealing
- Dashboard cushioning
- HVAC sealing
- Battery pack cushioning
- Electronic module protection
- Trim support
- Interior panel spacing
Foam materials provide:
- Compression sealing
- Gap filling
- Shock absorption
- Vibration isolation
- Noise reduction
Selection should consider compression set, recovery performance, operating temperature, water resistance, and long-term aging.
Rubber Components for High-Durability NVH Applications
Rubber is often selected where stronger vibration damping or long-term durability is required.
Common rubber materials include:
- EPDM rubber
- Silicone rubber
- NBR
- CR rubber
Applications include:
- Engine compartment components
- HVAC systems
- Mounting pads
- Electronic modules
- Battery systems
- Cable protection
- Chassis assemblies
Compared with foam, rubber generally provides:
- Better compression recovery
- Longer service life
- Excellent weather resistance
- Superior chemical resistance
- Strong vibration damping
Proper hardness selection is important because rubber that is too hard may transmit vibration, while rubber that is too soft may deform excessively.
Adhesive Components Improve Assembly
Many NVH materials are supplied with pressure-sensitive adhesive backing.
Adhesive-backed NVH parts help:
- Improve positioning accuracy
- Support automated assembly
- Prevent movement during installation
- Reduce assembly time
- Improve production consistency
Common adhesive systems include:
- Acrylic adhesive
- Double-sided tape
- Transfer adhesive
- Foam tape
- PET carrier tape
The adhesive should match the installation surface, including painted metal, aluminum, plastics, composite panels, or textile surfaces.
Multilayer NVH Structures
Many automotive NVH components combine multiple materials into one die cut part.
Examples include:
| Structure | Function |
|---|---|
| Felt + Adhesive | Noise absorption and positioning |
| Foam + Adhesive | Sealing and vibration isolation |
| Rubber + Adhesive | Durable vibration damping |
| PET Film + Foam | Insulation and cushioning |
| Felt + Foam + Adhesive | Combined acoustic and sealing performance |
Multilayer lamination reduces assembly steps while improving positioning accuracy and production efficiency.
Consider the Installation Environment
Before selecting an NVH material, engineers should review where the component will be installed.
Typical considerations include:
- Interior or exterior location
- Temperature range
- Water exposure
- Humidity
- Oil or chemical exposure
- Continuous vibration
- Compression requirements
- Available installation space
- Assembly process
For example, door panels prioritize acoustic absorption and anti-rattle performance, while battery packs require vibration isolation, electrical insulation, and long-term durability.
Precision Die Cutting Improves Fit and Performance
Material performance depends not only on the material itself but also on manufacturing accuracy.
Precision die cutting provides:
- Accurate dimensions
- Clean edges
- Stable thickness
- Precise hole positioning
- Consistent adhesive placement
- Assembly-ready components
Poor die cutting can result in:
- Misalignment
- Panel interference
- Adhesive lifting
- Poor compression
- Noise caused by loose components
- Reduced assembly efficiency

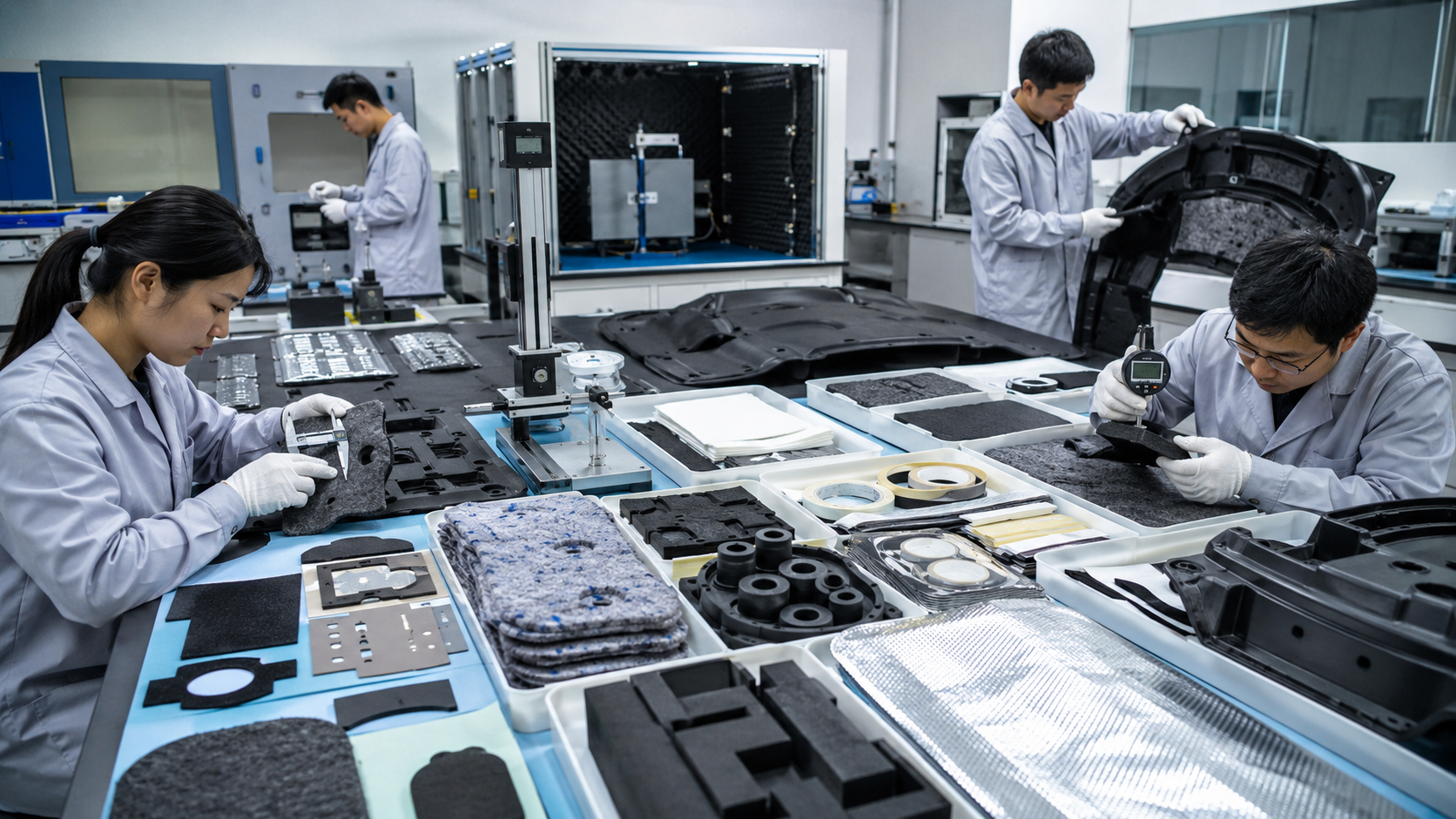

Quality Control for Automotive NVH Components
Automotive NVH components require consistent quality throughout mass production.
Key inspection items include:
| Inspection Item | Purpose |
|---|---|
| Material verification | Confirms approved material |
| Thickness | Controls compression and fit |
| Dimensions | Ensures assembly accuracy |
| Adhesive position | Improves installation |
| Compression recovery | Verifies long-term performance |
| Edge cleanliness | Prevents contamination |
| Surface quality | Maintains appearance |
| Packaging condition | Prevents deformation |
Stable quality reduces assembly defects while improving long-term vehicle performance.

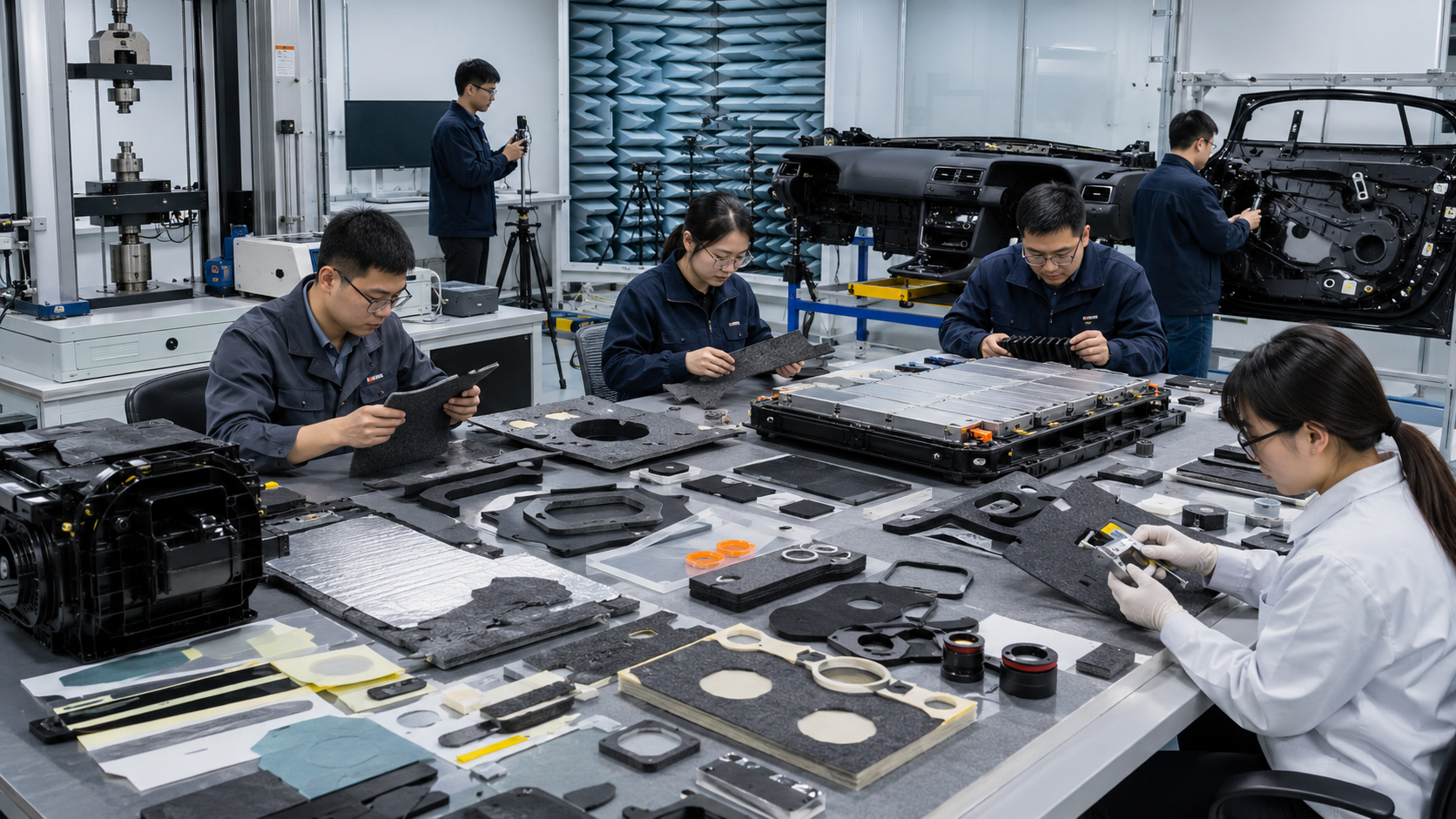

How Sanken Supports Automotive NVH Projects
Sanken provides custom die cut NVH solutions for automotive OEMs and Tier 1 suppliers.
Our capabilities include:
- Needle-punched non-woven felt converting
- Foam gasket converting
- Rubber vibration isolators
- PET insulation films
- Double-sided adhesive tape converting
- Protective films
- Multilayer lamination
- Precision die cutting
- Sample development
- Quality inspection
- Assembly-ready packaging
Every project is reviewed according to acoustic performance, vibration isolation, compression behavior, environmental conditions, adhesive compatibility, dimensional tolerance, and production efficiency.
Our goal is to help customers reduce cabin noise, eliminate rattles, improve assembly consistency, and achieve stable high-volume production.
Buyer Checklist Before Requesting Samples
To develop effective automotive NVH components, buyers should provide:
- 2D drawing
- 3D CAD model (if available)
- Vehicle application
- Installation location
- Material preference
- Thickness requirement
- Noise or vibration target
- Temperature range
- Compression requirement
- Adhesive requirement
- Bonding surface
- Environmental testing requirement
- Packaging format
- Expected annual volume
- Existing sample (if available)
Providing complete engineering information helps optimize material selection and reduce development time.
FAQ
What are automotive NVH materials?
Automotive NVH materials are used to reduce noise, vibration, and harshness inside vehicles. Common materials include non-woven felt, foam, rubber, adhesive tapes, and multilayer laminated components.
Why is non-woven felt widely used?
Non-woven felt absorbs noise, prevents rattles, protects contacting surfaces, and improves cabin comfort while remaining lightweight.
How do foam materials improve NVH performance?
Foam materials provide sealing, cushioning, vibration isolation, and gap filling, helping reduce noise transmission and improve assembly.
When should rubber be used instead of foam?
Rubber is preferred when higher durability, stronger vibration damping, weather resistance, or chemical resistance is required.
Why are adhesive-backed NVH parts popular?
Adhesive-backed components improve positioning accuracy, simplify assembly, reduce installation time, and support automated production.
Can Sanken manufacture custom automotive NVH components?
Yes. Sanken manufactures custom die cut non-woven felt, foam gaskets, rubber isolators, adhesive tape components, PET insulation films, and multilayer laminated NVH parts for automotive OEM manufacturers.
Conclusion
Choosing the right automotive NVH material requires evaluating noise reduction, vibration isolation, sealing performance, durability, environmental resistance, and assembly efficiency together. Non-woven felt, foam, rubber, adhesive components, and multilayer structures each provide different advantages depending on the application.
By combining appropriate materials with precision die cutting, OEM manufacturers can improve cabin comfort, reduce warranty issues, simplify assembly, and deliver higher-quality vehicles.
At Sanken, we help automotive OEMs and Tier suppliers develop precision die cut NVH solutions that support reliable, efficient, and high-volume vehicle production.
