Choosing die cut films and adhesive materials for display module assembly requires a clear understanding of surface protection, bonding, light blocking, electrical insulation, spacing, cushioning, cleanliness, and final assembly conditions. A display module may look simple from the outside, but inside the structure, many thin film and adhesive components must work together accurately.
For OEM engineers and purchasing teams, the right material is not only the one that looks correct on a drawing. It must match the bonding surface, optical window, display frame, thickness requirement, liner release, die cut tolerance, cleanliness level, packaging format, and production process. If the wrong material is selected, the module may face bubbles, scratches, light leakage, adhesive lifting, dust contamination, poor peeling, or final inspection failure.
At Sanken, we support OEM customers with precision die cutting, adhesive lamination, PET and PI insulation films, protective films, light-blocking films, double-sided adhesive tape parts, OCA-related adhesive structures, foam spacers, rubber pads, release liner structures, and multilayer converted components for display modules, electronics, automotive displays, sensors, and optical assemblies.
Why Material Selection Matters in Display Module Assembly
Display modules are compact and layered. A typical module may include glass, touch panel, frame, backlight structure, sensor window, camera opening, flexible circuit, connector, adhesive layer, insulation film, foam spacer, rubber cushion, protective film, and plastic housing.
Die cut films and adhesive materials help these parts stay protected, bonded, insulated, aligned, and easy to assemble.
They are commonly used to:
- Protect display glass and touch panels
- Bond glass, frames, films, and housings
- Block unwanted light leakage
- Provide electrical insulation
- Maintain spacing between layers
- Cushion fragile components
- Support clean handling during assembly
- Improve positioning accuracy
- Reduce dust and scratch risk
- Support stable mass production
A small film defect can affect the final product. For example, dust under a transparent adhesive film may create bubbles. A black shading film that is too narrow may cause light leakage. A protective film with the wrong adhesion may leave residue. A PET insulation film with poor hole alignment may interfere with assembly.
Start With the Function of the Part
Before choosing a material, define what the part needs to do in the module.
| Required Function | Common Material Choice |
|---|---|
| Surface protection | PET or PE protective film |
| Transparent bonding | OCA-related adhesive film |
| Frame bonding | Double-sided adhesive tape |
| Light blocking | Black PET film or black adhesive tape |
| Electrical insulation | PET or PI insulation film |
| Cushioning | Foam spacer or rubber pad |
| Gap filling | Foam gasket |
| Clean handling | Release liner or carrier film |
| Multilayer support | Laminated film, adhesive, foam, and liner structure |
A display module often needs several of these materials at the same time. The best solution is not always one material. It is often a complete combination of films, adhesives, foams, liners, and protective components.
Choose Protective Films Based on Surface and Removal
Protective films are used to prevent scratches, fingerprints, dust, and handling damage during manufacturing, testing, shipping, and final assembly.
They may be applied to:
- Display glass
- Touch panels
- Lens covers
- Sensor windows
- Plastic frames
- Backlight surfaces
- Coated parts
- Finished module surfaces
The key selection points are adhesion level, residue control, film thickness, surface cleanliness, liner release, and removal method.
If adhesion is too low, the film may lift or fall off during handling. If adhesion is too high, it may leave residue or become difficult to remove. For display surfaces, clean removal is especially important.
Protective films may also need pull tabs, extended liners, custom holes, camera openings, sensor windows, or positioning features to improve assembly efficiency.
Choose PET and PI Films for Insulation and Support
PET and PI films are widely used for electrical insulation and internal protection in display modules.
PET film is commonly used for general insulation, spacing, support, and protective structures. It is thin, stable, and suitable for many display and electronics applications.
PI film is usually selected when higher temperature resistance or more demanding insulation performance is required.
| Film Type | Common Use | Selection Focus |
|---|---|---|
| PET film | General insulation, support, spacing | Thickness, flatness, edge quality |
| PI film | Heat-resistant insulation | Temperature requirement and cost |
| PC film | Support or structural film use | Stiffness and surface behavior |
| Protective film | Temporary surface protection | Adhesion and residue control |
For PET and PI die cut films, hole alignment and edge cleanliness are important. Poor cutting may create burrs, particles, curling, or assembly interference.
Choose Adhesive Materials Based on the Bonding Surface
Adhesive materials are used for bonding, positioning, sealing, and layer fixation in display module assembly.
Common adhesive materials include:
- Double-sided tape
- Transfer adhesive
- PET carrier adhesive tape
- Black double-sided adhesive tape
- Thin adhesive film frames
- Foam adhesive tape
- OCA-related transparent adhesive structures
- Liner-backed adhesive components
The adhesive must match the bonding surface. Glass, PC, ABS, coated plastic, painted metal, metal frames, and textured surfaces may require different adhesive structures.
Important selection factors include:
| Control Point | Why It Matters |
|---|---|
| Adhesive thickness | Affects bonding gap and flatness |
| Peel strength | Prevents lifting or shifting |
| Surface compatibility | Ensures stable bonding |
| Die cut tolerance | Controls frame and window alignment |
| Adhesive overflow | Prevents contamination |
| Liner release | Improves operator handling |
| Kiss cutting depth | Prevents liner damage |
| Packaging flatness | Reduces curling and bubbles |
A strong adhesive is not always the best adhesive. The correct adhesive should match the surface, pressure, temperature, application method, and final reliability requirement.
Choose OCA-Related Adhesive Parts Carefully
OCA-related adhesive materials are used when transparent bonding is required. They are common in display modules, touch panels, cover glass assemblies, sensor windows, and optical areas.
OCA-related parts require strict control because defects are often visible after bonding.
Key selection points include:
- Optical clarity
- Adhesive thickness
- Bubble control
- Dust control
- Optical window position
- Liner release
- Film flatness
- Edge cleanliness
- Storage condition
- Application method
- Packaging protection
A small particle, scratch, or adhesive defect can create visible problems in the display area. For this reason, OCA-related adhesive parts require clean handling, accurate die cutting, protective liners, and careful packaging.
Choose Light-Blocking Films for Border and Window Control
Light leakage is a common issue in display modules. Black light-blocking films and black adhesive materials are used around display borders, backlight edges, camera holes, sensor windows, LED areas, and optical openings.
Light-blocking materials must be accurately cut. If the film is too small, light leakage may remain. If it is too large, it may block the active display or sensor area.
Important selection factors include:
- Opacity
- Thickness
- Adhesive backing
- Edge cleanliness
- Hole and window alignment
- Dimensional stability
- Dust control
- Packaging cleanliness
For display projects, the optical window position should be clearly marked on the drawing before sample production.
Foam Spacers and Rubber Pads Should Be Reviewed Together
Display module assembly often uses foam and rubber components together with films and adhesives.
Foam spacers can provide cushioning, gap filling, dust sealing, and compression support. Rubber pads can provide damping, shock absorption, and stable contact.
They are commonly used for:
- Display frame cushioning
- Backlight support
- Camera module protection
- Sensor module spacing
- Automotive display anti-rattle support
- Housing contact protection
- Gap filling between frame and module
Foam and rubber selection should consider thickness, density, compression force, hardness, rebound, adhesive backing, and long-term aging behavior.
If foam is too thick or too hard, it may create pressure marks. If it is too soft, it may not support the module. If rubber pads are not positioned correctly, they may interfere with the display structure.
Liner Release Affects Assembly Efficiency
Liner release is often overlooked, but it can affect production speed and part quality.
Poor liner release may cause:
- Film stretching
- Adhesive edge damage
- Dust contamination
- Misalignment
- Wrinkles or bubbles
- Operator handling difficulty
- Longer assembly time
- Higher rejection rate
For small adhesive frames, protective films, and OCA-related parts, liner design should be reviewed before mass production. Pull tabs, split liners, extended liners, carrier films, sheet formats, and roll formats may be used depending on the assembly process.
Cleanliness and Packaging Are Critical
Display module materials are sensitive to dust, scratches, fibers, static, adhesive strings, and edge particles. A clean die cut part can still fail if packaging is poor.
Good packaging helps prevent:
- Film curling
- Surface scratches
- Dust contamination
- Adhesive edge damage
- Liner shifting
- Foam compression
- Rubber deformation
- Mixed parts
- Poor operator handling
Thin films should remain flat. Adhesive parts should stay protected until application. Foam parts should not be over-compressed. Protective films should not be scratched during stacking or transport.

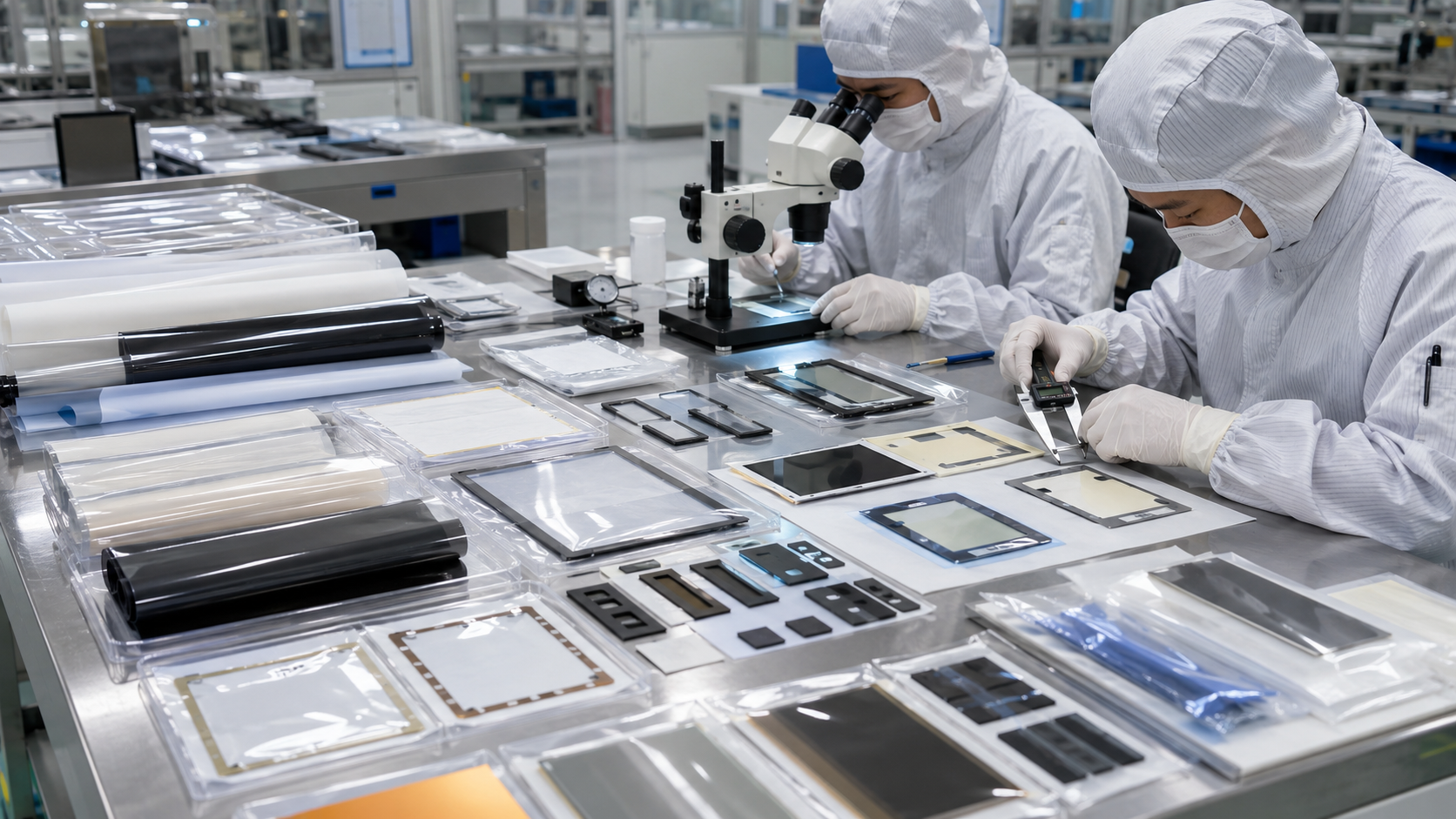

Quality Control Checklist
Before approving die cut films and adhesive materials, OEM buyers should check:
| Inspection Item | Purpose |
|---|---|
| Outer dimensions | Confirms correct fit |
| Hole and window alignment | Prevents assembly interference |
| Optical window position | Protects display and sensor areas |
| Material thickness | Controls spacing and bonding gap |
| Film flatness | Reduces bubbles and lifting |
| Surface cleanliness | Prevents visible defects |
| Edge cleanliness | Reduces particles and burrs |
| Adhesive overflow | Prevents contamination |
| Liner release | Supports smooth application |
| Foam compression | Confirms cushioning performance |
| Rubber hardness | Confirms damping function |
| Packaging condition | Protects parts before assembly |
Critical-to-quality points should be defined before production. These may include display active areas, optical windows, camera holes, sensor openings, adhesive borders, connector clearances, and visible surfaces.
How Sanken Supports Display Module Material Projects
Sanken Manufacturing Co., Ltd. supports OEM customers with precision die cut films and adhesive materials for display module assembly.
Our support includes:
- PET insulation films
- PI insulation films
- Protective films
- Light-blocking films
- OCA-related adhesive structures
- Double-sided adhesive tape parts
- Foam spacers and gaskets
- Rubber pads
- Release liner structures
- Multilayer laminated components
- Adhesive lamination
- Kiss cutting and through cutting
- Sample development
- Quality inspection
- Assembly-ready packaging
For each project, we review material function, thickness, adhesive structure, optical window position, bonding surface, liner release, edge cleanliness, dust risk, packaging method, and final assembly process.
Our goal is to help customers reduce bubbles, light leakage, scratches, adhesive lifting, poor liner release, dust contamination, film curling, misalignment, repeated sampling, and unstable mass production.
Buyer Checklist Before Starting a Project
To choose the right die cut films and adhesive materials, buyers should provide:
- 2D drawing
- Display module application
- Film material preference
- Adhesive requirement
- Thickness requirement
- Optical window location
- Display active area
- Bonding surface
- Critical dimensions
- Cleanliness requirement
- Liner preference
- Packaging format
- Assembly method
- Expected quantity
- Sample or reference part if available
Clear project information helps the supplier recommend the correct material structure and reduce unnecessary trial-and-error.
FAQ
What die cut films are used in display module assembly?
Common die cut films include PET films, PI films, protective films, black light-blocking films, transparent adhesive films, release liners, and multilayer laminated film structures.
What adhesive materials are used in display modules?
Common adhesive materials include double-sided tape, transfer adhesive, PET carrier tape, black adhesive tape, foam tape, adhesive film frames, and OCA-related transparent adhesive materials.
How do I choose the right adhesive material?
Choose adhesive based on bonding surface, thickness, peel strength, temperature condition, liner release, assembly method, and final reliability requirement.
Why is cleanliness important for display module materials?
Dust, particles, scratches, fibers, and adhesive contamination can cause bubbles, visible defects, light leakage, poor bonding, or inspection failure.
Why is liner release important?
Good liner release helps operators peel and apply adhesive parts smoothly without stretching the film, damaging adhesive edges, or causing misalignment.
Can Sanken support die cut films and adhesive materials for display modules?
Yes. Sanken supports PET and PI films, protective films, light-blocking films, OCA-related adhesive structures, double-sided tape parts, foam spacers, rubber pads, release liners, and multilayer converted components.
Conclusion
Choosing die cut films and adhesive materials for display module assembly requires careful review of material function, bonding surface, optical window, thickness, tolerance, cleanliness, liner release, packaging, and final assembly method. The right material choice can improve display appearance, reduce defects, support faster assembly, and improve production stability.
For OEM display projects, films and adhesives should also be reviewed together with foam spacers, rubber pads, protective films, insulation films, light-blocking materials, and release liners.
At Sanken, we help OEM customers develop clean, accurate, assembly-ready die cut films and adhesive materials that support stable display module production from prototype to mass production.
