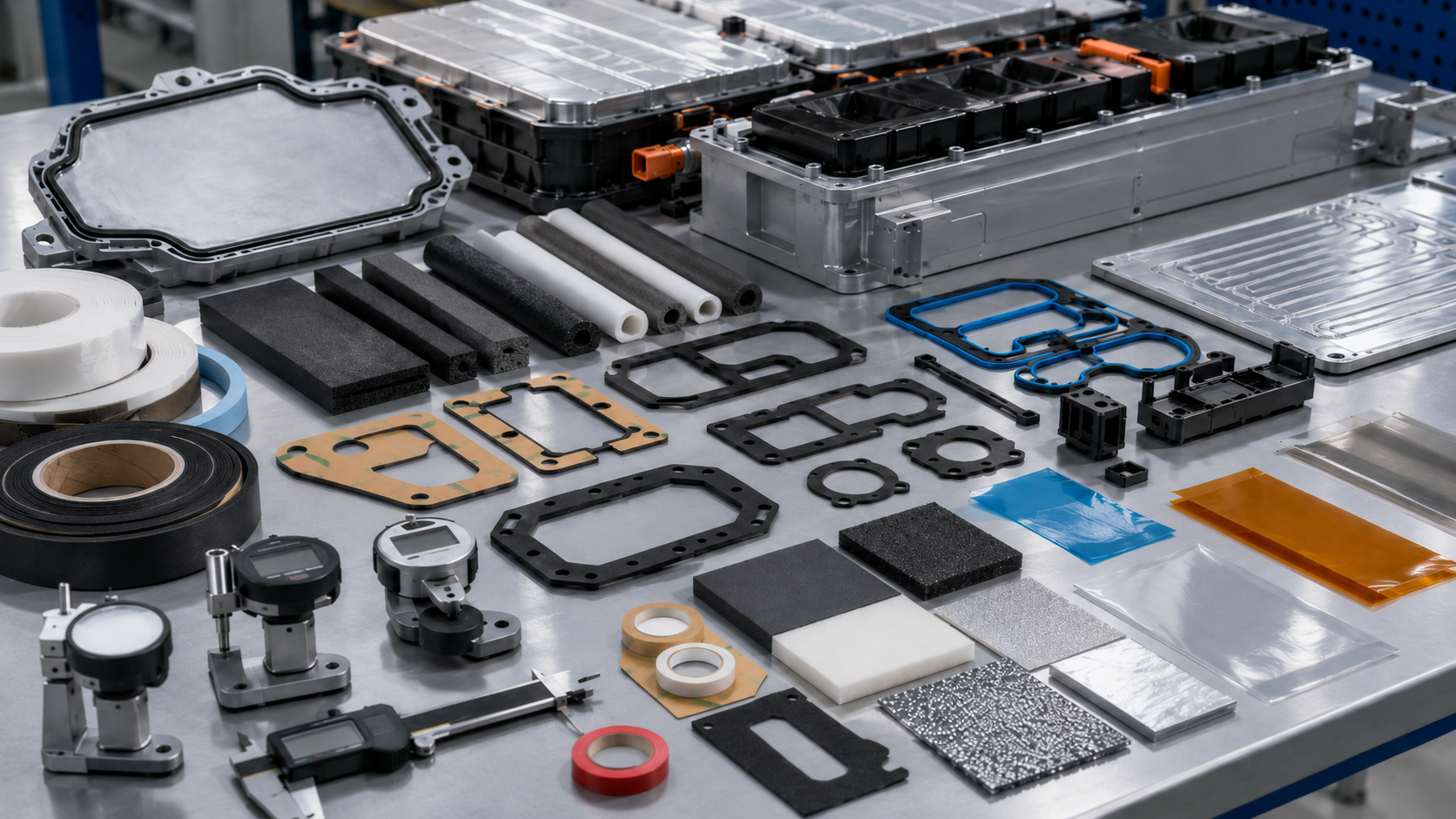

Choosing die cut gaskets and foam materials for EV battery pack sealing requires careful evaluation of sealing performance, compression behavior, environmental resistance, adhesive structure, dimensional tolerance, and long-term reliability. In electric vehicle battery systems, a small gasket failure can lead to moisture ingress, dust contamination, corrosion, insulation risk, thermal instability, or assembly failure.
For OEM engineers and purchasing teams, the right sealing solution is not simply the softest foam or the cheapest gasket. The material must maintain stable compression, resist aging, fit the battery enclosure accurately, support assembly efficiency, and perform reliably under vibration, humidity, temperature cycling, and long service life conditions.
At Sanken, we manufacture precision die cut foam gaskets, EPDM rubber seals, silicone foam seals, PET and PI insulation films, adhesive tape components, thermal insulation materials, protective films, and multilayer laminated components for EV battery packs, battery modules, BMS assemblies, automotive electronics, and charging systems.
Why EV Battery Pack Sealing Matters
EV battery packs operate in demanding environments. They are exposed to road vibration, moisture, dust, temperature changes, cleaning water, humidity, and long-term mechanical stress.
Battery pack sealing helps protect:
- Battery cells
- Battery modules
- Busbars
- Cooling plates
- BMS electronics
- High-voltage connectors
- Cable entry areas
- Junction boxes
- Battery enclosure covers
If sealing performance is poor, the battery pack may face water ingress, corrosion, electrical short risk, insulation failure, reduced thermal performance, and lower product reliability.
Main Sealing Locations in EV Battery Packs
Different battery pack areas require different gasket and foam material solutions.
| Sealing Location | Common Die Cut Solution |
|---|---|
| Battery enclosure cover | Foam gasket or rubber seal |
| Battery module housing | Compression foam gasket |
| Cooling plate interface | Foam or rubber sealing component |
| Connector area | Precision rubber or foam seal |
| Cable entry point | Foam seal or rubber gasket |
| Junction box | Adhesive-backed sealing gasket |
| BMS enclosure | Foam sealing strip |
| Vent area | Protective sealing component |
Each area has different compression, temperature, moisture, and tolerance requirements.
Choose Foam Gaskets for Compression and Gap Filling
Foam gaskets are widely used in EV battery pack sealing because they can compress and fill gaps between metal housings, covers, plastic structures, and battery modules.
Common foam materials include:
- EVA foam
- PE foam
- EPDM foam
- Silicone foam
- PU foam
- Microcellular polyurethane foam
Foam gaskets are suitable when the application needs:
- Gap filling
- Dust sealing
- Water resistance
- Compression sealing
- Vibration damping
- Tolerance compensation
- Lightweight structure
- Adhesive-backed assembly
Foam selection should consider thickness, density, compression set, recovery performance, water absorption, temperature resistance, and aging behavior.
A foam gasket that is too soft may lose sealing force. A foam gasket that is too hard may create assembly stress or make the enclosure difficult to close.
Choose EPDM Foam for Environmental Sealing
EPDM foam is commonly used for battery pack sealing because it provides good weather resistance, moisture resistance, and compression performance.
EPDM foam is suitable for:
- Battery enclosure sealing
- Outdoor automotive sealing
- Dust and water protection
- Long-term compression applications
- Sealing areas exposed to humidity and temperature changes
For EV battery packs, EPDM foam can help maintain sealing performance under road and environmental conditions. It is often selected when the project requires a practical balance of sealing, durability, and cost.
Choose Silicone Foam for Higher Temperature Areas
Silicone foam is often selected when the sealing area requires higher temperature resistance or better long-term thermal stability.
Silicone foam may be used near:
- Battery modules
- Thermal management areas
- Power electronics
- Charging-related components
- High-temperature enclosure zones
Silicone foam usually costs more than standard foam, but it may be necessary when the battery design requires stable sealing under higher temperature exposure.
Choose Rubber Gaskets for Stronger Durability
Rubber gaskets are used when the sealing part needs higher mechanical durability, stronger compression recovery, chemical resistance, or long-term environmental stability.
Common rubber materials include:
- EPDM rubber
- Silicone rubber
- NBR
- CR rubber
Rubber gaskets are often used for:
- Connector seals
- Cooling system seals
- Cable entry seals
- Junction box sealing
- Enclosure sealing areas requiring stronger pressure
Compared with foam, rubber usually provides stronger durability but may require higher compression force. Engineers should review hardness, thickness, rebound, sealing pressure, and assembly force before choosing rubber.
Compression Design Is Critical
A gasket material cannot perform well without the correct compression design.
Important compression factors include:
| Factor | Why It Matters |
|---|---|
| Gasket thickness | Controls sealing pressure and assembly gap |
| Compression ratio | Determines whether the seal is effective |
| Foam density | Affects sealing force and recovery |
| Rubber hardness | Affects assembly force and durability |
| Housing flatness | Influences sealing uniformity |
| Fastener position | Affects pressure distribution |
| Long-term compression set | Determines sealing life |
If compression is too low, the gasket may not seal. If compression is too high, the gasket may deform permanently or create excessive assembly stress.
For EV battery packs, compression should be reviewed together with the enclosure design, screw locations, cover flatness, and expected operating environment.
Adhesive-Backed Gaskets Improve Assembly Efficiency
Many EV battery pack gaskets are supplied with adhesive backing. The adhesive helps position the gasket before the cover or module is assembled.
Adhesive-backed gaskets can help:
- Improve placement accuracy
- Reduce manual alignment errors
- Prevent gasket shifting
- Support faster assembly
- Improve production consistency
- Support automated or semi-automated assembly
Common adhesive structures include:
- Single-sided adhesive backing
- Double-sided adhesive tape
- Acrylic adhesive
- High-temperature adhesive
- PET carrier adhesive
- Release liner structures
The adhesive should match the bonding surface. Battery pack surfaces may include aluminum, steel, coated metal, plastic housings, painted surfaces, or composite materials.
The adhesive is often used for positioning, while the sealing performance mainly comes from compression.
Consider Water, Dust, and Environmental Resistance
EV battery pack sealing materials must resist real vehicle environments.
Important environmental factors include:
- Water exposure
- Dust ingress
- Humidity
- Road salt
- Temperature cycling
- Chemical exposure
- Long-term aging
- Vibration
- Compression fatigue
For battery enclosure sealing, buyers should define the required sealing level, environmental test conditions, and long-term durability expectations before selecting the material.
A material that works in a basic indoor assembly may not be suitable for outdoor vehicle conditions.
Consider Thermal and Electrical Requirements
Battery sealing materials may be located near insulation films, thermal materials, busbars, cooling plates, and high-voltage areas.
In many battery assemblies, sealing parts work together with:
- PET insulation films
- PI insulation films
- Thermal insulation materials
- Thermal gap pads
- Protective films
- Adhesive tape components
- Rubber pads
- Multilayer laminated structures
The gasket material should not interfere with insulation, thermal management, or assembly clearance.
For example, a foam gasket near high-voltage components may need stable thickness and clean edges. A sealing part near thermal zones may need better temperature resistance. A gasket close to adhesive insulation films should not create contamination or assembly interference.
Die Cut Tolerance and Edge Quality
Precision die cutting is important because battery pack gaskets must fit accurately into the enclosure or module.
Important die cut quality points include:
- Outer dimension accuracy
- Hole alignment
- Slot position
- Gasket wall width
- Clean edges
- Adhesive alignment
- Liner release
- No torn foam
- No rubber burrs
- Stable thickness
- Flat packaging
Poor die cut quality may cause gasket misalignment, uneven compression, sealing gaps, adhesive lifting, or assembly delays.
For large battery enclosure gaskets, dimensional stability and packaging flatness are especially important.
Packaging Prevents Deformation Before Assembly
A well-produced gasket can still fail if packaging causes deformation.
Packaging should prevent:
- Foam compression
- Rubber deformation
- Adhesive contamination
- Liner shifting
- Dust exposure
- Twisting or curling
- Mixed parts
- Surface damage
Common packaging formats include:
- Flat sheets
- Roll format
- Tray-packed parts
- Liner-backed gaskets
- Protective bags
- Kitted sealing sets
- Assembly-ready packaging
Soft foam gaskets should not be over-compressed before use. Large gaskets should be packed to maintain shape and prevent stretching.
Quality Control Checklist for Battery Pack Gaskets
Before approving die cut gaskets and foam materials, OEM buyers should check:
| Inspection Item | Purpose |
|---|---|
| Material confirmation | Ensures approved foam or rubber is used |
| Thickness | Controls compression and sealing force |
| Outer dimensions | Confirms assembly fit |
| Hole alignment | Matches housing and fastener positions |
| Compression recovery | Supports long-term sealing |
| Compression set | Predicts sealing durability |
| Adhesive position | Improves placement accuracy |
| Liner release | Supports smooth assembly |
| Edge cleanliness | Reduces contamination |
| Surface condition | Prevents sealing defects |
| Packaging condition | Prevents deformation before use |
Common Selection Mistakes
| Mistake | Possible Result |
|---|---|
| Choosing foam only by thickness | Poor sealing or excessive assembly force |
| Ignoring compression set | Long-term sealing failure |
| Using weak adhesive on metal housing | Gasket shifting during assembly |
| Choosing rubber without checking hardness | Difficult assembly or excessive pressure |
| Ignoring temperature exposure | Material aging or deformation |
| Poor die cut tolerance | Misalignment and sealing gaps |
| Poor packaging | Gasket deformation before assembly |
| No real assembly test | Sample passes inspection but fails in use |
The best gasket selection should be based on real assembly conditions, not only material data sheets.
How Sanken Supports EV Battery Pack Sealing Projects
Sanken Manufacturing Co., Ltd. supports EV battery OEMs and Tier suppliers with precision die cut sealing solutions.
Our support includes:
- EVA foam gaskets
- PE foam seals
- EPDM foam gaskets
- Silicone foam seals
- EPDM rubber gaskets
- Silicone rubber seals
- Adhesive-backed gaskets
- PET and PI insulation films
- Thermal insulation materials
- Protective films
- Double-sided adhesive tape components
- Multilayer laminated sealing parts
- Sample development
- Quality inspection
- Assembly-ready packaging
For each project, we review sealing function, material type, thickness, compression ratio, adhesive structure, bonding surface, die cut tolerance, edge quality, packaging method, and final assembly process.
Our goal is to help customers reduce water ingress risk, dust contamination, gasket shifting, poor compression, adhesive lifting, deformation, repeated sampling, and unstable mass production.
Buyer Checklist Before Requesting Samples
To develop reliable EV battery pack sealing gaskets, buyers should provide:
- 2D drawing
- 3D structure if available
- Battery pack application
- Sealing location
- Required sealing level
- Material preference
- Thickness requirement
- Compression requirement
- Adhesive requirement
- Bonding surface
- Temperature range
- Environmental testing requirement
- Packaging format
- Expected quantity
- Existing sample if available
Clear information helps the supplier recommend a practical material and die cutting method.
FAQ
What foam materials are used for EV battery pack sealing?
Common foam materials include EVA foam, PE foam, EPDM foam, silicone foam, PU foam, and microcellular polyurethane foam, depending on sealing, compression, temperature, and durability requirements.
Is foam or rubber better for battery pack sealing?
Foam is often better for gap filling, compression sealing, and tolerance compensation. Rubber is better when stronger durability, chemical resistance, or long-term sealing pressure is required.
Why is compression important for battery gaskets?
Compression creates the sealing force. If compression is too low, leakage may occur. If compression is too high, the gasket may deform or create assembly stress.
Can EV battery gaskets be supplied with adhesive backing?
Yes. Adhesive-backed gaskets are commonly used to improve positioning accuracy and prevent gasket shifting during assembly.
What causes battery pack gasket failure?
Common causes include wrong material, poor compression design, weak adhesive, poor die cut tolerance, edge defects, temperature aging, water exposure, and packaging deformation.
Can Sanken manufacture custom EV battery pack sealing gaskets?
Yes. Sanken manufactures custom die cut foam gaskets, rubber seals, adhesive-backed gaskets, PET and PI insulation films, thermal materials, protective films, and multilayer sealing components for EV battery pack applications.
Conclusion
Choosing die cut gaskets and foam materials for EV battery pack sealing requires a complete review of material performance, compression design, environmental resistance, adhesive structure, die cut tolerance, packaging, and final assembly conditions.
Foam gaskets are useful for compression sealing, gap filling, and vibration control. Rubber gaskets provide stronger durability and long-term sealing performance. Adhesive-backed structures improve assembly efficiency. Precision die cutting ensures the gasket fits the battery enclosure accurately and performs consistently in production.
At Sanken, we help EV battery manufacturers develop custom die cut sealing components that support battery safety, environmental protection, assembly efficiency, and long-term reliability.
