EV battery packs require precision die cut materials for electrical insulation, sealing, thermal protection, cushioning, vibration control, surface protection, and assembly stability. The right material helps reduce short-circuit risk, moisture ingress, heat damage, cell movement, adhesive failure, and long-term reliability problems.
For OEM engineers and purchasing teams, material selection should not only focus on thickness or price. Each die cut component must match the battery structure, voltage requirement, temperature range, compression condition, bonding surface, flame resistance requirement, tolerance, packaging method, and production process.
At Sanken, we manufacture precision die cut PET and PI insulation films, foam gaskets, rubber pads, thermal insulation materials, adhesive tape components, protective films, non-woven cushioning materials, and multilayer laminated components for EV battery packs, battery modules, BMS assemblies, automotive electronics, and charging systems.
Why Die Cut Materials Matter for EV Battery Pack Safety
EV battery packs operate under high voltage, heat, vibration, humidity, dust, and long service life conditions. A small material failure may affect the safety and reliability of the whole battery system.
Die cut materials help provide:
- Electrical insulation
- Heat protection
- Environmental sealing
- Cell cushioning
- Vibration isolation
- Surface protection
- Component bonding
- Gap filling
- Moisture and dust protection
- Assembly positioning
If the material is not selected correctly, problems may include insulation failure, water ingress, thermal hot spots, gasket deformation, adhesive lifting, module movement, or assembly mismatch.

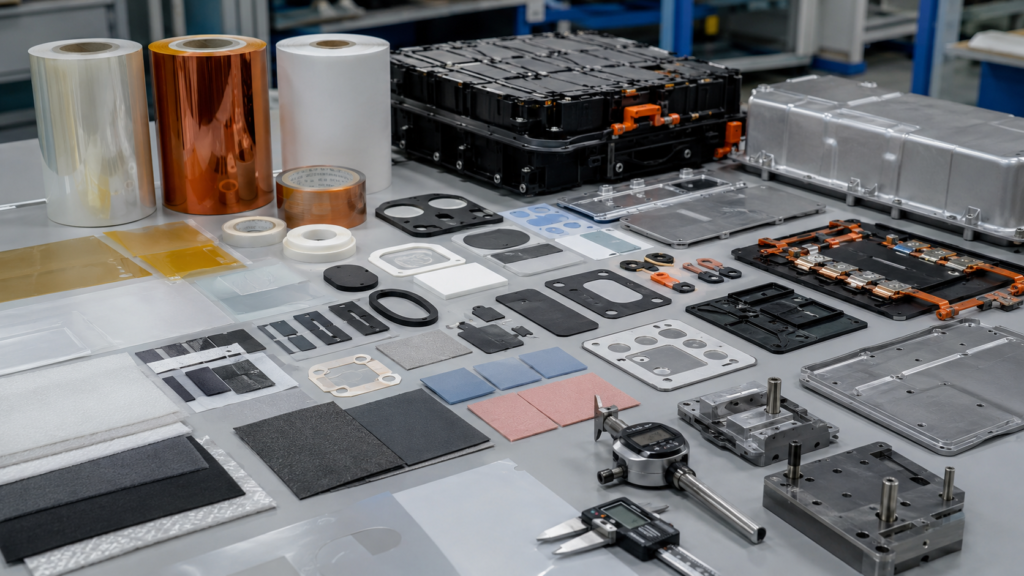

Main Die Cut Materials Used for EV Battery Safety
| Material | Main Function |
|---|---|
| PET Film | Electrical insulation and protection |
| PI Film | High-temperature insulation |
| Foam Gaskets | Sealing, cushioning, and gap filling |
| EPDM Foam | Water and dust sealing |
| Silicone Foam | High-temperature sealing |
| Rubber Pads | Damping and durable protection |
| Thermal Insulation Film | Heat isolation |
| Thermal Gap Pad | Heat transfer and gap filling |
| Double-Sided Tape | Bonding and positioning |
| Protective Film | Surface protection |
| Non-Woven Material | Cushioning and soft contact protection |
| Multilayer Laminates | Combined insulation, sealing, and protection |
Different battery areas require different material combinations.
PET and PI Films for Electrical Insulation
Electrical insulation is one of the most important functions inside EV battery packs.
PET insulation films are commonly used for:
- Cell insulation
- Module insulation
- Busbar protection
- Connector insulation
- PCB protection
- BMS assembly insulation
PI films are selected when higher temperature resistance is required, such as near busbars, flexible circuits, power electronics, charging components, or high-temperature module areas.
Important selection factors include:
- Dielectric strength
- Film thickness
- Temperature resistance
- Hole alignment
- Edge cleanliness
- Adhesive backing
- Liner release
- Packaging flatness
For battery packs, insulation films must be clean, accurate, and stable because even small burrs, particles, or misalignment may create assembly risk.
Foam Gaskets for Sealing and Cushioning
Foam gaskets are widely used for battery pack sealing, cushioning, and tolerance compensation.
Common foam materials include:
- EVA foam
- PE foam
- EPDM foam
- Silicone foam
- PU foam
- Microcellular polyurethane foam
Foam gaskets may be used for:
- Battery enclosure sealing
- Module housing sealing
- Cooling plate sealing
- Connector sealing
- Cable entry protection
- Gap filling
- Vibration cushioning
Selection factors include thickness, density, compression set, recovery performance, water resistance, temperature resistance, and aging behavior.
A foam gasket that is too soft may lose sealing force. A foam gasket that is too hard may create assembly stress or poor enclosure fit.
Rubber Pads and Seals for Durable Protection
Rubber die cut parts are used when stronger durability, damping, or sealing pressure is needed.
Common rubber materials include:
- EPDM rubber
- Silicone rubber
- NBR
- CR rubber
Rubber parts are often used for:
- Battery enclosure seals
- Connector seals
- Cable entry seals
- Cooling system seals
- Vibration damping pads
- Module support pads
Rubber usually provides better durability and compression recovery than many foam materials, but it may require higher assembly force. Engineers should review hardness, thickness, rebound, sealing pressure, and final installation conditions.
Thermal Protection Materials
Battery packs need both heat transfer and heat isolation. Thermal materials should be selected according to the battery thermal design.
Common thermal materials include:
- Thermal insulation films
- Thermal gap pads
- Silicone thermal pads
- Graphite sheets
- Adhesive-backed thermal materials
- Multilayer thermal insulation structures
Thermal gap pads help transfer heat to cooling plates. Graphite sheets help spread heat. Thermal insulation films help protect heat-sensitive areas.
Selection factors include thermal conductivity, thickness, compression behavior, electrical insulation, flame resistance, aging resistance, and assembly pressure.
The best thermal material is not always the one with the highest thermal conductivity. It must fit the real battery structure and safety requirement.
Adhesive Tape Components for Assembly Stability
Adhesive die cut parts are used to hold, position, and bond materials during battery pack assembly.
Applications include:
- Insulation film bonding
- Foam gasket positioning
- Thermal pad attachment
- Sensor mounting
- Wire harness fixing
- Protective film attachment
- Module assembly support
Common adhesive structures include acrylic adhesive, high-temperature adhesive, double-sided tape, transfer adhesive, and PET carrier tape.
The adhesive must match the bonding surface, such as aluminum, coated metal, plastic housing, PET film, PI film, rubber, or battery module surface. Liner release should also be tested because poor peeling can slow assembly or damage the part.
Protective Films for Surface Protection
Protective films help prevent scratches, dust, fingerprints, and handling damage during battery pack production.
They may be used on:
- Battery enclosure covers
- Cooling plates
- Aluminum housings
- Metal frames
- Plastic parts
- Electronic module surfaces
A good protective film should stay stable during handling and remove cleanly without leaving residue. Adhesion level, film thickness, liner release, and packaging should be reviewed before mass production.
Multilayer Die Cut Structures
Many EV battery materials are multilayer structures instead of single materials.
Examples include:
| Structure | Function |
|---|---|
| PET + Adhesive + Liner | Electrical insulation and positioning |
| PI + Adhesive + Liner | High-temperature insulation |
| Foam + Adhesive | Sealing and cushioning |
| Rubber + Adhesive | Damping and positioning |
| Thermal Pad + Adhesive | Heat transfer and placement |
| Protective Film + Tab + Liner | Surface protection and easy removal |
Multilayer converting can reduce assembly steps, but it requires accurate lamination, layer registration, cutting depth control, liner release, and clean packaging.
Key Selection Factors
When choosing die cut materials for EV battery pack safety, insulation, and protection, OEM buyers should review:
| Selection Factor | Why It Matters |
|---|---|
| Electrical insulation | Prevents high-voltage short risk |
| Temperature resistance | Supports charging and operating conditions |
| Flame resistance | Supports battery safety requirements |
| Compression performance | Affects sealing and cushioning |
| Adhesive compatibility | Prevents lifting or shifting |
| Die cut tolerance | Ensures accurate fit |
| Edge cleanliness | Reduces particles and contamination |
| Packaging method | Prevents deformation before assembly |
| Long-term aging | Supports service life reliability |
Material should be selected based on real battery structure, not only datasheet values.
Quality Control Checklist
Before approving die cut battery materials, buyers should check:
- Material confirmation
- Thickness
- Outer dimensions
- Hole and slot alignment
- Adhesive position
- Liner release
- Edge cleanliness
- Compression behavior
- Insulation quality
- Thermal material thickness
- Surface cleanliness
- Packaging condition
- Assembly fit
For EV battery projects, stable batch quality, traceability, and assembly-ready packaging are especially important.
How Sanken Supports EV Battery Pack Projects
Sanken Manufacturing Co., Ltd. supports EV battery OEMs and Tier suppliers with custom precision die cut materials.
Our support includes:
- PET insulation films
- PI insulation films
- Foam gaskets
- EPDM and silicone foam seals
- Rubber pads and seals
- Thermal insulation materials
- Thermal gap pads
- Adhesive tape components
- Protective films
- Non-woven cushioning materials
- Multilayer laminated components
- Sample development
- Quality inspection
- Assembly-ready packaging
For each project, we review material function, thickness, compression, insulation requirement, thermal requirement, adhesive structure, die cut tolerance, packaging method, and final assembly process.
Our goal is to help customers reduce insulation failure, water ingress risk, thermal hot spots, poor fit, adhesive lifting, material shifting, repeated sampling, and unstable mass production.
Buyer Checklist Before Starting a Project
To choose the right die cut materials for EV battery packs, buyers should provide:
- 2D drawing
- 3D structure if available
- Battery pack or module application
- Material preference
- Thickness requirement
- Voltage or insulation requirement
- Temperature range
- Compression requirement
- Thermal requirement
- Flame resistance requirement
- Adhesive requirement
- Bonding surface
- Environmental testing requirement
- Packaging format
- Expected quantity
- Existing sample if available
Clear information helps the supplier recommend a practical material structure and reduce unnecessary sampling cycles.
FAQ
What die cut materials are used for EV battery pack safety?
Common materials include PET insulation films, PI films, foam gaskets, rubber pads, thermal insulation films, thermal gap pads, adhesive tapes, protective films, non-woven cushioning materials, and multilayer laminates.
Why are PET and PI films used in EV battery packs?
PET and PI films provide electrical insulation and protection. PET is often used for general insulation, while PI is selected for higher temperature areas.
What foam materials are used for battery pack protection?
Common foam materials include EVA foam, PE foam, EPDM foam, silicone foam, PU foam, and microcellular polyurethane foam.
Why are thermal materials important in EV battery packs?
Thermal materials help transfer, spread, or isolate heat, improving battery safety, performance, and long-term reliability.
Can EV battery die cut parts be adhesive-backed?
Yes. PET films, PI films, foam gaskets, rubber pads, thermal materials, and protective films can be supplied with adhesive backing and release liners.
Can Sanken manufacture custom EV battery die cut materials?
Yes. Sanken manufactures custom die cut insulation films, foam gaskets, rubber seals, thermal materials, adhesive tapes, protective films, and multilayer components for EV battery packs and modules.
Conclusion
Choosing die cut materials for EV battery pack safety, insulation, and protection requires a complete review of electrical, thermal, mechanical, environmental, adhesive, and production requirements. PET and PI films provide insulation, foam gaskets support sealing and cushioning, rubber pads improve durability, thermal materials manage heat, and adhesive components improve assembly stability.
For OEM battery projects, the best material solution is often a combination of films, foams, rubber, tapes, thermal materials, protective films, and multilayer converted structures.
At Sanken, we help EV battery manufacturers develop precision die cut materials that are accurate, clean, assembly-ready, and stable from prototype to mass production.
