EV battery packs and modules use many precision die cut materials for sealing, insulation, thermal management, cushioning, bonding, vibration control, and surface protection. These components are often thin and hidden inside the battery system, but they directly affect battery safety, assembly stability, and long-term reliability.
For OEM engineers and purchasing teams, material selection should not only focus on material name. The right die cut material must match the battery structure, voltage requirement, operating temperature, compression condition, adhesive requirement, dimensional tolerance, packaging method, and mass production process.
At Sanken, we manufacture precision die cut foam gaskets, rubber seals, PET and PI insulation films, thermal management materials, adhesive tape components, protective films, non-woven cushioning materials, and multilayer laminated components for EV battery packs, battery modules, BMS assemblies, automotive electronics, and charging systems.
Why EV Battery Packs Need Die Cut Materials
EV battery systems operate under high voltage, heat, vibration, moisture, dust, and long service life requirements. Die cut materials help protect battery cells, modules, busbars, cooling plates, connectors, cables, BMS electronics, and enclosure structures.
They are commonly used to provide:
- Electrical insulation
- Environmental sealing
- Thermal management
- Gap filling
- Cushioning
- Vibration isolation
- Component bonding
- Surface protection
- Assembly positioning
- Dust and moisture prevention
A small material failure can lead to water ingress, insulation risk, thermal imbalance, poor assembly fit, or long-term reliability problems.

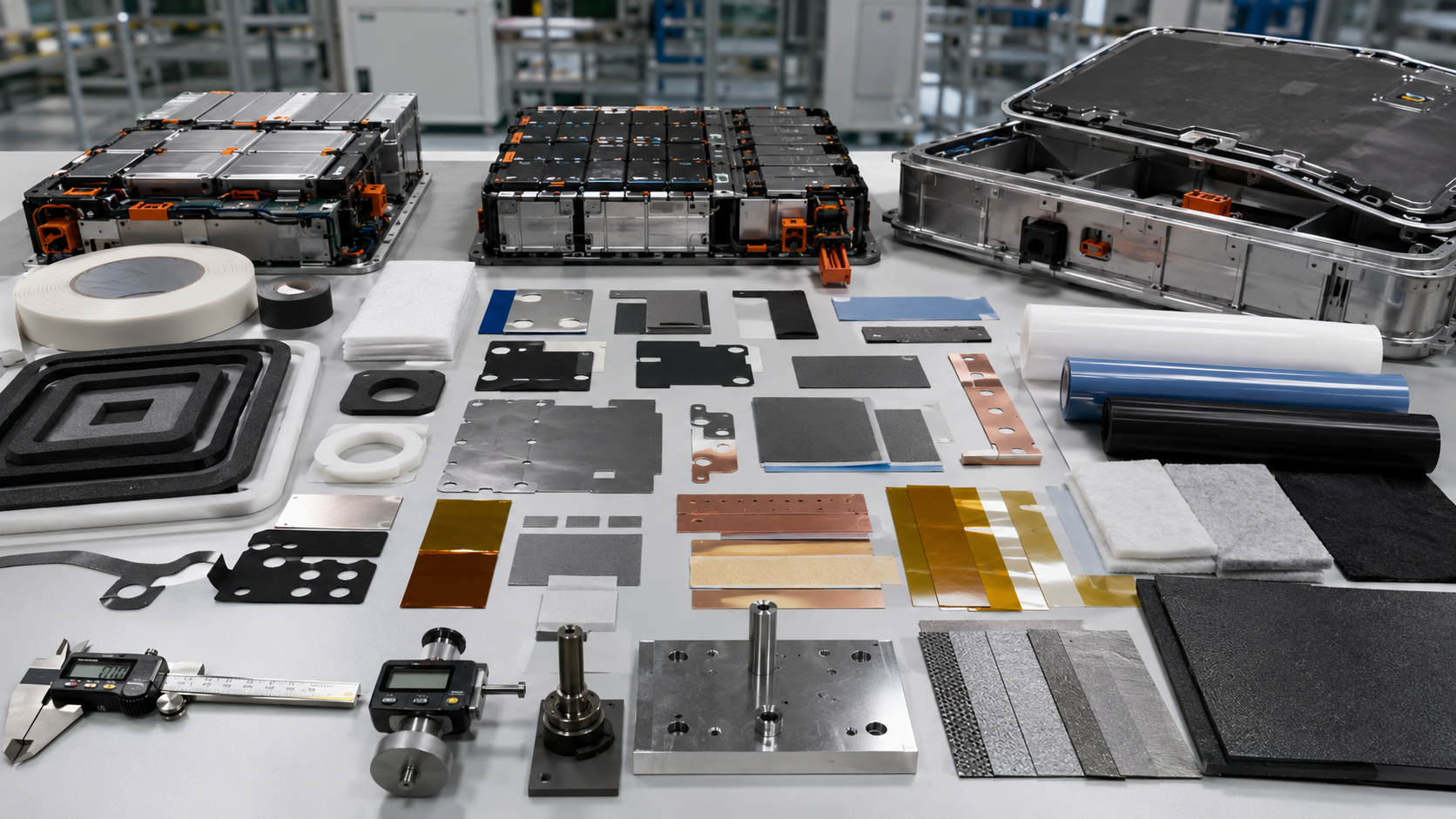

Main Die Cut Materials Used in EV Battery Packs
| Material | Main Function |
|---|---|
| EVA Foam | Cushioning and gap filling |
| PE Foam | Lightweight sealing and spacing |
| EPDM Foam | Water and dust sealing |
| Silicone Foam | High-temperature sealing |
| Rubber | Durable sealing and vibration damping |
| PET Film | Electrical insulation and protection |
| PI Film | High-temperature insulation |
| Thermal Gap Pad | Heat transfer and gap filling |
| Graphite Sheet | Heat spreading |
| Thermal Insulation Film | Heat isolation |
| Double-Sided Tape | Bonding and positioning |
| Protective Film | Surface protection |
| Non-Woven Material | Cushioning and soft protection |
| Multilayer Laminates | Combined insulation, sealing, and bonding |
Different battery areas require different material combinations.
Foam Gaskets for Sealing and Cushioning
Foam gaskets are widely used in battery packs because they can compress, fill gaps, and compensate for housing tolerance.
Common applications include:
- Battery enclosure sealing
- Battery module sealing
- Cooling plate sealing
- Junction box sealing
- Connector area sealing
- Cable entry protection
- Module cushioning
- Gap filling between components
Common foam materials include EVA foam, PE foam, EPDM foam, silicone foam, and microcellular polyurethane foam.
Foam selection should consider thickness, density, compression set, recovery performance, water resistance, temperature resistance, and long-term aging behavior. If the foam is too soft, it may lose sealing force. If it is too hard, it may create assembly stress.
Rubber Seals for Long-Term Durability
Rubber die cut materials are used when the battery system needs stronger sealing pressure, chemical resistance, or long-term durability.
Common rubber materials include:
- EPDM rubber
- Silicone rubber
- NBR
- CR rubber
Rubber seals are often used for battery enclosures, cooling systems, connector areas, cable entries, and vent structures.
Compared with foam, rubber usually provides better durability and compression recovery, but it may require higher assembly force. Engineers should review hardness, thickness, rebound, sealing pressure, and final assembly conditions.
PET and PI Films for Electrical Insulation
Electrical insulation is one of the most important functions inside EV battery packs and modules.
PET insulation films are commonly used for:
- Battery module insulation
- Cell isolation
- Busbar insulation
- Connector protection
- PCB protection
- BMS assembly insulation
PI insulation films are used when higher temperature resistance is required, such as near busbars, flexible circuits, power electronics, charging components, or high-temperature module areas.
Both PET and PI films can be die cut into custom shapes with holes, windows, slots, tabs, or adhesive backing. Clean edges, accurate hole alignment, stable thickness, and flat packaging are critical for battery assembly.
Thermal Management Materials
EV batteries generate heat during charging, discharging, fast charging, and long-term operation. Die cut thermal materials help control heat transfer, heat spreading, and heat isolation.
Common thermal management materials include:
- Thermal gap pads
- Silicone thermal pads
- Graphite thermal sheets
- Thermal insulation films
- Ceramic insulation materials
- Adhesive-backed thermal parts
Thermal gap pads help transfer heat between battery cells, modules, and cooling plates. Graphite sheets help spread heat across a wider area. Thermal insulation films help protect heat-sensitive areas.
Selection factors include thermal conductivity, thickness, compression force, electrical insulation, flame resistance, aging resistance, and assembly pressure.
Adhesive Tape Components for Bonding and Positioning
Adhesive die cut parts are used to fix, position, and support materials during battery assembly.
Common applications include:
- Insulation film bonding
- Foam gasket positioning
- Thermal pad attachment
- Sensor mounting
- Wire harness fixing
- Protective film attachment
- Module assembly support
Common adhesive materials include acrylic adhesive, high-temperature adhesive, double-sided tape, transfer adhesive, and PET carrier tape.
The adhesive must match the bonding surface, such as aluminum, coated metal, plastic housing, film, rubber, or battery module surface. Liner release is also important because poor peeling can slow assembly or damage the part.
Protective Films for Surface Protection
Protective films are used during battery pack manufacturing to prevent scratches, dust, fingerprints, and handling damage.
They may be applied to:
- Battery enclosure covers
- Cooling plates
- Aluminum housings
- Metal frames
- Plastic housings
- Electronic module surfaces
- Finished assembly areas
A suitable protective film should provide stable adhesion during handling and clean removal before final assembly. It should not leave adhesive residue or contaminate the surface.
Non-Woven and Cushioning Materials
Non-woven materials and soft cushioning layers can be used for protection, spacing, vibration reduction, and soft contact inside battery modules or related automotive electronic assemblies.
They can help:
- Reduce friction between components
- Protect surfaces from wear
- Reduce vibration noise
- Cushion sensitive areas
- Support wire harness protection
- Prevent direct hard contact
If non-woven materials are used near electronics or optical components, fiber shedding and edge cleanliness should be controlled carefully.
Multilayer Die Cut Materials
Many EV battery die cut parts are multilayer structures rather than single materials.
Examples include:
| Multilayer Structure | Function |
|---|---|
| PET + Adhesive + Liner | Electrical insulation and positioning |
| PI + Adhesive + Liner | High-temperature insulation |
| Foam + Adhesive | Sealing and cushioning |
| Rubber + Adhesive | Damping and positioning |
| Thermal Pad + Adhesive | Heat transfer and placement |
| Graphite + PET Film | Heat spreading and insulation support |
| Protective Film + Tab + Liner | Surface protection and easy removal |
Multilayer converting can reduce assembly steps and improve consistency, but it requires accurate lamination, layer alignment, kiss cutting, liner release control, and clean packaging.

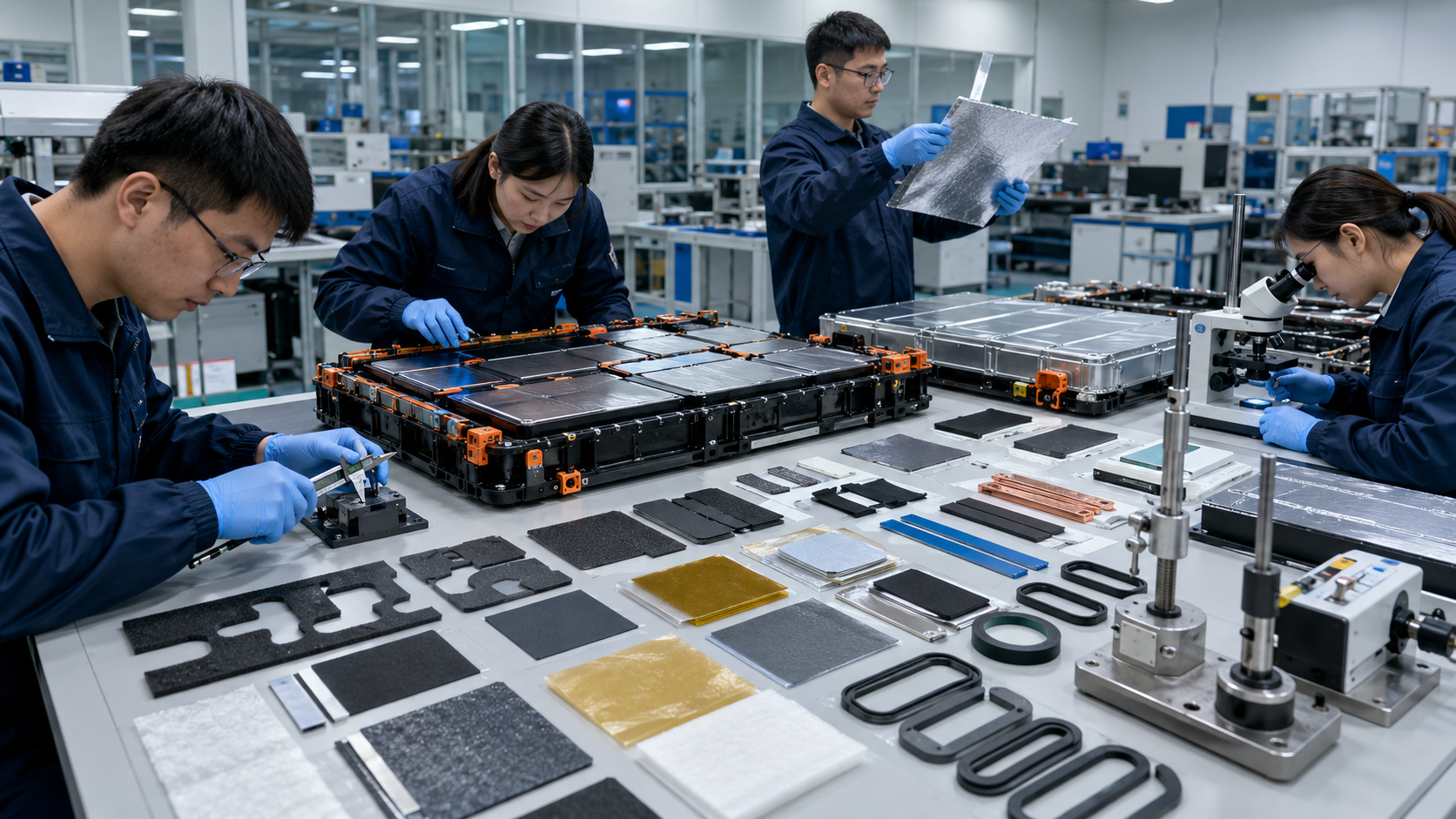

Key Selection Factors for EV Battery Die Cut Materials
When choosing die cut materials for EV battery packs and modules, OEM buyers should review:
| Selection Factor | Why It Matters |
|---|---|
| Electrical insulation | Prevents short circuits and high-voltage risks |
| Temperature resistance | Supports battery operation and charging conditions |
| Compression performance | Affects sealing, cushioning, and thermal contact |
| Flame resistance | Supports battery safety requirements |
| Adhesive compatibility | Prevents lifting, shifting, and assembly failure |
| Die cut tolerance | Ensures accurate fit and alignment |
| Edge cleanliness | Reduces particles and contamination |
| Packaging method | Prevents deformation before assembly |
| Long-term aging | Supports service life reliability |
The best material should be selected based on real battery structure and performance requirements, not only cost.

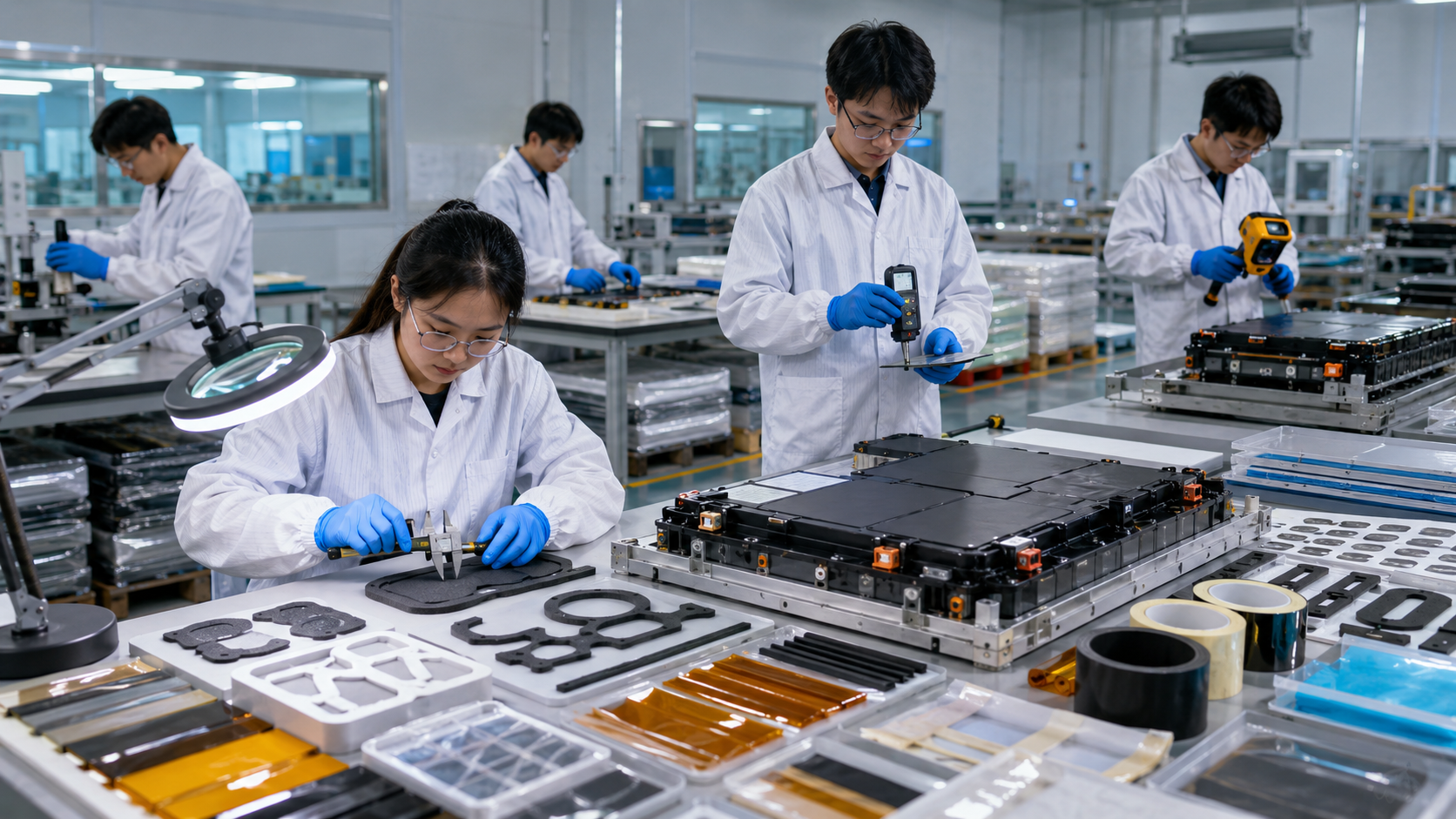

Quality Control for EV Battery Die Cut Parts
Battery applications require strict quality control because the parts are used in high-reliability systems.
Important inspection items include:
- Material confirmation
- Thickness inspection
- Outer dimension control
- Hole and slot alignment
- Adhesive position
- Liner release
- Edge cleanliness
- Compression behavior
- Insulation quality
- Thermal material thickness
- Surface cleanliness
- Packaging condition
- Assembly fit
For automotive battery projects, stable batch quality, traceability, and consistent packaging are important from sample development to mass production.
How Sanken Supports EV Battery Pack and Module Projects
Sanken Manufacturing Co., Ltd. supports EV battery OEMs and Tier suppliers with custom precision die cut materials and converting solutions.
Our support includes:
- EVA, PE, EPDM, and silicone foam gaskets
- Rubber sealing components
- PET insulation films
- PI insulation films
- Thermal gap pads
- Graphite thermal sheets
- Thermal insulation materials
- Adhesive tape components
- Protective films
- Non-woven cushioning materials
- Multilayer laminated components
- Sample development
- Quality inspection
- Assembly-ready packaging
For each project, we review material function, thickness, compression, insulation requirement, thermal requirement, adhesive structure, die cut tolerance, packaging method, and final assembly process.
Our goal is to help customers reduce water ingress risk, insulation failure, thermal hot spots, poor fit, adhesive lifting, material shifting, repeated sampling, and unstable mass production.
Buyer Checklist Before Starting a Project
To choose the right die cut materials for EV battery packs and modules, buyers should provide:
- 2D drawing
- 3D structure if available
- Battery pack or module application
- Material preference
- Thickness requirement
- Voltage or insulation requirement
- Temperature range
- Compression requirement
- Thermal management requirement
- Adhesive requirement
- Bonding surface
- Environmental testing requirement
- Packaging format
- Expected quantity
- Existing sample if available
Clear information helps the supplier recommend a practical material structure and reduce unnecessary sampling cycles.
FAQ
What die cut materials are used in EV battery packs?
Common materials include foam gaskets, rubber seals, PET insulation films, PI insulation films, thermal gap pads, graphite sheets, thermal insulation films, adhesive tapes, protective films, non-woven materials, and multilayer laminates.
Why are PET and PI films used in EV batteries?
PET and PI films provide electrical insulation and protection. PET is often used for general insulation, while PI is selected for higher temperature areas.
What foam materials are used for battery sealing?
Common foam materials include EVA foam, PE foam, EPDM foam, silicone foam, PU foam, and microcellular polyurethane foam.
Why are thermal gap pads used in battery modules?
Thermal gap pads fill gaps and help transfer heat from battery components to cooling plates or heat sinks.
Can EV battery die cut parts be adhesive-backed?
Yes. Foam gaskets, PET films, PI films, thermal materials, rubber pads, and protective films can be supplied with adhesive backing and release liners.
Can Sanken manufacture custom EV battery die cut materials?
Yes. Sanken manufactures custom die cut foam gaskets, rubber seals, PET and PI films, thermal materials, adhesive tapes, protective films, non-woven cushioning parts, and multilayer components for EV battery packs and modules.
Conclusion
EV battery packs and modules rely on many precision die cut materials to support sealing, insulation, thermal management, bonding, cushioning, vibration control, and surface protection. Foam gaskets, rubber seals, PET films, PI films, thermal pads, graphite sheets, adhesive tapes, protective films, and multilayer structures all help improve battery safety and assembly reliability.
For OEM battery projects, the right material choice should be based on electrical, thermal, mechanical, environmental, adhesive, and production requirements.
At Sanken, we help EV battery manufacturers develop precision die cut materials that are accurate, clean, assembly-ready, and stable from prototype to mass production.
