Choosing the right die cut optical films, OCA, and adhesive parts for display modules requires more than selecting a transparent film or double-sided tape. These materials affect bonding quality, light control, surface protection, insulation, spacing, cleanliness, and final assembly yield. In display modules, touch panels, automotive displays, wearable screens, sensor windows, and optical assemblies, even a small film defect can cause bubbles, light leakage, scratches, poor adhesion, dust contamination, or inspection failure.
For OEM engineers and purchasing teams, the key is to match each die cut material to the display structure, optical window, bonding surface, tolerance requirement, cleanliness level, liner release, and mass production process.
At Sanken, we support OEM customers with precision die cutting, clean material converting, adhesive lamination, PET and PI insulation films, protective films, light-blocking films, OCA-related die cut adhesive structures, double-sided tape parts, foam spacers, rubber pads, release liner parts, and multilayer converted components for display modules, electronics, automotive displays, sensors, and optical assemblies.
Why Material Selection Matters in Display Module Assembly
Display modules are compact layered systems. A complete module may include cover glass, touch panel, LCD or OLED structure, backlight unit, frame, flexible circuit, connector, sensor window, camera opening, adhesive layer, insulation film, foam spacer, rubber cushion, protective film, and housing.

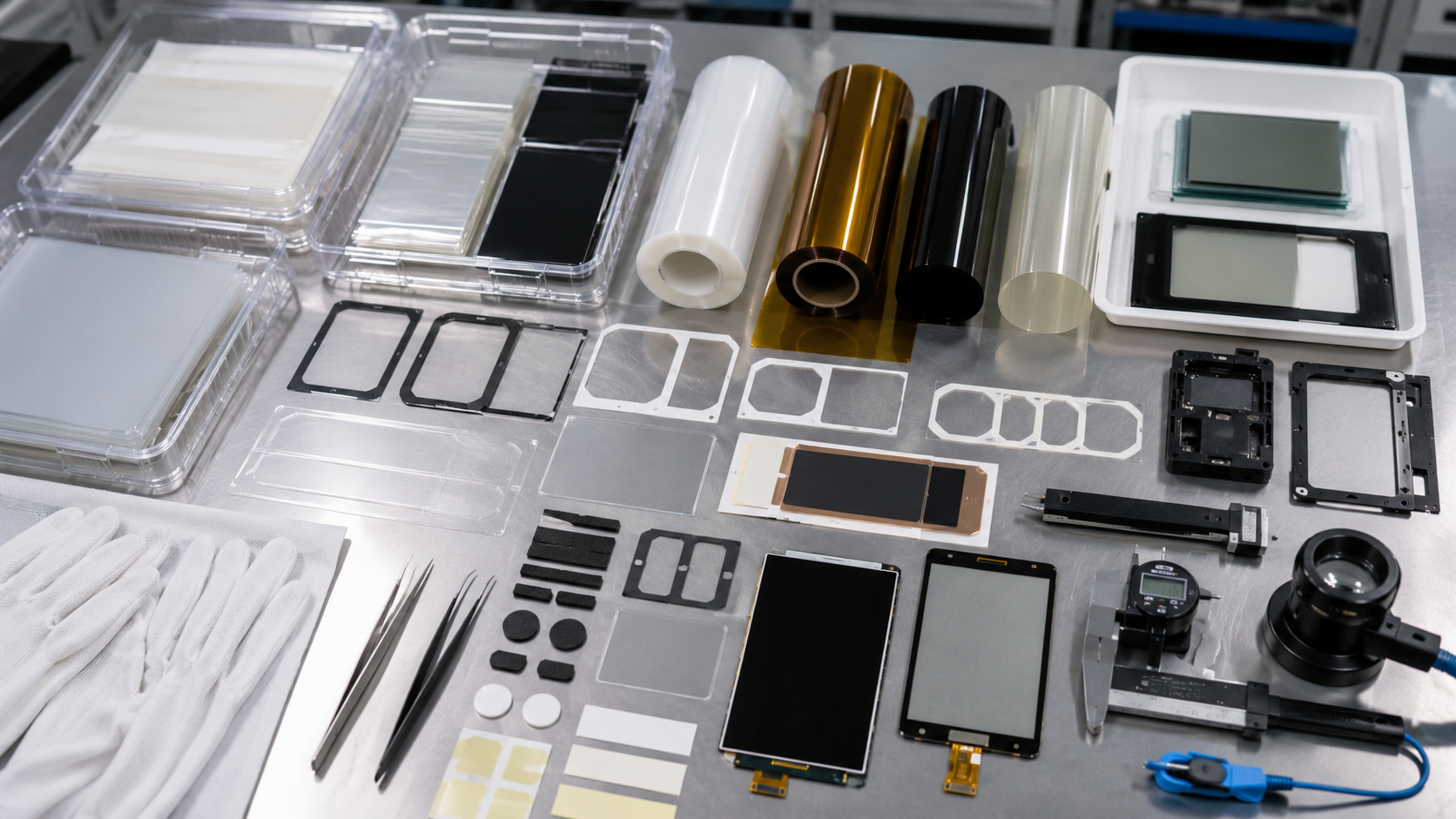

Die cut optical films and adhesive parts help these layers work together.
They are used to:
- Bond display layers and frames
- Protect display surfaces from scratches and dust
- Reduce light leakage around borders and openings
- Provide electrical insulation
- Maintain spacing between components
- Cushion fragile areas
- Support clean handling during assembly
- Improve positioning accuracy
- Protect optical windows
- Reduce vibration and rattle in automotive displays
If the material is not selected correctly, the display may look fine during early sampling but fail in mass production.
Start With the Function of the Part
Before choosing PET film, PI film, OCA, double-sided tape, protective film, foam, or rubber, first define the function of the component.
| Required Function | Common Material Choice |
|---|---|
| Transparent bonding | OCA or transparent adhesive film |
| Surface protection | Protective film |
| Electrical insulation | PET or PI film |
| Light blocking | Black PET film or shading adhesive tape |
| Bonding and positioning | Double-sided tape or adhesive film frame |
| Cushioning | Foam spacer or rubber pad |
| Gap filling | Foam gasket |
| Clean handling | Release liner or carrier film |
| Multilayer function | Laminated film, adhesive, foam, and liner structure |
A display module may need several of these materials at the same time. The correct choice depends on where the part is used and what problem it must solve.
Choosing OCA for Display Bonding
OCA, or optically clear adhesive, is used when transparent bonding is required in display and optical assemblies. It helps bond layers while maintaining optical clarity.
OCA may be used for:
- Cover glass bonding
- Touch panel bonding
- Optical window bonding
- Transparent display areas
- Sensor window structures
- Lens cover assembly
- Display repair or module assembly processes
When choosing OCA or OCA-related adhesive parts, OEM buyers should consider:
- Optical clarity
- Adhesive thickness
- Bonding surface
- Bubble control
- Dust control
- Liner release
- Die cut window accuracy
- Storage condition
- Application method
- Clean packaging
OCA parts are sensitive to dust, fingerprints, scratches, bubbles, and liner handling. A small particle in the adhesive area may become visible after bonding. For this reason, OCA-related die cut parts require clean material handling, stable liner release, accurate cutting, and protective packaging.
Choosing PET and PI Insulation Films
PET and PI films are commonly used in display modules for insulation, protection, and spacing.
PET film is often selected for general insulation, backing support, spacing, and protective structures. It is thin, stable, and suitable for many electronics applications.
PI film is selected when higher temperature resistance or more demanding insulation performance is required.
| Film Material | Typical Use | Key Selection Point |
|---|---|---|
| PET film | Insulation, spacing, support, protection | Thickness, flatness, edge quality |
| PI film | Heat-resistant insulation | Temperature requirement and cost |
| PC film | Support or optical-related structures | Stiffness and appearance |
| Protective film | Temporary surface protection | Adhesion level and residue control |
| Black film | Light blocking and shading | Opacity and dimensional accuracy |
For PET and PI films, die cut quality is critical. Poor cutting may create burrs, particles, curling, or hole misalignment. In compact display modules, these defects can create assembly problems.
Choosing Light-Blocking Films
Light leakage is a common issue in display modules, automotive screens, sensor windows, camera holes, and backlight areas. Black die cut films and light-blocking adhesive materials help control unwanted light.
They are commonly used around:
- Display borders
- Backlight edges
- Camera holes
- Sensor windows
- LED areas
- Wearable optical windows
- Automotive display bezels
- Touch panel edges
The film must be cut accurately. If the light-blocking frame is too narrow, light leakage may remain. If it is too wide, it may block the active display or optical sensing area.
Important selection points include opacity, thickness, adhesive backing, edge cleanliness, dimensional tolerance, and packaging cleanliness.
Choosing Double-Sided Adhesive Parts
Double-sided adhesive parts are used for bonding, positioning, sealing, and layer fixation. They may bond glass, plastic frames, metal brackets, backlight units, display layers, or sensor housings.
Common adhesive structures include:
- Thin double-sided tape
- PET carrier double-sided tape
- Transfer adhesive
- Black double-sided tape
- Foam adhesive tape
- Adhesive film frames
- Liner-backed adhesive components
Important control points include:
| Control Point | Why It Matters |
|---|---|
| Adhesive thickness | Affects bonding gap and flatness |
| Bonding strength | Prevents lifting or shifting |
| Surface compatibility | Matches glass, plastic, metal, or coating |
| Die cut accuracy | Controls border and window alignment |
| Adhesive overflow | Prevents contamination |
| Liner release | Improves operator handling |
| Kiss cutting depth | Prevents liner damage |
| Packaging flatness | Reduces curling and bubbles |
Adhesive selection must match the bonding surface. Glass, PC, ABS, coated plastic, painted metal, and textured surfaces may require different adhesive solutions.
Choosing Protective Films
Protective films are used during production, shipping, and final assembly to prevent scratches, dust, fingerprints, and handling damage.
They are commonly applied to:
- Cover glass
- Touch panels
- Lens covers
- Coated surfaces
- Display frames
- Plastic housings
- Backlight surfaces
- Optical windows
A good protective film should have stable adhesion, easy removal, clean surface quality, accurate shape, no residue, no bubbles, and suitable pull tab design.
If adhesion is too low, the film may fall off too early. If adhesion is too high, it may leave residue or become difficult to remove. For display modules, this balance is very important.
Foam Spacers and Rubber Pads in Display Modules
Display module assembly often uses foam and rubber parts together with optical films and adhesives.
Foam spacers are used for cushioning, gap filling, dust sealing, and compression support. Rubber pads are used for damping, shock absorption, stable contact, and vibration reduction.
Typical applications include:
- Display frame cushioning
- Backlight support
- Sensor module spacing
- Camera module protection
- Automotive display anti-rattle support
- Housing contact protection
- Gap filling between frame and module
Foam and rubber selection should consider thickness, density, compression force, hardness, rebound, adhesive backing, and long-term aging behavior.
If foam is too soft, it may not support the module. If it is too hard, it may create pressure marks. If rubber is too thick, it may interfere with assembly.
Liner Release and Handling Are Critical
For die cut OCA, adhesive films, double-sided tape frames, and small optical film parts, liner release directly affects assembly efficiency.
Poor liner release can cause:
- Film stretching
- Adhesive edge damage
- Dust contamination
- Misalignment during application
- Operator handling problems
- Part deformation
- Adhesive lifting
To improve handling, the supplier may recommend pull tabs, split liners, extended liners, carrier films, sheet formats, or roll formats based on the customer’s assembly process.
Liner design should be discussed before mass production, not after operators find peeling problems on the assembly line.
Cleanliness and Packaging Requirements
Display module materials require clean handling. Dust, fibers, scratches, particles, static, and adhesive strings can cause visible defects or bonding problems.
Important cleanliness controls include:
- Clean material handling
- Sharp tooling
- Stable waste removal
- Surface inspection
- Anti-static handling
- Clean trays or bags
- Protective liners
- Controlled stacking
- Packaging that prevents curling and scratches
Packaging should protect the part until it reaches the assembly line. Thin films should remain flat. Adhesive frames should stay clean. Foam should not be over-compressed. Protective films should not be scratched.

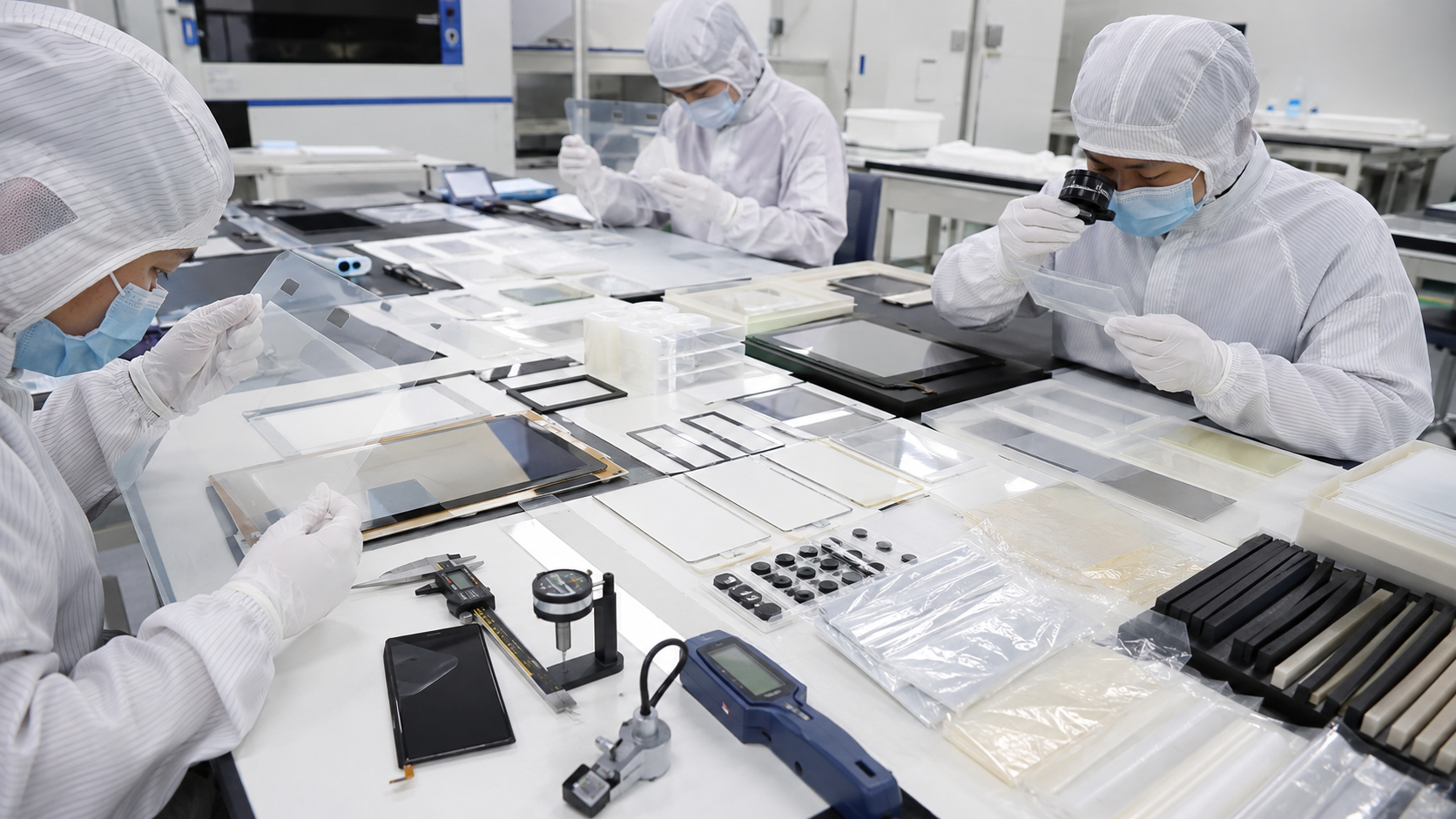

Quality Control Checklist
Before approving die cut optical films, OCA, and adhesive parts, OEM buyers should confirm these inspection items:
| Inspection Item | Purpose |
|---|---|
| Outer dimension | Confirms fit inside module |
| Optical window position | Prevents display or sensor interference |
| Hole alignment | Matches posts, screws, connectors, and fixtures |
| Material thickness | Controls spacing and bonding gap |
| Film flatness | Prevents bubbles and lifting |
| Surface scratches | Protects display appearance |
| Dust and particles | Reduces optical defects |
| Edge cleanliness | Prevents burrs and contamination |
| Adhesive overflow | Avoids assembly problems |
| Liner release | Supports smooth application |
| Foam compression | Confirms spacing and support |
| Packaging condition | Prevents damage before use |
How Sanken Supports Display Module Material Projects
Sanken Manufacturing Co., Ltd. supports OEM customers with die cut optical films, OCA-related adhesive structures, double-sided tape parts, protective films, PET and PI insulation films, foam spacers, rubber pads, and multilayer converted materials.
Our support includes:
- Material selection review
- Adhesive lamination
- Precision die cutting
- Kiss cutting and through cutting
- Protective film converting
- Light-blocking film components
- PET and PI insulation films
- Foam and rubber converted parts
- Release liner and carrier film design
- Sample development
- Quality inspection
- Assembly-ready packaging
For each project, we review material function, thickness, adhesive structure, optical window position, bonding surface, liner release, edge cleanliness, dust risk, packaging method, and final assembly process.
Our goal is to help customers reduce bubbles, light leakage, scratches, adhesive lifting, poor liner release, dust contamination, film curling, misalignment, repeated sampling, and unstable mass production.
Buyer Checklist Before Starting a Project
Before requesting samples or quotation, buyers should prepare:
- 2D drawing
- Display module application
- Material preference
- Adhesive requirement
- Film thickness
- OCA thickness if applicable
- Optical window location
- Display active area
- Bonding surface
- Critical dimensions
- Cleanliness requirement
- Liner preference
- Packaging method
- Assembly method
- Expected quantity
- Sample or reference part if available
Clear information helps the supplier recommend the correct material structure and reduce unnecessary trial-and-error.
FAQ
What is OCA used for in display modules?
OCA is used for transparent bonding in display modules, touch panels, cover glass assemblies, sensor windows, and optical areas where clarity and clean adhesion are important.
What films are commonly used in display module assembly?
Common films include PET films, PI films, protective films, black light-blocking films, transparent adhesive films, release liners, and multilayer laminated film structures.
How do I choose between PET and PI film?
PET is commonly used for general insulation, spacing, and protection. PI is usually selected when higher temperature resistance or stronger insulation performance is required.
Why are light-blocking films used in display modules?
Light-blocking films help prevent unwanted light leakage around display borders, camera holes, sensor windows, LED areas, and backlight edges.
Why is liner release important for adhesive parts?
Good liner release helps operators peel and apply parts smoothly without stretching the film, damaging adhesive edges, or causing misalignment.
Can Sanken support die cut optical films, OCA, and adhesive parts?
Yes. Sanken supports precision die cut optical films, OCA-related adhesive structures, PET and PI films, protective films, light-blocking films, double-sided tape parts, foam spacers, rubber pads, and multilayer converted components for display modules.
Conclusion
Choosing die cut optical films, OCA, and adhesive parts for display modules requires careful review of material function, optical clarity, adhesive behavior, film thickness, bonding surface, tolerance, cleanliness, liner release, and packaging. These thin components directly affect display appearance, assembly yield, and product reliability.
For OEM display projects, the best solution is not always one material. It is often a combination of OCA, PET film, PI film, protective film, light-blocking film, double-sided tape, foam spacer, rubber pad, liner, and multilayer converted structures.
At Sanken, we help OEM customers develop clean, accurate, assembly-ready die cut optical films and adhesive components that support stable display module production from prototype to mass production.
