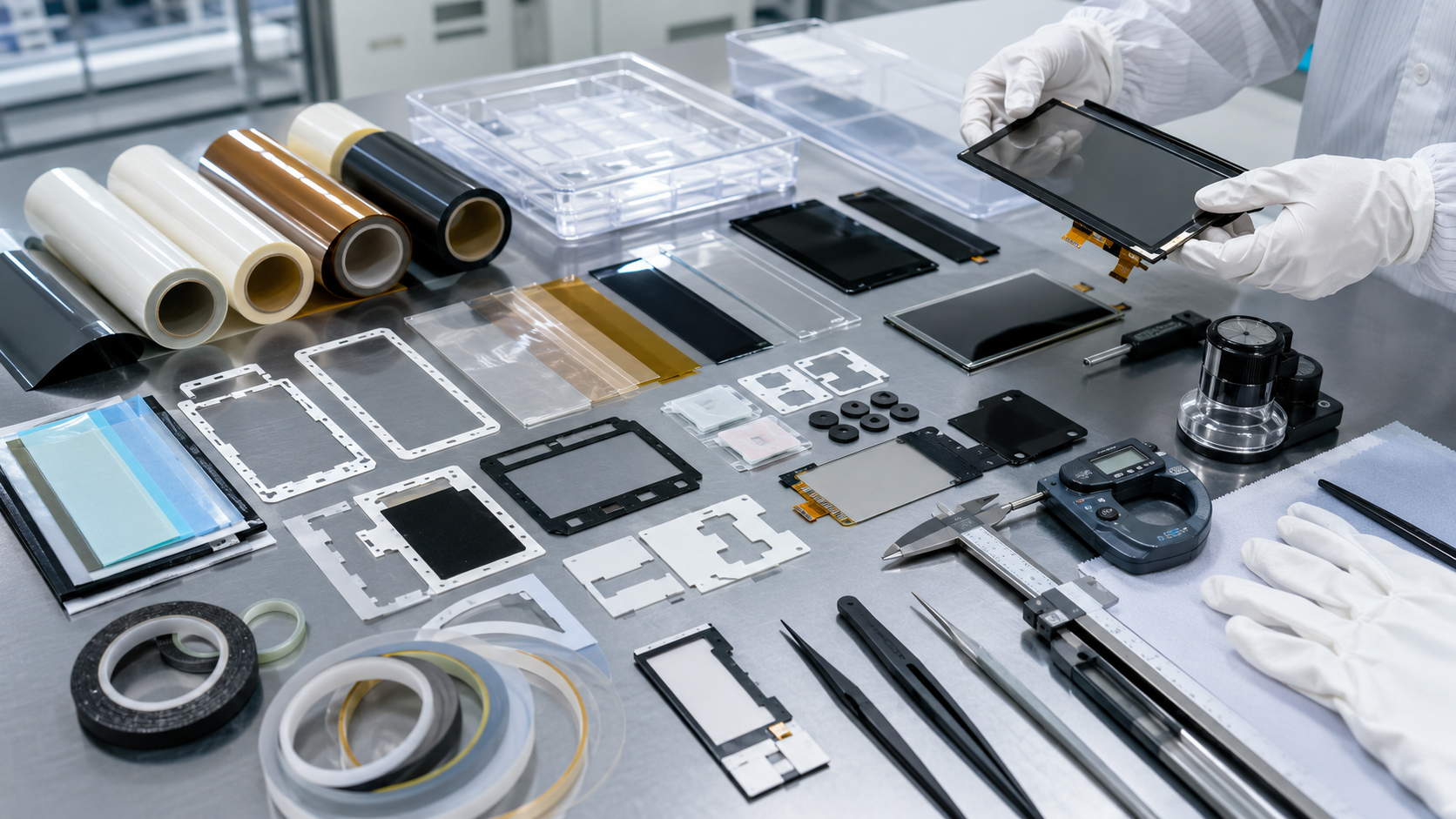

Die cut films and adhesive materials are widely used in display module assembly for surface protection, bonding, light blocking, electrical insulation, spacing, cushioning, dust control, and assembly support. In smartphones, tablets, automotive displays, wearable devices, industrial control panels, medical screens, and consumer electronics, these thin converted materials help improve display appearance, assembly accuracy, and production yield.
Although these parts are often small and thin, they are critical to the final product. A display module may fail inspection because of dust, bubbles, scratches, light leakage, adhesive overflow, poor liner release, film curling, or hole misalignment. For OEM engineers and purchasing teams, choosing the right die cut films and adhesive materials is not only about material name. It is about matching the material to the display structure, bonding surface, optical area, tolerance, cleanliness requirement, and assembly method.
At Sanken, we support OEM customers with precision die cutting, adhesive lamination, PET and PI insulation films, protective films, light-blocking films, double-sided adhesive tape parts, foam spacers, rubber pads, release liner structures, and multilayer converted components for display modules, optical modules, sensors, automotive electronics, and consumer electronics.
Why Display Modules Need Die Cut Films and Adhesives
Display modules are layered assemblies. A typical display may include glass, touch panel, polarizer, backlight unit, optical films, frame, adhesive layer, insulation film, flexible circuit, connector, housing, foam spacer, rubber cushion, and protective film.
Die cut films and adhesive materials help these layers work together.
They are commonly used to:
- Protect display surfaces from scratches and dust
- Bond glass, frames, films, and housings
- Block unwanted light leakage
- Provide electrical insulation
- Maintain spacing between components
- Cushion fragile areas
- Support clean assembly handling
- Improve alignment accuracy
- Reduce vibration and rattle
- Protect optical windows during production
If these materials are not selected and converted correctly, the display may face appearance defects, functional problems, or assembly delays.
Protective Films for Display Surface Protection
Protective films are one of the most common die cut film materials used in display module assembly. They are applied to display glass, touch panels, plastic frames, lens covers, coated surfaces, and finished display areas to prevent scratches, fingerprints, dust, and handling damage.
Important requirements include:
| Requirement | Why It Matters |
|---|---|
| Clean surface | Prevents visible defects |
| Stable adhesion | Keeps the film in place during handling |
| Easy removal | Improves assembly efficiency |
| No residue | Protects final surface quality |
| Accurate die cut shape | Prevents interference with assembly |
| Pull tab design | Helps operators remove film cleanly |
| Good liner release | Reduces stretching and damage |
| Proper packaging | Prevents dust, curling, and scratches |
A protective film should not be too strong or too weak. If adhesion is too low, the film may fall off during production. If adhesion is too high, it may leave residue or become difficult to remove.
For OEM display projects, protective films may need custom holes, windows, pull tabs, or liner-backed sheet formats.
PET Films for Insulation and Support
PET film is widely used in display module assembly because it is thin, stable, lightweight, and suitable for many insulation and protection applications.
PET die cut films are commonly used for:
- Electrical insulation
- Connector area protection
- Backing support
- Spacing layers
- Protective film structures
- Battery-related display electronics
- Display frame insulation
- Sensor module support
PET film parts often require accurate holes, clean edges, stable thickness, and good flatness. Poor cutting may create burrs, particles, or dimensional variation. In compact display modules, even a small misalignment may affect assembly.
PET films can also be laminated with adhesive to create adhesive-backed insulation films or positioning components.
PI Films for Heat-Resistant Insulation
PI film is used when the display module or electronic assembly requires higher heat resistance or stronger insulation performance.
Common PI film applications include:
- Flexible circuit protection
- Connector insulation
- High-temperature area protection
- Automotive display electronics
- Sensor module insulation
- Battery-related display assemblies
- Thin die cut insulation parts
PI film is usually selected when standard PET film may not meet the temperature or insulation requirement. However, because PI is often more costly than PET, it should be chosen based on real application needs.
For OEM projects, Sanken can help review whether PET or PI is more suitable based on thickness, heat exposure, electrical insulation needs, assembly space, and cost target.
Black Light-Blocking Films and Shading Materials
Light leakage is a common issue in display modules. Black die cut films, shading films, and light-blocking adhesive materials are used to control unwanted light around borders, camera holes, sensor windows, LED areas, and backlight structures.
They are commonly used in:
- Display border frames
- Backlight edges
- Camera openings
- Sensor windows
- Automotive display bezels
- Wearable display modules
- Touch panel edges
- Optical module frames
Light-blocking films must be accurately die cut. If the film is too narrow, light leakage may remain. If it is too wide, it may block the active display or optical area.
Edge cleanliness is also critical. Rough edges, dust, or particles near optical areas may cause visible defects or inspection rejection.
Double-Sided Adhesive Tapes
Double-sided adhesive tapes are used for bonding, positioning, sealing, and layer fixation in display modules. They may bond glass, plastic frames, metal brackets, backlight units, touch panels, sensor housings, or display frames.
Common types include:
- Thin double-sided tape
- PET carrier double-sided tape
- Transfer adhesive
- Black double-sided tape
- Foam tape
- Adhesive film frames
- Liner-backed adhesive components
Key control points include:
| Control Point | Why It Matters |
|---|---|
| Adhesive thickness | Affects gap, bonding, and flatness |
| Bonding strength | Prevents lifting or shifting |
| Surface compatibility | Matches glass, plastic, metal, or coating |
| Die cut accuracy | Controls window and border alignment |
| Adhesive overflow | Prevents contamination |
| Liner release | Improves assembly speed |
| Kiss cutting depth | Prevents liner damage |
| Packaging flatness | Prevents curling and bubbles |
Adhesive selection should match the bonding surface. Glass, PC, ABS, painted metal, coated plastic, and textured surfaces may require different adhesive structures.
Optically Clear Adhesive and Transparent Bonding Films
Some display modules use optically clear adhesive materials or transparent bonding films for display bonding and optical assembly. These materials are used when transparency, clean bonding, and low visual distortion are important.
They may be used in:
- Touch panel bonding
- Cover glass assembly
- Transparent display areas
- Optical window bonding
- Sensor window structures
- Lens cover assembly
These materials require careful handling because dust, bubbles, wrinkles, scratches, or adhesive contamination may become visible in the final display.
For transparent adhesive materials, cleanliness, film flatness, liner release, and packaging protection are extremely important.
Foam Adhesive Tapes and Foam Spacers
Foam adhesive tapes and foam spacers are used when the display module needs cushioning, gap filling, compression support, dust sealing, or vibration reduction.
Common applications include:
- Display frame cushioning
- Backlight support
- Gap filling between housing and module
- Automotive display anti-rattle support
- Sensor or camera module spacing
- Dust sealing around openings
- Shock absorption for fragile components
Foam selection should consider thickness, density, compression force, recovery, adhesive backing, and long-term compression behavior.
If the foam is too soft, it may not support the module. If it is too hard, it may create stress on the display. If the thickness is incorrect, the module may not close properly or may create pressure marks.
Release Liners and Carrier Films
Release liners and carrier films are not usually part of the final product, but they strongly affect assembly efficiency.
They help support:
- Clean handling
- Accurate peeling
- Kiss-cut part delivery
- Multi-part sheet format
- Automated or manual application
- Adhesive protection
- Part stability during shipping
- Assembly-ready packaging
Poor liner release can cause serious problems. If the adhesive part is hard to peel, operators may stretch the film, damage the adhesive edge, contaminate the part, or misalign it during application.
For small display film frames and adhesive components, liner design can directly affect production yield.
Multilayer Laminated Film and Adhesive Structures
Many display module components are not single-layer materials. They often combine film, adhesive, foam, liner, black shading material, or insulation film.
Examples include:
| Structure | Typical Function |
|---|---|
| PET film + adhesive + liner | Insulation and positioning |
| Black film + adhesive + liner | Light-blocking frame |
| Protective film + pull tab + liner | Surface protection |
| Foam + adhesive + liner | Cushioning and sealing |
| PI film + adhesive + liner | Heat-resistant insulation |
| Transparent film + adhesive | Optical window bonding |
| PET carrier + double-sided adhesive | Stable bonding frame |
Multilayer converting requires accurate lamination, registration, cutting depth control, waste removal, liner release, and packaging. A small layer shift may cause assembly mismatch or optical defects.
How to Choose the Right Material
The best film or adhesive material depends on the function required in the display module.
| Function Needed | Common Material Choice |
|---|---|
| Surface protection | Protective film |
| Electrical insulation | PET or PI film |
| Light blocking | Black PET film or shading tape |
| Bonding | Double-sided tape or adhesive film |
| Transparent bonding | Optically clear adhesive material |
| Cushioning | Foam tape or foam spacer |
| Gap filling | Foam gasket |
| Vibration damping | Rubber pad or foam pad |
| Clean handling | Release liner or carrier film |
| Multilayer function | Laminated film and adhesive structure |
A good supplier should review the drawing, bonding surface, optical window, display active area, thickness, tolerance, cleanliness requirement, and packaging before recommending a material.

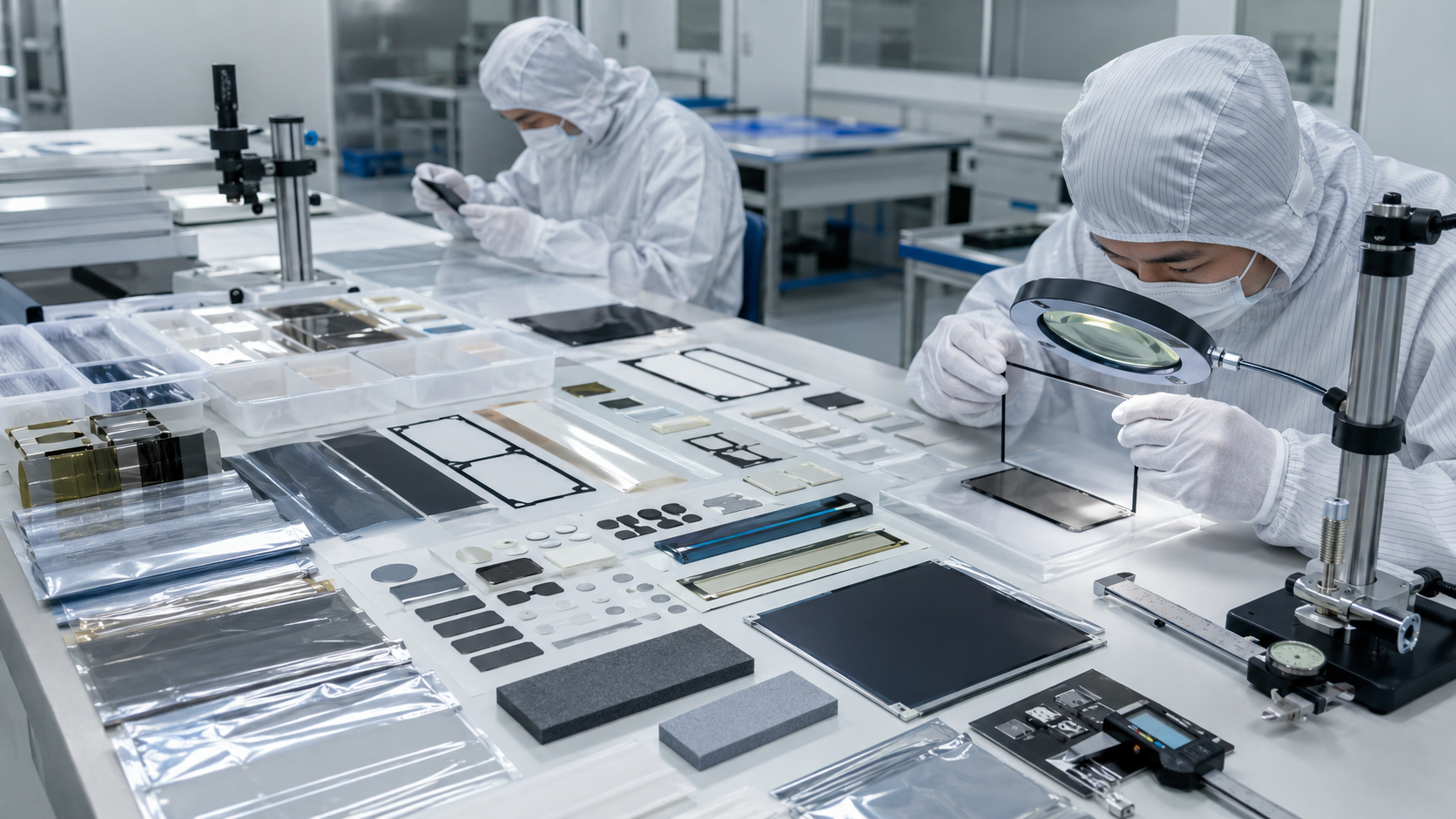

Quality Control for Die Cut Films and Adhesives
Display module materials require strict quality control because defects can directly affect appearance and assembly yield.
Important inspection items include:
- Outer dimensions
- Hole and window alignment
- Material thickness
- Film flatness
- Surface scratches
- Dust and particles
- Edge cleanliness
- Adhesive overflow
- Liner release
- Foam compression
- Rubber hardness if rubber pads are used
- Film curling
- Packaging condition
- Assembly fit
Critical-to-quality areas should be defined before production. These may include display active areas, optical windows, camera holes, sensor openings, adhesive borders, connector clearances, and visible surfaces.
Common Problems and How to Prevent Them
| Problem | Possible Cause | Prevention |
|---|---|---|
| Bubbles | Dust, poor flatness, wrong adhesive | Improve cleanliness and adhesive selection |
| Light leakage | Incorrect shading film size | Review optical border tolerance |
| Scratches | Poor handling or packaging | Use clean handling and protective packaging |
| Adhesive overflow | Wrong cutting depth or adhesive structure | Control lamination and die cutting |
| Hard peeling | Poor liner release | Select proper liner and tab design |
| Film curling | Material stress or packaging issue | Control storage and packaging |
| Misalignment | Poor registration or tooling | Define critical dimensions |
| Particles | Rough edges or poor waste removal | Use sharp tooling and clean inspection |
Most problems can be reduced by reviewing material structure, lamination, die cutting method, liner release, packaging, and assembly process before mass production.
How Sanken Supports Display Module Assembly Materials
Sanken Manufacturing Co., Ltd. supports OEM customers with precision die cut films and adhesive materials for display module assembly.
Our support includes:
- PET insulation films
- PI insulation films
- Protective films
- Black light-blocking films
- Adhesive film frames
- Double-sided tape components
- Foam adhesive tapes
- Foam spacers
- Rubber pads
- Release liner structures
- Multilayer laminated components
- Sample development
- Quality inspection
- Assembly-ready packaging
For each project, we review material function, thickness, adhesive structure, liner release, hole alignment, optical window position, edge cleanliness, dust risk, packaging method, and final assembly process.
Our goal is to help customers reduce bubbles, light leakage, scratches, adhesive lifting, poor liner release, dust contamination, film curling, misalignment, and unstable mass production.
What Buyers Should Provide Before Starting a Project
To select the right die cut film or adhesive material, OEM buyers should provide:
- 2D drawing
- Display module application
- Film material preference
- Adhesive requirement
- Thickness requirement
- Optical window position
- Display active area
- Bonding surface
- Critical dimensions
- Cleanliness requirement
- Liner preference
- Packaging method
- Assembly method
- Expected quantity
- Sample or reference part if available
Clear information helps the supplier recommend the correct material structure and reduce repeated sampling.
FAQ
What die cut films are used in display module assembly?
Common die cut films include PET films, PI films, protective films, black light-blocking films, transparent bonding films, release liners, and multilayer laminated film structures.
What adhesive materials are used in display modules?
Common adhesive materials include double-sided tape, transfer adhesive, PET carrier tape, black adhesive tape, foam tape, adhesive film frames, and optically clear adhesive materials.
Why are black adhesive films used in displays?
Black adhesive films are used to bond components while also reducing light leakage around display borders, camera holes, sensor windows, LED areas, and backlight edges.
Why is liner release important for adhesive die cut parts?
Good liner release helps operators peel parts cleanly without stretching the film, damaging adhesive edges, or causing misalignment during assembly.
Why do display adhesive parts fail?
They may fail because of dust, adhesive overflow, poor surface compatibility, incorrect adhesive strength, hard liner release, film curling, poor die cut accuracy, or bad packaging.
Can Sanken support die cut films and adhesive materials for display modules?
Yes. Sanken supports PET and PI films, protective films, light-blocking films, adhesive tape parts, foam spacers, rubber pads, release liner structures, and multilayer converted components for display module assembly.
Conclusion
Die cut films and adhesive materials are essential in display module assembly. They provide surface protection, bonding, light blocking, insulation, spacing, cushioning, dust control, and assembly support. The right material choice can improve display appearance, reduce assembly defects, and support stable OEM production.
For display module projects, material selection must consider film thickness, adhesive behavior, optical window position, bonding surface, cleanliness, liner release, die cut tolerance, packaging, and final assembly method.
At Sanken, we help OEM customers develop precision die cut films and adhesive materials that are clean, accurate, assembly-ready, and stable from prototype to mass production.
