Die cut optical films are used in display modules for surface protection, light control, bonding, insulation, spacing, dust prevention, and assembly support. In smartphones, tablets, automotive displays, wearable devices, industrial control panels, medical displays, and consumer electronics, these thin film components help improve display appearance, assembly accuracy, and long-term reliability.
Although optical films may look simple, they often have strict requirements for thickness, transparency, adhesive position, hole alignment, edge cleanliness, liner release, dust control, and packaging. A small scratch, particle, burr, adhesive overflow, or misalignment may lead to bubbles, light leakage, poor bonding, display defects, or final inspection failure.
At Sanken, we support OEM customers with precision die cutting, PET and PI insulation films, protective films, light-blocking films, adhesive film frames, foam spacers, rubber pads, double-sided tape components, and multilayer converted materials for display modules, electronics, automotive displays, sensors, and optical assemblies.
Why Display Modules Need Die Cut Optical Films
Display modules are compact, layered assemblies. A complete display structure may include glass, touch panel, backlight unit, polarizer, optical film, adhesive layer, frame, housing, insulation film, foam spacer, rubber pad, and protective film.
Die cut optical films help these layers fit and function properly.
They are commonly used to:
- Protect glass and display surfaces
- Block unwanted light leakage
- Bond display layers and frames
- Provide electrical insulation
- Support spacing and cushioning
- Protect sensitive optical windows
- Improve handling during assembly
- Reduce dust and scratch risk
- Support clean and repeatable production
For OEM production, these functions directly affect yield, appearance, and customer acceptance.

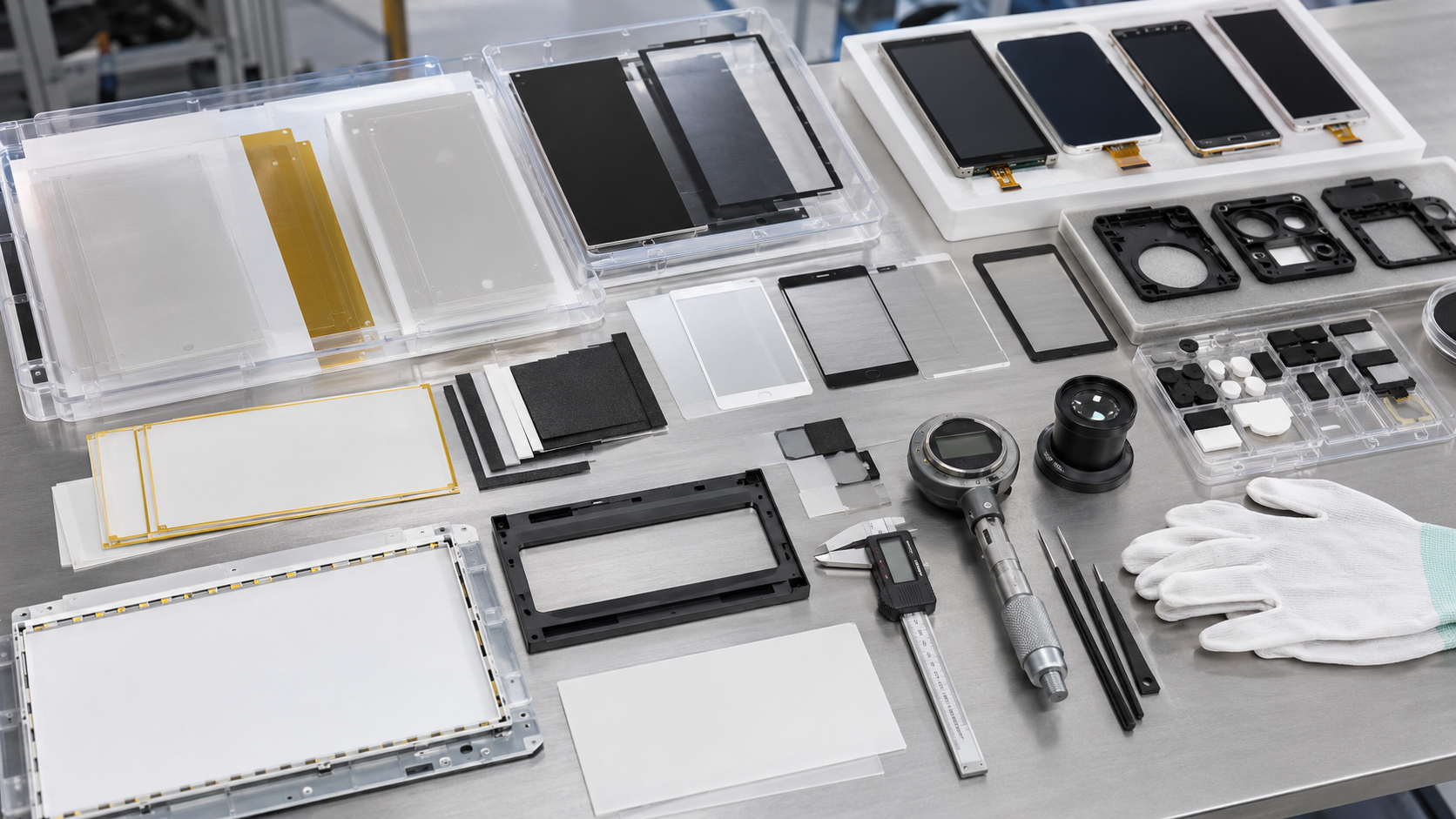

Common Types of Die Cut Optical Films
Different display applications require different film materials and structures.
| Film Type | Main Function in Display Modules |
|---|---|
| PET film | Insulation, protection, spacing, support |
| PI film | Heat-resistant insulation and protection |
| Protective film | Prevents scratches, dust, and handling damage |
| Black light-blocking film | Reduces light leakage around borders and openings |
| Adhesive film frame | Bonds display layers or frames |
| Release liner film | Supports clean handling and liner-backed delivery |
| Double-sided tape film | Bonding and positioning |
| Multilayer laminated film | Combines insulation, adhesive, protection, and spacing |
The correct film depends on the display design, optical area, bonding surface, environmental requirement, assembly method, and inspection standard.
Surface Protection During Manufacturing
One of the most common uses of die cut optical films is surface protection.
Display glass, touch panels, lens covers, plastic frames, and coated surfaces can be easily scratched during production, testing, transportation, and final assembly. Die cut protective films help prevent fingerprints, dust, abrasion, and handling damage.
Important requirements include:
- Clean surface quality
- Accurate outer shape
- Easy application
- Stable adhesion
- No adhesive residue
- No bubbles
- Easy removal
- Suitable liner release
- Good packaging protection
A protective film should not be too weak or too strong. If adhesion is too low, the film may fall off during handling. If adhesion is too high, it may be difficult to remove or leave residue.
For display modules, protective films may also include pull tabs, custom holes, positioning features, or liner-backed formats to improve operator efficiency.
Light Blocking and Light Leakage Control
Light leakage is a major concern in display modules. Unwanted light may appear around the display border, camera hole, sensor window, LED area, or backlight edge.
Black die cut optical films, shading films, and light-blocking adhesive frames are used to control this problem.
Common application areas include:
- Display border frames
- Backlight edges
- Camera openings
- Sensor windows
- LED light areas
- Automotive display frames
- Wearable screen modules
- Touch panel edges
Light-blocking films must be cut accurately. If the film is too small, light leakage may remain. If the film is too large, it may cover the active display or optical area. Clean edges are also important because particles near the display can cause defects.
Adhesive Film Frames for Bonding
Many display modules use die cut adhesive films or double-sided tape frames for bonding and positioning. These parts may bond glass, frames, plastic housings, bezels, sensor windows, or display layers.
Key quality points include:
- Adhesive thickness
- Bonding strength
- Die cut accuracy
- Clean edges
- No adhesive overflow
- Smooth liner release
- Correct window position
- Stable part flatness
- No dust or particles
Adhesive film frames must be designed based on the bonding surface. Glass, coated surfaces, plastic frames, metal frames, and painted parts may require different adhesive structures.
If adhesive selection is wrong, the part may lift, shift, create bubbles, or fail during reliability testing.
PET and PI Films for Insulation
Display modules often include electronic circuits, connectors, flex cables, sensors, and compact internal structures. PET and PI die cut films are commonly used for electrical insulation and protection.
PET insulation films are often used where thin, stable, and lightweight insulation is required. PI films are selected when higher temperature resistance is needed.
Typical uses include:
- Display module insulation
- Connector protection
- PCB area protection
- Battery-related display electronics
- Touch panel insulation
- Flexible circuit protection
- Sensor module insulation
- Automotive display electronics
These films must have accurate holes, clean edges, stable thickness, and good flatness. Poor die cutting may create burrs, particles, curling, or misalignment.
Foam Spacers, Rubber Pads, and Optical Films Work Together
Display modules often require more than one flexible component. Die cut optical films may work together with foam, rubber, and adhesive tape parts.
| Component | Function |
|---|---|
| Optical film | Protection, bonding, light control, insulation |
| Foam spacer | Gap filling, cushioning, compression support |
| Rubber pad | Shock absorption and stable contact |
| Double-sided tape | Bonding and positioning |
| PET or PI film | Electrical insulation |
| Protective film | Surface protection |
| Black shading film | Light-blocking around optical areas |
For example, an automotive display module may use a black light-blocking film around the border, foam tape for cushioning, PET film for insulation, rubber pads for vibration damping, and protective film for surface protection.
If these parts are designed separately, assembly problems may appear later. A foam spacer may be too thick. A film window may not align. An adhesive frame may interfere with a rubber pad. A protective film may curl during handling.
A one-stop converting supplier can review these components together before mass production.
Cleanliness Is Critical for Display Module Films
Display module parts have strict cleanliness requirements. Dust, fibers, particles, adhesive strings, fingerprints, and scratches may become visible defects.
Common contamination risks include:
- Dirty film surfaces
- Rough die cut edges
- Adhesive overflow
- Static attraction
- Poor liner handling
- Dust during packaging
- Scratches from stacking
- Particles from waste removal
- Fiber shedding from nearby materials
Clean die cutting and careful handling help reduce these risks. Inspection should not only check dimensions but also surface quality, edge condition, and packaging cleanliness.
For display and optical assemblies, even a small particle can cause rejection if it appears in a visible or functional area.

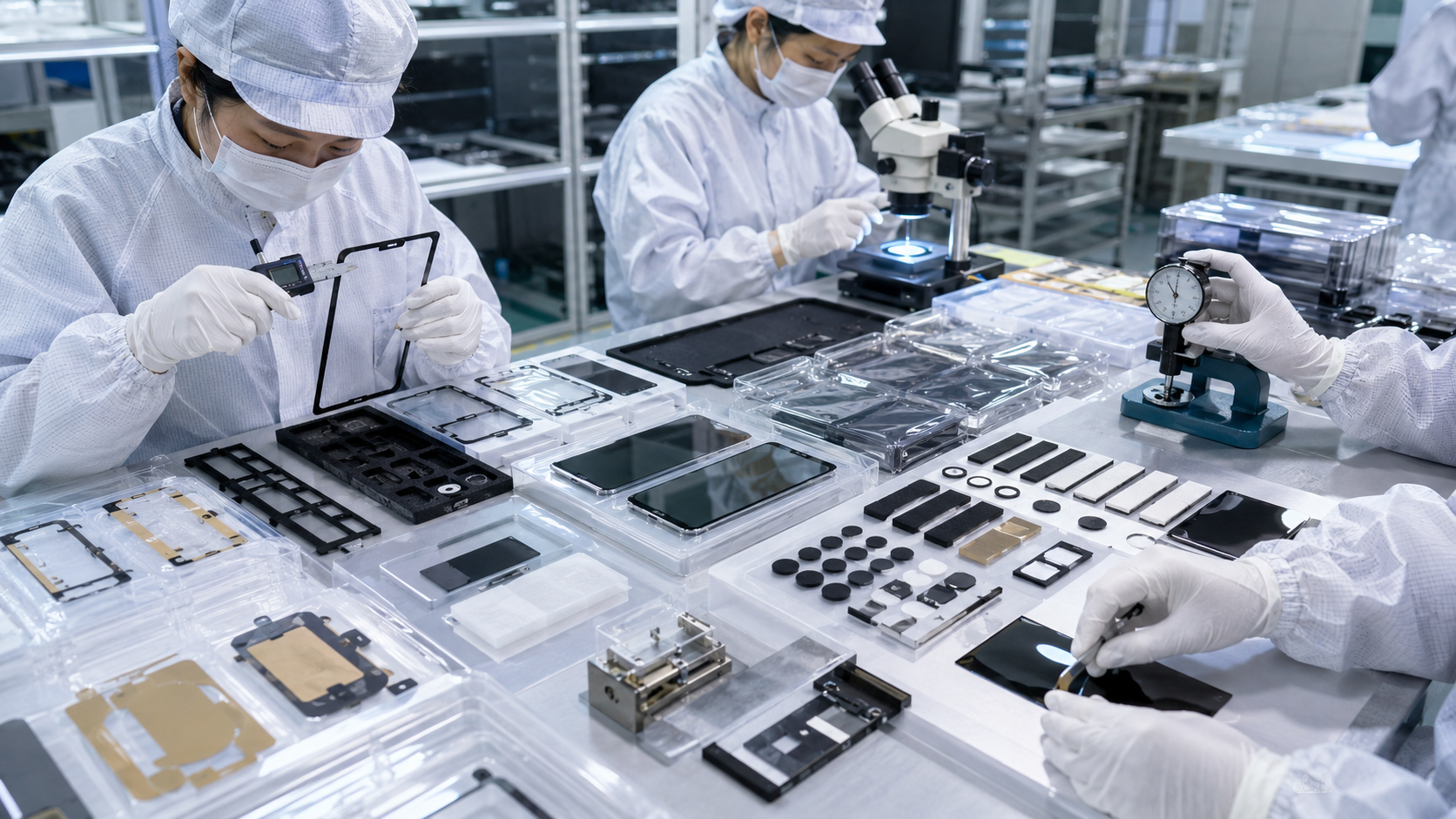

Important Quality Control Items
Quality control for die cut optical films should be based on the display module’s critical areas.
| Inspection Item | Why It Matters |
|---|---|
| Outer dimension | Ensures correct module fit |
| Window position | Prevents blocking active display or sensor areas |
| Hole alignment | Matches posts, screws, connectors, and fixtures |
| Edge cleanliness | Reduces particles and burrs |
| Surface scratches | Prevents visible display defects |
| Adhesive overflow | Avoids contamination and assembly failure |
| Liner release | Improves operator handling |
| Film flatness | Prevents bubbles and lifting |
| Dust and particles | Supports clean display assembly |
| Packaging condition | Protects parts before use |
For OEM display projects, critical-to-quality points should be defined before sample production. These may include optical windows, display borders, camera holes, sensor openings, adhesive areas, and visible surfaces.
Common Problems in Die Cut Optical Films
Die cut optical films may fail during production or assembly for many reasons.
| Problem | Possible Cause | Prevention |
|---|---|---|
| Light leakage | Film size or position error | Review border tolerance and optical area |
| Bubbles | Dust, poor flatness, wrong adhesive | Improve cleanliness and adhesive selection |
| Scratches | Poor handling or packaging | Use clean handling and protective packaging |
| Adhesive overflow | Wrong adhesive structure or cut depth | Control lamination and die cutting process |
| Hard peeling | Poor liner or kiss cut depth | Review liner release and tab design |
| Curling | Material stress or poor storage | Control material and packaging method |
| Misalignment | Poor tooling or unstable registration | Define critical dimensions and inspection points |
| Particles | Rough edge or poor waste removal | Use suitable tooling and clean process control |
Most problems can be reduced through early material review, drawing review, sample testing, inspection planning, and proper packaging.
How Sanken Supports Display Module Optical Film Projects
Sanken Manufacturing Co., Ltd. supports OEM customers with precision die cut optical films and related display module components.
Our support includes:
- PET die cut films
- PI insulation films
- Protective films
- Black light-blocking films
- Adhesive film frames
- Double-sided tape parts
- Foam spacers
- Rubber pads
- Liner-backed die cut parts
- Multilayer laminated structures
- Sample development
- Quality inspection
- Assembly-ready packaging

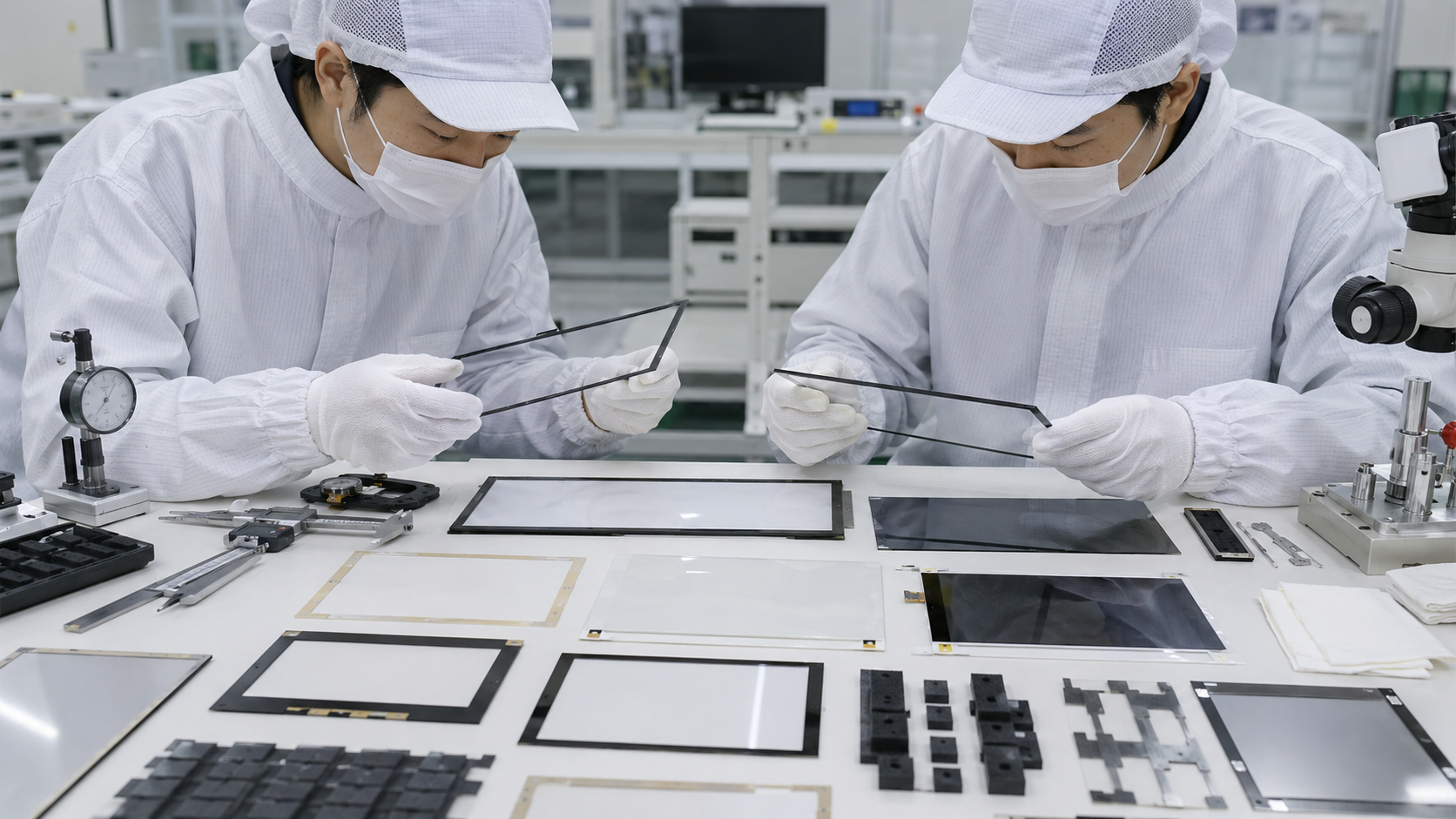

For each project, we review film material, thickness, adhesive structure, optical window position, hole alignment, liner release, edge cleanliness, dust risk, packaging method, and assembly process.
Our goal is to help customers reduce light leakage, bubbles, scratches, adhesive lifting, hard peeling, dust contamination, film curling, misalignment, and unstable mass production.
What Buyers Should Provide Before Starting a Project
To develop reliable die cut optical films for display modules, OEM buyers should provide:
- 2D drawing
- Film material requirement
- Thickness requirement
- Adhesive requirement
- Optical window position
- Display active area information
- Critical dimensions
- Bonding surface
- Cleanliness requirement
- Liner preference
- Packaging method
- Assembly method
- Expected quantity
- Sample or reference part if available
Clear project information helps the supplier recommend the correct material structure, cutting method, liner design, and packaging format.
FAQ
What are die cut optical films used for in display modules?
They are used for surface protection, light blocking, bonding, insulation, spacing, dust protection, and assembly support in display modules.
What materials are commonly used for die cut display films?
Common materials include PET film, PI film, protective film, black light-blocking film, adhesive film, double-sided tape film, release liner film, and multilayer laminated films.
Why are black optical films used in display modules?
Black optical films are used to reduce light leakage around display borders, camera holes, sensor windows, LED areas, and backlight edges.
Why is cleanliness important for display film parts?
Dust, particles, fibers, scratches, and adhesive contamination can cause visible display defects, bubbles, poor bonding, or optical performance problems.
Can die cut optical films be adhesive-backed?
Yes. Many display module films use adhesive backing for bonding, positioning, sealing, or assembly support. Adhesive type and liner release must be selected carefully.
Can Sanken support die cut optical films for display modules?
Yes. Sanken supports die cut PET films, PI films, protective films, light-blocking films, adhesive frames, foam spacers, rubber pads, and multilayer converted components for display modules.
Conclusion
Die cut optical films are important functional components in display modules. They help protect surfaces, block unwanted light, support bonding, provide insulation, maintain spacing, reduce dust risk, and improve assembly efficiency.
For OEM display projects, these films must be controlled carefully. Material selection, thickness, adhesive performance, liner release, edge cleanliness, hole alignment, dust control, and packaging all affect final display quality.
At Sanken, we help OEM customers develop precision die cut optical films and related foam, rubber, tape, PET, PI, and protective components that are clean, accurate, assembly-ready, and stable from prototype to mass production.
