OEM Custom Geometry Sealing Components
Custom-Shaped Sealing Rings
Custom-shaped sealing rings are non-standard molded seals developed for irregular grooves, special housing outlines, and functional interfaces that cannot be sealed effectively with standard O-rings or simple flat gaskets.They are typically used when the sealing path includes corners, openings, offset sections, integrated port areas, or other geometry that requires the seal to follow the actual structure of the product.Built for irregular sealing paths and non-circular housings
Helps reduce assembly mismatch and positioning errors
Supports custom grooves, openings, and integrated features
Suitable for OEM projects that need repeatable geometry

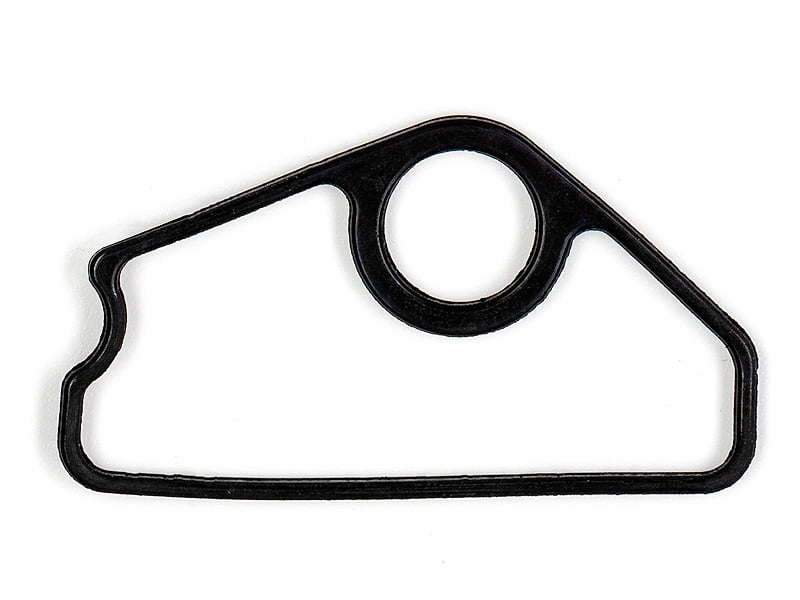

Main product view showing an irregular sealing ring designed around a complex component outline and integrated functional opening.
Typical Use
Special covers, housings, valve plates, fluid interfaces, and OEM assemblies with irregular sealing paths.
Buyer Focus
Profile accuracy, corner consistency, material fit, and stable repeat production across different batches.
Why Standard Seals Often Fail in These Designs
- Standard O-rings cannot follow complex outer contours
- Flat gaskets may not provide the right section geometry in narrow sealing paths
- Irregular corners and integrated openings need more precise molded continuity
- Poorly controlled custom shapes can shift during assembly or seal unevenly
- Batch inconsistency can cause installation difficulty in OEM production lines
Why Custom-Shaped Sealing Rings Create More Value
A custom-shaped sealing ring is designed around the real product structure. Instead of forcing the design to fit a standard seal, the seal is engineered to match the groove path, contact layout, and installation condition of the assembly.At Sanken Electronic Manufacturing Co., Ltd., we manufacture these parts with strong control over molded continuity, corner transition quality, dimensional fit, and OEM repeatability. That helps customers reduce leakage risk, simplify assembly, and improve product reliability.What Makes This Product Technically Valuable
Geometry Matching
The seal follows the actual housing outline, which helps create more direct compatibility with irregular sealing paths.Integrated Features
Openings, local bulges, and special transitions can be incorporated into the sealing design instead of treated as secondary problems.Corner Stability
Better molded corner quality supports more continuous sealing contact and reduces the risk of weak points in irregular sections.OEM Repeatability
Stable production control matters because even small shape variation can affect fit, compression, and assembly reliability.

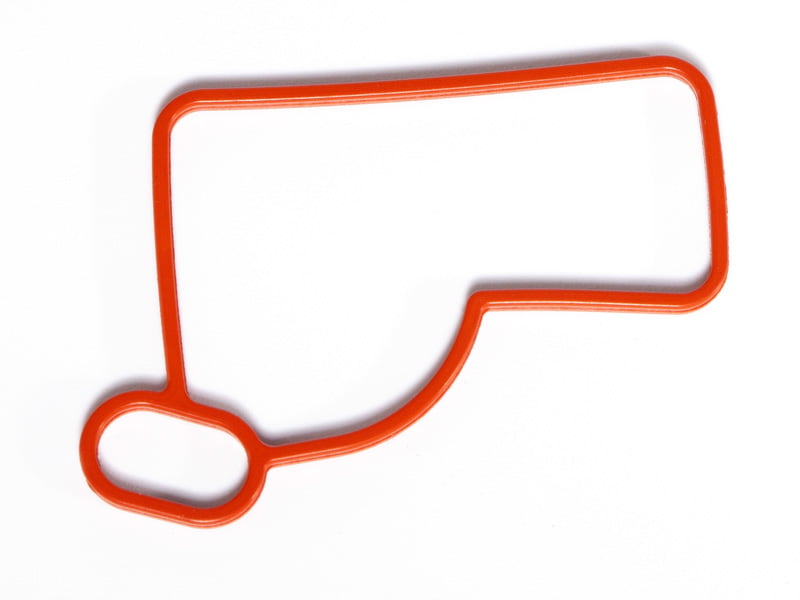

Example of an alternative custom shape showing how the seal can be developed around a different product outline and connection area.
Customization Capability
- Custom outer contour and inner openings
- Local feature integration for ports or seating areas
- Custom section dimensions based on groove design
- Material selection according to media and operating environment
- Support for sample-based and drawing-based OEM development
What Buyers Should Evaluate
- Actual groove path and sealing land layout
- Compression behavior across corners and transitions
- Material compatibility with fluid, oil, or environmental exposure
- Assembly positioning and installation tolerance
- Repeat order consistency for multi-batch production
Main Application Areas
OEM Equipment with Irregular Sealing Paths
These sealing rings are especially useful in products where the sealing route is defined by the housing itself rather than by a simple circular groove. They are often chosen for covers, integrated housings, fluid passages, special mechanical interfaces, and compact assemblies where the seal must follow a functional outline.Valve & Fluid Components
Suitable for parts that include port openings, channel transitions, or shaped contact areas.Special Mechanical Housings
Used where covers or mating parts require a custom contour seal instead of a round-section standard part.Multiple Shapes Can Be Supplied Under One Project System
In real OEM programs, one product family may require several closely related sealing shapes. The challenge is not only making one good sample. It is keeping different shapes, corners, openings, and dimensions stable across repeat production.Sanken supports custom-shaped sealing ring projects with better control over profile continuity and dimensional repeatability. This helps buyers manage multi-SKU sealing programs with less sourcing risk and more consistent assembly results.

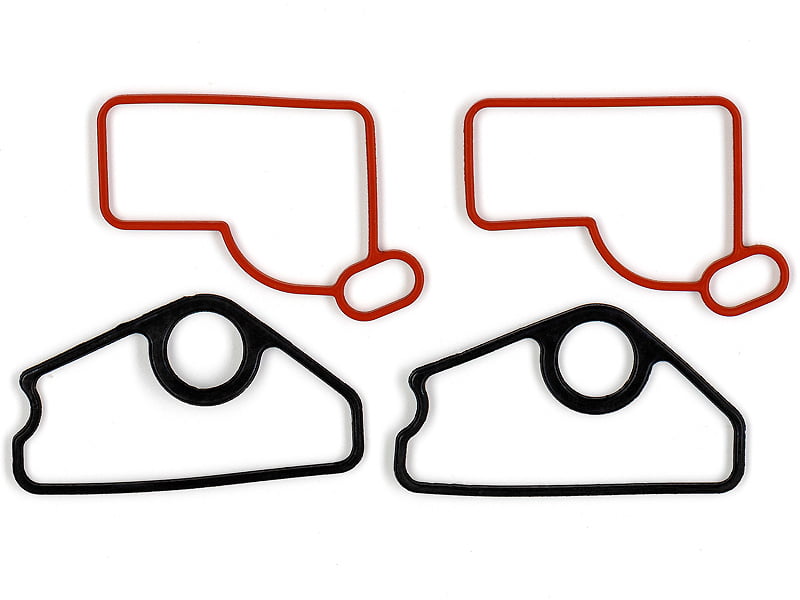

Multiple custom-shaped sealing rings produced in different geometries for OEM platforms that require more than one sealing path design.
Typical Product Characteristics
| Characteristic | What It Means | Customer Benefit |
|---|---|---|
| Irregular Outline Capability | Seal can follow non-circular, non-symmetrical product geometry | Better fit for complex housings than standard round seals |
| Integrated Opening Design | Openings or local features can be built into the molded part | Reduces the need for workaround sealing solutions |
| Corner Transition Quality | Corner continuity affects compression and sealing stability | Helps reduce weak points in complex sealing paths |
| Dimensional Repeatability | Outline accuracy matters for installation and groove fit | Supports stable OEM assembly across repeat batches |
| Material Matching | Compound can be selected according to media and service conditions | Improves compatibility and functional life |
| Customization Flexibility | Suitable for drawing-based or sample-based development | Useful for special projects and custom replacement parts |
