Black light-blocking film is a thin functional film used to control unwanted light, improve appearance, mask openings, and support precise assembly in electronic products.
It may be used around displays.
It may cover sensor window edges.
It may control LED indicator areas.
It may hide internal structures.
It may create a clean black border around a visible opening.
At Sanken, we use precision die cutting to convert black PET films, adhesive-backed black films, protective films, release liners, and laminated film structures into custom components for electronic products, displays, sensors, automotive interiors, appliances, and OEM assembly.

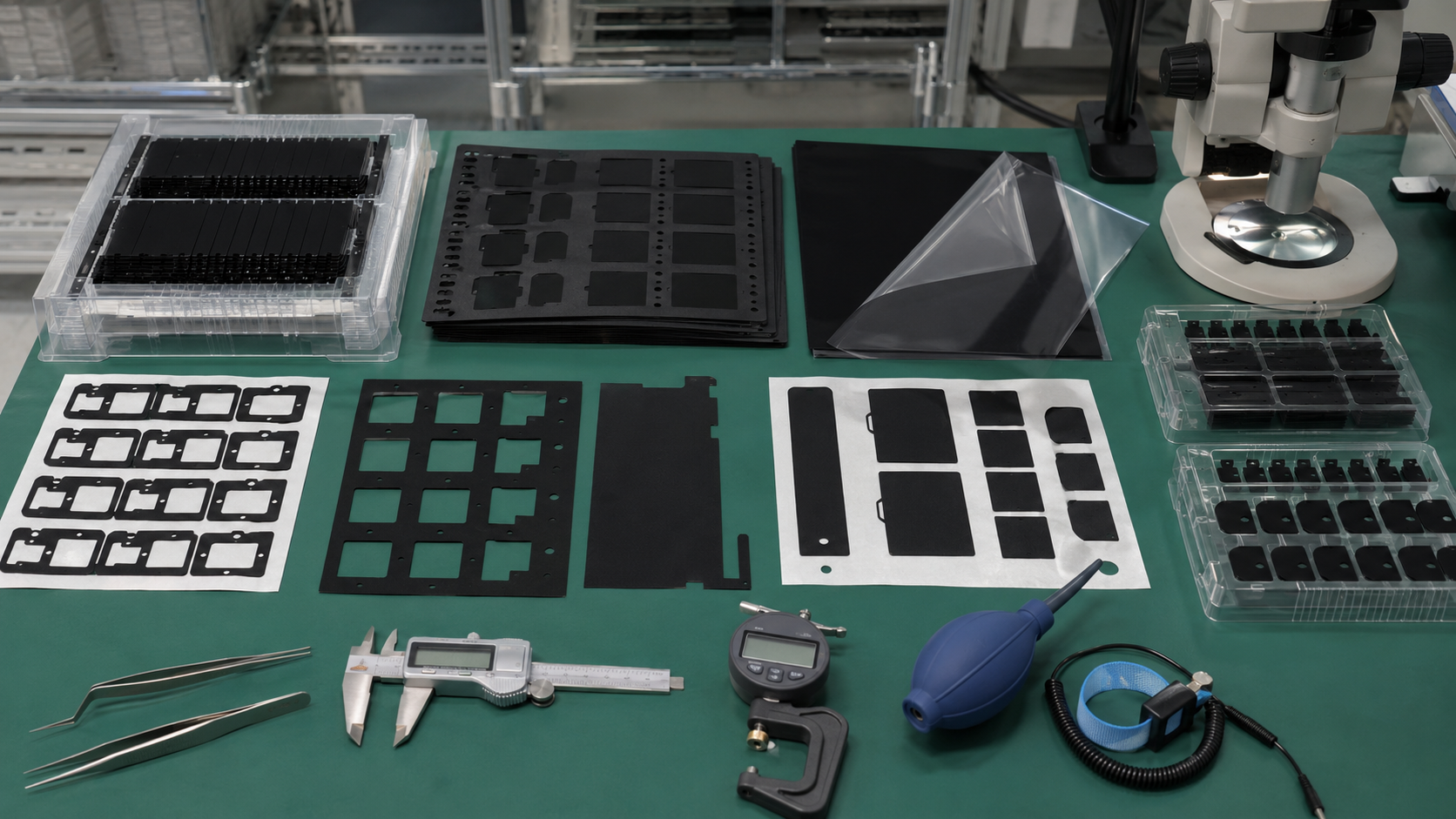

A black film part looks simple.
But if the edge is rough, the window is misaligned, or the adhesive overflows, the final product may show light leakage, visible defects, or assembly problems.
What Is Black Light-Blocking Film?
Black light-blocking film is usually a thin black film, often PET-based, designed to block or reduce unwanted light transmission.
It can be supplied with or without adhesive backing depending on the application.
Common forms include:
| Film Form | Common Function |
|---|---|
| Black PET film frame | Display edge masking and light control |
| Adhesive-backed black film | Easy placement and bonding |
| Black masking film | Coverage for selected areas |
| Sensor window black film | Clean border and opening control |
| LED light-control film | Reduces unwanted light spread |
| Kiss-cut black film on liner | Easier peeling and assembly |
| Laminated black film structure | Combined light blocking, bonding, and protection |
For OEM projects, custom die cut parts allow black light-blocking films to match the exact product shape, opening, hole position, and assembly method.
This is much more stable than manual trimming during production.
Why Electronic Products Need Black Light-Blocking Film
Many electronic products include displays, LEDs, sensors, windows, touch panels, plastic housings, and internal light sources.
If light travels into the wrong area, the product may look poorly built or fail visual inspection.
Black light-blocking film helps solve problems such as:
| Problem | How Black Film Helps |
|---|---|
| Display edge light leakage | Blocks unwanted light around borders |
| LED light spread | Controls visible light direction |
| Sensor window appearance | Creates a clean black opening |
| Internal structure visibility | Covers selected areas |
| Uneven display border | Improves visual consistency |
| Light reflection inside housing | Reduces unwanted internal glow |
| Assembly gaps | Masks small openings or transitions |
For display and optical-related assemblies, optical film die cut components may include black PET films, protective films, adhesive frames, PET insulation films, and foam spacers.
When black film works well, users may never notice it.
When it fails, the defect is easy to see.
Common Applications in Electronic Products
Black light-blocking film is widely used in different electronic product areas.
| Electronic Product Area | Typical Use |
|---|---|
| Display modules | Border masking and light leakage control |
| Touch panels | Clean black frame and appearance support |
| Sensor windows | Opening control and edge masking |
| LED indicators | Light direction and glow reduction |
| Control panels | Decorative black coverage |
| Electronic housings | Internal surface masking |
| Appliance displays | Indicator and panel appearance control |
| Automotive electronics | Display, sensor, and trim light control |
For consumer electronics, the film is often close to visible surfaces.
This means cutting accuracy, cleanliness, and edge quality are especially important.
A small offset may be visible after assembly.
A tiny burr may create a shadow.
A small lifted corner may become a customer complaint.
Small film. Big visual risk.
Black PET Film for Display Masking
Display modules often require a clean black border around the active area.
Black PET film can be die cut into frames, strips, or custom shapes to reduce unwanted light leakage and improve the appearance of the display area.
Important display masking requirements include:
| Requirement | Why It Matters |
|---|---|
| Window accuracy | Controls visible display area |
| Edge cleanliness | Reduces visible defects |
| Film flatness | Prevents bubbles and lifting |
| Adhesive alignment | Prevents glue overflow |
| Surface cleanliness | Reduces particles and marks |
| Thickness control | Supports stack height |
| Stable liner release | Improves assembly handling |
For thin display-related films, buyers can also review why precision film die cutting is important for consumer electronics screens.
Display parts are not forgiving.
If the black frame is not clean, the user may notice it immediately.
Black Film for Sensor Windows
Sensor areas often need a controlled opening.
A black film can help define the visible window, hide nearby structures, and reduce unwanted light around the sensor area.
Common sensor-related uses include:
- Sensor window masking
- Camera or optical opening borders
- Indicator window control
- Light leakage reduction around openings
- Internal structure coverage
- Thin spacer and masking support
For sensor window parts, hole and window alignment must be controlled carefully.
If the opening is too small, it may interfere with function.
If it is too large, it may not hide the surrounding area.
If the film shifts, the final product may fail appearance inspection.
Adhesive-Backed Black Light-Blocking Film
Many black film parts use pressure-sensitive adhesive backing.
Adhesive backing helps operators place the film accurately and keep it stable after assembly.
Common structures include:
| Structure | Common Use |
|---|---|
| Black PET + adhesive + liner | Display masking and bonding |
| Black film frame on release liner | Easy picking and placement |
| Black film with pull tab | Easier handling |
| Black PET + protective liner | Surface protection before use |
| Laminated black film structure | Light blocking plus bonding |
The adhesive must match the bonding surface.
Electronic products may include glass, PET film, plastic housing, coated surfaces, painted parts, metal covers, rubber, or textured materials.
These surfaces do not bond the same way.
For adhesive risks, buyers can review why die cut adhesive parts fail after assembly.
A good adhesive-backed black film should stay flat, bond accurately, avoid glue overflow, and release smoothly from the liner.
Why Die Cutting Accuracy Matters
Black light-blocking film often includes narrow borders, windows, holes, slots, and complex contours.
These features must align with displays, sensors, LEDs, buttons, or housing openings.
Important die cutting requirements include:
| Requirement | Why It Matters |
|---|---|
| Outer dimension | Ensures correct fit |
| Window position | Controls visible area |
| Hole alignment | Prevents assembly interference |
| Edge quality | Reduces burrs and particles |
| Adhesive position | Prevents exposed glue |
| Liner release | Supports smooth peeling |
| Flatness | Reduces bubbles and lifting |
For adhesive-backed black films and protective films, kiss cutting is often useful.
In kiss cutting, the film is cut while the release liner remains intact. This keeps the part organized and easier to peel.
For process comparison, buyers can review Die Cut vs Kiss Cut: What OEM Buyers Should Know for Adhesive Parts and Protective Films.
The liner is not just a carrier.
It helps control the assembly experience.
Design Tips for Black Light-Blocking Film
Good film design helps reduce light leakage, edge lifting, adhesive overflow, and handling problems.
Important design points include:
| Design Point | Why It Matters |
|---|---|
| Border width | Affects light blocking and part strength |
| Corner radius | Reduces lifting and tearing |
| Minimum width | Prevents stretching during peeling |
| Window tolerance | Controls display or sensor opening |
| Adhesive coverage | Prevents weak bonding or overflow |
| Pull tab position | Improves manual handling |
| Part spacing | Improves picking and waste removal |
| Packaging method | Prevents dust, scratches, and curling |
Very narrow black film frames may deform during peeling.
Sharp corners may lift.
Small inner waste areas may be difficult to remove.
A good design should consider cutting, waste removal, peeling, placement, bonding, and final inspection.

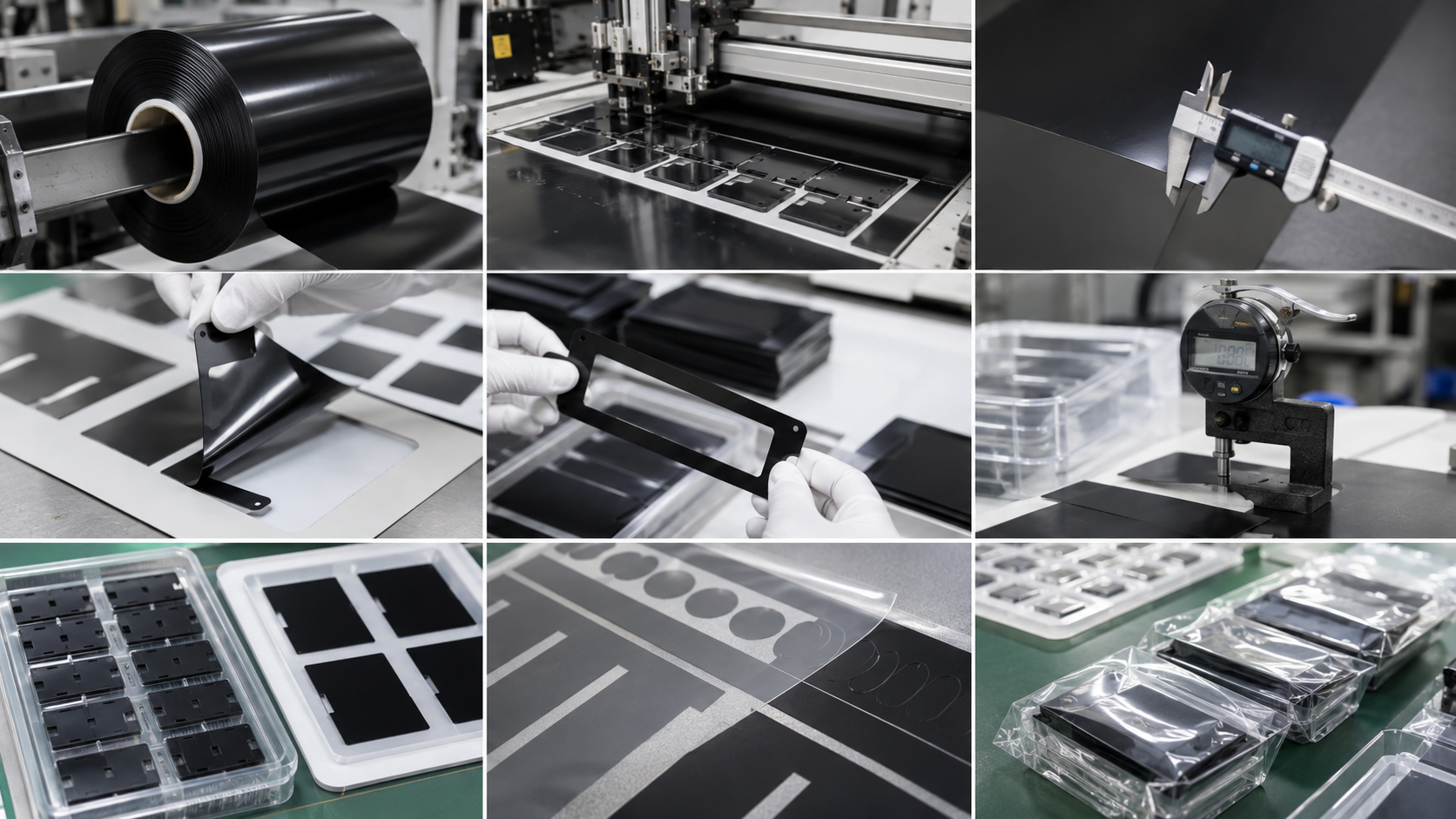

Manufacturing Process for Black Light-Blocking Films
Custom black light-blocking films are usually produced through material review, lamination, die cutting, kiss cutting, waste removal, inspection, and packaging.
| Step | Purpose |
|---|---|
| Application review | Confirm light-blocking area and assembly method |
| Material selection | Choose black PET film, adhesive, liner, or laminate |
| Lamination | Add adhesive backing, release liner, or protective layer |
| Tooling design | Prepare die cutting tool based on drawing |
| Die cutting | Cut outer shape, windows, holes, slots, and frames |
| Kiss cutting | Keep adhesive-backed parts on release liner |
| Waste removal | Remove unused film cleanly |
| Inspection | Check size, edge, adhesive, surface, and liner release |
| Packaging | Prevent dust, scratches, curling, and deformation |
For thin film process details, buyers can review how thin film die cutting supports high-precision OEM manufacturing.
For high-volume film components, roll-to-roll die cutting can improve liner control, part spacing, waste removal, and production consistency.

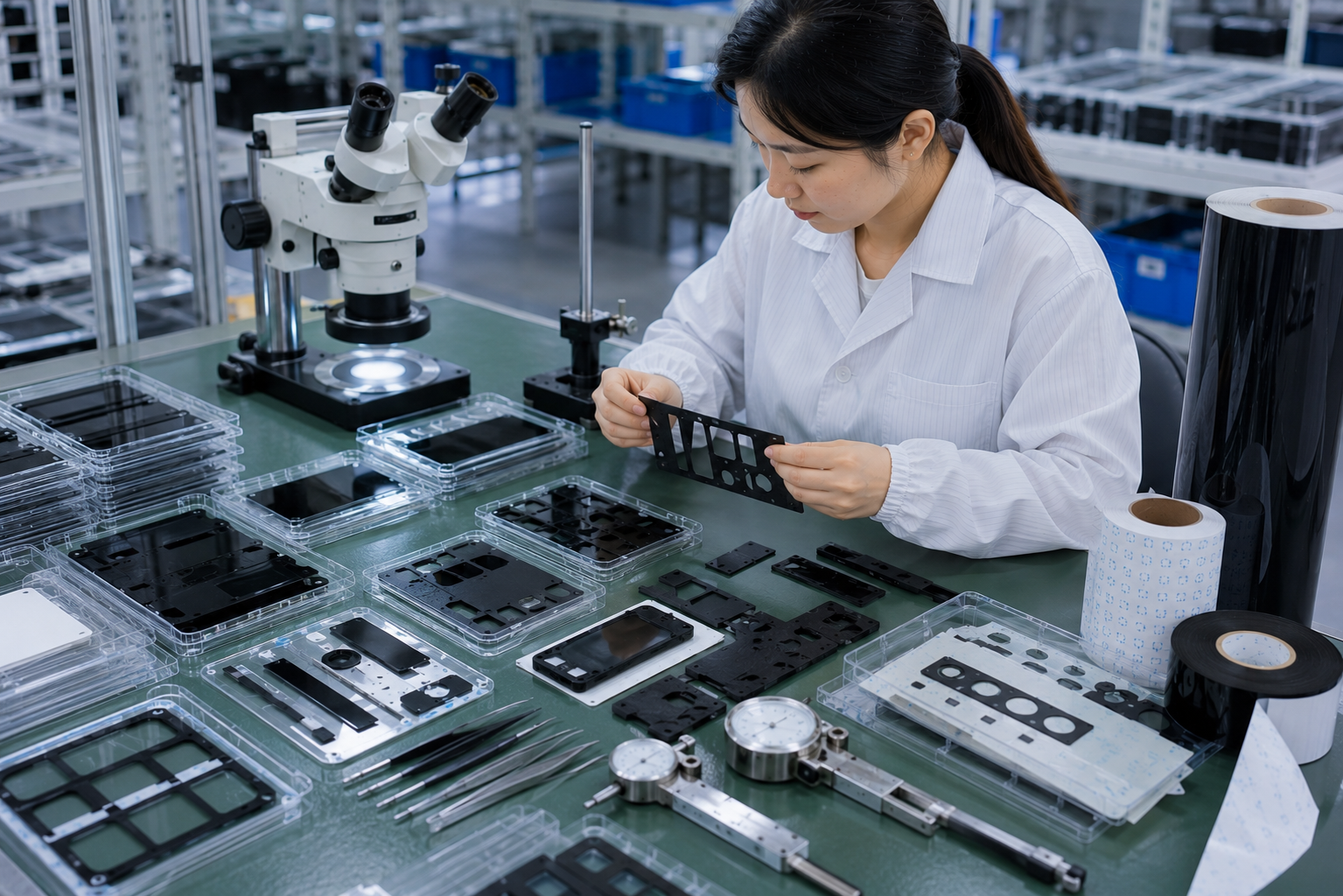

Quality Checks Before Mass Production
Black film parts are often used near visible areas, so quality control must be strict.
Important inspection items include:
| Inspection Item | Why It Matters |
|---|---|
| Dimensions | Ensures correct fit |
| Window alignment | Controls display or sensor area |
| Edge quality | Reduces visible defects |
| Adhesive position | Prevents glue overflow |
| Surface cleanliness | Reduces particles and marks |
| Flatness | Prevents bubbles and lifting |
| Liner release | Improves peeling and placement |
| Packaging condition | Prevents scratches and dust |
For black film components, appearance is part of function.
A part can block light and still fail if it looks dirty, scratched, misaligned, or curled.
Packaging and Supply Format
Black light-blocking films can be supplied in different formats depending on the assembly process.
| Supply Format | Suitable Use |
|---|---|
| Individual pieces | Simple placement or low-volume production |
| Sheets | Manual picking and organized assembly |
| Rolls | High-volume or automated application |
| Kiss-cut on liner | Adhesive-backed black films |
| Pull-tab format | Easier peeling and placement |
| Kits | Multi-part module assembly |
| Clean trays or bags | Dust and scratch protection |
For assembly planning, buyers can review how die cut parts are supplied in sheets, rolls, or kits.
Packaging should prevent dust, scratches, film curling, adhesive contamination, and edge damage.
Black surfaces can make defects more visible, so packaging must be controlled carefully.
What Buyers Should Provide Before Quotation
To recommend the right custom black light-blocking film, we usually need clear project details.
Helpful information includes:
- Drawing or sample
- Application location
- Display, sensor, LED, or housing area
- Black film material requirement
- Film thickness
- Adhesive requirement
- Bonding surface
- Window or hole design
- Light-blocking requirement
- Surface finish requirement
- Pull tab requirement
- Cleanliness requirement
- Tolerance requirement
- Annual volume
- Delivery format
- Packaging preference
If the material is not confirmed, Sanken can help compare black PET film, adhesive-backed black film, protective film, release liner, pull-tab structure, and laminated film options.
For supplier selection, buyers can also review how to choose the right die cutting manufacturer before moving from sampling to mass production.
Need Custom Black Light-Blocking Film for Electronic Products?
Black light-blocking film helps electronic products control display leakage, improve sensor window appearance, reduce unwanted LED glow, mask internal structures, and support clean OEM assembly.
But the final result depends on film selection, adhesive behavior, window accuracy, edge quality, liner release, cleanliness, packaging, and repeatable die cutting.
If you need black PET film frames, adhesive-backed black films, display masking films, sensor window films, pull-tab black films, or laminated black film structures, send us your drawing, sample, application location, material requirement, tolerance, annual volume, and packaging preference.
Sanken can help review material selection, lamination structure, die cutting method, inspection points, and supply format before mass production.
Related Articles
You may also find these articles helpful:
- Custom Die-Cut Black Light-Blocking Films for OEM Electronics
- Black PET Light-Blocking Film for Displays, Sensors, and Electronic Assemblies
- How Thin Film Die Cutting Supports High-Precision OEM Manufacturing
- When Do OEM Products Need Custom Die-Cut Surface Protection Films?
- Why Is Precision Film Die Cutting Important for Consumer Electronics Screens?
- What Die Cut Films, Foams, and Adhesive Parts Are Used in Electronic Products?
Conclusion
Black light-blocking film is used in electronic products to control light leakage, mask display borders, define sensor windows, reduce unwanted LED glow, cover internal structures, and improve visual quality. The best result comes from matching black PET film, adhesive backing, window accuracy, edge quality, liner release, cleanliness, packaging, and die cutting process to the real OEM assembly requirement.
