High-precision OEM manufacturing often depends on very small, very thin, and very accurate components.
A film part may only be a thin PET insulation layer, a protective film, an adhesive-backed film, or a black PET light-blocking frame.
But if it is misaligned, scratched, curled, contaminated, or difficult to peel, the final product may face assembly defects, visual problems, insulation risk, bonding failure, or production delays.
At Sanken, we use precision die cutting to convert PET insulation films, protective films, black PET films, adhesive-backed films, release liners, and laminated film structures into custom parts for electronics, displays, sensors, appliances, automotive interiors, semiconductor equipment, and other OEM assemblies.
Thin film die cutting is not only about making a film smaller.
It is about making a thin material accurate, clean, easy to handle, and ready for production.
What Is Thin Film Die Cutting?
Thin film die cutting is the process of converting flexible film materials into custom shapes based on a drawing, sample, or assembly requirement.
These film parts may include holes, windows, slots, tabs, adhesive layers, liners, or laminated structures.

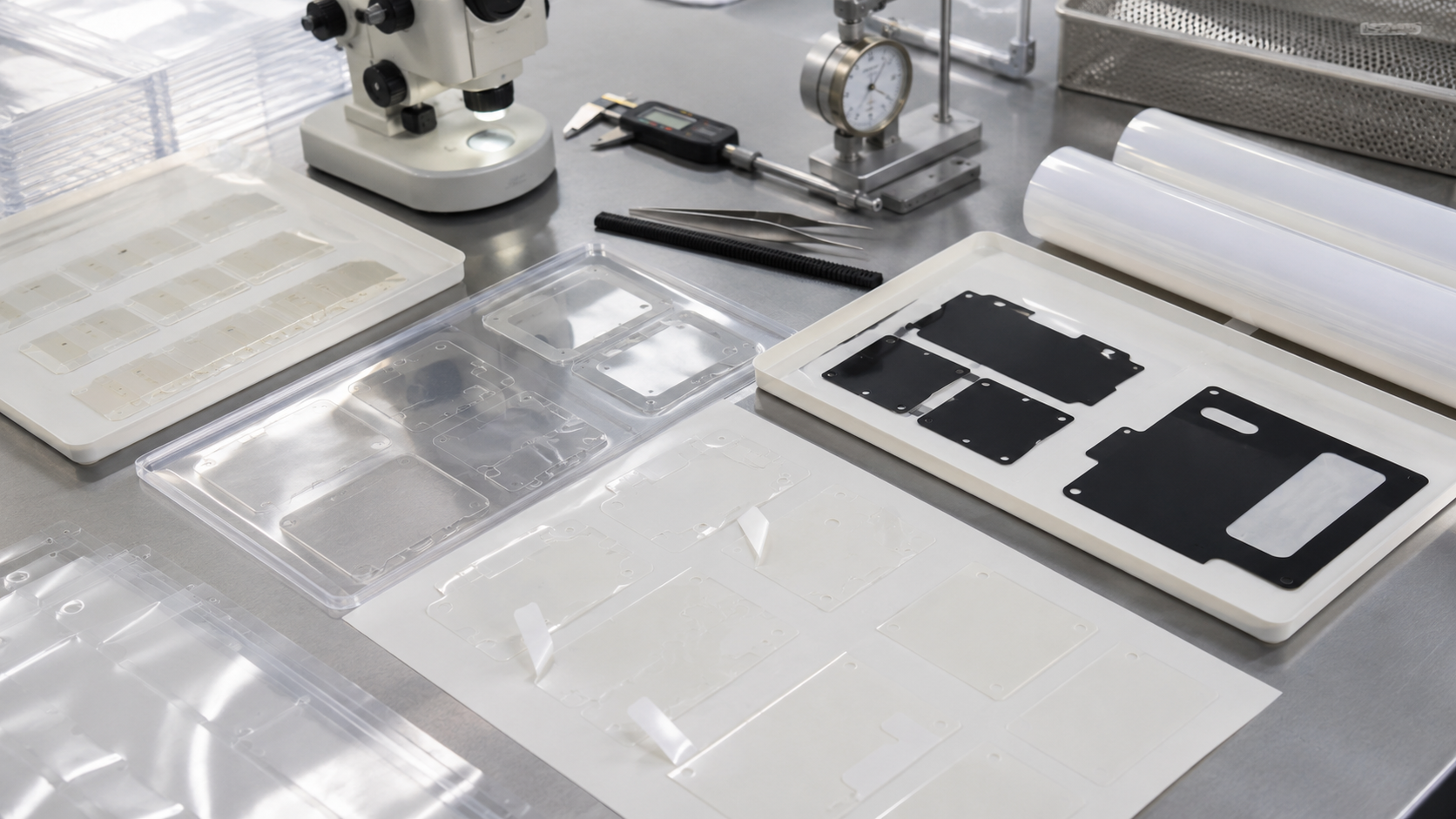

Common thin film components include:
| Thin Film Component | Common Function |
|---|---|
| PET insulation films | Electrical separation and surface protection |
| Adhesive-backed PET films | Insulation with easier positioning |
| Protective films | Scratch and handling protection |
| Pull-tab protective films | Easier removal after assembly |
| Black PET films | Light blocking and appearance control |
| PET-backed adhesive films | Stable bonding and handling |
| Kiss-cut film parts | Easy peeling from release liner |
For OEM projects, custom die cut parts help thin films match the actual product structure instead of forcing operators to trim or adjust films manually.
Manual trimming may look flexible.
In mass production, it often becomes variation.
Why Thin Film Accuracy Matters
Thin film components are often used in compact assemblies where space is limited and tolerance is important.
A film may need to fit around a connector, window, sensor, screw hole, display edge, panel opening, or control board area.
If the part is too large, it may interfere with assembly.
If it is too small, it may fail to protect or insulate the required area.
If it shifts during bonding, the final product may fail inspection.
Important accuracy factors include:
| Accuracy Factor | Why It Matters |
|---|---|
| Outer dimension | Ensures correct fit |
| Hole alignment | Prevents assembly interference |
| Window position | Supports display, sensor, or opening accuracy |
| Edge quality | Reduces burrs, particles, and lifting |
| Thickness control | Supports stack height and spacing |
| Adhesive position | Prevents overflow or poor bonding |
| Liner release | Improves peeling and placement |
| Flatness | Reduces curling and assembly defects |
Thin films are thin.
Their problems are not.
PET Insulation Films for Electronics and Equipment
PET film is commonly used in OEM manufacturing because it is thin, stable, clean to process, and suitable for custom shapes.
PET insulation films may be used around electronic modules, control panels, connector areas, sensor housings, equipment panels, and compact internal assemblies.
Common applications include:
- PCB area insulation
- Connector protection films
- Control module insulation films
- Adhesive-backed PET film parts
- PET spacers and separators
- Internal surface protection films
- PET films for electronic housings
For more background, buyers can review what PET film is used for in electrical insulation.
PET insulation films must be clean, flat, and accurately cut.
Scratches, burrs, particles, curling, or poor hole alignment can slow production and affect final assembly quality.
Protective Films for Surface Quality
OEM products often include visible or sensitive surfaces that need protection during production, handling, shipping, or final installation.
Die cut protective films help reduce scratches, fingerprints, dust, and handling marks.
Common protected areas include:
| Product Area | Protective Film Use |
|---|---|
| Display windows | Scratch and dust protection |
| Control panels | Appearance protection |
| Sensor windows | Surface cleanliness and handling protection |
| Appliance panels | Shipping and assembly protection |
| Automotive trim | Glossy surface protection |
| Equipment covers | Fixture and handling protection |
| Plastic housings | Surface mark prevention |
| Metal panels | Scratch reduction during assembly |
For display and panel-related projects, optical film die cut components may include protective films, black PET films, adhesive frames, PET insulation films, and foam spacers.
A protective film should protect the surface without leaving residue, curling, trapping dust, or creating scratches.
Protection should not become a new defect.
Black PET Films for Light Control
Black PET films are often used when OEM products need light blocking, visual border control, or selected surface coverage.
Common applications include:
- Display border light blocking
- Sensor opening masking
- Indicator window control
- Control panel appearance coverage
- Internal light leakage reduction
- Thin spacing and surface coverage
Black PET film components often include narrow frames, windows, holes, and adhesive backing.
This makes die cutting accuracy especially important.
If the window shifts, light leakage may appear.
If the edge quality is poor, visible defects may be noticed.
If adhesive overflows, nearby surfaces may be contaminated.
For more detail, buyers can review black PET light-blocking film for displays, sensors, and electronic assemblies.
Adhesive-Backed Films for Easier Assembly
Many thin film parts need adhesive backing so operators can place them quickly and keep them in the correct location during assembly.
Common adhesive-backed film structures include:
| Structure | Common Use |
|---|---|
| PET film + adhesive + liner | Insulation and positioning |
| Protective film + adhesive | Temporary surface protection |
| Black PET + adhesive | Light blocking and bonding |
| PET-backed adhesive film | Stable bonding and handling |
| Film + pull tab | Easier peeling and removal |
| Laminated film structure | Combined protection, insulation, and bonding |
Adhesive selection must match the bonding surface.
OEM assemblies may include glass, plastic, metal, painted surfaces, PET films, coated panels, rubber, foam, and textured housings.
These surfaces do not bond the same way.
A good adhesive-backed film should peel smoothly, stay flat, bond accurately, avoid glue overflow, and remain stable after assembly.
For adhesive-related risks, buyers can review why die cut adhesive parts fail after assembly.
Kiss Cutting Helps Thin Film Handling
Thin film parts are often difficult to handle when supplied as loose individual pieces.
They may curl, shift, collect dust, or become hard to pick.
Kiss cutting helps solve this problem.
In kiss cutting, the film part is cut while the release liner remains intact.
This allows the parts to stay organized on the liner before use.
Kiss-cut film parts can improve:
- Manual peeling
- Part organization
- Operator handling
- Placement accuracy
- Reduced missing parts
- Cleaner assembly
- Sheet or roll delivery
- Pull-tab film design
For process comparison, buyers can review Die Cut vs Kiss Cut: What OEM Buyers Should Know for Adhesive Parts and Protective Films.
For high-volume thin film components, roll-to-roll die cutting can improve spacing, liner control, waste removal, and production consistency.
Design Tips for Thin Film Die Cut Parts
Thin film design should consider both function and manufacturability.
Important design points include:
| Design Point | Why It Matters |
|---|---|
| Minimum width | Prevents stretching and tearing |
| Corner radius | Reduces lifting and stress concentration |
| Hole-to-edge distance | Improves cutting stability |
| Window accuracy | Protects visible or functional areas |
| Pull tab position | Improves peeling and removal |
| Adhesive coverage | Supports stable bonding |
| Liner choice | Affects release and flatness |
| Packaging method | Prevents curling, scratches, and dust |
Sharp corners can lift.
Very narrow bridges can deform.
Poor pull-tab placement can slow assembly.
Thin films must be designed for cutting, peeling, placing, staying flat, and performing inside the final product.
Manufacturing Process for Thin Film Die Cutting
Thin film components are usually produced through material review, lamination, die cutting, kiss cutting, waste removal, inspection, and packaging.
A typical process includes:
| Step | Purpose |
|---|---|
| Application review | Confirm function, surface, and assembly method |
| Material selection | Choose PET film, protective film, black PET film, adhesive, or liner |
| Lamination | Add adhesive, release liner, pull tab, or protective layer if needed |
| Tooling design | Prepare die cutting tool based on drawing |
| Die cutting | Cut outer shape, windows, holes, slots, and tabs |
| Kiss cutting | Keep adhesive-backed films on release liner |
| Waste removal | Remove unwanted film cleanly |
| Inspection | Check dimensions, edge, surface, adhesive, and liner release |
| Packaging | Prevent scratches, curling, dust, and deformation |
For process background, buyers can review how die cutting transforms raw materials into precision components.
The thinner the film, the more important process control becomes.
A slight curl or particle may be enough to slow the assembly line.

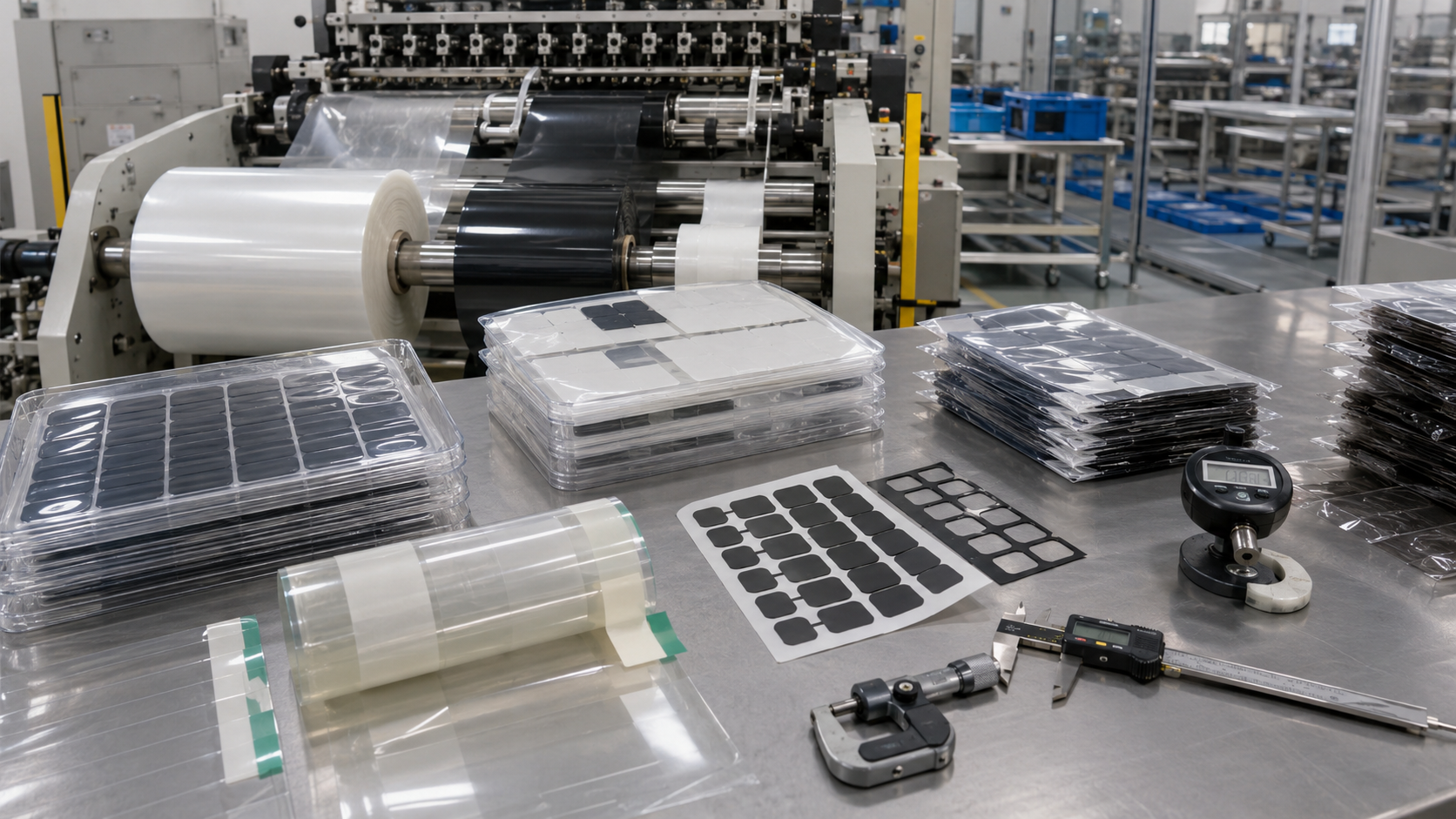

Supply Formats for OEM Manufacturing
Thin film parts can be supplied in different formats based on how the customer assembles the product.
| Supply Format | Suitable Use |
|---|---|
| Individual pieces | Simple placement or low-volume production |
| Sheets | Manual picking and organized assembly |
| Rolls | High-volume or automated application |
| Kiss-cut on liner | Adhesive-backed films and protective films |
| Pull-tab format | Easier peeling and removal |
| Kits | Multi-part module assembly |
| Clean trays or bags | Dust and scratch protection |
For assembly planning, buyers can review how die cut parts are supplied in sheets, rolls, or kits.
The right supply format can reduce missing parts, fingerprints, film curling, difficult peeling, and line delays.
Packaging is especially important for thin films because they can be scratched, bent, or contaminated easily.

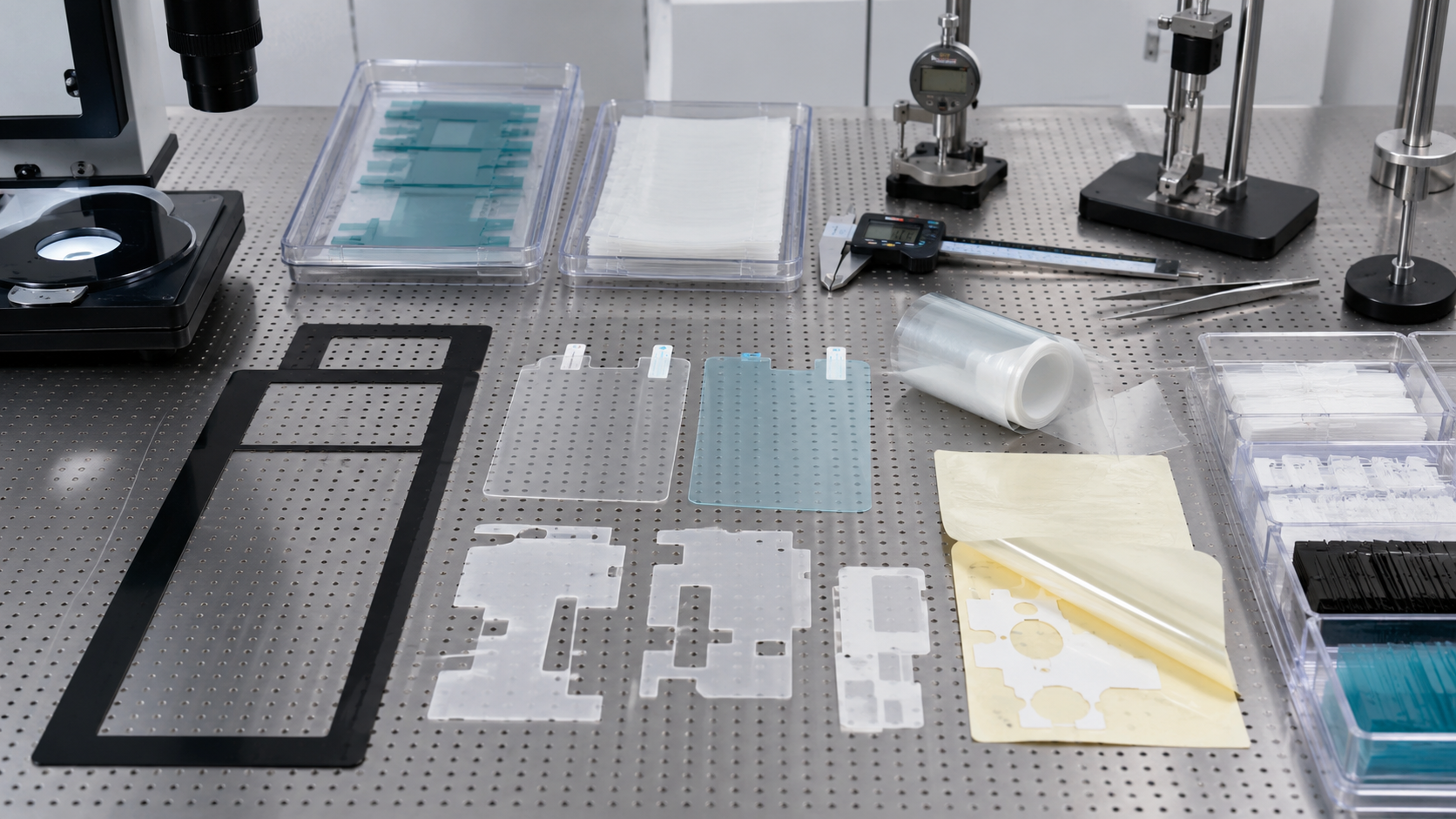

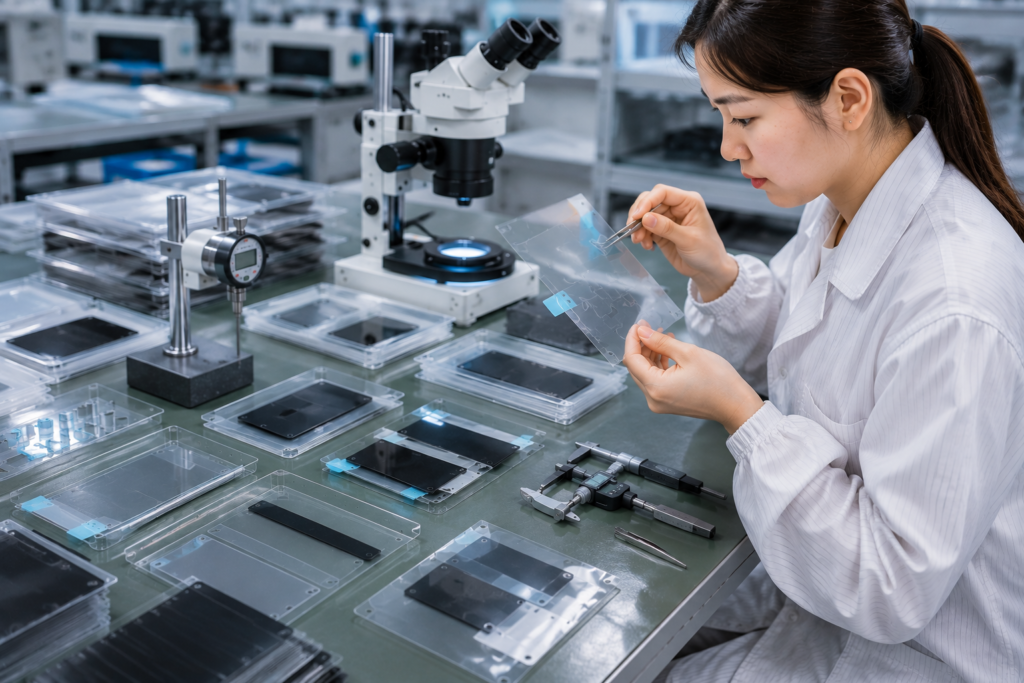

Quality Checks Before Mass Production
Thin film die cut parts must remain stable from sample approval to production.
Important quality checks include:
| Inspection Item | Why It Matters |
|---|---|
| Dimensions | Ensures correct fit and coverage |
| Hole and window alignment | Prevents assembly interference |
| Thickness | Controls stack height and spacing |
| Edge quality | Reduces burrs, particles, and lifting |
| Surface cleanliness | Protects visible and electronic areas |
| Adhesive position | Prevents shifting and overflow |
| Liner release | Improves peeling and placement |
| Flatness | Reduces curling and bubbles |
| Packaging condition | Prevents scratches and dust exposure |
For high-precision OEM manufacturing, one good sample is not enough.
The production batch must repeat the same quality consistently.
What Buyers Should Provide Before Quotation
To recommend the right thin film die cut solution, we usually need clear project details.
Helpful information includes:
- Drawing or sample
- Application location
- Film material requirement
- Film thickness
- Adhesive requirement
- Bonding surface
- Hole or window design
- Pull tab requirement
- Cleanliness requirement
- Tolerance requirement
- Temperature exposure
- Manual or automated assembly
- Annual volume
- Delivery format
- Packaging preference
If the material is not confirmed, Sanken can help compare PET insulation films, protective films, black PET films, adhesive-backed films, release liners, pull-tab structures, and laminated film solutions.
For supplier selection, buyers can also review how to choose the right die cutting manufacturer before moving from sampling to mass production.
Need Thin Film Die Cutting for OEM Manufacturing?
Thin film die cutting supports high-precision OEM manufacturing by improving insulation, surface protection, light blocking, bonding, positioning, and assembly efficiency.
But the final result depends on film material, thickness, adhesive behavior, shape accuracy, liner release, cleanliness, packaging, and production repeatability.
If you need PET insulation films, protective films, black PET films, adhesive-backed films, pull-tab films, or laminated film structures, send us your drawing, sample, application location, film requirement, adhesive structure, tolerance, annual volume, and packaging preference.
Sanken can help review material selection, lamination structure, die cutting method, inspection points, and supply format before mass production.
