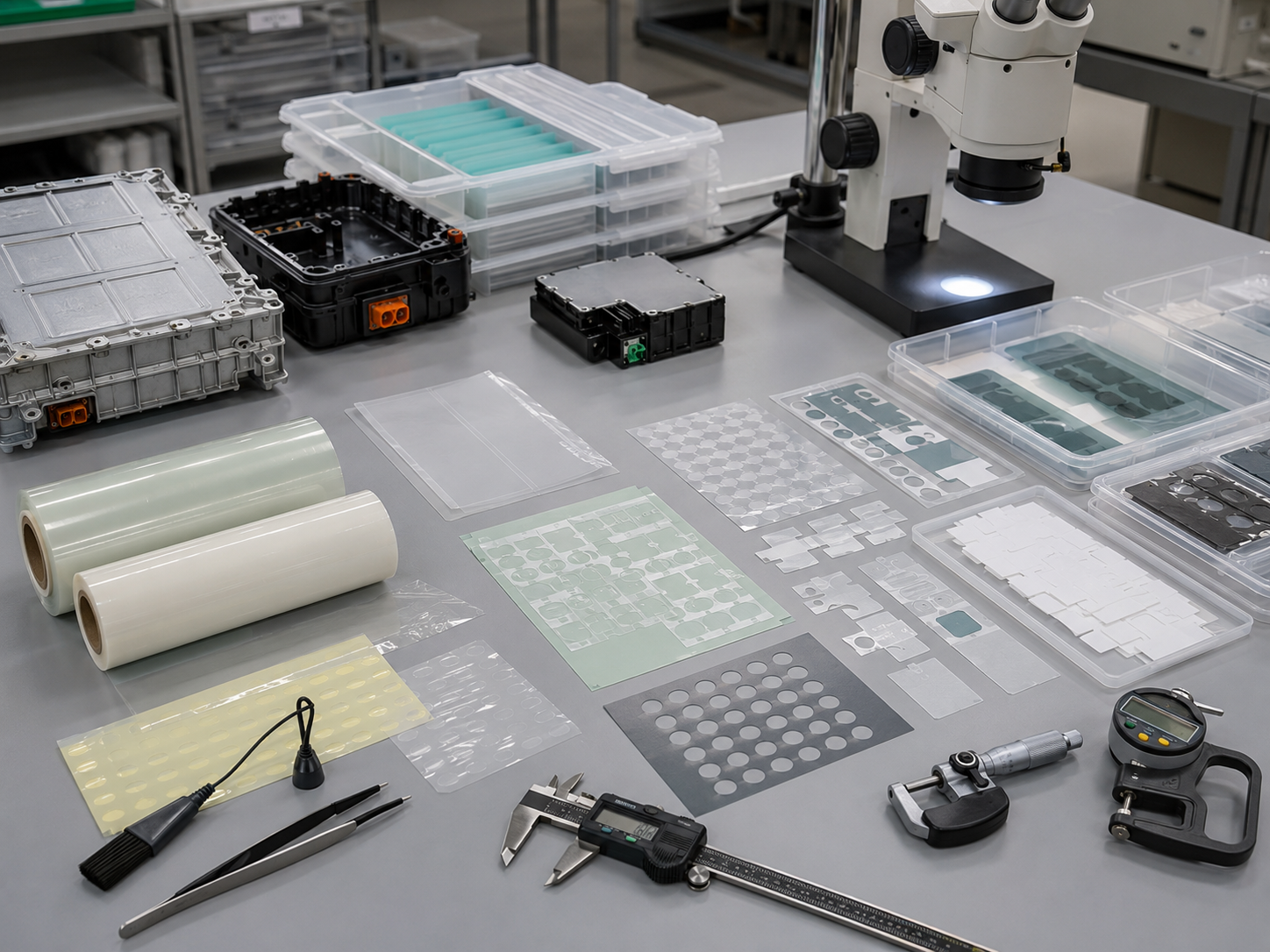

PET film is widely used for electrical insulation because it is thin, stable, lightweight, and easy to convert into custom shapes.
In electronics, batteries, connectors, sensors, control panels, displays, and electrical modules, PET film helps separate conductive areas, protect surfaces, reduce short-circuit risk, and support cleaner assembly.
At Sanken, we use precision die cutting to convert PET film, adhesive-backed PET film, protective film, release liner, and laminated film structures into custom insulation parts for OEM electronics assembly.
A PET film part may look like a simple thin sheet.
But if it is too small, too thick, misaligned, curled, scratched, or poorly packaged, it can create serious assembly problems.
What Is PET Film?
PET film is a polyester film used in many industrial and electronic products.
For electrical insulation, PET film is usually selected because it provides a useful balance of insulation performance, dimensional stability, flexibility, processability, and cost control.
It can be supplied in different thicknesses, colors, surface finishes, and adhesive structures.
Common PET film formats include:
| PET Film Type | Common Use |
|---|---|
| Clear PET film | General insulation and protection |
| White PET film | Electrical separation and visual identification |
| Black PET film | Insulation with light-blocking support |
| Adhesive-backed PET film | Easy positioning during assembly |
| PET protective film | Surface protection during production |
| Laminated PET structure | Combined insulation, bonding, and protection |
For OEM production, PET film is often not used as a flat sheet only.
It is converted into custom die cut parts that match the exact shape of the product.
Why PET Film Is Used for Electrical Insulation
Electrical insulation parts must prevent unwanted contact between conductive components.
PET film helps create a thin barrier without adding much space or weight.
This is important because modern electronic products are compact.
Common reasons engineers choose PET film include:
- Thin insulation coverage
- Good dimensional stability
- Clean die cutting performance
- Flexible custom shapes
- Easy adhesive lamination
- Good handling during assembly
- Suitable for sheets, rolls, or kiss-cut formats
- Good cost-performance balance for mass production
PET film is especially useful when the insulation part must fit into a narrow space.
A bulky gasket or molded part may not be suitable.
A thin PET insulation film can cover the required area while keeping the assembly compact.
Common Electrical Insulation Applications
PET film is used in many electrical and electronic assemblies.
It can protect, separate, cover, and insulate different components.
| Application Area | PET Film Function |
|---|---|
| Battery packs | Cell, tab, busbar, and module insulation |
| PCB areas | Electrical separation and surface protection |
| Connectors | Contact protection and insulation |
| Sensors | Dust protection and insulation support |
| Control panels | Electrical separation and backing protection |
| Display modules | Insulation, protection, and light-control support |
| Power modules | Component separation and surface protection |
| Housings | Scratch protection and internal separation |
For battery and electronics applications, die cut PET insulation films for battery and electronics are often used because PET film can be converted into accurate, repeatable shapes.
The insulation part must cover the correct area.
Almost correct is not good enough.

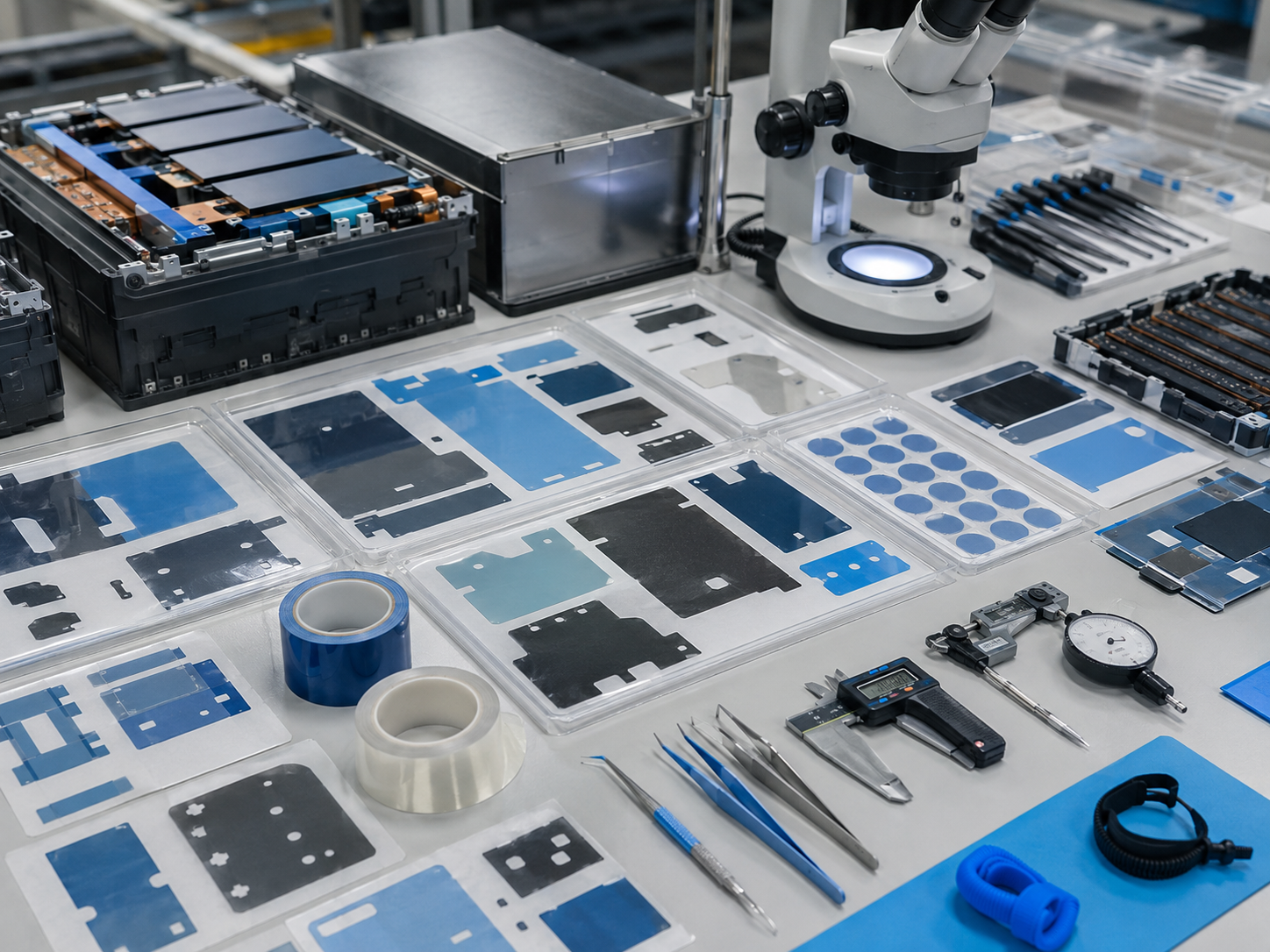

PET Film for Battery Insulation
Battery assemblies often use PET film around cells, tabs, busbars, module covers, connectors, and protection areas.
The film helps prevent unwanted electrical contact and protects surfaces during assembly.
Common battery-related PET parts include:
- Cell insulation films
- Battery tab protection films
- Busbar insulation films
- Connector protection pieces
- Module cover insulation films
- Adhesive-backed PET insulation pads
- Custom PET spacer films
In battery applications, accuracy matters.
If the PET film does not cover the required area, insulation risk increases.
If the film is too large, it may interfere with assembly.
If the adhesive shifts, the insulation position may not be reliable.
Small film.
Very serious responsibility.
PET Film for PCB and Connector Protection
PCBs, connectors, and sensors often have limited internal space.
PET insulation film can protect these areas without adding too much thickness.
Typical control points include:
| Control Point | Why It Matters |
|---|---|
| Film thickness | Controls fit inside compact assemblies |
| Hole position | Supports accurate placement |
| Edge quality | Reduces particles and burrs |
| Surface cleanliness | Protects electronic components |
| Adhesive placement | Prevents shifting and lifting |
| Liner release | Improves operator handling |
| Packaging | Prevents scratches, curling, and dust |
For PCB and connector insulation, clean edges are important.
Burrs, particles, scratches, or curling can affect assembly quality.
A PET film part should not only be cut accurately.
It should also arrive clean, flat, and easy to use.
Adhesive-Backed PET Insulation Films
Many PET insulation films are supplied with adhesive backing.
Adhesive-backed PET films help operators place the insulation part quickly and keep it in the correct position during assembly.
Common structures include:
| Structure | Purpose |
|---|---|
| PET film with PSA backing | Easy positioning and bonding |
| PET film with release liner | Clean handling before assembly |
| PET film with pull tab | Easier manual peeling |
| PET film with protective film | Surface protection during handling |
| PET plus adhesive plus liner | Assembly-ready insulation part |
| Laminated PET structure | Combined insulation, bonding, and protection |
Adhesive selection must match the bonding surface.
Plastic, metal, glass, film, coated surfaces, and battery materials do not bond the same way.
A good adhesive-backed PET film should peel smoothly, stay flat, bond accurately, and avoid adhesive overflow.
For adhesive-related issues, buyers can review why die cut adhesive parts fail after assembly.
PET Film in Displays and Control Panels
PET film is also used in displays, control panels, touch modules, and electronic interface areas.
In these applications, PET may provide insulation, surface protection, light blocking, spacing support, or backing protection.
Common display-related PET parts include:
- PET protective films
- Black PET light-blocking films
- PET insulation films
- PET-backed adhesive frames
- Dust protection films
- PET spacers
- Laminated PET film structures
For display-related projects, optical film die cut components often require high cleanliness, accurate dimensions, smooth liner release, and careful packaging.
A tiny particle near a display is not tiny to the customer.
It is visible.

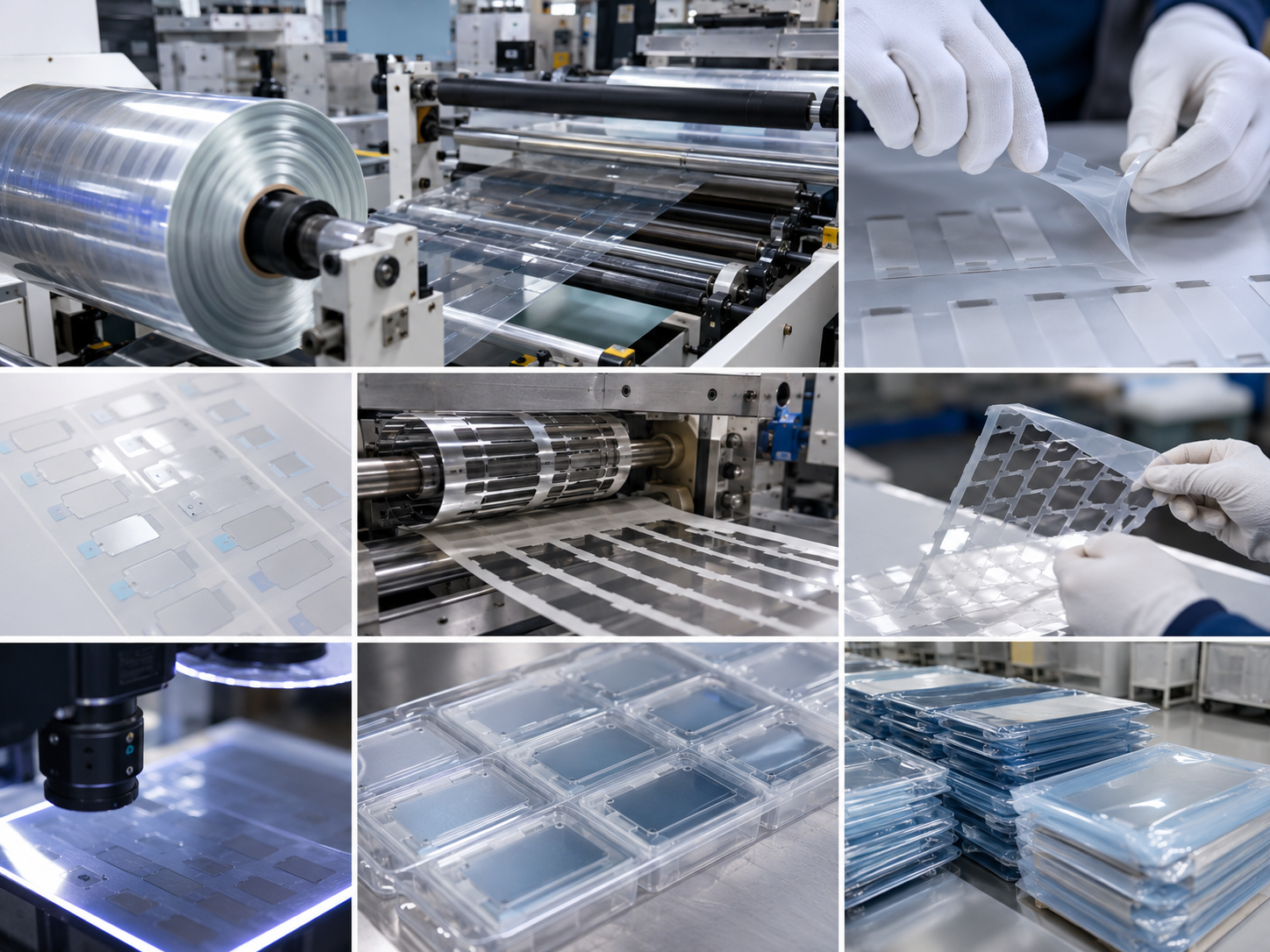

How PET Insulation Films Are Die Cut
PET insulation films are usually manufactured through material converting, lamination, die cutting, waste removal, inspection, and packaging.
A typical process includes:
| Step | Purpose |
|---|---|
| Application review | Confirm insulation area, surface, and assembly method |
| Material selection | Choose PET thickness, color, adhesive, and liner |
| Lamination | Add adhesive, release liner, or protective layer if needed |
| Tooling design | Prepare die cutting tool based on drawing |
| Die cutting | Cut outer shape, holes, slots, windows, or tabs |
| Kiss cutting | Keep adhesive-backed PET parts on release liner |
| Waste removal | Remove unwanted film cleanly |
| Inspection | Check size, edge, surface, adhesive, and liner release |
| Packaging | Prevent dust, scratches, curling, and deformation |
For process background, buyers can review how die cutting transforms raw materials into precision components.
For high-volume PET film parts, roll-to-roll die cutting can improve consistency and production efficiency.
Key Quality Requirements for PET Insulation Parts
PET film insulation parts must be stable from sample to mass production.
Important inspection points include:
| Inspection Item | Why It Matters |
|---|---|
| Dimensions | Ensures correct insulation coverage |
| Thickness | Controls fit and spacing |
| Hole alignment | Supports accurate assembly |
| Edge quality | Reduces burrs and particles |
| Surface cleanliness | Protects electronic areas |
| Adhesive position | Prevents shifting and bonding failure |
| Liner release | Improves peeling and placement |
| Curling control | Keeps films flat during assembly |
| Packaging condition | Prevents scratches and deformation |
For insulation parts, the approved sample is only the beginning.
The real goal is repeatable mass production.
What Buyers Should Provide Before Quotation
To recommend the right PET insulation film, we usually need clear project details.
Helpful information includes:
- Drawing or sample
- PET film thickness
- PET color or surface requirement
- Adhesive requirement
- Release liner requirement
- Bonding surface
- Application location
- Electrical insulation requirement
- Temperature range
- Cleanliness requirement
- Tolerance
- Annual volume
- Delivery format
- Packaging preference
- Validation standard
If the material is not confirmed, Sanken can help compare PET film thickness, adhesive structures, protective films, release liners, and laminated insulation solutions.
For supplier selection, buyers can also review how to choose the right die cutting manufacturer before moving from sampling to mass production.
Need Die Cut PET Films for Electrical Insulation?
PET film is used for electrical insulation in batteries, PCBs, connectors, sensors, displays, control panels, power modules, and electronic housings.
But the final result depends on material thickness, adhesive backing, die cutting accuracy, cleanliness, liner release, inspection, and packaging.
If you need die cut PET insulation films, adhesive-backed PET parts, protective PET films, or laminated PET structures, send us your drawing, sample, PET film requirement, adhesive structure, tolerance, application location, annual volume, and packaging preference.
Sanken can help review material selection, lamination structure, die cutting method, inspection points, and delivery format before mass production.
Related Articles
You may also find these articles helpful:
- Why Is PET Film Commonly Used in Electronics?
- Can PET Film Be Laminated With Adhesives?
- Die Cut PET Insulation Films for Battery and Electronics
- Why Insulation Films Must Be Precision Die Cut for Electronics
- What Industries Use Custom PET Film Die Cutting?
- Why Is Precision Film Die Cutting Important for Consumer Electronics Screens?
- How Does Thickness Tolerance Affect Final Optical Component Fitting?
Conclusion
PET film is used in electrical insulation because it provides thin, stable, and accurate protection for batteries, PCBs, connectors, sensors, displays, and electronic modules. When PET film is die cut correctly, it helps OEM electronics manufacturers improve insulation coverage, assembly reliability, cleanliness, and production efficiency.
