3M tapes are widely used in OEM manufacturing because they can support bonding, mounting, sealing, cushioning, insulation, protection and assembly efficiency.
But a roll of tape is not always ready for production.
Many OEM customers need 3M tape converted into custom die-cut adhesive components, such as tape frames, foam tape gaskets, PET-backed adhesive parts, protective films, pull-tab parts and multilayer laminated structures.
At Sanken, we use precision die cutting and adhesive material converting to process customer-specified tapes into assembly-ready components for automotive, electronics, optical, appliance, medical and industrial applications.
The tape brand matters.
But the converting process matters too.
A good adhesive part must bond well, cut cleanly, peel smoothly and fit the customer’s assembly line.
What Is 3M Tape Converting?
3M tape converting means turning 3M adhesive tape materials into custom shapes, formats and structures for OEM production.
The process may include slitting, laminating, kiss cutting, die cutting, waste removal, pull-tab design, liner control and packaging.
Instead of applying tape manually, OEM manufacturers can use ready-to-apply adhesive parts.
Common converted 3M tape components include:
| Converted Component | Common OEM Use |
|---|---|
| Double-sided tape frames | Display bonding, panel mounting, housing assembly |
| Acrylic foam tape parts | Strong bonding, vibration resistance, trim attachment |
| Transfer adhesive parts | Thin bonding, film lamination, nameplate bonding |
| Foam tape gaskets | Sealing, cushioning, gap filling |
| PET-backed adhesive parts | Positioning, insulation, clean handling |
| Protective films with pull tabs | Surface protection and easy removal |
| Multilayer adhesive structures | Combined bonding, sealing and spacing |
For OEM projects, custom die cut parts often include adhesive tape layers because they improve assembly speed and reduce manual gluing.
Why OEM Manufacturers Use 3M Adhesive Tapes
OEM manufacturers choose 3M tapes because many projects need stable bonding performance, consistent adhesive quality and reliable material options.
3M tapes may be used to replace screws, clips, liquid glue or manual bonding steps in some applications.
They can help reduce weight, improve appearance, simplify assembly and make production cleaner.
Common OEM applications include:
- Automotive interior trim bonding
- Electronic housing assembly
- Display module bonding
- Camera and sensor mounting
- Appliance control panel bonding
- Protective film application
- Foam gasket attachment
- Battery insulation support
- Medical device housing assembly
- Industrial enclosure sealing
In automotive die cut components, adhesive tape parts may face heat, vibration, dust, moisture and long-term aging requirements.
That is why tape selection and converting design must be reviewed together.
A famous tape cannot save a poor design.
Manufacturing is honest like that.

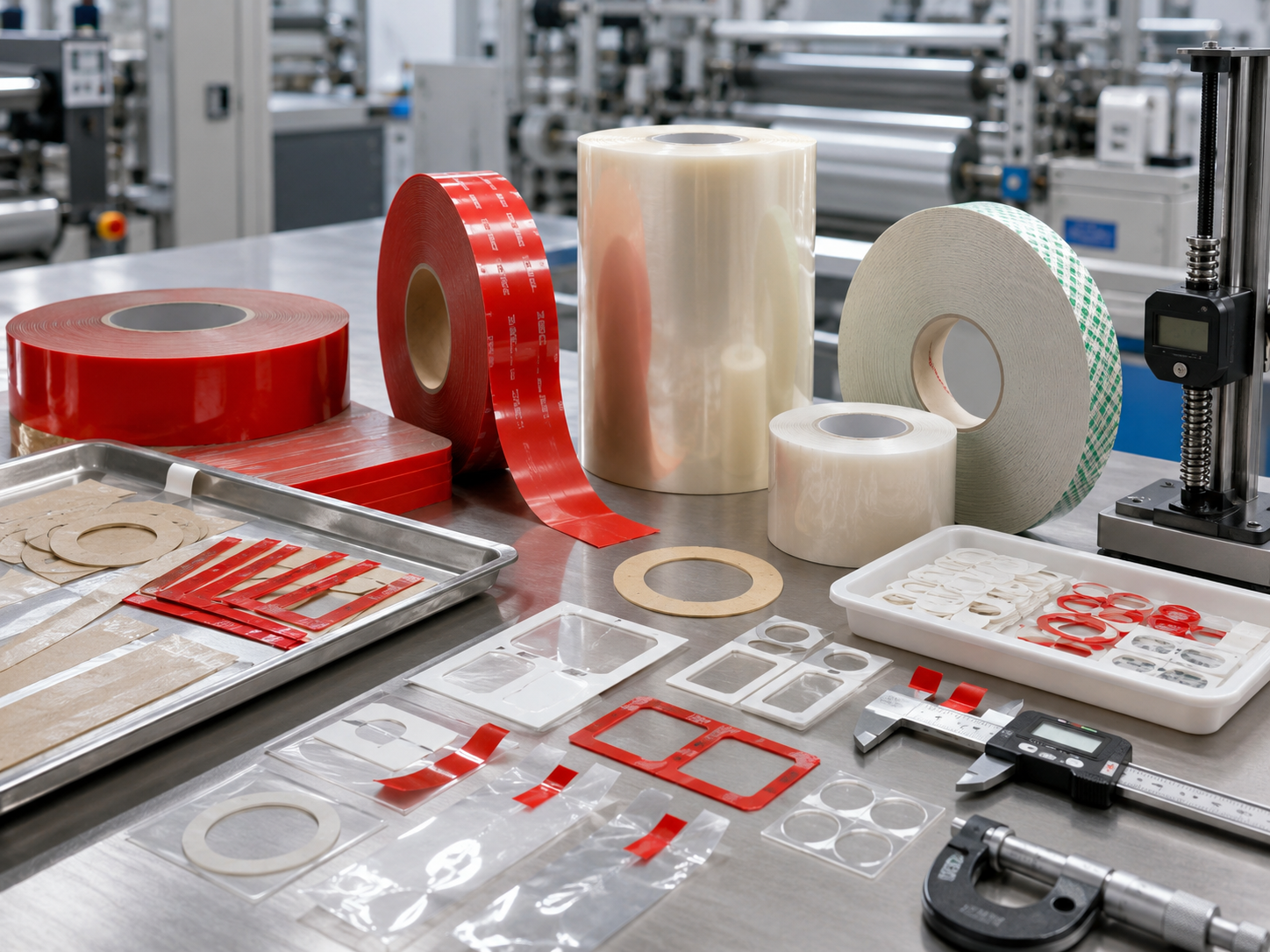

Common 3M Tape Types Used for Die-Cut Components
Different 3M tapes are used for different OEM functions.
Some are designed for strong bonding.
Some are thin and clean.
Some provide cushioning.
Some support surface protection or insulation.
| Tape Type | Typical Function | Common Die-Cut Form |
|---|---|---|
| Double-sided adhesive tape | General bonding and mounting | Frames, pads, strips |
| Transfer adhesive | Thin adhesive bonding | Thin adhesive parts, film lamination |
| Acrylic foam tape | High-strength bonding and vibration control | Mounting pads, trim bonding parts |
| Foam tape | Sealing, cushioning and gap filling | Foam tape gaskets, anti-rattle pads |
| PET-backed adhesive tape | Dimensional stability and clean handling | Insulation parts, positioning tapes |
| Protective film tape | Temporary surface protection | Pull-tab films, cover films |
The best tape is not always the strongest tape.
The best tape is the one that matches the bonding surface, environment, thickness, function, liner and assembly process.
Bonding Surface Comes First
Before selecting a 3M tape for conversion, we first check the bonding surface.
Different surfaces need different adhesive systems.
| Bonding Surface | Key Concern |
|---|---|
| ABS / PC plastic | Surface cleanliness and molding residue |
| PP / PE plastic | Low surface energy bonding |
| Metal | Oil, coating and corrosion concerns |
| Glass | Clean bonding and appearance |
| Painted surface | Coating compatibility |
| Rubber | Surface texture and chemical compatibility |
| PET / PI film | Thin structure stability and liner release |
A tape that bonds well to metal may not bond well to low-surface-energy plastic.
A tape that performs well on a flat surface may fail on a rough or curved surface.
That is why we ask for real material information whenever possible.
“Plastic” is not enough.
Plastic is a whole family, and some family members are difficult.

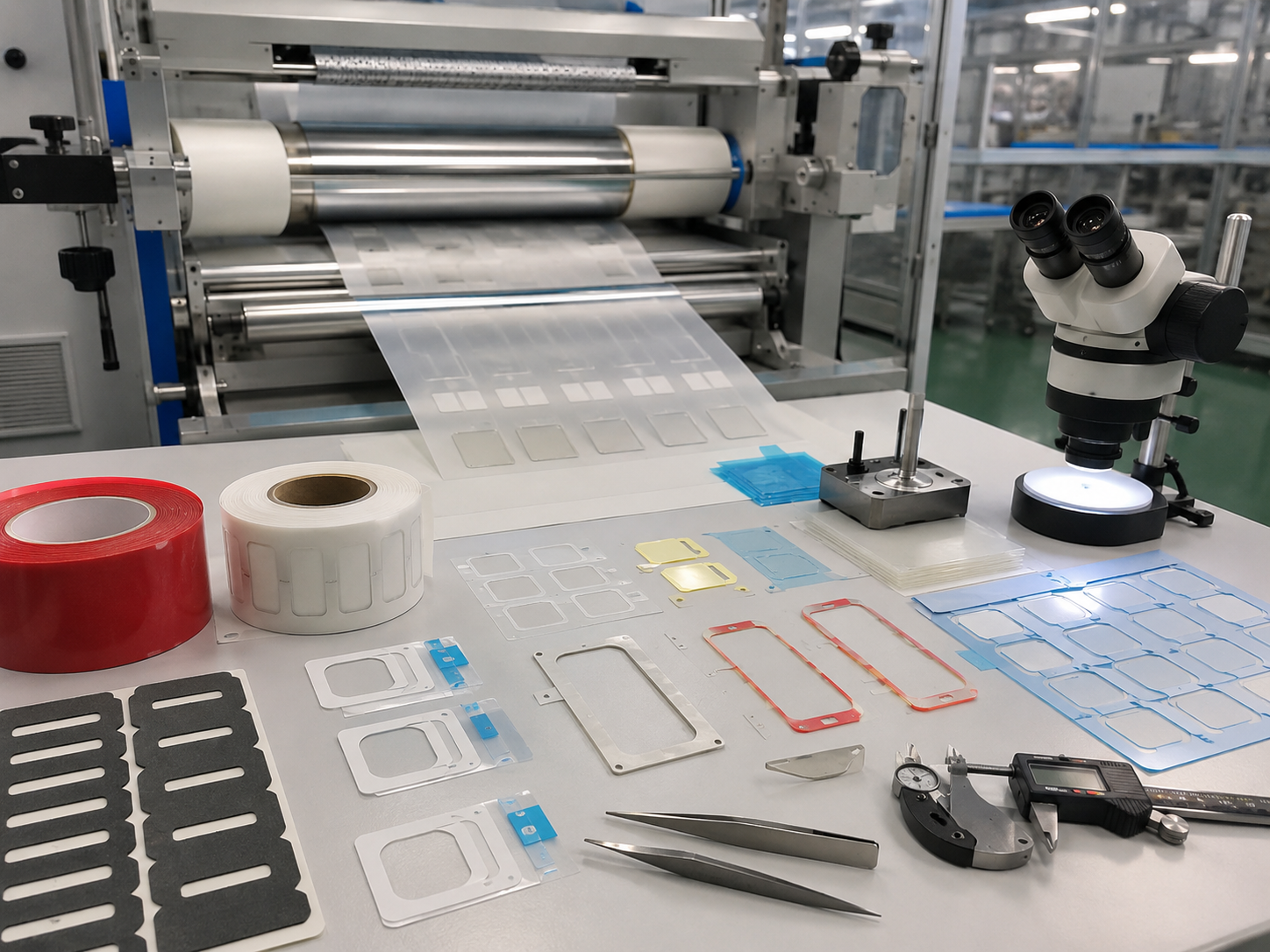

How 3M Tape Is Converted Into Die-Cut Parts
Tape converting is not only cutting.
For adhesive components, the process must control the tape, liner, adhesive edge, waste removal and final packaging.
A typical process includes:
| Step | Purpose |
|---|---|
| Material review | Confirm tape type, thickness and bonding function |
| Lamination | Add foam, film, liner or protective layer if needed |
| Tooling design | Prepare die cutting tool based on drawing |
| Kiss cutting | Cut adhesive layer while keeping liner intact |
| Die cutting | Cut final shape, holes, frames or strips |
| Waste removal | Remove unwanted adhesive material cleanly |
| Inspection | Check size, thickness, edge and adhesive position |
| Packaging | Prevent dust, curling, shifting and deformation |
For adhesive tape parts, kiss cutting is often important.
The finished part stays on the release liner, so the customer can peel and apply it during assembly.
For more process background, buyers can review Die Cut vs Kiss Cut: What OEM Buyers Should Know for Adhesive Parts and Protective Films.
Why Liner Control Matters
The release liner is not part of the final product.
But it can decide whether the part is easy to use.
Poor liner control may cause difficult peeling, liner tearing, adhesive transfer, curled parts, shifted parts or slow assembly.
For custom die-cut adhesive components, we check:
- Liner material
- Liner thickness
- Release force
- Cut depth
- Pull-tab design
- Part spacing
- Peeling direction
- Packaging pressure
A tape component that bonds well but peels badly is still a production problem.
Operators do not enjoy fighting with release liners.
Neither do purchasing managers when complaints arrive.
3M Tape Converting for Foam Gaskets and Sealing Parts
Some 3M adhesive tapes are laminated with foam to create adhesive-backed foam gaskets.
These parts can seal, cushion, bond and reduce vibration at the same time.
For sealing applications, foam gaskets and sealing components are often used in automotive electronics, lighting modules, HVAC systems, appliance panels and industrial enclosures.
Key requirements include:
| Requirement | Why It Matters |
|---|---|
| Foam thickness | Controls compression and sealing pressure |
| Adhesive strength | Prevents lifting after assembly |
| Edge quality | Reduces particles and poor fit |
| Liner release | Improves peeling and assembly speed |
| Packaging | Prevents deformation before use |
For foam tape gaskets, the adhesive must bond well, but the foam must also compress correctly.
If either one fails, the gasket may not seal.
3M Tape Converting for Electronics and Optical Components
Electronics and optical products often need thin, clean and accurate adhesive parts.
These may include PET-backed adhesive films, protective films, black film frames, display bonding tapes and small sensor adhesive pads.
For optical film die cut components, cleanliness is especially important.
Dust, scratches, bubbles, adhesive overflow and residue can affect appearance or assembly quality.
In electronics, adhesive parts may be used around PCBs, displays, connectors, camera modules and housings.
The part must be accurate.
It must also stay clean and flat.
This is where material converting, die cutting and packaging must work together.

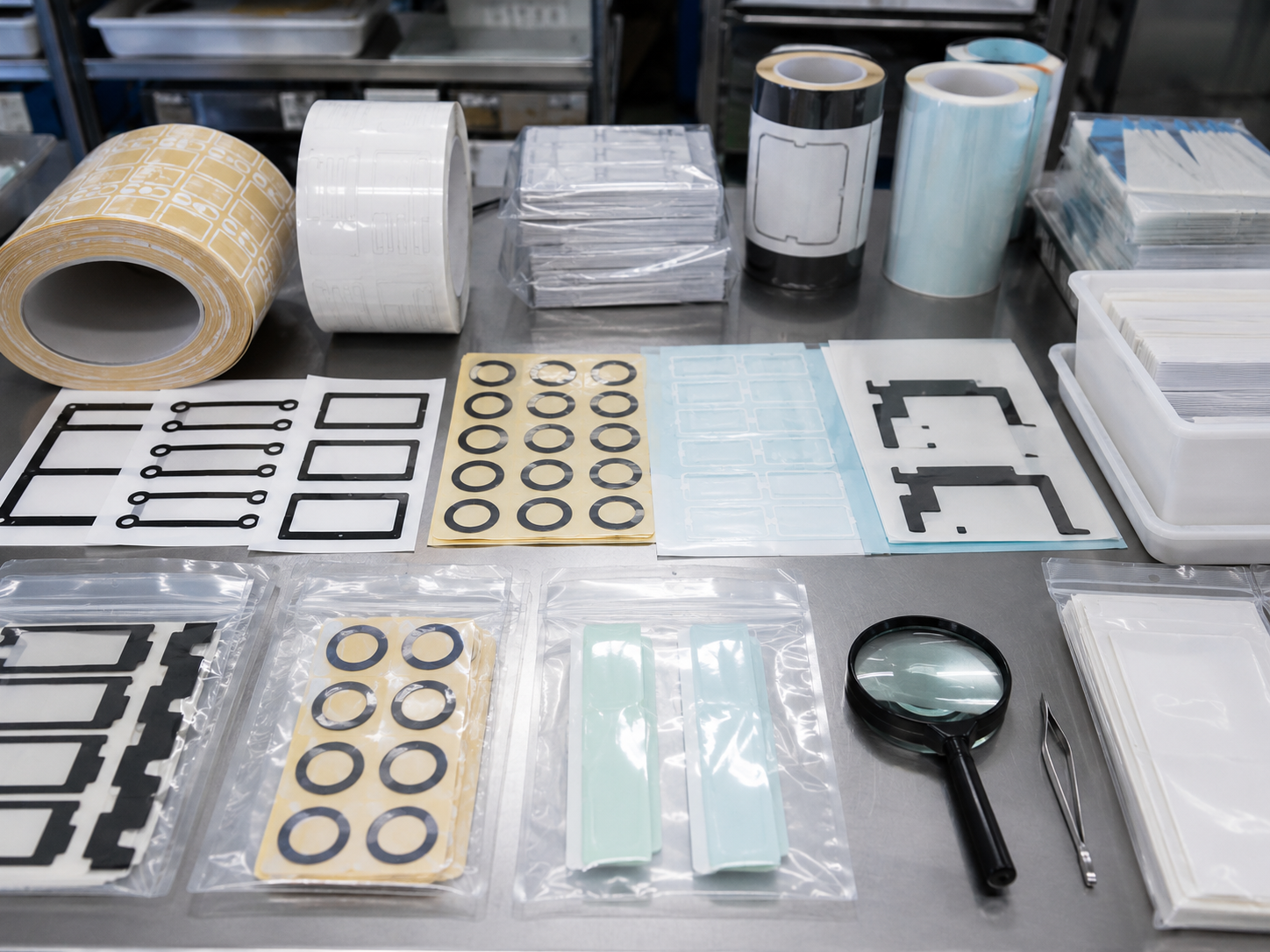

Supply Formats for OEM Assembly
Converted 3M tape components can be supplied in several formats.
The best format depends on the customer’s production line.
| Supply Format | Best For |
|---|---|
| Sheets | Manual assembly and organized picking |
| Rolls | Automated application and high-volume production |
| Kiss-cut on liner | Adhesive frames, films and tape parts |
| Individual pieces | Simple low-volume assembly |
| Kits | Multi-part OEM projects |
| Trays or bags | Parts needing protection from deformation |
For manual assembly, die cut parts supplied in sheets may be easier for operators to pick and place.
For automated application, roll format may improve speed and consistency.
For more details, buyers can review how die cut parts are supplied in sheets, rolls, or kits for different OEM assembly processes.
Common Problems in Tape Converting
Even high-quality tape can fail if converting is not controlled.
Common problems include:
| Problem | Possible Cause |
|---|---|
| Adhesive lifting | Wrong adhesive or poor surface match |
| Tape shifting | Weak positioning or poor liner control |
| Adhesive overflow | Wrong pressure, thickness or cutting method |
| Difficult peeling | Poor liner release or missing pull tab |
| Curling | Tape tension, material memory or packaging |
| Residue | Adhesive mismatch or aging issue |
| Torn parts | Narrow design or poor waste removal |
| Slow assembly | Wrong delivery format |
Many issues are not discovered until production starts.
That is the expensive time to learn.
We prefer to review the design, material and assembly method before tooling.
Quality Checks for Converted 3M Tape Parts
For OEM projects, converted adhesive parts must stay consistent from sample to mass production.
Important inspection points include:
| Inspection Item | Purpose |
|---|---|
| Dimensions | Ensures correct fit |
| Thickness | Controls spacing, bonding and sealing |
| Adhesive position | Prevents bonding failure |
| Edge quality | Reduces glue residue and particles |
| Liner release | Improves peeling and assembly speed |
| Flatness | Supports accurate placement |
| Surface cleanliness | Reduces contamination risk |
| Packaging condition | Prevents shifting, curling and deformation |
The approved sample is only the beginning.
The real goal is repeatable production.
What Buyers Should Provide Before Quotation
To recommend the right converting solution, we usually need more than tape name and size.
Helpful information includes:
- Tape type or preferred 3M material
- Drawing or sample
- Bonding surface
- Required thickness
- Adhesive strength requirement
- Temperature range
- Indoor or outdoor use
- Compression or cushioning need
- Liner preference
- Pull-tab requirement
- Tolerance
- Assembly method
- Annual volume
- Delivery format
- Packaging preference
If the material is not confirmed, we can help review adhesive structure, carrier type, liner design, die cutting method and packaging format before sampling.
Need 3M Tape Converted Into Custom Die-Cut Components?
3M tape converting helps OEM manufacturers turn adhesive tape materials into clean, accurate and assembly-ready parts.
But the final result depends on more than the tape itself.
It depends on material selection, lamination, kiss cutting, liner control, inspection and delivery format.
If you need custom die cut parts for OEM assembly, send us your drawing, sample, preferred tape type, bonding surface, adhesive structure, tolerance, application location, annual volume and packaging preference.
Sanken can help review tape selection, converting method, liner design, inspection points and delivery format before mass production.
Related Articles
You may also find these articles helpful:
- Adhesive Backed Die Cut Components for OEM Assembly
- Why Do Die Cut Adhesive Parts Fail After Assembly?
- Why Your Die Cut Tape Parts Lift, Shift or Peel Off
- How to Prevent Adhesive Overflow in Custom Die Cut Tape Parts
- How to Prevent Adhesive Lifting in Die Cut Tape Components
- What Is the Best Adhesive for Die Cut Tape Parts?
- Die Cut vs Kiss Cut: What OEM Buyers Should Know for Adhesive Parts and Protective Films
Conclusion
3M tape converting turns adhesive tape materials into custom die-cut components for OEM bonding, sealing, mounting, cushioning, insulation and protection. To make these parts reliable, tape selection, surface matching, liner control, die cutting accuracy, inspection and packaging must all work together.
