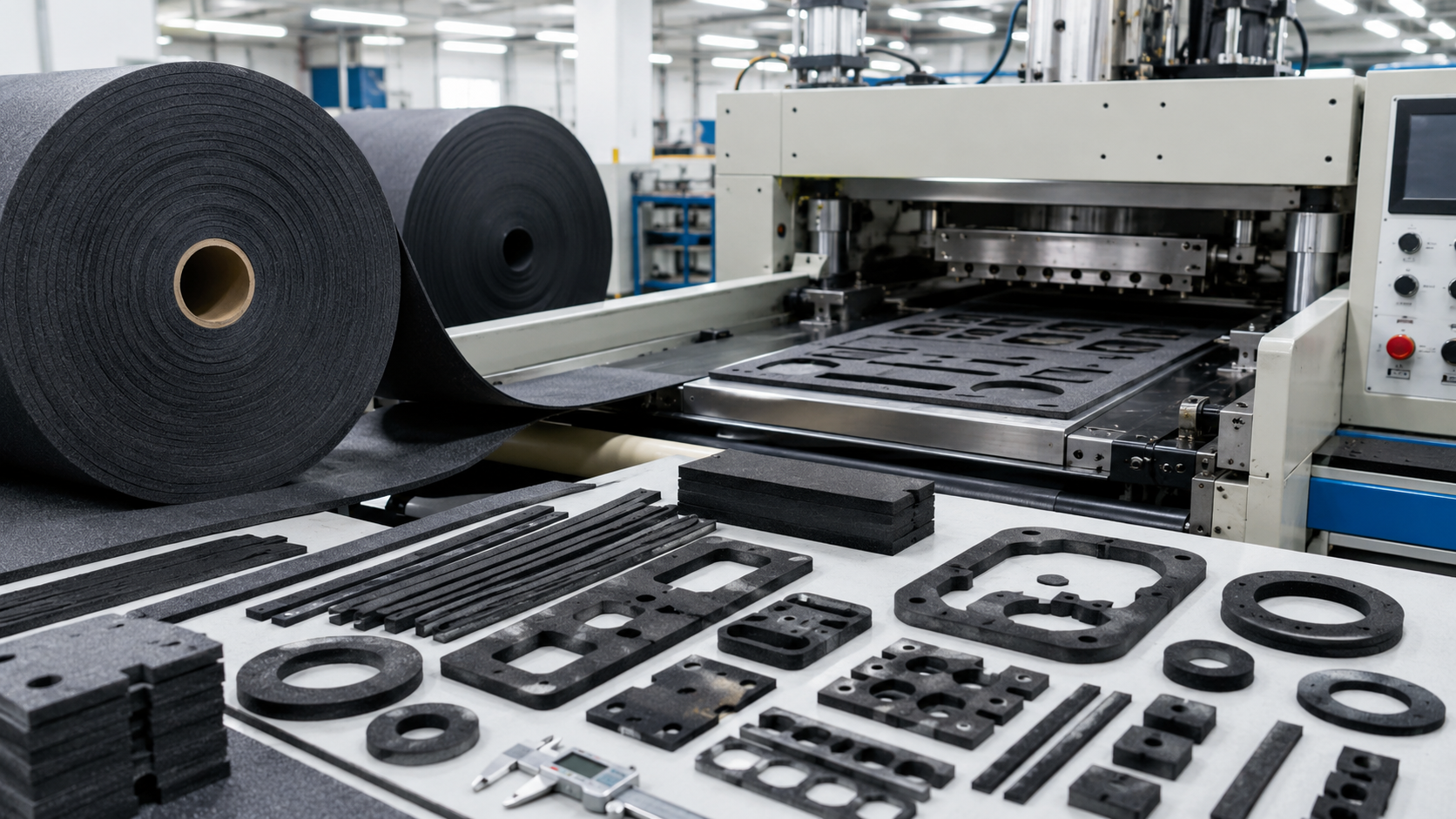

From foam rolls to finished die cut parts, the process is not only about cutting foam into a shape. It is about controlling foam thickness, compression behavior, adhesive lamination, cutting depth, liner release, waste removal, inspection and packaging so the finished part can perform reliably in OEM assembly.
A foam roll may become a gasket, sealing pad, cushioning spacer, adhesive-backed foam tape, acoustic pad, anti-rattle part or automotive electronics gasket. Each finished component must fit the assembly, keep its shape and meet the real application requirement during mass production.
For OEM buyers, foam gaskets and sealing components affect sealing performance and assembly stability.
Why This Topic Matters for OEM Manufacturing
Foam die cutting is widely used because foam can seal gaps, absorb vibration, reduce noise, cushion impact, and support fast assembly. But foam is also flexible, compressible, and easy to deform if the process is not controlled correctly.
This is why turning foam rolls into finished parts requires more than a cutting machine.
A foam roll may look simple at the beginning of production, but the finished component may need:
- Stable thickness
- Accurate outer dimensions
- Clean holes and inner cutouts
- Controlled adhesive backing
- Good compression recovery
- Smooth liner release
- Reliable packaging
- Consistent batch quality
For automotive, electronics, appliance and industrial OEM applications, these details matter. A poorly cut foam gasket may leak. A narrow foam strip may tear. An adhesive-backed foam pad may lift from the liner. A foam spacer may compress too much and lose function. A poorly cut foam gasket may leak. A narrow foam strip may tear. An adhesive-backed foam pad may lift from the liner. A foam spacer may compress too much and lose function.
Die cutting helps solve these problems when the process is designed properly.
How Foam Roll Die Cutting Works Step by Step
The foam die cutting process usually starts with roll material and ends with parts delivered in sheets, rolls, individual pieces, or custom kits.
| Process Step | What Happens | Why It Matters |
|---|---|---|
| Material review | Foam type, thickness, density, and surface are checked | Confirms whether the foam suits the application |
| Adhesive lamination | Adhesive and release liner may be added | Supports assembly and positioning |
| Slitting or pre-cutting | Foam roll may be cut to working width | Improves production efficiency |
| Tooling setup | Die, blade, or rotary tool is prepared | Controls shape and tolerance |
| Die cutting | Foam is cut into the required profile | Creates the finished geometry |
| Kiss cutting | Adhesive-backed foam is cut without cutting through liner | Allows easy peeling and assembly |
| Waste removal | Unwanted foam is stripped away | Prevents tearing and deformation |
| Inspection | Dimensions, edges, holes, and thickness are checked | Protects batch consistency |
| Packaging | Parts are packed in roll, sheet, tray, or kit format | Supports customer assembly line |
Many custom die cut parts look simple, but foam behavior, tolerance, adhesive structure and packaging format can directly affect OEM assembly performance.
Each step can affect the next one.
If the adhesive lamination is unstable, kiss cutting may fail. If the cutting pressure is too high, the foam may collapse. If waste removal is too aggressive, narrow gasket walls may tear. If packaging compresses the foam, the parts may arrive deformed.
A professional supplier must control the full process, not only the cutting step.
Common Problems and Production Risks
Foam die cutting has several hidden risks because foam changes shape under pressure. It can compress during cutting, rebound after cutting, stretch during liner removal, or deform during packaging.
| Problem | Common Cause | OEM Risk |
|---|---|---|
| Foam tearing | Narrow walls, soft foam, poor waste removal | Low yield and unstable parts |
| Poor compression | Wrong foam density or thickness | Weak sealing or cushioning |
| Hole misalignment | Poor tolerance control | Assembly difficulty |
| Adhesive overflow | Excessive pressure or soft adhesive | Contamination and rejected parts |
| Liner damage | Incorrect kiss cutting depth | Peeling problems |
| Rough edges | Dull blade or wrong tooling | Poor appearance and sealing risk |
| Foam deformation | Poor packaging or high cutting force | Poor fit during assembly |
| Batch variation | No process control plan | Mass production instability |
For sealing applications, foam gaskets and sealing components require stable thickness, clean edges, proper compression and suitable adhesive backing.
Samples may be made slowly and carefully. Production runs are longer, faster, and more sensitive to tool wear, roll tension, adhesive behavior, and material batch variation.
That is why foam roll die cutting should be validated as a production process.
What Buyers or Engineers Should Check First
Before starting a foam die cutting project, engineers should define the functional requirements clearly. This helps the supplier select the right foam, adhesive, process, tolerance, and delivery format.
| Checklist Item | What to Confirm | Why It Matters |
|---|---|---|
| Foam type | PU, EVA, PE, EPDM, CR, silicone foam | Affects sealing, rebound, and cutting behavior |
| Thickness | Nominal thickness and tolerance | Controls compression and fit |
| Density | Soft, medium, or high-density foam | Affects strength and recovery |
| Application | Sealing, cushioning, spacing, insulation, NVH | Defines performance requirements |
| Adhesive backing | Adhesive type, liner, bonding surface | Prevents peeling and shifting |
| Critical dimensions | Holes, edges, openings, sealing walls | Protects assembly accuracy |
| Minimum width | Narrowest foam wall or bridge | Prevents tearing |
| Compression range | Housing gap and pressure | Prevents leakage or over-compression |
| Delivery format | Roll, sheet, individual piece, kit | Supports assembly efficiency |
Not every foam part needs extremely tight tolerance. But the critical areas must be controlled.
A screw hole may need tight alignment. A sealing wall may need stable width. A liner-backed foam pad may need consistent kiss cutting depth. A foam gasket used in automotive electronics may need both dimensional accuracy and compression stability.
Material and Process Considerations
Foam material selection has a direct impact on die cutting results.
PU foam is often used for cushioning, dust sealing, and soft contact applications. It is easy to compress, so narrow shapes may need special attention.
EVA foam is used for cushioning, sealing, and general protection. It has better structure than very soft foam, but thickness and edge stability still matter.
PE foam is commonly used for moisture-resistant sealing, packaging, and insulation. It can provide good shape stability when the right density is selected.
EPDM foam is often used for automotive and outdoor sealing because it offers weather resistance and compression performance.
CR foam can be used for industrial sealing, cushioning, and vibration control.
Silicone foam may be selected for heat resistance, elasticity, and long-term recovery.
The process must match the material.

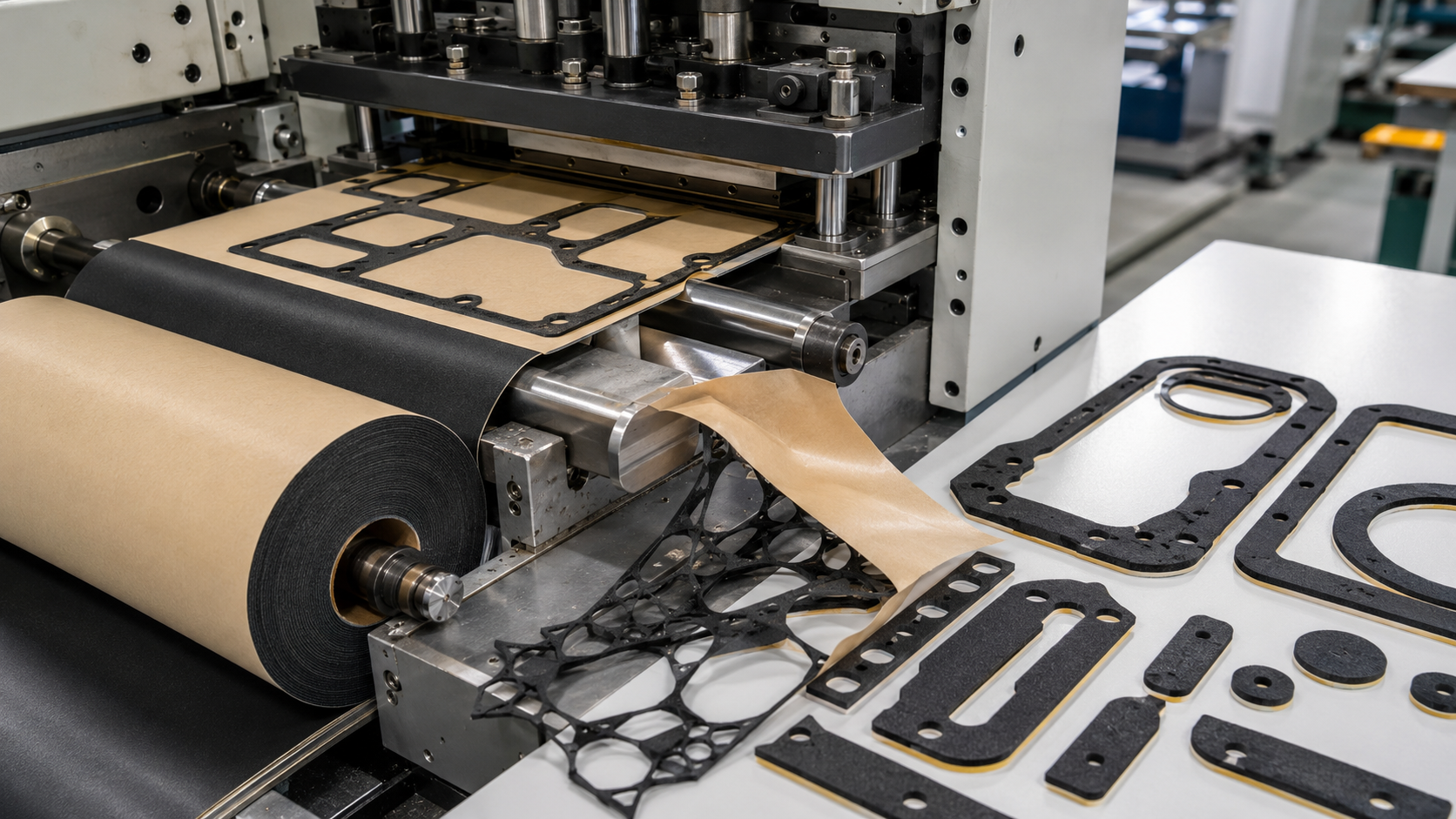

For adhesive-backed foam, lamination quality and liner selection are important. If the adhesive is too soft, edge overflow may appear. If the liner is too weak, peeling may damage the foam. If kiss cutting is too deep, the liner may be cut. If kiss cutting is too shallow, the foam may not release cleanly.
Adhesive-backed foam parts require liner control, kiss cutting depth and adhesive overflow prevention. Buyers can review adhesive-backed die cut components to understand common OEM assembly risks.
For narrow foam gaskets, waste removal is especially important. A part may cut correctly but tear when the waste is stripped away.
At Sanken, we review foam density, thickness, adhesive structure, minimum width, hole-to-edge distance, and waste removal before mass production.
How Foam Rolls Become Finished Parts
A finished die cut foam part may look simple, but several engineering decisions are hidden inside it.
First, the foam roll must be checked for thickness, surface condition, density, and roll stability. If the material is not stable, cutting accuracy will be difficult to control.
Second, adhesive may be laminated to the foam. This step must keep the adhesive flat and aligned. Any wrinkle, bubble, or shift can affect final assembly.
Third, the foam is cut using flatbed or rotary die cutting.For high-volume roll-fed production, buyers can also review rotary die cutting to understand web tension, liner control, rotary tooling and roll-to-roll converting. The choice depends on the material, thickness, shape, tolerance, and production volume.
Fourth, waste is removed. This step is critical for holes, narrow bridges, thin gasket walls, and adhesive-backed parts.
Fifth, the finished parts are inspected. Inspection may include outer dimensions, hole position, thickness, edge condition, adhesive position, liner release, and compression fit.
Finally, the parts are packed. The final delivery format also affects assembly efficiency. This guide explains how die cut parts are supplied in sheets, rolls, or kits for different OEM production processes.Packaging must protect the foam from compression, bending, dust, and adhesive contamination.
This complete process is what turns a foam roll into a usable OEM component.
How Sanken Helps Reduce Risk Before Mass Production
Sanken supports OEM customers with foam material review, adhesive lamination, precision die cutting, kiss cutting, waste removal, dimensional inspection and packaging design before mass production.
For foam roll die cutting projects, we focus on the details that affect real production stability, including foam type, thickness, density, adhesive structure, critical dimensions, cutting method, tooling, liner release, waste removal and delivery format.
For foam gaskets, we check sealing wall width, hole position, compression range and rebound.
For adhesive-backed foam parts, we check lamination stability, kiss cutting depth, liner release, adhesive overflow risk and peeling behavior.
For automotive, electronics, appliance and industrial applications, our goal is to help customers avoid repeated sampling, tooling changes, tearing, poor sealing, assembly delays and unstable batch production.
Conclusion
From foam rolls to finished die cut parts, the process includes foam material review, adhesive lamination, tooling, die cutting, kiss cutting, waste removal, inspection and packaging. Each step can affect sealing performance, cushioning behavior, dimensional stability, liner release and mass production quality.
For OEM buyers, foam die cutting is not only about cutting a soft material into a shape. The finished part must match the real assembly gap, compression requirement, adhesive surface, tolerance requirement, production method and delivery format.
Need custom die cut foam parts for an OEM project?
Send us your drawing, sample, foam type, thickness, density, adhesive requirement, liner type, compression target, tolerance requirement, annual volume and packaging preference. Sanken can help review foam selection, adhesive lamination, die cutting method, kiss cutting depth, waste removal, inspection points and delivery format before sampling and mass production.
