Sensors, cameras, and display modules are becoming essential components in modern electronic products, automotive systems, medical equipment, and industrial devices. These components require high precision, reliable protection, and consistent assembly performance because even small defects can affect optical performance, sensing accuracy, or product appearance.
Precision die cutting provides a flexible manufacturing solution by converting thin films, foams, adhesives, and protective materials into custom components with accurate dimensions and complex geometries. These die-cut parts help control light leakage, protect sensitive surfaces, provide insulation, reduce vibration, and improve assembly efficiency.
Sensitive Electronic Components Require Precise Protection
Sensors, cameras, and display modules often contain delicate optical and electronic structures. They must operate within strict design tolerances while being protected during manufacturing and product use.
Common challenges include:
- Preventing scratches and surface damage
- Controlling unwanted light leakage
- Maintaining electrical insulation
- Reducing vibration and movement
- Filling assembly gaps
- Protecting components during transportation
- Improving repeatable installation
Standard sheets or manually cut materials are often difficult to control in high-volume production. Variation in size, edge quality, and placement can create assembly problems.
Custom die-cut components allow manufacturers to produce repeatable shapes that match the exact requirements of the final assembly.
PET Films Provide Electrical Insulation and Optical Control
PET film is widely used in electronic and optical assemblies because it combines thin construction, dimensional stability, and reliable insulation performance.
Typical applications include:
- Sensor insulation layers
- Camera module barriers
- Display-related insulation parts
- Connector protection
- Internal electronic separators
PET film offers several advantages:
| Property | Benefit |
|---|---|
| Electrical insulation | Helps prevent unwanted electrical contact |
| Dimensional stability | Maintains accurate positioning |
| Thin profile | Fits compact assemblies |
| Mechanical strength | Resists tearing during handling |
| Die-cut compatibility | Supports complex shapes |

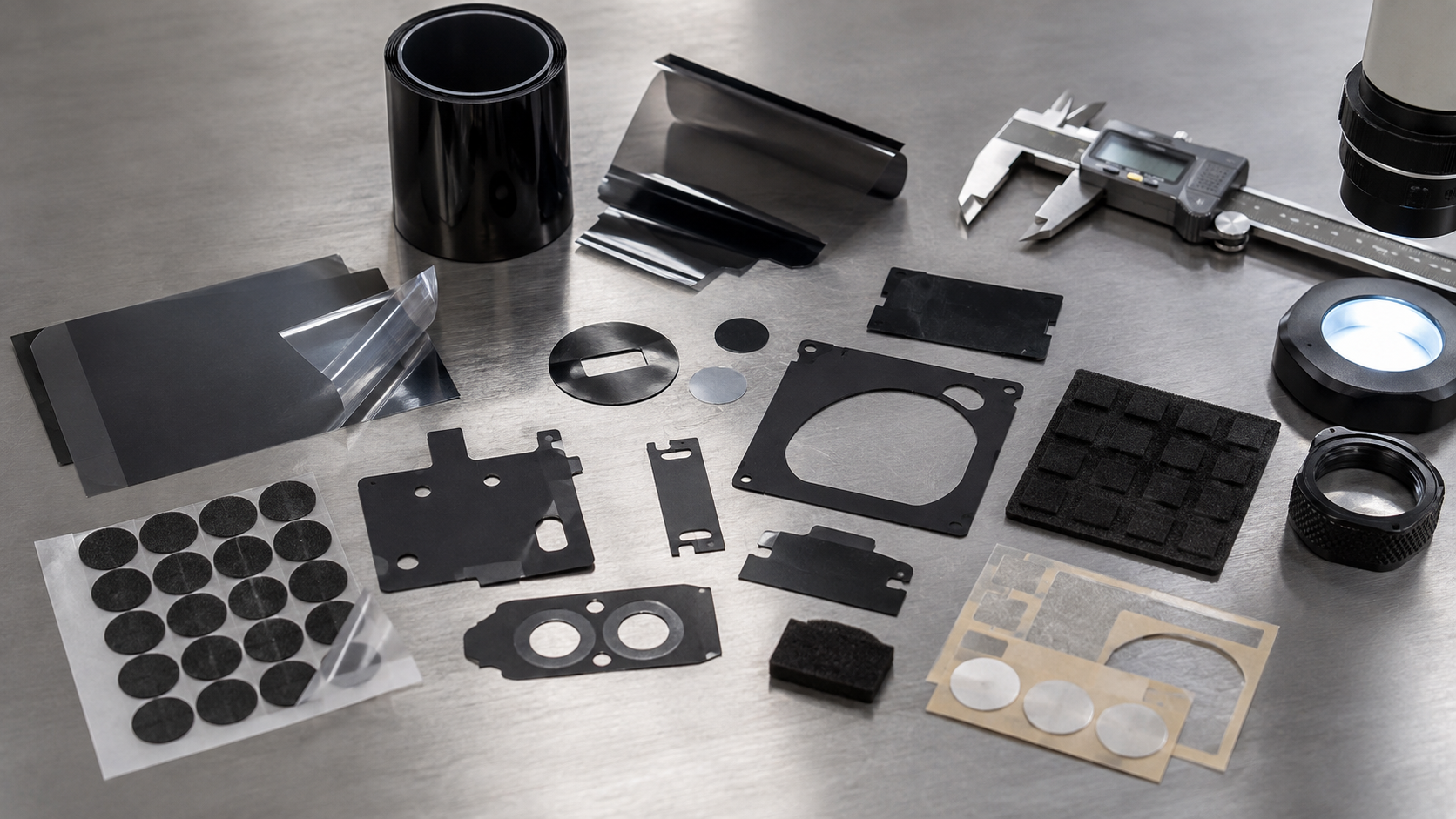

For optical applications, black PET film can also be used to control unwanted light.
Black PET die-cut components are commonly used for:
- Light-blocking frames
- Optical barriers
- Camera openings
- Display module structures
Because these parts remain inside the final product, their dimensions and edge quality must remain consistent throughout production.
Sanken provides precision die cutting services for PET films, protective films, adhesive materials, and other flexible components used in optical and electronic applications.
Protective Films Prevent Damage During Manufacturing
Protective films are commonly applied to sensitive surfaces during production, storage, and transportation.
They help protect:
- Display surfaces
- Camera covers
- Optical windows
- Plastic housings
- Finished appearance areas
A typical protective film structure includes:
| Layer | Function |
|---|---|
| Base film | Provides physical protection |
| Adhesive layer | Holds the film during processing |
| Release liner | Protects adhesive before application |
The adhesive must balance holding strength and clean removal.
Important requirements include:
- No adhesive residue
- Stable temporary bonding
- Easy peeling
- Resistance to scratches and contamination
- Compatibility with the protected surface
For example, a display protection film must remain attached during assembly but remove cleanly before final customer use.
Foam Components Reduce Vibration and Improve Component Stability
Sensors, cameras, and display modules can be sensitive to movement, impact, and uneven assembly pressure.
Foam materials help provide:
- Cushioning
- Gap filling
- Vibration reduction
- Component positioning
- Surface protection
Common foam materials include:
| Material | Main Characteristics | Typical Use |
|---|---|---|
| EVA Foam | Flexible and economical | Cushioning pads |
| PE Foam | Lightweight and stable | Gap filling and protection |
| PU Foam | Soft and conformable | Vibration absorption |
| EPDM Foam | Durable and resilient | Sealing and protection |
| Silicone Foam | Temperature resistant | Higher-performance areas |
Foam thickness and density should be selected according to the actual assembly requirement.
A foam pad that is too soft may compress excessively and lose positioning ability. A material that is too firm may transfer unwanted stress to sensitive components.
Custom foam gaskets and sealing components can be produced with precise profiles, adhesive layers, and release liners for electronic assemblies.

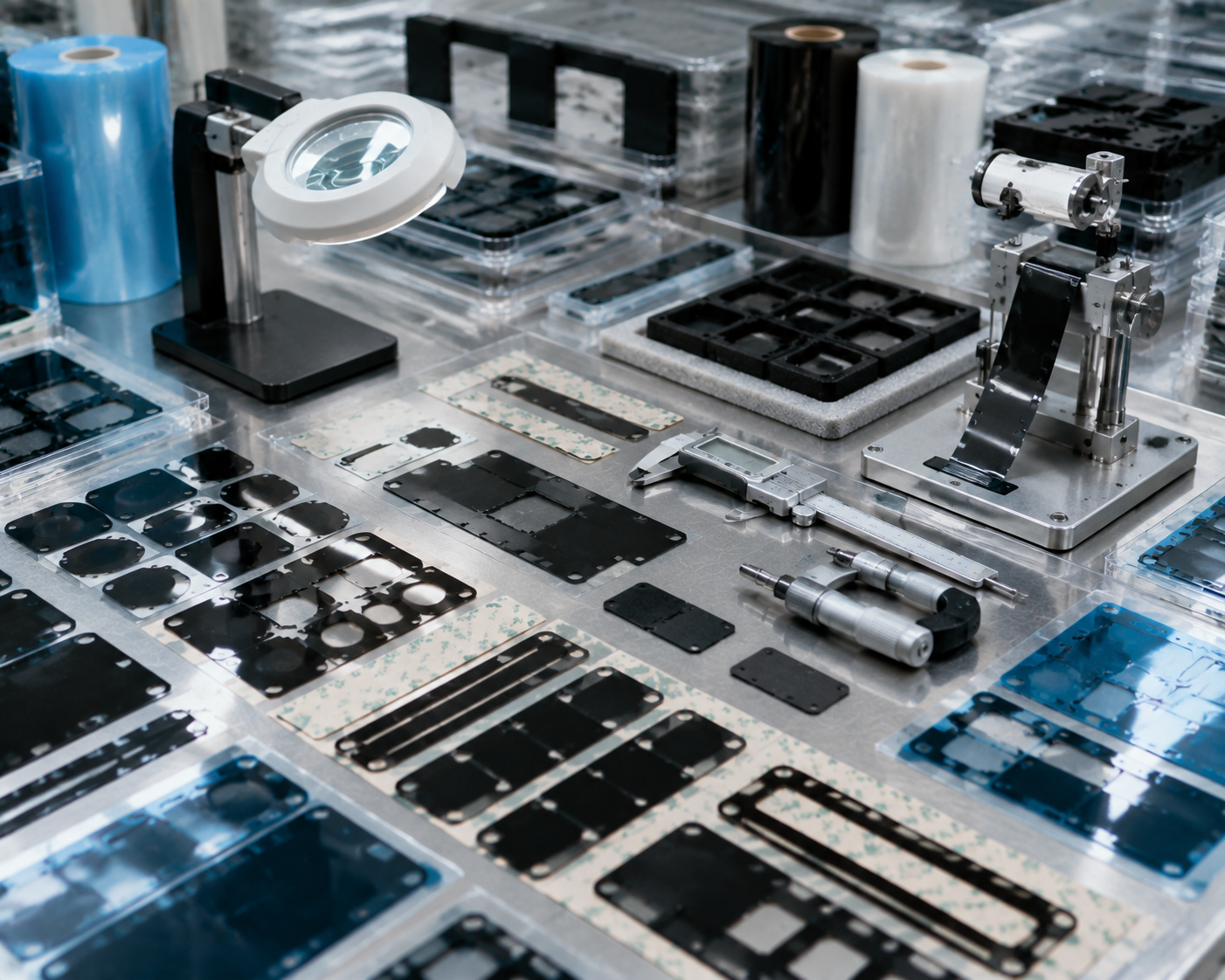

Adhesive Die-Cut Parts Simplify Assembly
Many sensors, cameras, and display modules require components to stay accurately positioned during assembly.
Adhesive-backed die-cut parts combine the functional material and bonding layer into one ready-to-install component.
Typical examples include:
- Adhesive-backed PET frames
- Foam mounting pads
- Optical film components
- Protective film parts
- Internal positioning tapes
Benefits include:
- Faster installation
- Reduced manual adjustment
- Better positioning accuracy
- Improved production consistency
- Compatibility with automated assembly
Adhesive selection depends on:
| Factor | Consideration |
|---|---|
| Bonding surface | Plastic, metal, glass, coating |
| Temperature | Operating environment |
| Holding force | Required stability |
| Thickness | Total assembly height |
| Removal requirement | Permanent or temporary bonding |
Sanken manufactures adhesive-backed die-cut components using films, foams, tapes, and liners for OEM applications.
Precision Die Cutting Enables Complex Component Designs
Modern electronic components often require very small and complex flexible parts.
Die cutting supports features such as:
- Small openings
- Narrow frames
- Irregular profiles
- Multiple holes
- Adhesive borders
- Multilayer structures
Compared with manual cutting methods, precision die cutting provides:
- Better dimensional accuracy
- Cleaner edges
- Higher repeatability
- Lower material waste
- More stable production
This is especially important for camera and display modules where alignment directly affects product performance.
A slightly incorrect opening may affect:
- Optical alignment
- Sensor exposure
- Light control
- Component fit
- Assembly efficiency
Therefore, the design and converting process must be considered together.
Multilayer Components Combine Multiple Functions
Many optical and electronic assemblies require more than one function from a single part.
Multilayer structures can combine:
- PET insulation
- Black PET light blocking
- Foam cushioning
- Adhesive bonding
- Protective layers
Examples include:
- PET + adhesive
- PET + foam + adhesive
- Protective film + removable adhesive
- Black PET + liner
These integrated components reduce the number of assembly steps while improving consistency.
However, multilayer converting requires accurate control of:
- Layer alignment
- Lamination pressure
- Adhesive thickness
- Cutting depth
- Material movement
Early prototype testing helps confirm that all layers work together correctly.
Design Considerations Improve Die-Cut Component Performance
A manufacturing-friendly design helps improve both quality and production efficiency.
Important considerations include:
| Design Factor | Impact |
|---|---|
| Corner radius | Reduces stress and cracking |
| Feature size | Supports stable cutting |
| Adhesive setback | Prevents contamination |
| Part spacing | Improves waste removal |
| Critical tolerance | Controls important dimensions |
Very small features and extremely tight tolerances may increase manufacturing difficulty without improving product performance.
Engineers should identify which dimensions directly affect function and which can use practical manufacturing tolerances.

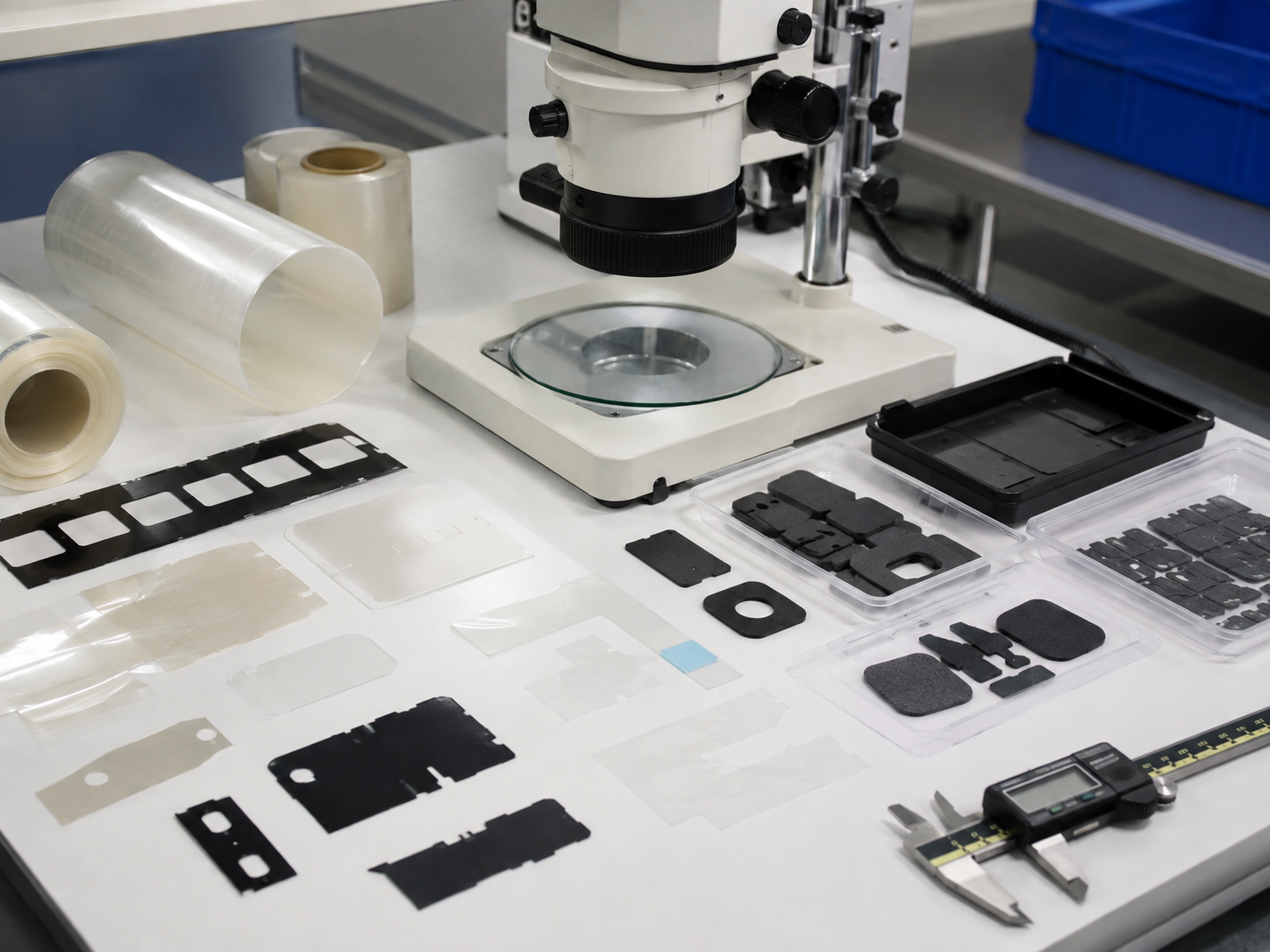

Quality Control Ensures Reliable Optical and Electronic Parts
Because sensors, cameras, and displays are precision assemblies, quality control is essential.
Inspection may include:
| Inspection Item | Purpose |
|---|---|
| Material verification | Confirms correct specification |
| Dimensional inspection | Ensures assembly fit |
| Edge inspection | Detects cutting defects |
| Adhesive alignment | Prevents bonding issues |
| Thickness measurement | Controls assembly height |
| Surface inspection | Detects contamination |
For optical applications, visual consistency is especially important because small defects may become visible in the final product.
How Sanken Supports Sensor, Camera, and Display Components
Sanken manufactures custom die-cut PET films, black PET light-blocking films, protective films, foam parts, adhesive components, and multilayer flexible structures for optical and electronic OEM applications.
We support customers from material selection and design review through laminating, precision die cutting, prototype development, inspection, and mass production.
By combining suitable materials with controlled converting processes, Sanken helps manufacturers improve component protection, assembly reliability, and production consistency.
You May Also Be Interested In
- Die-Cut Light-Blocking Films for Optical and Electronic Components
- Black PET Film vs Protective Film: What Is the Difference for OEM Applications?
- Why Electronic Components Need Custom Die Cut Insulation Films and Protective Films
- How to Choose Die Cut Films, Foams, and Adhesive Parts for Electronic Components
- How to Choose the Right Die Cutting Manufacturer for Your OEM Project
Conclusion
Precision die cutting plays an important role in protecting sensors, cameras, and display modules by converting films, foams, adhesives, and protective materials into accurate custom components.
PET films provide insulation and optical control, protective films prevent manufacturing damage, foam parts reduce vibration and provide cushioning, and adhesive structures improve assembly efficiency.
By selecting the right material structure and applying controlled precision converting processes, OEM manufacturers can improve reliability, reduce assembly risks, and achieve consistent performance in advanced electronic products.
