How to Choose the Right Pressure Sensitive Adhesive Tape for Die-Cut Parts

Choosing pressure sensitive adhesive tape for die-cut parts sounds easy.

Until the part lifts, shifts, curls, leaves residue, fails after heat aging, or makes your assembly line slower than a Monday morning meeting.

At Sanken, we use precision die cutting and material converting to make adhesive tape parts for automotive, electronics, optical, appliance, medical and industrial OEM projects.

For us, the right tape is not only the one that “sticks.”

The right tape must bond to the correct surface, survive the working environment, match the die cutting process and arrive in a format that is easy to assemble.

What Is Pressure Sensitive Adhesive Tape?

Pressure sensitive adhesive tape, often called PSA tape, bonds to a surface when pressure is applied.

It does not need heat, water or solvent activation.

That makes it useful for OEM assembly.

PSA tape can be die cut into frames, pads, strips, rings, spacers, covers and complex custom shapes.

Common die-cut PSA tape parts include:

For OEM projects, custom die cut parts often include adhesive tape layers because tape can simplify assembly and reduce manual gluing.

Start With the Bonding Surface

The first question is simple:

What surface does the tape need to bond to?

Plastic, metal, glass, rubber, painted surfaces, coated surfaces and films all behave differently.

A tape that bonds well to stainless steel may not bond well to low-surface-energy plastic.

A tape that works on a smooth panel may fail on a textured surface.

Common bonding surfaces include:

Before choosing tape, we usually ask customers to share the exact substrate.

“Plastic” is not enough.

Plastic has too many personalities.

Check the Application Function

Different PSA tapes solve different problems.

Some are used for bonding.

Some are used for sealing.

Some are used for positioning.

Some are used for insulation or protection.

The tape structure should match the function.

For foam gaskets and sealing components, adhesive-backed foam tape is often selected because it can seal, cushion and bond at the same time.

For display and protective film projects, tape cleanliness, liner release and residue control become more important.

Consider Temperature and Environment

Adhesive performance can change under heat, cold, humidity, vibration, UV exposure and aging.

A tape that passes a room-temperature sample test may fail in real use.

That is why we always review the working environment before choosing tape.

Important conditions include:

• Working temperature
• Peak temperature
• Humidity exposure
• Outdoor or indoor use
• Chemical contact
• Vibration
• Compression pressure
• UV exposure
• Aging requirement
• Assembly temperature

In automotive die cut components, adhesive tape parts may face heat, vibration, dust, moisture and long service life requirements.

For optical or display assemblies, optical film die cut components may require clean adhesion, no residue, low bubbles and stable film handling.

Same tape family.

Different battlefield.

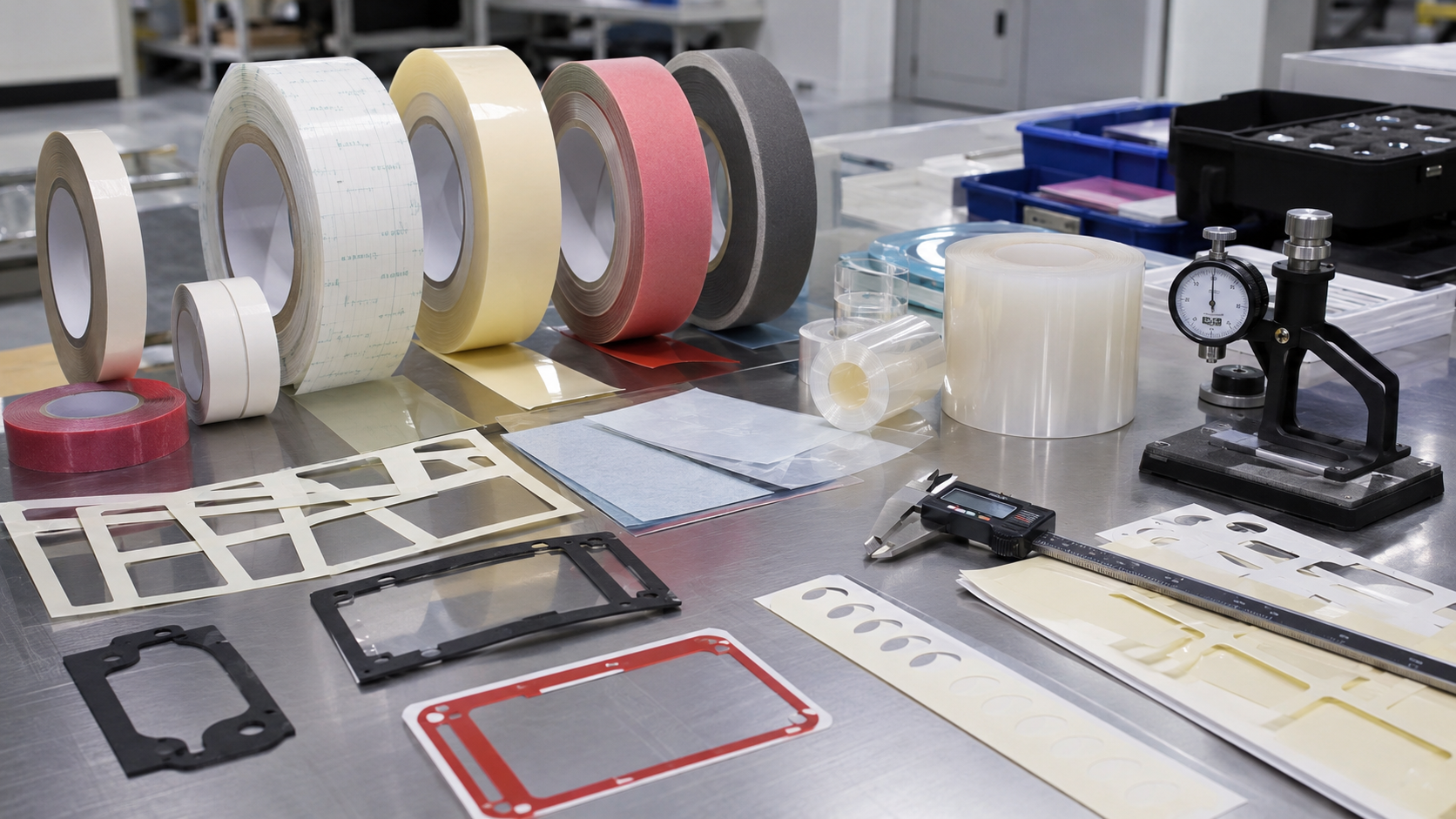

Choose the Right Carrier and Adhesive Structure

PSA tape can be carrier-based or carrier-free.

The carrier is the material inside the tape structure.

It affects thickness, strength, handling and die cutting behavior.

Carrier choice matters during die cutting.

A thin transfer adhesive may need careful liner control.

A foam tape may need compression and clean edge control.

A PET-backed tape may support better dimensional stability.

For multilayer tape parts, lamination accuracy becomes critical.

If the layers shift, the final part may pass the drawing on one side and fail assembly on the other. That is not a fun conversation.

Pay Attention to Thickness

Tape thickness affects bonding, spacing, sealing and assembly fit.

If the tape is too thin, it may not fill the gap.

If it is too thick, it may create assembly pressure or prevent proper fit.

For die-cut parts, thickness also affects cutting method, waste removal and packaging.

Important thickness questions include:

• Does the tape need to fill a gap?
• Does it need to absorb vibration?
• Does the assembly have limited space?
• Does the part need compression?
• Will thickness affect the final product appearance?
• Can the tape thickness stay stable in mass production?

For small adhesive frames, thickness variation can affect assembly accuracy.

For foam tape gaskets, thickness affects sealing pressure.

For display bonding, thickness can affect flatness and visual quality.

Match the Tape With the Die Cutting Process

Tape selection and die cutting process must work together.

A tape may have good bonding performance but poor converting behavior.

That means it may stick to tools, stretch during cutting, tear during waste removal or peel poorly from the liner.

For adhesive tape parts, common processes include:

For high-volume adhesive tape parts, roll-to-roll die cutting can improve consistency and production efficiency.

If the tape will be used manually, sheets may be better.

If the tape will be used in automated assembly, roll format may be more efficient.

Do Not Ignore the Release Liner

The release liner is not the final part.

But it can decide whether the final part is easy to use.

A poor liner can cause difficult peeling, adhesive transfer, curled parts, shifted parts or slow assembly.

Common liner factors include:

For adhesive-backed die-cut parts, we care about both bonding strength and liner release.

A tape that bonds well but refuses to peel politely is still a problem.

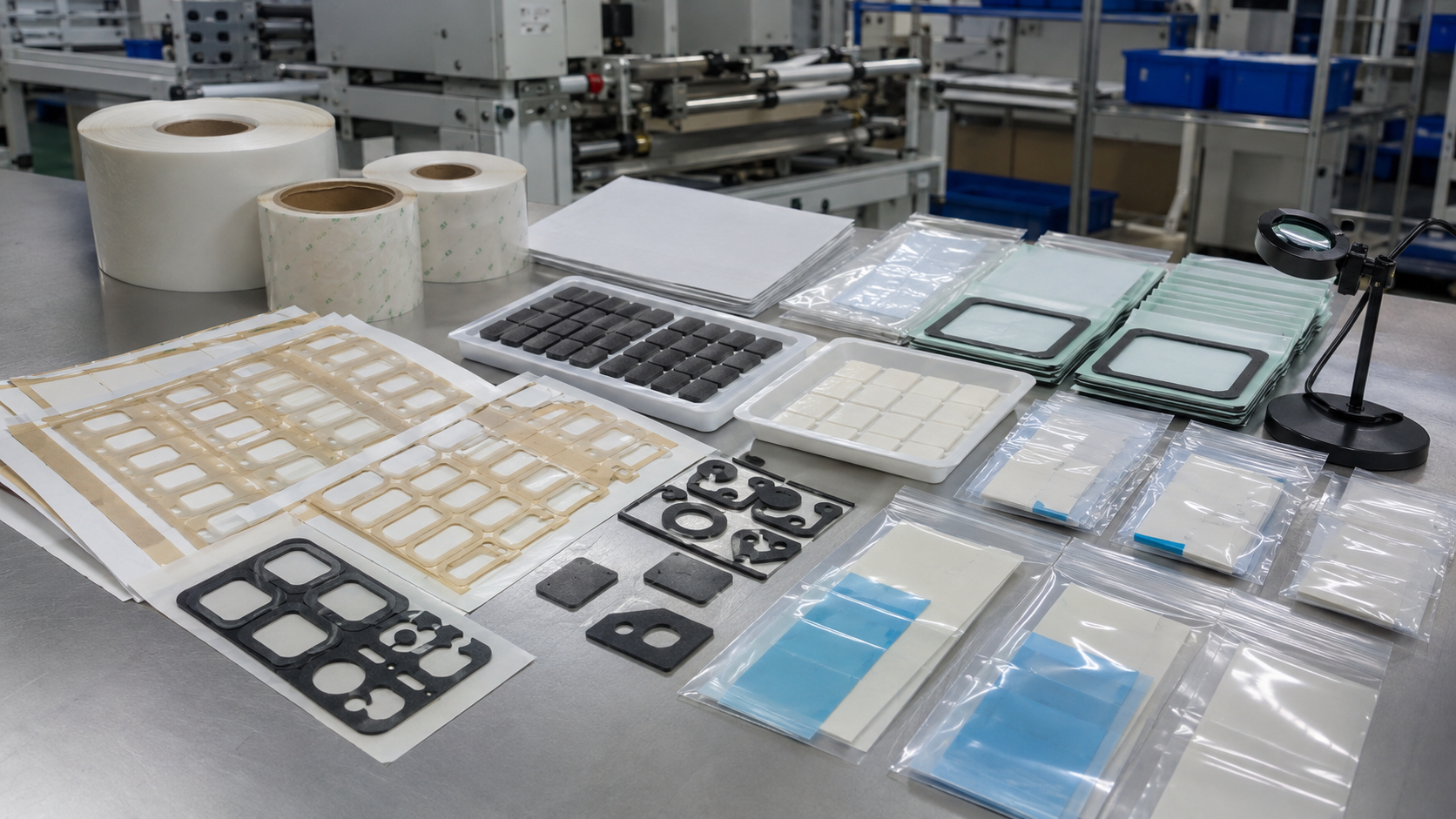

Supply Format Affects Assembly Efficiency

PSA die-cut parts can be supplied as sheets, rolls, individual pieces or kits.

The best format depends on the customer’s assembly process.

For manual operations, die cut parts supplied in sheets may help operators pick and place parts more easily.

For automated tape application, roll format can reduce handling time.

For more details, buyers can review how die cut parts are supplied in sheets, rolls, or kits for different OEM assembly processes.

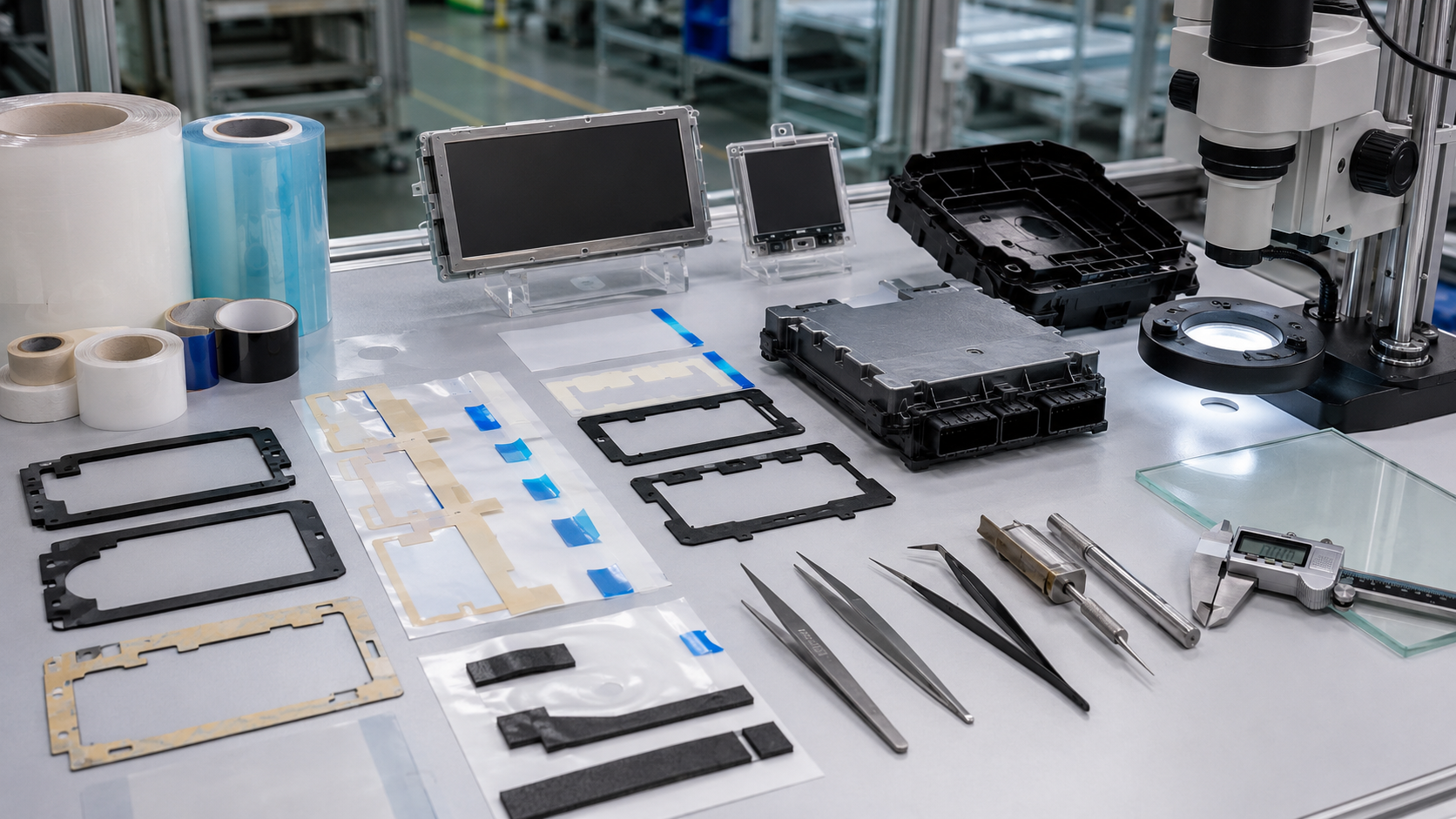

Quality Checks for Die-Cut PSA Tape Parts

Adhesive tape parts need stable quality from sample to mass production.

Small defects can create big assembly issues.

Important inspection points include:

For OEM customers, the approved sample is only the beginning.

The real goal is repeatable tape parts that perform the same way in every production batch.

What Buyers Should Provide Before Quotation

To recommend the right PSA tape, we usually need application details.

Helpful information includes:

• Drawing or sample
• Bonding surface
• Tape function
• Required thickness
• Adhesive strength requirement
• Temperature range
• Indoor or outdoor use
• Assembly method
• Liner preference
• Pull-tab requirement
• Tolerance
• Annual volume
• Delivery format
• Packaging preference
• Validation requirement

If the tape is not confirmed, we can help compare different adhesive structures before sample production.

This helps avoid the classic mistake: choosing tape by price first and discovering the real cost during assembly.

Need Die-Cut Pressure Sensitive Adhesive Tape Parts?

The right pressure sensitive adhesive tape depends on surface, function, thickness, environment, liner, die cutting method and delivery format.

If you need custom die cut parts for OEM assembly, send us your drawing, sample, material requirement, adhesive structure, tolerance, bonding surface, application location, annual volume and packaging preference.

Sanken can help review tape selection, lamination structure, die cutting method, liner design, inspection points and delivery format before mass production.

Related Articles

You may also find these articles helpful:

• Adhesive Backed Die Cut Components for OEM Assembly
• Why Do Die Cut Adhesive Parts Fail After Assembly?
• Why Your Die Cut Tape Parts Lift, Shift or Peel Off
• How to Prevent Adhesive Overflow in Custom Die Cut Tape Parts
• How to Prevent Adhesive Lifting in Die Cut Tape Components
• What Is the Best Adhesive for Die Cut Tape Parts?
• Die Cut vs Kiss Cut: What OEM Buyers Should Know for Adhesive Parts and Protective Films

Conclusion

Pressure sensitive adhesive tape should be chosen by function, surface, thickness, environment, liner and assembly method. For die-cut parts, tape performance and converting performance must work together. A good PSA tape part should bond well, peel smoothly, cut cleanly and support stable OEM production.
