Pressure sensitive adhesive tape, often called PSA tape, is an adhesive material that bonds to a surface when pressure is applied.
It does not usually require heat, water, solvent, or curing during assembly.
That is why PSA tape is widely used in OEM manufacturing.
It helps bond, mount, seal, cushion, protect, insulate, position, and simplify assembly.
At Sanken, we use precision die cutting and material converting to manufacture custom PSA tape frames, foam tape gaskets, PET-backed adhesive parts, transfer adhesive films, protective films with pull tabs, and laminated adhesive components for OEM production.
A tape part may look simple.
But if the adhesive, backing, liner, shape, tolerance, or bonding surface is wrong, the final assembly may face lifting, shifting, glue overflow, poor bonding, or difficult peeling.
What Is Pressure Sensitive Adhesive Tape?
Pressure sensitive adhesive tape is a tape material coated with adhesive that bonds when pressure is applied.
The adhesive layer can be carried on a film, foam, paper, cloth, non-woven material, or used as a transfer adhesive without a carrier.
Common PSA tape structures include:
| PSA Tape Type | Common Function |
|---|---|
| Double-sided tape | Bonding, mounting, and positioning |
| Transfer adhesive | Thin bonding with minimal thickness |
| Foam tape | Bonding with cushioning and gap filling |
| Acrylic foam tape | Strong bonding and gap compensation |
| PET-backed adhesive tape | Dimensional stability and clean handling |
| Protective film with PSA | Surface protection during assembly |
| Adhesive-backed foam | Sealing, cushioning, and positioning |
| Adhesive-backed PET film | Insulation and assembly placement |
For OEM projects, PSA tape is often converted into custom die cut parts instead of being used as a simple roll.
The die cut shape makes the tape easier to apply and better matched to the product design.
Why OEM Manufacturers Use PSA Tape
OEM manufacturers use PSA tape because it makes assembly cleaner and more repeatable.
Compared with liquid glue, PSA tape can reduce mess, drying time, manual variation, and process complexity.
Common benefits include:
- Faster assembly
- Cleaner bonding process
- Consistent adhesive thickness
- Custom shapes for precise placement
- Easier automation or manual application
- Better control of bonding area
- Combined bonding, sealing, cushioning, or protection
- Reduced need for screws, clips, or liquid adhesives in selected areas
PSA tape is not only a bonding material.
In many products, it becomes a functional assembly component.
It may hold a display frame, seal a housing, protect a surface, support a gasket, or keep an insulation film in the correct position.
Where PSA Tape Is Used in Electronics Assembly
Electronics assembly uses many thin, clean, accurate adhesive parts.
Common applications include:
| Electronics Area | PSA Die Cut Part |
|---|---|
| Display modules | Double-sided tape frames, protective films |
| Sensors | Adhesive pads, dustproof foam gaskets |
| PCB areas | PET-backed adhesive insulation films |
| Speakers | Foam tape seals and acoustic gaskets |
| Battery areas | Adhesive insulation films and cushioning pads |
| Control panels | Tape frames and protective films |
| Housings | Adhesive foam gaskets and mounting pads |
Electronics often require clean edges, stable thickness, smooth liner release, and careful packaging.
Dust, adhesive residue, scratches, curling, or glue overflow can create assembly defects.
For electronic products, PSA tape parts may work together with PET films, foam gaskets, protective films, and laminated structures.
Small adhesive part.
Very big responsibility.
PSA Tape in Automotive OEM Assembly
Automotive assembly uses PSA tape for bonding, sealing, cushioning, anti-rattle control, surface protection, and positioning.
For automotive die cut components, PSA tape parts are often used in interior trim, electronics, lighting, sensors, door panels, dashboards, wire harness areas, and EV interior modules.
Common automotive applications include:
- Adhesive-backed foam anti-rattle pads
- Felt pads with PSA backing
- Display bonding tape frames
- PET-backed adhesive parts
- Protective films for trim surfaces
- Foam tape seals for HVAC ducts
- Rubber pads with adhesive backing
- Black adhesive films for light blocking
Automotive PSA parts must resist heat, vibration, handling, and long-term aging.
If the adhesive lifts after assembly, the part may shift.
If the foam tape loses compression, noise may return.
If the liner is hard to peel, the assembly line slows down.
That is why adhesive selection and die cutting format must be reviewed early.
PSA Tape in Appliance and Industrial Assembly
Home appliances and industrial equipment also use PSA tape parts for sealing, bonding, cushioning, insulation, and surface protection.
Common uses include:
| Application | PSA Tape Component |
|---|---|
| Refrigerator panels | Foam tape seals and protective films |
| Air conditioner ducts | Adhesive-backed foam strips |
| Washing machine housings | Vibration pads and foam tape parts |
| Control panels | Double-sided tape frames |
| Industrial enclosures | Foam gasket tape and dust seals |
| Metal housings | PET-backed adhesive insulation parts |
| Plastic covers | Bonding tapes and protective films |
For sealing applications, foam gaskets and sealing components are often made with adhesive backing to support faster installation and better positioning.
The adhesive must match the surface.
Plastic, painted metal, glass, rubber, foam, coated parts, and textured surfaces do not bond the same way.
PSA Tape in Display and Optical Assembly
Display and optical assemblies often require clean and accurate PSA tape parts.
Common parts include:
- Double-sided display tape frames
- Black adhesive light-blocking frames
- Protective films with pull tabs
- PET-backed adhesive parts
- Foam spacers with adhesive
- Dust protection films
- OCA-related adhesive structures
For display-related projects, optical film die cut components must be controlled carefully.
A small particle, scratch, bubble, adhesive overflow, or shifted tape frame can become visible in the final product.
In optical assembly, the adhesive part must not only bond.
It must also stay clean, flat, accurate, and easy to handle.

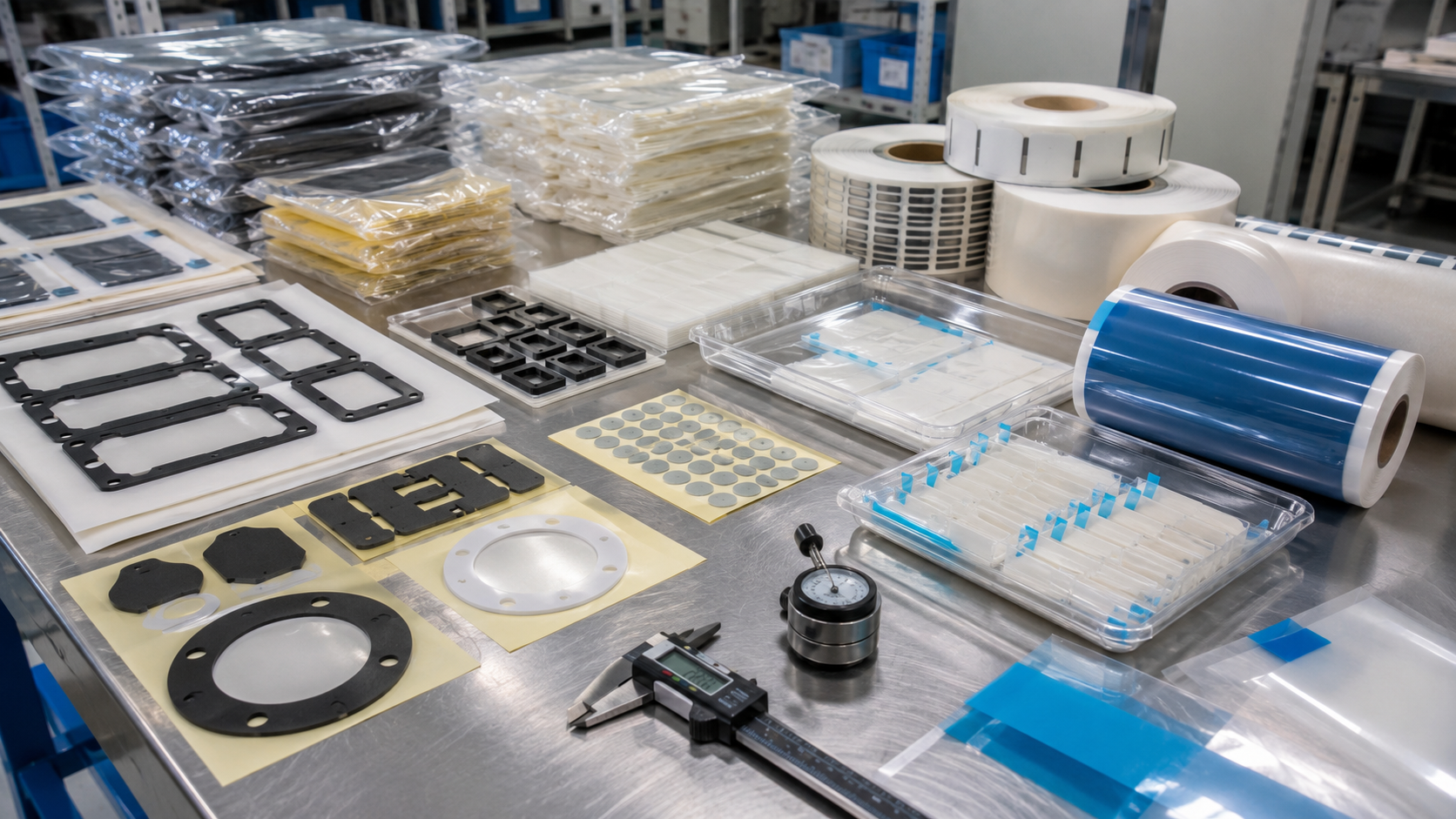

How PSA Tape Is Converted Into Die Cut Parts
PSA tape is usually converted through lamination, die cutting, kiss cutting, waste removal, inspection, and packaging.
A typical process includes:
| Process Step | Purpose |
|---|---|
| Application review | Confirm bonding surface, function, and assembly method |
| Material selection | Choose adhesive, carrier, foam, film, and liner |
| Lamination | Combine tape, foam, film, liner, or protective layer |
| Tooling design | Control shape, radius, spacing, and cutting depth |
| Die cutting | Cut tape frames, pads, strips, films, or gaskets |
| Kiss cutting | Keep adhesive parts on release liner |
| Waste removal | Remove extra tape cleanly |
| Inspection | Check size, edge, adhesive position, and liner release |
| Packaging | Prevent dust, deformation, sticking, and scratches |
For adhesive-backed parts, kiss cutting is especially useful.
The part is cut while the release liner remains intact.
This helps operators peel and apply the tape part more easily.
For more detail, buyers can review Die Cut vs Kiss Cut: What OEM Buyers Should Know for Adhesive Parts and Protective Films.
For high-volume tape parts, roll-to-roll die cutting can improve part spacing, waste removal, liner control, and production efficiency.
Key Selection Factors for PSA Tape Parts
Choosing PSA tape should start with the application, not only the tape name.
Important selection factors include:
| Factor | Why It Matters |
|---|---|
| Bonding surface | Determines adhesive compatibility |
| Tape thickness | Controls stack height and fit |
| Adhesive strength | Affects bonding reliability |
| Carrier material | Affects stability and handling |
| Foam or film layer | Adds cushioning, sealing, or insulation |
| Liner type | Affects peeling and assembly speed |
| Temperature range | Affects long-term performance |
| Surface cleanliness | Reduces lifting and bonding failure |
| Delivery format | Affects assembly efficiency |
| Packaging | Protects parts before use |
The correct PSA tape part should bond reliably, peel smoothly, stay flat, avoid adhesive overflow, and match the assembly process.
If one of these details is ignored, the tape may become the reason a product fails inspection.
Common PSA Tape Problems to Avoid
Common problems in die cut PSA tape parts include:
- Edge lift
- Adhesive failure
- Glue overflow
- Difficult liner release
- Part stretching during peeling
- Tape shifting during assembly
- Poor bonding on low-surface-energy plastic
- Dust contamination
- Film curling
- Foam compression marks
- Wrong delivery format
- Packaging deformation
Many of these problems can be reduced during design review.
Before production, we usually review adhesive type, bonding surface, tape thickness, backing material, liner release, corner radius, part spacing, packaging method, and assembly conditions.
For adhesive failure details, buyers can review why die cut adhesive parts fail after assembly.
Supply Formats for OEM Assembly
PSA tape parts can be supplied in different formats based on how the customer assembles the product.
| Supply Format | Suitable Use |
|---|---|
| Individual pieces | Simple assembly or low-volume projects |
| Sheets | Manual picking and organized application |
| Rolls | Automated or high-volume application |
| Kiss-cut on liner | Adhesive frames, foam tape parts, film parts |
| Pull-tab format | Easier manual peeling and placement |
| Kits | Multi-part module assembly |
| Clean trays or bags | Parts needing protection from dust or deformation |
For assembly planning, buyers can review how die cut parts are supplied in sheets, rolls, or kits.
Good supply format can reduce missing parts, difficult peeling, deformation, sticking, and line delays.
What Buyers Should Provide Before Quotation
To recommend the right PSA tape part, we usually need clear project details.
Helpful information includes:
- Drawing or sample
- Application location
- Tape material preference
- Bonding surface
- Adhesive requirement
- Thickness and tolerance
- Liner requirement
- Pull tab requirement
- Temperature range
- Manual or automated assembly
- Cleanliness requirement
- Annual volume
- Delivery format
- Packaging preference
- Testing requirement
If the tape material is not confirmed, Sanken can help compare double-sided tape, transfer adhesive, foam tape, acrylic foam tape, PET-backed adhesive tape, protective film, release liner, and laminated adhesive structures.
For supplier selection, buyers can also review how to choose the right die cutting manufacturer before moving from sampling to mass production.
Need Custom PSA Tape Die Cut Parts for OEM Assembly?
Pressure sensitive adhesive tape is used in OEM assembly for bonding, mounting, sealing, cushioning, insulation, protection, light blocking, and positioning.
But the final result depends on adhesive selection, bonding surface, tape structure, die cutting accuracy, liner release, delivery format, and packaging.
If you need PSA tape frames, foam tape gaskets, PET-backed adhesive parts, transfer adhesive films, protective films with pull tabs, or laminated adhesive structures, send us your drawing, sample, bonding surface, material requirement, tolerance, annual volume, and packaging preference.
Sanken can help review adhesive selection, lamination structure, die cutting method, liner release, inspection points, and delivery format before mass production.
Related Articles
You may also find these articles helpful:
- What Information Should You Provide for a Custom Adhesive Tape Die-Cut Part Quotation?
- Adhesive Backed Die Cut Components for OEM Assembly
- Why Do Die Cut Adhesive Parts Fail After Assembly?
- Why Your Die Cut Tape Parts Lift, Shift or Peel Off
- How to Prevent Adhesive Overflow in Custom Die Cut Tape Parts
- How to Prevent Adhesive Lifting in Die Cut Tape Components
- Die Cut vs Kiss Cut: What OEM Buyers Should Know for Adhesive Parts and Protective Films
Conclusion
Pressure sensitive adhesive tape is a versatile OEM assembly material used for bonding, sealing, cushioning, insulation, protection, and positioning. When PSA tape is converted into custom die cut parts, it can improve assembly speed and consistency. The best results come from matching the adhesive, carrier, liner, shape, packaging, and delivery format to the actual application.
