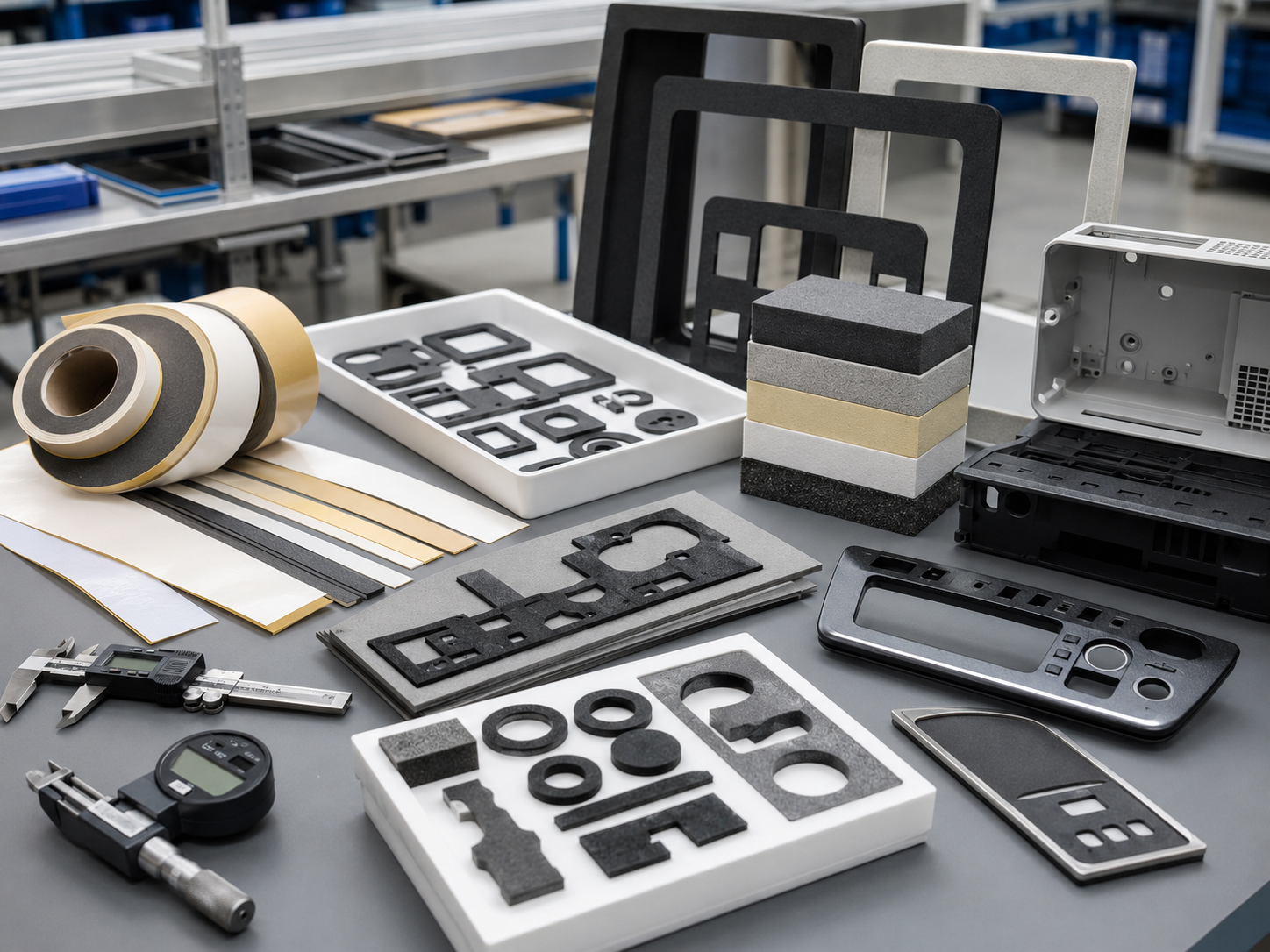

Custom die cut foam gaskets are small parts with a large job.
They seal gaps, cushion contact areas, reduce vibration, block dust, support bonding, and protect sensitive components during assembly.
At Sanken, we use precision die cutting to manufacture foam gaskets, adhesive-backed foam seals, foam pads, foam strips, foam frames, and laminated sealing components for electronics, automotive, appliance, and industrial OEM applications.
A foam gasket may look simple.
But if the material, thickness, adhesive, compression, or packaging is wrong, the final product may leak, rattle, lift, deform, or fail during assembly.
What Are Custom Die Cut Foam Gaskets?
Custom die cut foam gaskets are foam components cut into specific shapes based on a drawing, sample, or assembly requirement.
They can be supplied as individual pieces, sheets, rolls, kits, or kiss-cut parts on release liner.
Common forms include:
| Foam Gasket Form | Common Use |
|---|---|
| Foam rings | Sealing around openings, sensors, or speakers |
| Foam frames | Display, housing, and panel sealing |
| Foam strips | Long edge sealing and gap filling |
| Foam pads | Cushioning and vibration control |
| Adhesive-backed foam gaskets | Faster assembly and positioning |
| Laminated foam structures | Combined sealing, bonding, insulation, and protection |
For OEM projects, custom die cut parts are designed around the real function of the part, not only the shape.
The gasket must fit.
But more importantly, it must perform.
Common Foam Materials Used for Gaskets
Different foam materials behave differently under compression, heat, vibration, and long-term pressure.
Choosing the right foam is the first step.
| Foam Material | Common Function |
|---|---|
| PE foam | General cushioning, gap filling, and light sealing |
| EVA foam | Shock absorption and soft support |
| PU foam | Soft compression and surface cushioning |
| EPDM foam | Durable sealing and anti-rattle applications |
| CR / neoprene foam | Sealing, cushioning, and moderate resistance needs |
| Silicone foam | Heat-resistant cushioning in selected areas |
| Acrylic foam tape | Bonding with cushioning and gap compensation |
For sealing applications, foam gaskets and sealing components are often used when the assembly needs soft compression, custom geometry, and stable placement.
The best material depends on the application environment.
Not only price.
Not only thickness.
Not only what was used last time.

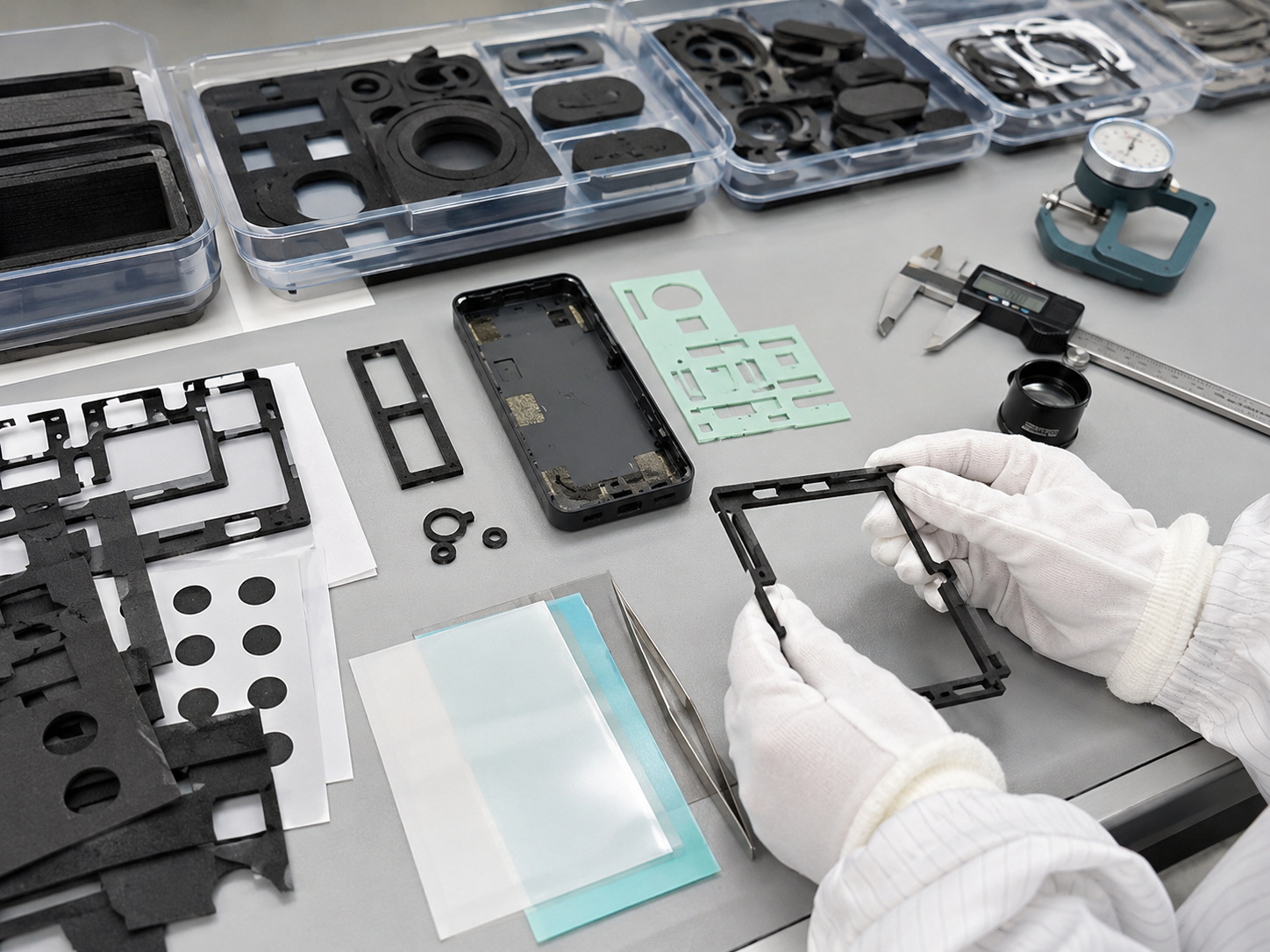

Foam Gaskets for Electronics Assembly
Electronic products often need small, clean, accurate foam gaskets.
These parts are used around housings, displays, sensors, speakers, battery areas, connectors, and control panels.
Common electronics applications include:
- Dustproof foam gaskets
- Speaker sealing foam
- Display frame foam
- Sensor cushioning gaskets
- Battery cushioning pads
- PCB housing foam seals
- Adhesive-backed foam spacers
- Protective foam pads
Electronic foam gaskets usually require clean cutting, stable thickness, smooth liner release, and careful packaging.
Dust, particles, deformation, or adhesive overflow can affect assembly quality.
For electronics projects, foam gaskets may also work together with PET insulation films, protective films, adhesive tape frames, and other converted components.
A tiny foam gasket can decide whether a housing seals correctly.
Small part.
Very serious job.
Foam Gaskets for Automotive Assembly
Automotive applications often require foam gaskets for sealing, cushioning, anti-rattle control, and vibration reduction.
In automotive interiors, EV modules, electronic housings, lighting parts, and trim assemblies, foam gaskets help control contact between parts.
Common automotive applications include:
| Automotive Area | Foam Gasket Function |
|---|---|
| Interior trim | Anti-rattle and gap filling |
| Door panels | Cushioning and contact protection |
| Dashboard areas | Noise reduction and sealing support |
| Electronic modules | Dust sealing and protection |
| Sensors | Dustproof sealing and cushioning |
| Lighting areas | Light blocking and sealing support |
| HVAC ducts | Air sealing and vibration reduction |
For automotive die cut components, foam gasket performance depends on compression, recovery, adhesive bonding, and long-term durability.
If the foam collapses, the noise may return.
If the adhesive lifts, the gasket may shift.
If the thickness is unstable, assembly fit may change from batch to batch.
Automotive foam gaskets should stay boring.
Boring means stable.
Stable is good.
Foam Gaskets for Appliance Assembly
Home appliances use foam gaskets for air sealing, dust protection, vibration control, cushioning, and panel assembly.
Refrigerators, air conditioners, washing machines, dryers, control panels, and small appliances all use hidden foam sealing parts.
Common appliance applications include:
- Refrigerator foam sealing strips
- Air conditioner duct foam seals
- Washing machine vibration cushioning pads
- Appliance control panel foam gaskets
- Motor cover foam pads
- Housing gap-filling strips
- Protective foam pads for internal parts
Appliance foam gaskets often need stable compression and good adhesive performance.
For air conditioner ducts, foam must seal airflow paths.
For washing machines, foam and rubber parts may help reduce vibration.
For refrigerator panels, foam can help reduce gaps and cushion contact areas.
The gasket must match the real working condition, not only the drawing size.
Adhesive-Backed Foam Gaskets
Many foam gaskets are supplied with pressure-sensitive adhesive backing.
This helps operators place the gasket quickly and accurately during assembly.
Common adhesive structures include:
| Structure | Purpose |
|---|---|
| Foam with single-sided adhesive | Easy mounting and positioning |
| Foam with double-sided adhesive | Bonding and sealing |
| Foam with PET film backing | Better dimensional stability |
| Foam with release liner | Easier peeling and handling |
| Foam with pull tab | Faster manual assembly |
| Laminated foam structure | Combined sealing, bonding, and protection |
Adhesive selection must match the bonding surface.
Plastic, metal, glass, film, rubber, painted panels, and textured surfaces do not bond the same way.
For adhesive-backed gaskets, we check bonding surface, temperature range, peel strength, liner release, assembly pressure, and aging performance.
A gasket that seals well but does not stay in place is not a gasket.
It is a future problem.
How Custom Foam Gaskets Are Manufactured
Custom foam gaskets are usually made through material selection, lamination, die cutting, waste removal, inspection, and packaging.
For foam process background, buyers can review how die cutting works from foam rolls to finished parts.
A typical process includes:
| Step | Purpose |
|---|---|
| Application review | Confirm sealing, cushioning, or vibration control need |
| Material selection | Choose foam type, thickness, density, and adhesive |
| Lamination | Add adhesive, liner, film, or protective layer if required |
| Tooling design | Prepare die cutting tool based on drawing |
| Die cutting | Cut foam rings, strips, frames, pads, or custom shapes |
| Kiss cutting | Keep adhesive-backed gaskets on release liner |
| Waste removal | Remove extra foam cleanly |
| Inspection | Check size, thickness, edge, adhesive, and liner release |
| Packaging | Prevent deformation, dust, sticking, and damage |
For high-volume adhesive-backed foam parts, roll-to-roll die cutting can improve consistency and production efficiency.
For thicker foam gaskets or lower-volume custom shapes, sheet-based die cutting may be more suitable.
Key Design and Quality Control Points
Foam gasket performance depends on more than material name.
Design and process control matter.
Important points include:
| Control Point | Why It Matters |
|---|---|
| Thickness | Controls compression and assembly fit |
| Density | Affects cushioning and sealing force |
| Compression recovery | Supports long-term sealing performance |
| Gasket width | Affects sealing area and cutting stability |
| Corner radius | Reduces tearing and edge lifting |
| Hole position | Supports accurate installation |
| Edge quality | Reduces particles and poor fitting |
| Adhesive position | Prevents lifting or shifting |
| Liner release | Improves assembly efficiency |
| Packaging | Prevents deformation before use |
For narrow foam gaskets, corner design and minimum width are especially important.
Sharp corners may tear.
Very thin walls may deform.
Poor waste removal may stretch the part.
A good die cut foam gasket must be designed for both function and manufacturability.

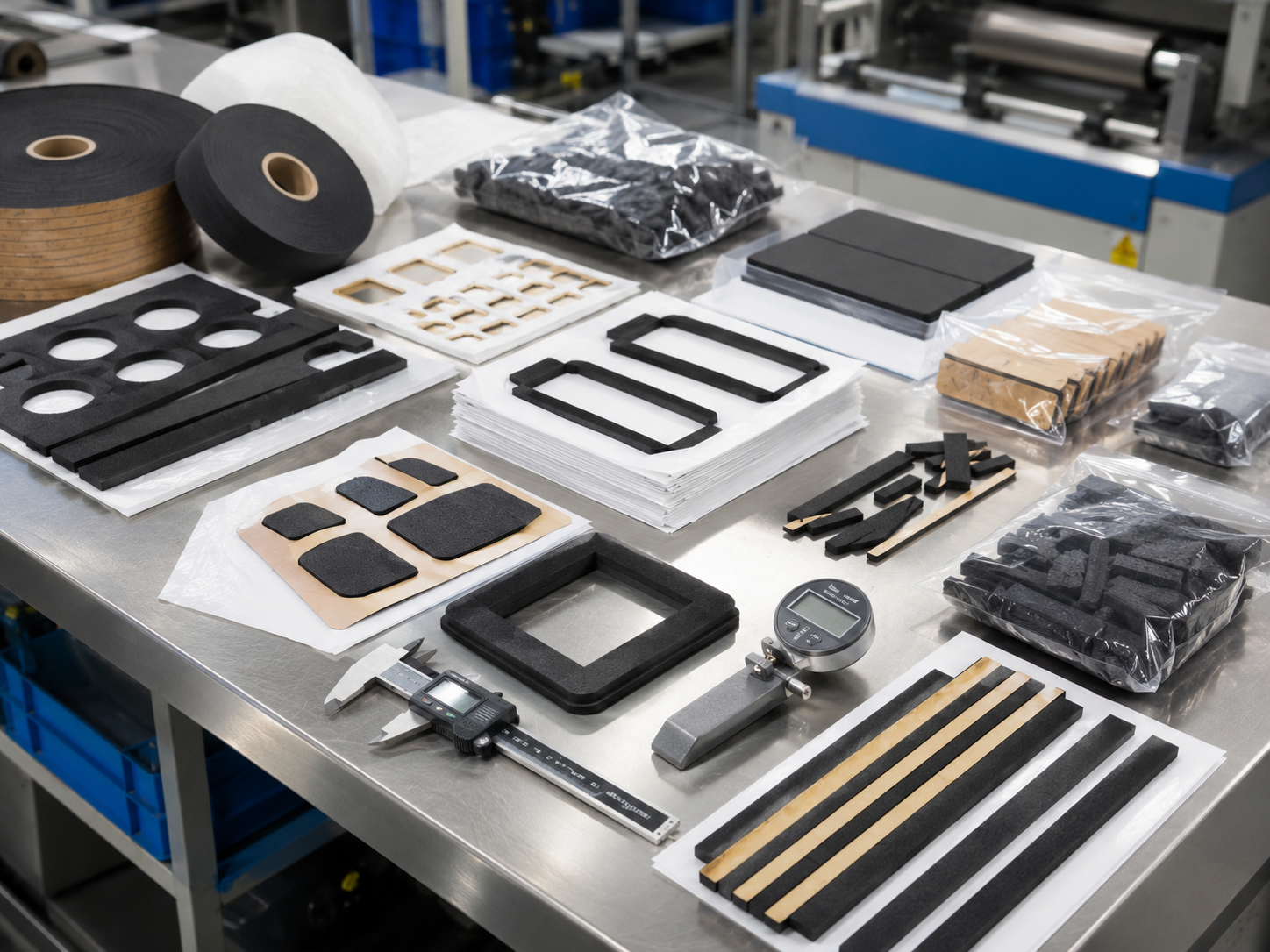

Supply Formats for OEM Assembly
Foam gaskets can be supplied in different formats based on the production line.
| Supply Format | Suitable Use |
|---|---|
| Individual pieces | Simple assembly or low-volume projects |
| Sheets | Manual picking and organized production |
| Rolls | Automated or high-volume application |
| Kiss-cut on liner | Adhesive-backed foam gaskets |
| Kits | Multi-part module assembly |
| Trays or bags | Parts needing deformation protection |
For assembly planning, buyers can review how die cut parts are supplied in sheets, rolls, or kits.
Good packaging helps reduce missing parts, sticking, compression marks, dust contamination, and line delays.
What Buyers Should Provide Before Quotation
To recommend the right foam gasket, we usually need clear project details.
Helpful information includes:
- Drawing or sample
- Application industry
- Application location
- Foam material preference
- Thickness and tolerance
- Adhesive requirement
- Bonding surface
- Compression gap
- Temperature range
- Sealing or vibration requirement
- Annual volume
- Delivery format
- Packaging preference
- Testing requirement
If the material is not confirmed, Sanken can help compare PE foam, EVA foam, PU foam, EPDM foam, CR foam, silicone foam, adhesive tape, liner, and laminated structures.
For supplier selection, buyers can also review how to choose the right die cutting manufacturer before moving from sampling to mass production.
Need Custom Die Cut Foam Gaskets?
Custom die cut foam gaskets are used in electronics, automotive, and appliance assembly for sealing, cushioning, dust protection, vibration control, bonding, and assembly support.
But the final result depends on foam selection, adhesive backing, compression design, die cutting accuracy, liner release, inspection, and packaging.
If you need custom foam gaskets, adhesive-backed foam seals, foam strips, foam frames, or foam pads for OEM assembly, send us your drawing, sample, material requirement, adhesive structure, tolerance, annual volume, and packaging preference.
Sanken can help review material selection, lamination structure, die cutting method, quality control points, and delivery format before mass production.
