EV battery packs and related battery modules require stable sealing, cushioning, spacing, and protection in compact assemblies.
Foam gaskets are often used around covers, housings, module interfaces, wiring areas, service panels, and electronic control sections to help reduce dust entry, fill gaps, cushion contact points, and protect parts from vibration.
At Sanken, we use precision die cutting to convert EVA foam, PE foam, PU foam, EPDM foam, adhesive-backed foam, rubber, PET films, protective films, and laminated materials into custom die cut components for automotive and electronic OEM assembly.
A foam gasket may look simple.
But for EV battery pack applications, the wrong foam thickness, density, adhesive, compression ratio, or packaging method can cause poor fit, weak sealing, deformation, assembly difficulty, or unstable long-term performance.
What Are Die Cut Foam Gaskets for EV Battery Packs?
Die cut foam gaskets are custom-shaped foam components made by cutting foam sheets or rolls into the required shape.
They may be supplied as strips, pads, frames, rings, blocks, or adhesive-backed parts on release liner.
Common functions include:
| Function | Foam Gasket Role |
|---|---|
| Sealing support | Helps block dust, air gaps, and contact openings |
| Cushioning | Reduces hard contact between parts |
| Vibration control | Helps reduce movement and rattling |
| Gap filling | Compensates for assembly variation |
| Surface protection | Prevents direct hard contact |
| Positioning | Helps locate parts during assembly |
| Assembly efficiency | Adhesive backing supports faster placement |
For OEM projects, custom die cut parts are designed around the real assembly location, not only the outer gasket shape.
A gasket must fit the drawing.
More importantly, it must work inside the assembly.
Start With the Sealing and Cushioning Function
Before selecting a foam material, define the gasket function clearly.
A foam gasket for EV battery pack sealing is not always the same as a foam pad for cushioning.
| Application Need | Design Focus |
|---|---|
| Dust sealing | Compression contact, gasket continuity, edge fit |
| Gap filling | Foam thickness, softness, recovery |
| Cushioning | Density, compression force, contact area |
| Vibration reduction | Foam resilience, adhesive stability, placement accuracy |
| Surface protection | Foam softness and clean edges |
| Assembly positioning | Adhesive backing, liner release, delivery format |
| Cover or housing interface | Compression gap and tolerance control |
Some foam gaskets mainly seal.
Some mainly cushion.
Some must do both.
When the function is unclear, material selection becomes guesswork.
And guesswork is not a good battery pack design strategy.

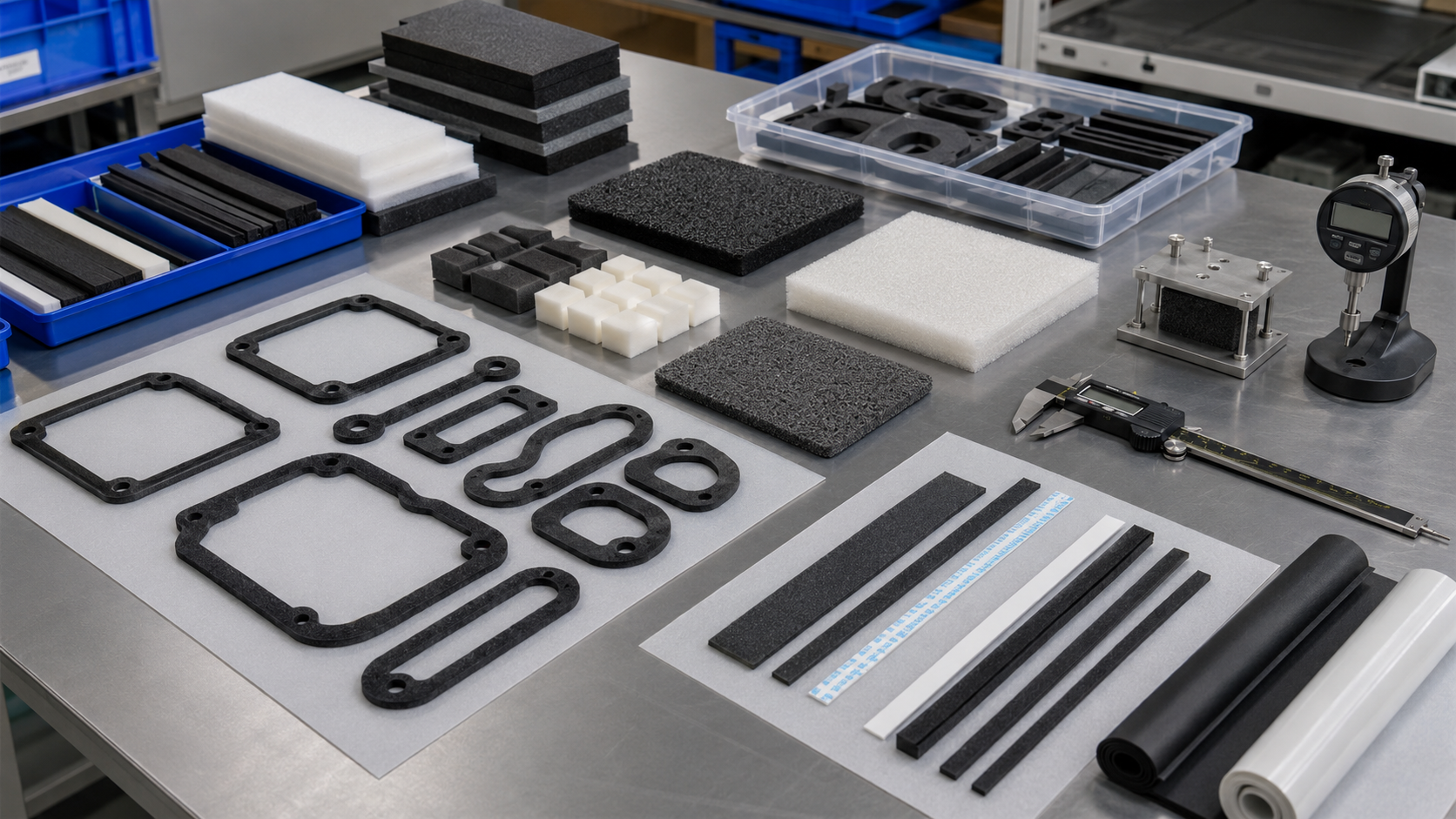

Choose the Right Foam Material
Different foam materials behave differently under compression, temperature, vibration, and aging.
The correct choice depends on the application position, sealing requirement, compression gap, and assembly process.
| Foam Material | Common Use in EV-Related Assemblies |
|---|---|
| EVA foam | Cushioning, shock absorption, soft support |
| PE foam | Gap filling, light sealing, general cushioning |
| PU foam | Soft compression and surface cushioning |
| EPDM foam | Durable sealing, anti-rattle, and compression applications |
| Adhesive-backed foam | Easier placement and stable positioning |
For sealing and cushioning applications, foam gaskets and sealing components are often selected because foam can compress into gaps and support custom geometry.
Foam selection should consider:
- Thickness
- Density
- Compression recovery
- Compression force
- Surface contact area
- Temperature exposure
- Adhesive requirement
- Packaging condition
The best foam is not always the softest one.
It is the foam that matches the real compression gap.
Control Compression Carefully
Foam gaskets seal and cushion through compression.
Too little compression may leave gaps.
Too much compression may damage the foam or affect assembly fit.
Important compression factors include:
| Compression Factor | Why It Matters |
|---|---|
| Initial foam thickness | Controls gasket height before assembly |
| Compressed thickness | Determines final fit |
| Compression ratio | Affects sealing and recovery |
| Foam density | Influences support and force |
| Compression set | Affects long-term performance |
| Cover flatness | Affects sealing consistency |
| Gasket width | Controls contact area and stability |
A good foam gasket should compress enough to function, but not so much that it loses recovery.
Foam should bounce back.
Not give up after the first squeeze.
Review Adhesive Backing and Bonding Surface
Many EV battery pack foam gaskets use pressure-sensitive adhesive backing.
Adhesive backing helps operators place the gasket quickly and keeps it in position during assembly.
Common adhesive-backed foam parts include:
- Foam sealing strips
- Foam gasket frames
- Foam cushioning pads
- Foam spacers
- Adhesive-backed EPDM foam seals
- Laminated foam and adhesive structures
- Kiss-cut foam parts on release liner
Adhesive selection must match the bonding surface.
EV battery pack and module areas may include metal covers, painted metal, plastic housings, coated surfaces, PET films, rubber surfaces, or other assembly materials.
These surfaces do not bond the same way.
A good adhesive-backed foam gasket should peel smoothly, stay flat, bond accurately, and resist shifting during assembly.
For adhesive-related risks, buyers can review why die cut adhesive parts fail after assembly.
Design Shape, Width, and Corners for Stability
Foam gasket design affects sealing, cushioning, die cutting stability, and assembly efficiency.
Important design points include:
| Design Point | Why It Matters |
|---|---|
| Minimum gasket width | Prevents tearing and weak sealing |
| Corner radius | Reduces stress concentration and edge lifting |
| Hole-to-edge distance | Improves cutting stability |
| Adhesive coverage | Supports stable placement |
| Pull tab design | Improves manual peeling |
| Part spacing on liner | Helps picking and handling |
| Compression contact area | Supports sealing consistency |
| Packaging orientation | Prevents deformation before use |
Sharp corners may look clean in CAD, but foam does not always like sharp geometry.
Rounded corners can reduce tearing, deformation, and lifting risk.
For narrow gasket frames, minimum width should be reviewed before tooling.
A tiny foam wall can create a large production problem.
Choose the Right Die Cutting Process
Foam gaskets for EV battery pack assemblies are usually made through lamination, die cutting, kiss cutting, waste removal, inspection, and packaging.
A typical process includes:
| Step | Purpose |
|---|---|
| Application review | Confirm sealing, cushioning, compression, and assembly need |
| Material selection | Choose EVA, PE, PU, EPDM foam, adhesive, and liner |
| Lamination | Add adhesive backing or release liner if required |
| Tooling design | Prepare die cutting tool based on drawing |
| Die cutting | Cut strips, pads, frames, rings, or custom shapes |
| Kiss cutting | Keep adhesive-backed parts on release liner |
| Waste removal | Remove unused foam cleanly |
| Inspection | Check size, thickness, edge, adhesive, and liner release |
| Packaging | Prevent compression marks, dust, sticking, and deformation |
For foam process background, buyers can review how die cutting works from foam rolls to finished parts.
For high-volume adhesive-backed foam gaskets, roll-to-roll die cutting can improve liner control, part spacing, waste removal, and production consistency.

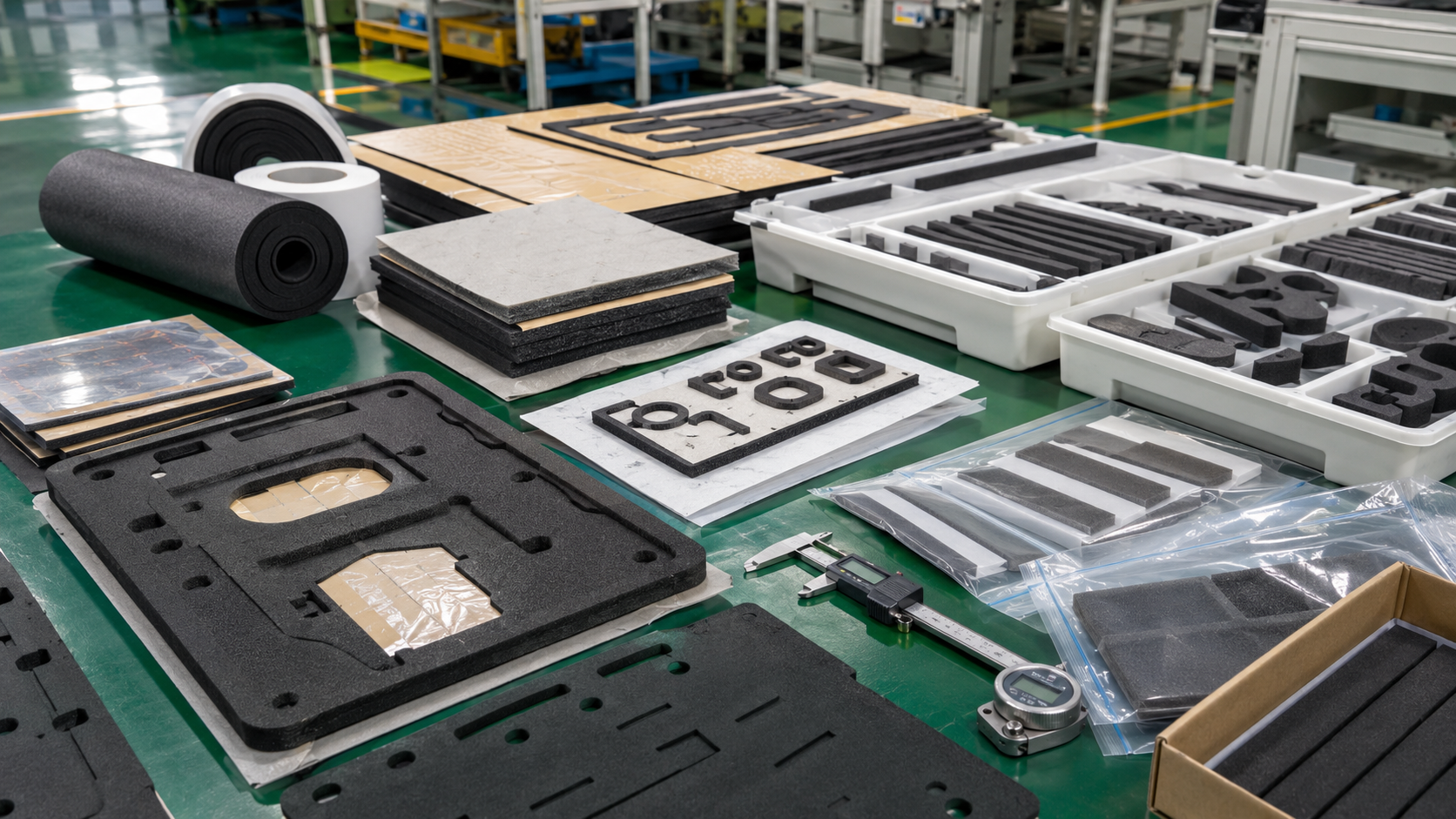

Consider Packaging and Delivery Format
Foam is soft.
That means packaging matters.
Poor packaging can compress the gasket before it is even used.
Common delivery formats include:
| Delivery Format | Suitable Use |
|---|---|
| Individual pieces | Simple parts or low-volume production |
| Sheets | Manual picking and organized assembly |
| Rolls | High-volume or automated placement |
| Kiss-cut on liner | Adhesive-backed foam gaskets |
| Kits | Multi-part module or pack assembly |
| Clean trays or bags | Parts needing deformation protection |
For assembly planning, buyers can review how die cut parts are supplied in sheets, rolls, or kits.
Good packaging helps prevent:
- Foam compression marks
- Dust contamination
- Adhesive sticking
- Missing small parts
- Difficult peeling
- Deformation during shipping
- Mixed orientation during assembly
Packaging is part of gasket performance.
Not just the box around it.

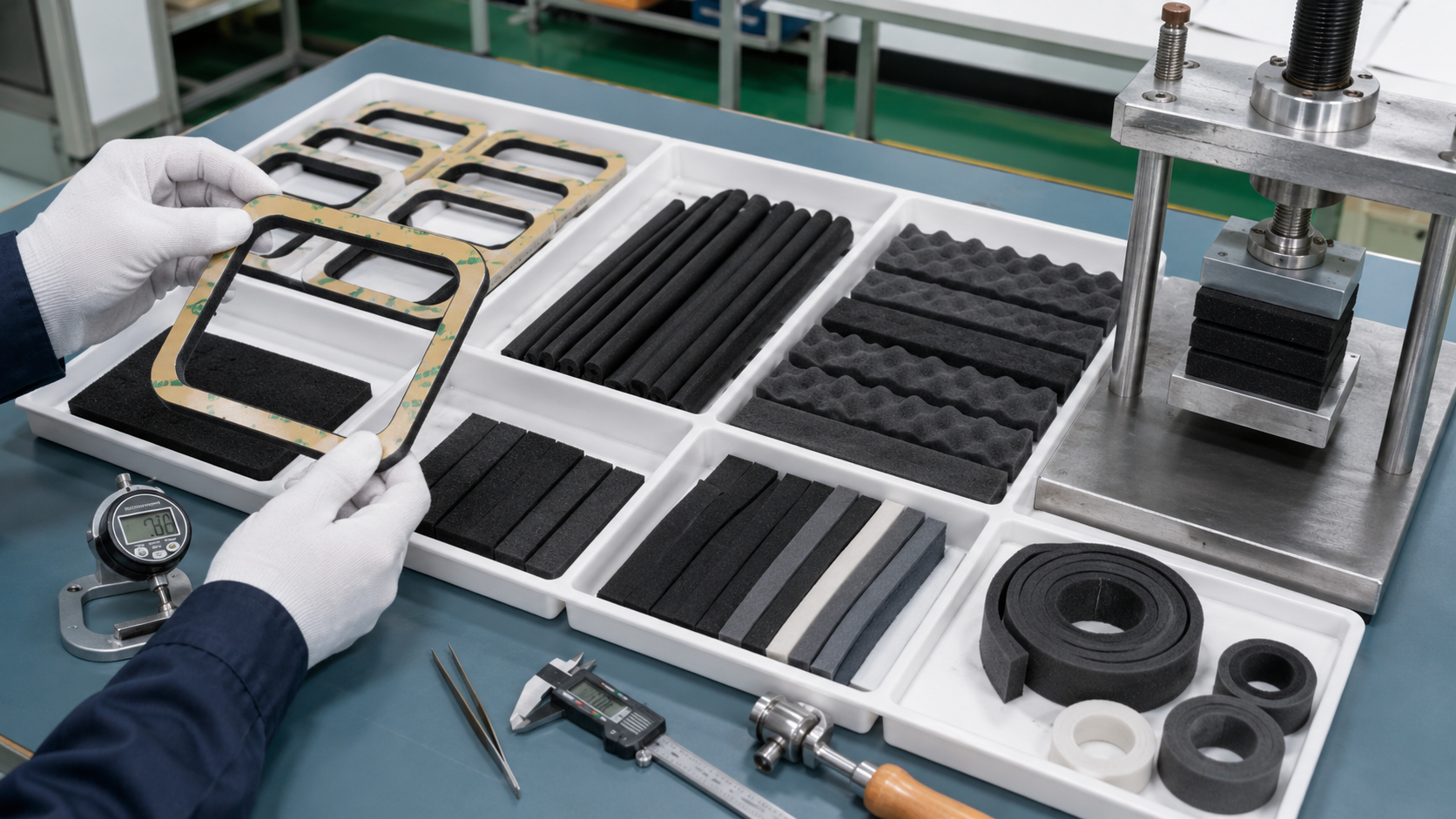

Quality Checks Before Mass Production
EV battery pack foam gaskets must remain consistent from sample approval to mass production.
Important inspection items include:
| Inspection Item | Why It Matters |
|---|---|
| Dimensions | Ensures correct fit and coverage |
| Thickness | Controls compression and assembly height |
| Density | Affects support and cushioning |
| Compression recovery | Supports long-term sealing performance |
| Edge quality | Reduces tearing and poor fit |
| Adhesive position | Prevents shifting and lifting |
| Liner release | Improves peeling and placement |
| Surface cleanliness | Reduces contamination risk |
| Packaging condition | Prevents deformation before use |
A sample may pass the first assembly test.
Mass production must repeat that result batch after batch.
For EV battery-related assemblies, consistency is more important than a beautiful first sample.
Common Mistakes to Avoid
Many foam gasket problems can be reduced during early design review.
Common mistakes include:
- Choosing foam only by thickness
- Ignoring compression ratio
- Making gasket walls too narrow
- Using sharp internal corners
- Selecting adhesive without checking the bonding surface
- Ignoring liner release force
- Packaging foam under pressure
- Skipping trial assembly
- Not defining inspection standards
- Assuming one foam material fits every sealing area
The earlier these details are reviewed, the easier they are to correct.
After tooling and mass production begin, small foam gasket issues can become expensive assembly problems.
What Buyers Should Provide Before Quotation
To recommend the right die cut foam gasket, we usually need clear project details.
Helpful information includes:
- Drawing or sample
- EV battery pack or module application area
- Sealing or cushioning function
- Foam material preference
- Foam thickness and density
- Compression gap
- Adhesive requirement
- Bonding surface
- Temperature exposure
- Tolerance requirement
- Annual volume
- Delivery format
- Packaging preference
- Testing or validation requirement
If the material is not confirmed, Sanken can help compare EVA foam, PE foam, PU foam, EPDM foam, adhesive backing, release liners, and laminated foam structures.
For supplier selection, buyers can also review how to choose the right die cutting manufacturer before moving from sampling to mass production.
Need Die Cut Foam Gaskets for EV Battery Pack Sealing and Cushioning?
Die cut foam gaskets help EV battery packs, modules, housings, covers, and related electronic assemblies improve sealing support, cushioning, gap filling, vibration control, and assembly stability.
But the final result depends on foam material, compression design, adhesive backing, bonding surface, die cutting accuracy, liner release, inspection, and packaging.
If you need foam gasket strips, adhesive-backed foam seals, EVA foam pads, PE foam cushioning parts, PU foam parts, EPDM foam gaskets, or laminated foam structures, send us your drawing, sample, application location, material requirement, tolerance, annual volume, and packaging preference.
Sanken can help review material selection, lamination structure, die cutting method, quality control points, and delivery format before mass production.
Related Articles
You may also find these articles helpful:
- Die Cut PET Insulation Films for Battery and Electronics
- How to Choose Die Cut PET Insulation Films for EV Battery Packs and Modules
- Custom Die Cut Foam Gaskets for Automotive Electronics
- Custom Die Cut Foam Gaskets for Electronics, Automotive, and Appliance Assembly
- Foam Gasket Tape for Industrial Sealing: What OEM Buyers Should Know
- What Is the Best Foam for Die Cut Sealing Gaskets?
- Die Cut Foam Gaskets: 7 Mistakes That Cause Poor Sealing
Conclusion
Choosing die cut foam gaskets for EV battery pack sealing and cushioning requires more than selecting a foam thickness. Buyers should review the sealing function, cushioning need, foam material, compression gap, adhesive backing, bonding surface, gasket width, corner radius, liner release, inspection method, and packaging. When these details are controlled early, foam gaskets can support more stable OEM assembly and long-term performance.
