EV battery packs and modules require many small insulation parts to support electrical separation, surface protection, spacing, and assembly stability.
Inside compact electrical assemblies, a thin film can make a large difference.
PET insulation films are commonly used because they are thin, stable, flexible, and suitable for custom die cutting.
At Sanken, we use precision die cutting to convert PET insulation films, adhesive-backed PET films, protective films, black PET films, release liners, and laminated film structures into custom insulation parts for EV battery-related assemblies, electronic modules, connectors, control areas, and OEM production.
The correct PET insulation film should fit accurately, stay flat, cover the required area, peel smoothly from the liner, and remain consistent in mass production.

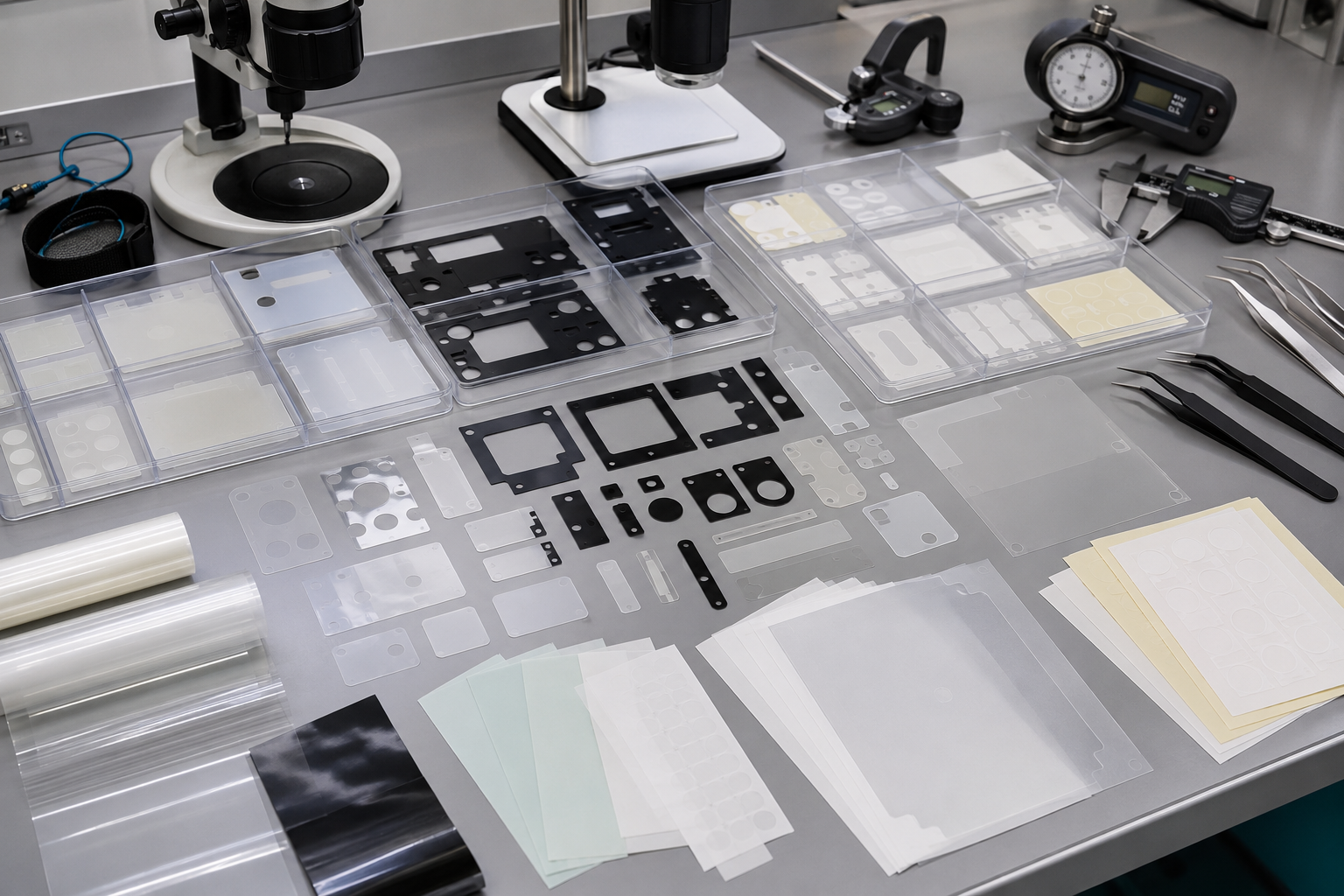

What Are Die Cut PET Insulation Films?
Die cut PET insulation films are custom-shaped film parts made from PET material and converted according to a drawing, sample, or assembly requirement.
They may include holes, slots, windows, tabs, adhesive backing, release liners, or laminated layers.
Common forms include:
| PET Film Part | Common Function |
|---|---|
| PET insulation sheet | Electrical separation and surface protection |
| Adhesive-backed PET film | Easy positioning during assembly |
| PET spacer film | Thin spacing and separation |
| PET cover film | Protection for selected conductive or contact areas |
| Black PET film | Light blocking and appearance control in selected modules |
| PET film with pull tab | Easier peeling and manual placement |
| Laminated PET structure | Combined insulation, bonding, and protection |
For OEM projects, custom die cut parts are designed around the actual assembly location, not only the outer shape.
A PET insulation film must match the real part geometry, hole position, tolerance, and handling method.
Why PET Insulation Films Are Used in EV Battery Packs and Modules
EV battery packs and modules include compact electrical and mechanical structures.
Many areas need thin insulation or surface separation without adding bulky material.
PET insulation films may be used for:
- Electrical separation
- Surface protection
- Thin spacing
- Connector area protection
- Module housing insulation
- Adhesive-backed positioning
- Protection during assembly
- Separation between selected metal or plastic parts
PET film is useful because it can be converted into accurate shapes with consistent thickness.
For battery-related applications, the film must be selected carefully based on the electrical insulation requirement, working temperature, bonding surface, thickness limit, and assembly process.
A thin film is not a small decision.
Start With the Insulation Area
Before choosing PET thickness or adhesive, define the exact area that needs insulation.
Important questions include:
| Question | Why It Matters |
|---|---|
| What surface needs insulation? | Determines film size and coverage |
| Is the film permanent or temporary? | Affects adhesive and material choice |
| Does the part need adhesive backing? | Affects placement and stability |
| Are there holes or slots? | Affects die cutting design |
| Is the surface flat or curved? | Affects film flexibility and bonding |
| Will operators peel it manually? | Affects liner and pull-tab design |
| What tolerance is required? | Affects tooling and inspection |
| How will the part be packaged? | Affects flatness and cleanliness |
The film should cover the correct area without interfering with screws, connectors, slots, terminals, housings, or assembly features.
Too small, and it may not protect enough.
Too large, and it may affect assembly fit.
Choose the Right PET Film Thickness
PET insulation film thickness affects insulation coverage, flexibility, flatness, and assembly fit.
Thicker PET may provide stronger handling and spacing support.
Thinner PET may fit better in compact areas.
| Thickness Consideration | Why It Matters |
|---|---|
| Electrical requirement | Determines minimum insulation coverage |
| Assembly gap | Controls whether the part fits |
| Film stiffness | Affects handling and flatness |
| Flexibility | Helps fit curved or complex areas |
| Die cutting stability | Affects edge quality and tolerance |
| Total stack height | Important when adhesive is added |
The selected thickness should match the real application.
Choosing PET film only by availability can create fitting problems later.
For more background, buyers can review what PET film is used for in electrical insulation.
Decide Whether Adhesive Backing Is Needed
Some PET insulation films are placed mechanically.
Others need adhesive backing to stay in position.
Adhesive-backed PET films can improve assembly speed and reduce shifting during installation.
Common adhesive-backed structures include:
| Structure | Common Use |
|---|---|
| PET film + adhesive + liner | Insulation with easy placement |
| PET film + low-tack adhesive | Temporary positioning or removable protection |
| PET film + stronger adhesive | Permanent bonding support |
| PET film + pull tab | Easier peeling and manual placement |
| PET film + protective layer | Surface protection during handling |
Adhesive selection must match the bonding surface.
EV battery modules and related electronic assemblies may include metal, plastic, coated surfaces, PET, insulation boards, or housing materials.
These surfaces do not bond the same way.
A good adhesive-backed PET film should peel smoothly, stay flat, bond accurately, and avoid adhesive overflow.
For adhesive-related risks, buyers can review why die cut adhesive parts fail after assembly.
Review Shape, Holes, Slots, and Edge Design
PET insulation films often need custom shapes.
They may fit around holes, screws, ribs, connectors, metal bars, vents, or housing features.
Good design improves both insulation performance and manufacturability.
| Design Point | Why It Matters |
|---|---|
| Outer contour | Ensures correct coverage |
| Hole position | Supports accurate assembly |
| Slot width | Reduces tearing and distortion risk |
| Minimum bridge width | Prevents weak or deformed areas |
| Corner radius | Reduces lifting and stress concentration |
| Pull tab position | Improves peeling and placement |
| Part spacing on liner | Improves handling |
| Orientation feature | Prevents wrong installation |
Sharp internal corners can create tearing risk.
Very narrow bridges may deform during waste removal.
Poor hole alignment can affect assembly.
For PET insulation films, the shape must be designed for cutting, peeling, placement, and long-term use.
Use Kiss Cutting for Easier Assembly
Many adhesive-backed PET insulation films are supplied kiss-cut on release liner.
In kiss cutting, the film part is cut while the liner remains intact.
This helps keep parts organized before assembly.
Kiss cutting can support:
- Easier peeling
- Better part organization
- Reduced missing parts
- Cleaner handling
- Manual or semi-automatic placement
- Sheets or roll delivery
- Pull-tab film designs
For more detail, buyers can review Die Cut vs Kiss Cut: What OEM Buyers Should Know for Adhesive Parts and Protective Films.
The liner should release smoothly without stretching, curling, or damaging the film.
If the film curls before assembly, the operator has already lost time.
Consider Cleanliness and Surface Quality
PET insulation films for EV battery packs and modules must be clean and stable.
Dust, burrs, scratches, curling, adhesive residue, or poor packaging can create assembly problems.
Important cleanliness and surface factors include:
- Dust control
- Scratch prevention
- Burr-free edges
- Flatness
- No adhesive contamination
- Stable liner release
- Clean packaging
- Proper tray, bag, sheet, or roll handling
For electronic and battery-related assemblies, surface cleanliness is not just cosmetic.
It can affect placement, inspection, bonding, and overall assembly reliability.
A film that protects one area should not contaminate another.
Choose the Right Die Cutting Process
PET insulation films are usually produced through material review, lamination, die cutting, kiss cutting, waste removal, inspection, and packaging.
A typical process includes:
| Step | Purpose |
|---|---|
| Application review | Confirm insulation area and assembly method |
| Material selection | Choose PET film, adhesive, liner, or protective layer |
| Lamination | Add adhesive, release liner, or protective film if required |
| Tooling design | Prepare die cutting tool based on the drawing |
| Die cutting | Cut outer shape, holes, slots, windows, and tabs |
| Kiss cutting | Keep adhesive-backed films on release liner |
| Waste removal | Remove unwanted film cleanly |
| Inspection | Check size, edge, surface, adhesive, and liner release |
| Packaging | Prevent dust, scratches, curling, and deformation |
For process background, buyers can review how die cutting transforms raw materials into precision components.

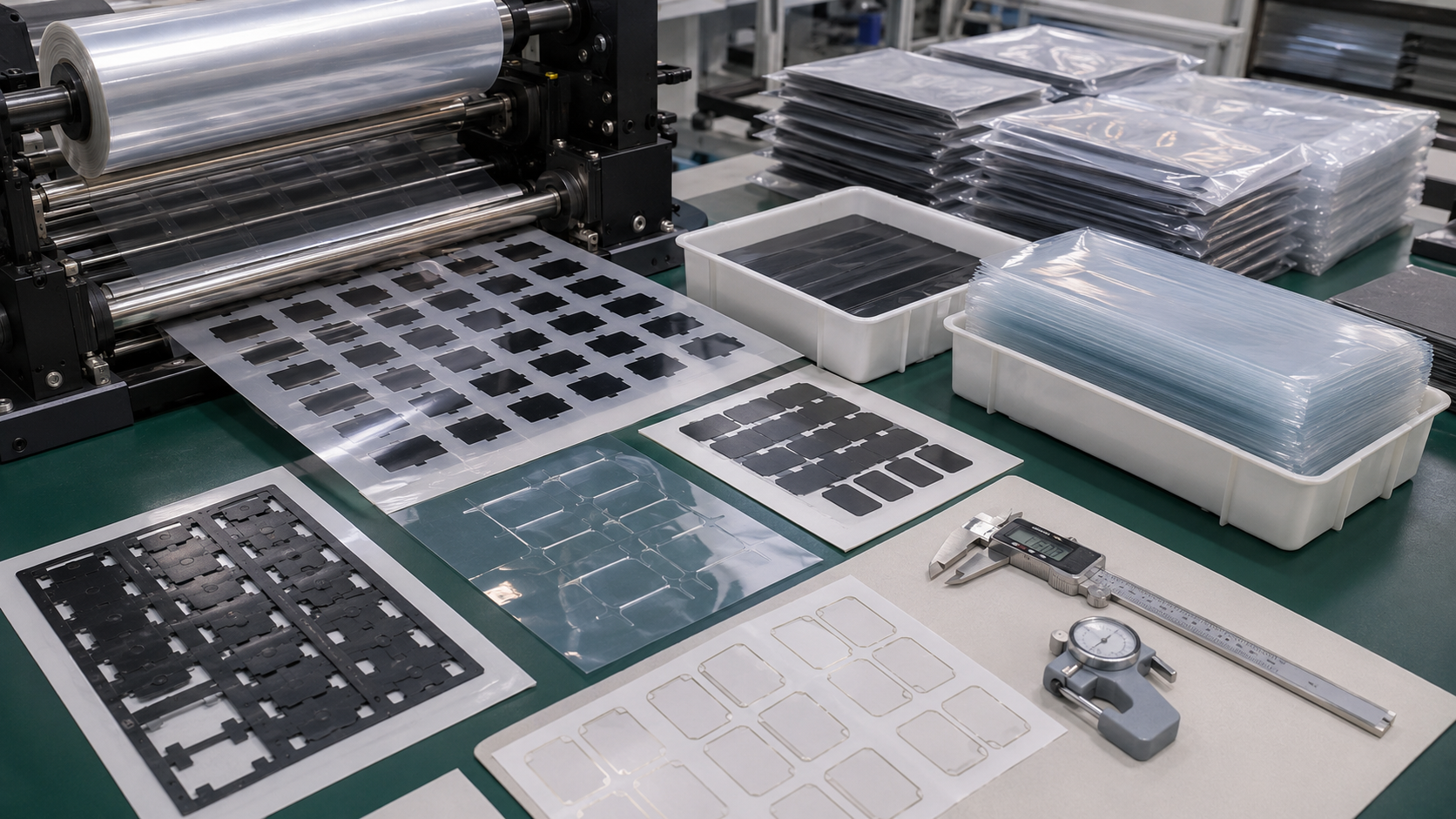

For high-volume film components, roll-to-roll die cutting can improve part spacing, liner control, waste removal, and production consistency.
Delivery Format Matters
Die cut PET insulation films can be supplied in different formats based on how they are assembled.
| Supply Format | Suitable Use |
|---|---|
| Individual pieces | Simple or low-volume assembly |
| Sheets | Manual picking and organized placement |
| Rolls | High-volume or automated application |
| Kiss-cut on liner | Adhesive-backed PET insulation films |
| Pull-tab format | Easier manual peeling |
| Kits | Multi-part battery module or electronic module assembly |
| Clean trays or bags | Dust and scratch protection |
For assembly planning, buyers can review how die cut parts are supplied in sheets, rolls, or kits.
The right delivery format can reduce missing parts, difficult peeling, fingerprints, film curling, and line delays.
Packaging is part of the product.
Especially when the product is thin and easy to damage.

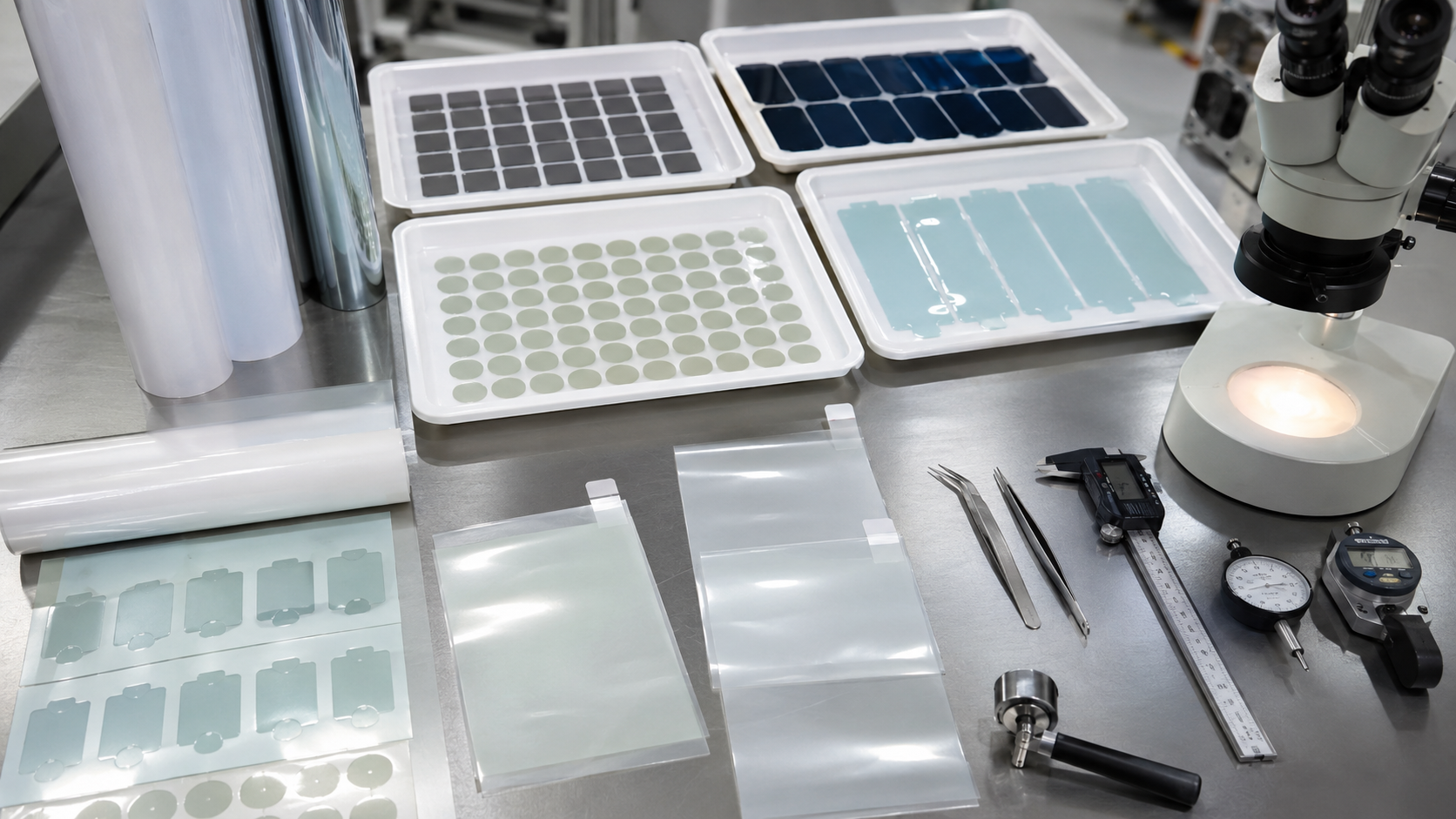

Quality Checks Before Mass Production
A PET insulation film must remain consistent from sample approval to mass production.
Important inspection items include:
| Inspection Item | Why It Matters |
|---|---|
| Dimensions | Ensures correct coverage and fit |
| Thickness | Controls insulation layer and stack height |
| Hole and slot alignment | Prevents assembly interference |
| Edge quality | Reduces burrs and particles |
| Adhesive position | Prevents shifting and overflow |
| Liner release | Improves peeling and placement |
| Surface cleanliness | Protects electronic assemblies |
| Flatness | Supports accurate installation |
| Packaging condition | Prevents scratches, curling, and deformation |
For EV battery packs and modules, consistency is critical because assembly spaces are compact and inspection requirements can be strict.
One approved sample is only the beginning.
The production batch must repeat the same result.
Common Mistakes to Avoid
Many PET insulation film problems can be prevented during design review.
Common mistakes include:
- Choosing thickness without checking stack height
- Ignoring adhesive compatibility with the bonding surface
- Designing sharp internal corners
- Making bridges or narrow strips too thin
- Forgetting pull tabs for manual assembly
- Using the wrong release liner
- Ignoring film curling risk
- Packaging films under pressure
- Skipping cleanliness requirements
- Not defining inspection standards clearly
The earlier these issues are reviewed, the easier they are to fix.
After mass production begins, a small film problem can become a large assembly delay.
What Buyers Should Provide Before Quotation
To recommend the right die cut PET insulation film, we usually need clear project information.
Helpful details include:
- Drawing or sample
- Battery pack or module application area
- Insulation coverage requirement
- PET film thickness
- Adhesive requirement
- Bonding surface
- Release liner requirement
- Pull tab requirement
- Hole or slot design
- Tolerance
- Cleanliness requirement
- Temperature exposure
- Annual volume
- Delivery format
- Packaging preference
- Validation standard
If the material is not confirmed, Sanken can help compare PET film thickness, adhesive structures, protective films, black PET films, release liners, pull-tab structures, and laminated insulation solutions.
For supplier selection, buyers can also review how to choose the right die cutting manufacturer before moving from sampling to mass production.
Need Die Cut PET Insulation Films for EV Battery Packs and Modules?
Die cut PET insulation films help EV battery packs, battery modules, and related electronic assemblies improve electrical separation, surface protection, spacing, positioning, and assembly stability.
But the final result depends on PET film thickness, adhesive backing, insulation coverage, tolerance, liner release, cleanliness, packaging, and delivery format.
If you need die cut PET insulation films, adhesive-backed PET films, protective films, black PET films, or laminated insulation structures, send us your drawing, sample, application location, material requirement, adhesive structure, tolerance, annual volume, and packaging preference.
Sanken can help review material selection, lamination structure, die cutting method, inspection points, and supply format before mass production.
Related Articles
You may also find these articles helpful:
- Die Cut PET Insulation Films for Battery and Electronics
- Custom Die-Cut PET Insulation Films for Electronics Assembly
- How to Choose Custom Die-Cut PET Insulation Films for Electronic Components
- What Is PET Film Used For in Electrical Insulation?
- Why Is PET Film Commonly Used in Electronics?
- Can PET Film Be Laminated With Adhesives?
- Why Insulation Films Must Be Precision Die Cut for Electronics
Conclusion
Choosing die cut PET insulation films for EV battery packs and modules requires more than selecting a film thickness. Buyers should review insulation coverage, PET thickness, adhesive backing, bonding surface, shape design, tolerance, liner release, cleanliness, delivery format, and packaging. When these details are controlled early, PET insulation films can support safer, cleaner, and more efficient OEM assembly.
