Semiconductor and electronics equipment often include surfaces that must stay clean, flat, and free from scratches during manufacturing, handling, shipping, and final assembly.
A small scratch on a panel may cause rework.
Dust on a protected surface may slow assembly.
Adhesive residue may affect appearance or inspection.
A film that is difficult to peel may reduce production efficiency.
This is why die cut protective films are important.
At Sanken, we use precision die cutting to convert PET protective films, adhesive-backed protective films, black PET films, PET insulation films, release liners, pull-tab films, and laminated film structures into custom parts for semiconductor equipment, electronics equipment, fixtures, panels, modules, and OEM assembly.
Choosing the right protective film is not only about the film surface.
It is about the protected surface, adhesive behavior, shape design, liner release, cleanliness, packaging, and how workers will actually use the part.
What Are Die Cut Protective Films?
Die cut protective films are custom-shaped film parts used to protect surfaces during production, handling, assembly, transport, or installation.
Unlike standard film rolls or sheets, die cut protective films are made to match the actual part shape.
They may include holes, windows, tabs, slots, cutouts, special liners, or adhesive-free handling areas.
Common forms include:
| Protective Film Form | Common Use |
|---|---|
| PET protective films | Scratch and handling protection |
| Adhesive-backed protective films | Temporary surface protection |
| Pull-tab films | Easier removal after assembly |
| Black PET films | Light blocking and appearance control |
| PET insulation films | Electrical separation and protection |
| Kiss-cut films on liner | Easy picking and placement |
| Laminated film structures | Combined protection, bonding, and insulation |
For OEM projects, custom die cut parts help make the film match the real equipment design instead of forcing operators to trim film manually.
Manual trimming may look flexible.
In production, it often becomes variation.
Start With the Surface to Be Protected
The first question is simple:
What surface needs protection?
The answer affects film material, adhesive strength, thickness, liner, and removal method.
Common protected surfaces include:
| Protected Surface | What to Consider |
|---|---|
| Metal panels | Scratch resistance, adhesive residue, surface finish |
| Plastic housings | Adhesive compatibility and removal behavior |
| Glass panels | Clean removal and particle control |
| Display windows | Flatness, dust control, and scratch prevention |
| Sensor covers | Window accuracy and clean edges |
| Control panels | Appearance protection and easy removal |
| Fixtures | Repeated contact and replacement convenience |
| Coated surfaces | Coating sensitivity and adhesive interaction |
A protective film for stainless steel is not automatically suitable for coated plastic.
A film for temporary shipping protection may not be suitable for an assembly fixture.
The protected surface decides the film requirement.
Decide Whether the Film Is Temporary or Functional
Protective films can be temporary or functional.
Temporary films are removed after assembly, transport, or installation.
Functional films may remain as part of the product structure.
| Film Use Type | Design Focus |
|---|---|
| Temporary protection | Clean removal, no residue, easy peeling |
| Assembly protection | Handling stability, pull tabs, dust control |
| Fixture protection | Wear resistance and easy replacement |
| Shipping protection | Surface coverage and packaging stability |
| Functional protection | Long-term adhesion and dimensional stability |
| Insulation support | PET film thickness and coverage accuracy |
| Light blocking | Black PET film opacity and edge accuracy |
For semiconductor and electronics equipment, many films are used temporarily to protect panels, fixtures, covers, displays, and module surfaces.
The film should stay in place when needed.
Then leave cleanly when removed.
A protective film that refuses to leave is not loyal.
It is inconvenient.

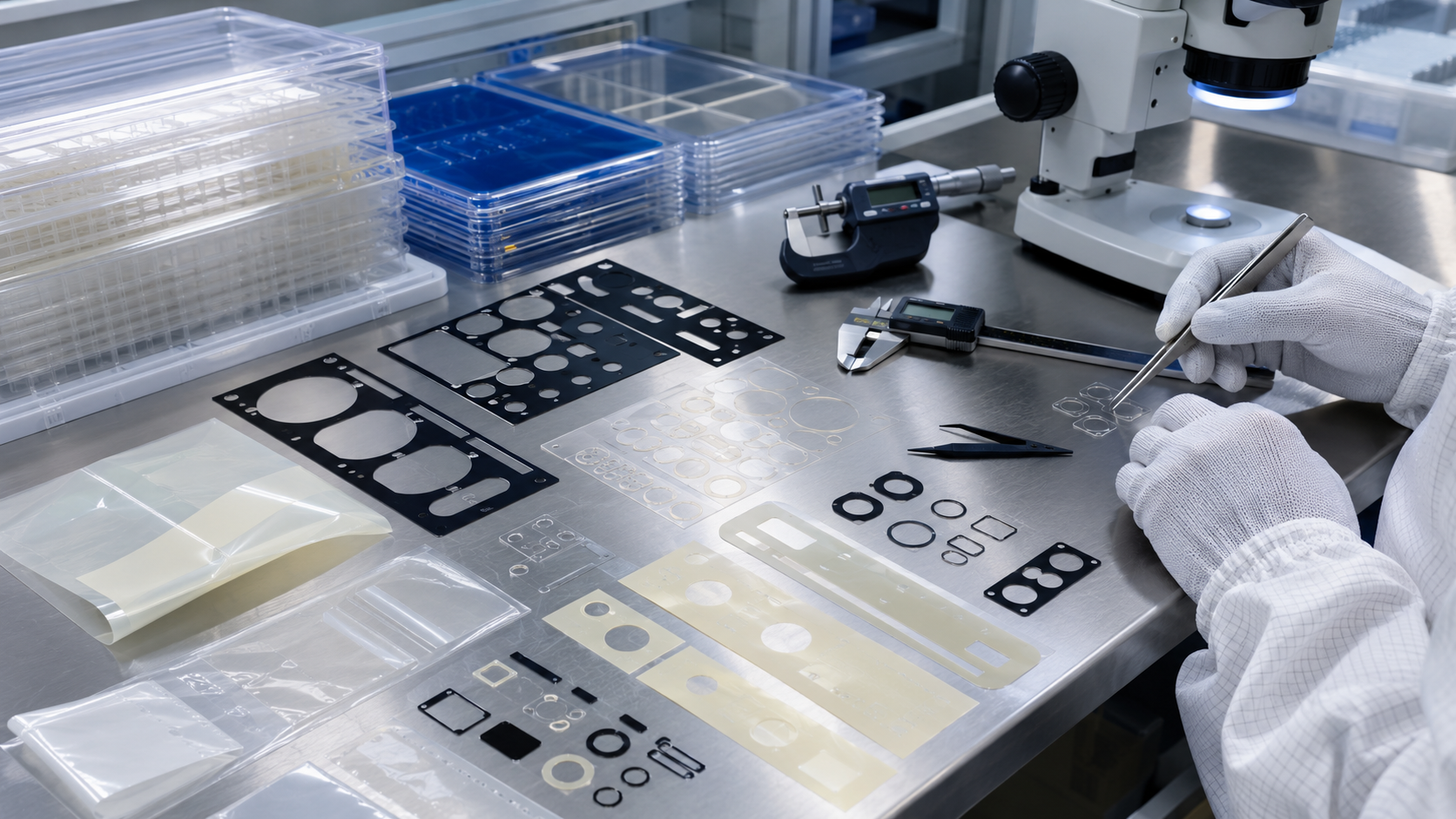

Choose the Right Film Material
PET protective film is commonly used because it offers good dimensional stability, clean processing, and suitable surface protection for many electronics-related applications.
Other film choices may depend on the application, surface, thickness, and removal requirement.
| Film Type | Common Selection Reason |
|---|---|
| PET protective film | Stable, clean, suitable for die cutting |
| Adhesive PET film | Easy positioning and surface protection |
| Black PET film | Light blocking and visual border control |
| PET insulation film | Electrical separation and protection |
| Low-tack protective film | Easier temporary removal |
| Laminated film | Combined protection, bonding, or insulation |
For electronic and display-related projects, optical film die cut components may include protective films, black PET films, adhesive frames, PET insulation films, and foam spacers.
Film selection should consider surface sensitivity, required protection time, handling method, temperature exposure, cleanliness, and whether the film must be removed later.
Select the Right Adhesive Behavior
The adhesive on a protective film must be balanced.
It needs enough tack to stay in place.
But it should not damage the protected surface or leave residue during removal.
Important adhesive factors include:
| Adhesive Factor | Why It Matters |
|---|---|
| Tack level | Controls film holding strength |
| Removal force | Affects peeling speed and surface safety |
| Residue control | Prevents surface contamination |
| Surface compatibility | Avoids coating damage or poor adhesion |
| Temperature exposure | Prevents adhesive change during use |
| Storage time | Affects final peel behavior |
| Application pressure | May influence later removal |
Different surfaces need different adhesive behavior.
Glass, metal, coated plastic, PET, painted surfaces, and textured panels all behave differently.
For adhesive-related risks, buyers can review why die cut adhesive parts fail after assembly.
The best adhesive is not always the strongest one.
For protective films, removable performance can be just as important as bonding.

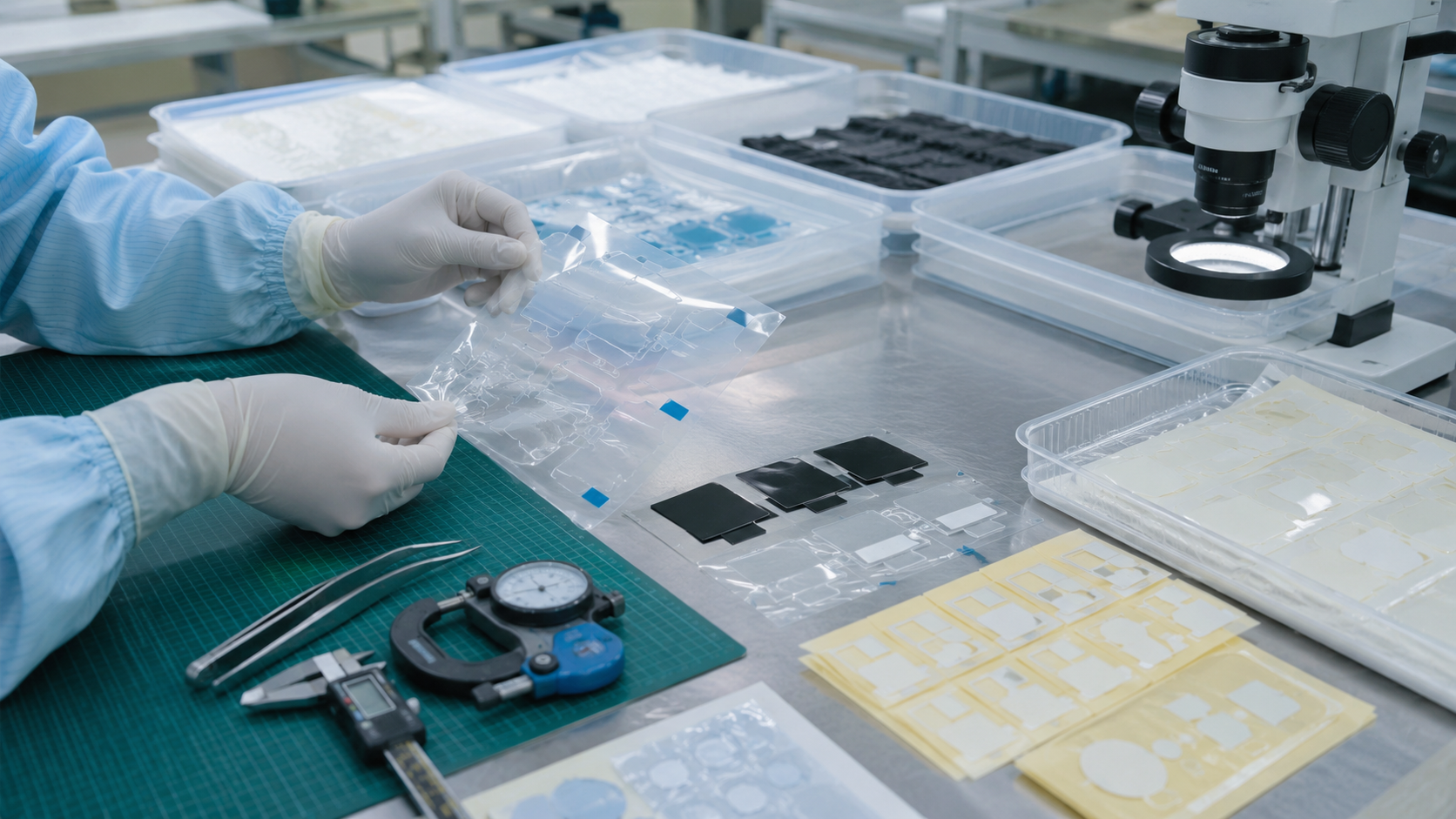

Add Pull Tabs for Easier Removal
Pull tabs are small design details that can greatly improve assembly efficiency.
They help operators peel the protective film without touching the protected surface too much.
Pull tabs can help with:
- Faster manual peeling
- Reduced fingerprint contact
- Easier positioning
- Cleaner removal
- Less film stretching
- Better operator handling
- Lower risk of scratching the surface
Pull tab position should be designed around the real assembly process.
A pull tab should be easy to reach.
It should not block a screw, sensor window, display area, fixture point, or final assembly feature.
For adhesive films supplied on liners, kiss cutting can keep the film organized before use and support easier peeling.
For process comparison, buyers can review Die Cut vs Kiss Cut: What OEM Buyers Should Know for Adhesive Parts and Protective Films.
Review Shape, Holes, Windows, and Edges
Protective films often need to fit around openings, display windows, connectors, sensor areas, screw holes, and fixture features.
Good shape design improves both protection and assembly.
Important design points include:
| Design Point | Why It Matters |
|---|---|
| Outer contour | Matches the protected surface |
| Hole position | Avoids assembly interference |
| Window accuracy | Keeps sensors or displays clear |
| Corner radius | Reduces lifting and tearing |
| Minimum width | Prevents stretching and deformation |
| Edge quality | Reduces particles and poor appearance |
| Part spacing on liner | Improves picking and placement |
| Orientation feature | Prevents wrong placement |
Sharp corners may lift.
Very narrow film strips may stretch.
Poor hole alignment may block assembly features.
A protective film must be designed for cutting, peeling, applying, staying flat, and removal.
Match the Liner to the Assembly Method
The release liner affects how workers handle the film before application.
If the liner release is too tight, the film may stretch or curl during peeling.
If it is too loose, the film may shift during transport or handling.
Common liner choices include:
| Liner Option | Benefit |
|---|---|
| Paper liner | Common and cost-effective for many parts |
| Film liner | Better flatness and cleaner handling in selected uses |
| Easy-release liner | Faster manual peeling |
| Tight-release liner | Better stability during transport |
| Single liner | Simple adhesive-backed film structure |
| Pull-tab liner design | Easier handling and removal |
For manual assembly, sheets with pull tabs may be more convenient.
For high-volume processes, rolls with stable pitch and release behavior may be better.
For fixture protection, individual pieces or sheets may support easier replacement.
Consider Cleanliness and Surface Quality
Semiconductor and electronics equipment often have higher expectations for surface appearance and cleanliness.
Protective films should be free from visible defects that may transfer to the product or affect inspection.
Important quality concerns include:
- Dust particles
- Scratches
- Bubbles
- Curling
- Edge burrs
- Adhesive residue
- Film wrinkles
- Poor liner release
- Wrong orientation
- Packaging contamination
Protective film should reduce surface risk.
It should not introduce a new one.
For visible panels, display windows, sensor areas, and control interfaces, clean handling and packaging are especially important.

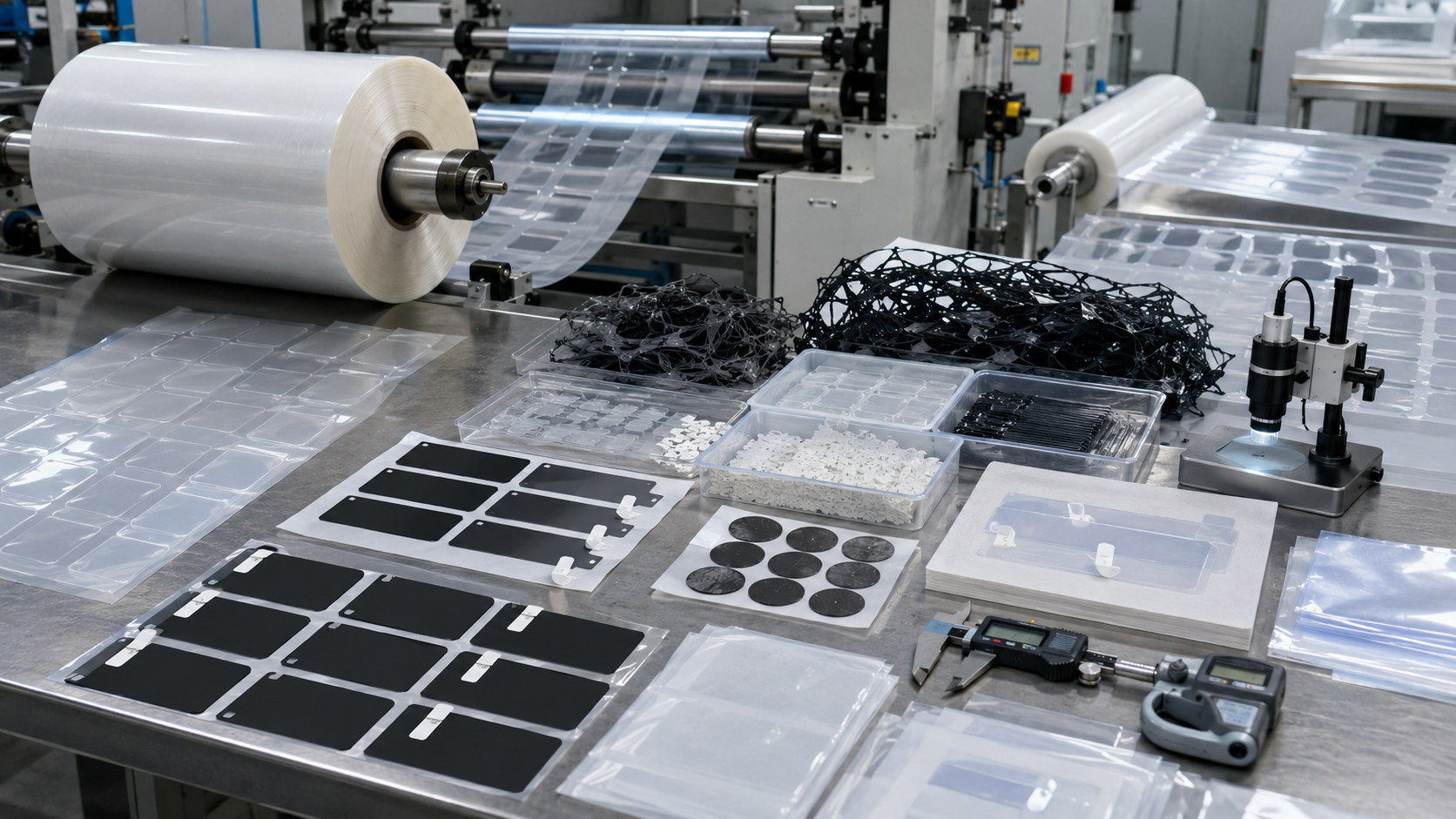

Manufacturing Process for Die Cut Protective Films
Die cut protective films are usually produced through material review, lamination, die cutting, kiss cutting, waste removal, inspection, and packaging.
A typical process includes:
| Step | Purpose |
|---|---|
| Application review | Confirm protected surface and assembly method |
| Material selection | Choose protective film, adhesive, liner, or PET film |
| Lamination | Add adhesive, liner, pull-tab layer, or backing if needed |
| Tooling design | Prepare die cutting tool based on drawing |
| Die cutting | Cut outer shape, holes, windows, slots, and tabs |
| Kiss cutting | Keep adhesive-backed films on release liner |
| Waste removal | Remove unwanted film cleanly |
| Inspection | Check size, edge, surface, adhesive, and liner release |
| Packaging | Prevent dust, scratches, curling, and deformation |
For process background, buyers can review how die cutting transforms raw materials into precision components.
For high-volume film parts, roll-to-roll die cutting can improve consistency, spacing, liner control, and production efficiency.
Supply Formats for Semiconductor and Electronics Equipment
Protective films can be supplied in different formats based on the assembly process.
| Supply Format | Suitable Use |
|---|---|
| Individual pieces | Simple placement or low-volume projects |
| Sheets | Manual picking and organized assembly |
| Rolls | Automated or high-volume application |
| Kiss-cut on liner | Adhesive protective films |
| Pull-tab format | Easy manual peeling and removal |
| Kits | Multi-part equipment module assembly |
| Clean trays or bags | Dust and scratch protection |
For assembly planning, buyers can review how die cut parts are supplied in sheets, rolls, or kits.
The right supply format can reduce missing parts, difficult peeling, fingerprints, film deformation, and line delays.
Quality Checks Before Mass Production
A protective film must remain consistent from sample approval to production.
Important inspection items include:
| Inspection Item | Why It Matters |
|---|---|
| Dimensions | Ensures correct surface coverage |
| Hole and window alignment | Prevents assembly interference |
| Edge quality | Reduces lifting, burrs, and particles |
| Surface cleanliness | Prevents visible defects |
| Adhesive behavior | Controls bonding and clean removal |
| Liner release | Improves peeling and placement |
| Pull tab position | Supports easy removal |
| Flatness | Reduces bubbles and curling |
| Packaging condition | Prevents scratches and dust exposure |
For equipment assembly, the film must arrive clean, flat, easy to peel, and ready to use.
A good protective film should make production smoother, not slower.
What Buyers Should Provide Before Quotation
To recommend the right die cut protective film, we usually need clear project information.
Helpful details include:
- Drawing or sample
- Surface to be protected
- Equipment application area
- Temporary or long-term use
- Film material requirement
- Adhesive requirement
- Residue requirement
- Pull tab requirement
- Hole or window design
- Surface cleanliness requirement
- Temperature exposure
- Annual volume
- Delivery format
- Packaging preference
- Validation standard
If the material is not confirmed, Sanken can help compare PET protective films, adhesive-backed protective films, black PET films, PET insulation films, release liners, pull-tab structures, and laminated film solutions.
For supplier selection, buyers can also review how to choose the right die cutting manufacturer before moving from sampling to mass production.
Need Die Cut Protective Films for Semiconductor or Electronics Equipment?
Die cut protective films help protect semiconductor and electronics equipment panels, fixtures, displays, sensors, control surfaces, housings, and assembly contact points from scratches, dust, fingerprints, handling damage, and residue risk.
But the final result depends on film material, adhesive behavior, protected surface, pull-tab design, liner release, die cutting accuracy, cleanliness, packaging, and delivery format.
If you need PET protective films, adhesive-backed protective films, pull-tab films, black PET films, PET insulation films, or laminated film parts, send us your drawing, sample, protected surface, film requirement, adhesive structure, tolerance, annual volume, and packaging preference.
Sanken can help review material selection, lamination structure, die cutting method, inspection points, and supply format before mass production.
Related Articles
You may also find these articles helpful:
- Precision Die-Cut Parts for Semiconductor Equipment: Materials, Applications, and Design Tips
- Custom Die-Cut Insulation Films for Semiconductor Equipment and Electronic Modules
- Why Is Precision Film Die Cutting Important for Consumer Electronics Screens?
- How to Solve Residual Adhesive Issues of Die-Cut Optical Protective Films?
- Die Cut vs Kiss Cut: What OEM Buyers Should Know for Adhesive Parts and Protective Films
- How Die Cutting Transforms Raw Materials Into Precision Components
Conclusion
Choosing die cut protective films for semiconductor and electronics equipment requires more than selecting a film roll. Buyers should review the protected surface, film material, adhesive behavior, pull-tab design, liner release, shape accuracy, cleanliness, delivery format, and packaging. When these details are controlled early, protective films can reduce surface defects and improve assembly efficiency.
