Semiconductor equipment is built around precision.
Every panel, sensor housing, electronic module, control interface, cable path, insulation area, and enclosure must fit correctly and perform reliably.
That is why many small die-cut parts are used inside equipment assemblies.
They may not be visible from the outside.
But they help with insulation, sealing, cushioning, dust protection, bonding, surface protection, vibration control, and assembly stability.
At Sanken, we use precision die cutting to convert PET insulation films, protective films, black PET films, adhesive tape, foam, rubber, non-woven felt, and laminated materials into custom parts for semiconductor equipment, electronic modules, control panels, sensors, and OEM assembly.
These parts are small.
But in precision equipment, small parts do not get small responsibility.

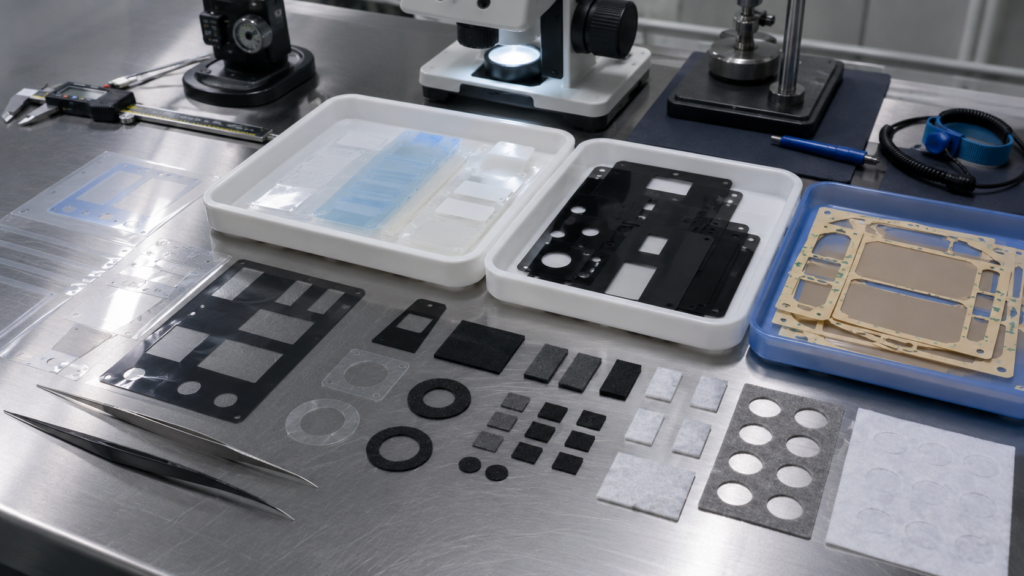

What Are Precision Die-Cut Parts for Semiconductor Equipment?
Precision die-cut parts are custom-shaped components made from flexible materials such as film, foam, rubber, felt, adhesive tape, and laminated structures.
In semiconductor equipment, these parts are often used around supporting assemblies, electronic modules, panels, sensors, housings, display areas, wire paths, and control systems.

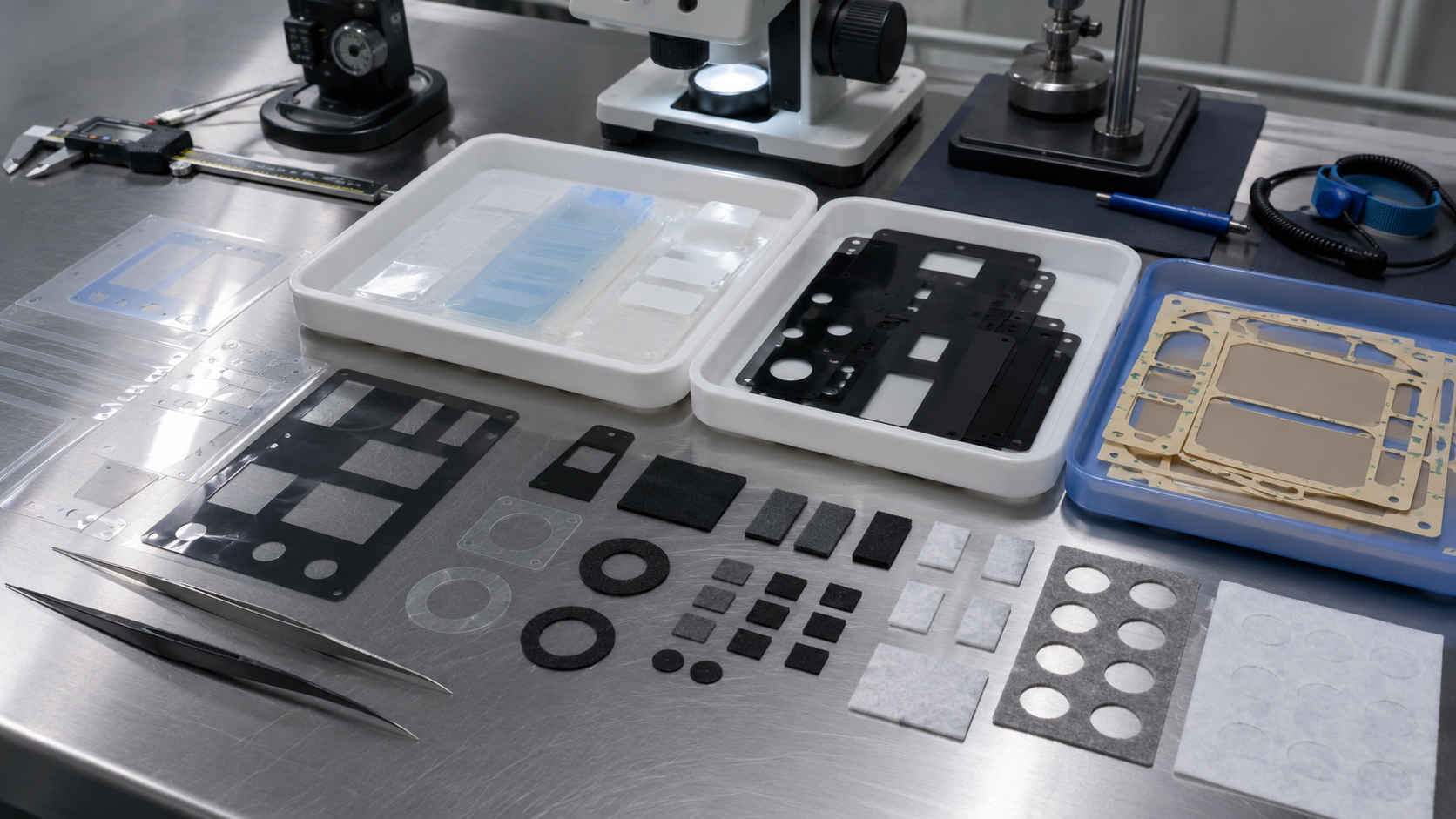

Common die-cut parts include:
| Die-Cut Part | Main Function |
|---|---|
| PET insulation films | Electrical insulation and component separation |
| Protective films | Surface protection during assembly and handling |
| Black PET films | Light blocking and appearance control |
| Adhesive tape frames | Bonding, positioning, and mounting |
| Foam gaskets | Sealing, cushioning, and gap filling |
| Rubber pads | Vibration damping and impact protection |
| Non-woven felt pads | Anti-squeak and surface cushioning |
| Laminated parts | Combined bonding, insulation, protection, or cushioning |
For equipment manufacturers, custom die cut parts help match exact product structures instead of forcing standard parts into non-standard spaces.
The goal is not just to cut a shape.
The goal is to make the equipment easier to assemble and more stable in use.
Where Die-Cut Parts Are Used in Semiconductor Equipment
Semiconductor equipment includes many mechanical, electronic, optical, and control-related assemblies.
Not every die-cut part is used inside a process chamber. Many are used around equipment panels, electronic modules, control interfaces, sensor housings, cable routing areas, and protection points.
Common application areas include:
| Equipment Area | Typical Die-Cut Parts |
|---|---|
| Electronic control modules | PET insulation films, adhesive-backed films |
| Sensor housings | Foam gaskets, protective films, adhesive pads |
| Control panels | Protective films, adhesive tape frames, PET films |
| Cable and connector areas | PET insulation films, foam pads, felt protection pads |
| Equipment covers | Foam gaskets, rubber pads, protective films |
| Display or indicator areas | Black PET films, protective films, adhesive frames |
| Internal brackets | Cushioning pads, rubber pads, adhesive-backed parts |
| Panel contact points | Foam strips, felt pads, rubber damping parts |
A single equipment assembly may use multiple die-cut materials together.
For example, a control panel may need a protective film, an adhesive frame, a PET insulation layer, and small foam pads for cushioning.
That is why material converting and die cutting must be reviewed as one complete process.
PET Insulation Films for Electrical Protection
PET insulation film is one of the most common die-cut materials used in electronic equipment assemblies.
It is thin, stable, lightweight, and suitable for custom shapes.
PET films may be used around PCBs, connectors, sensors, display interfaces, control modules, and internal electronic housings.
Common PET film applications include:
- PCB insulation pieces
- Connector protection films
- Control module insulation films
- Adhesive-backed PET films
- PET spacers
- Internal surface protection films
- Black PET light-blocking parts
- Laminated PET film structures
For electrical insulation applications, die cut PET insulation films for battery and electronics are often selected because PET film can be converted into accurate shapes with holes, slots, tabs, windows, and adhesive backing.
PET film must be clean and flat.
If it curls, scratches, shifts, or leaves particles, the assembly process becomes harder.
A thin film can still create a thick problem.
Adhesive Tape Parts for Bonding and Positioning
Adhesive tape parts are widely used in semiconductor equipment and electronic module assembly.
They help bond, mount, position, seal, and protect parts without messy liquid adhesive.
Common adhesive die-cut parts include:
| Adhesive Part | Common Use |
|---|---|
| Double-sided tape frames | Control panel and housing bonding |
| PET-backed adhesive parts | Stable positioning and insulation support |
| Transfer adhesive parts | Thin bonding applications |
| Foam tape gaskets | Bonding with cushioning and sealing |
| Protective films with pull tabs | Temporary surface protection |
| Adhesive-backed foam pads | Cushioning and positioning |
| Laminated adhesive structures | Combined bonding, protection, and insulation |
Adhesive selection must match the bonding surface.
Semiconductor equipment may use painted metal, aluminum, stainless steel, plastic housings, glass panels, PET films, rubber, foam, and coated surfaces.
These surfaces do not bond the same way.
For adhesive-backed parts, liner release, peel strength, adhesive position, and edge quality must be controlled carefully.
For more details, buyers can review why die cut adhesive parts fail after assembly.
Foam Gaskets and Rubber Pads for Sealing and Cushioning
Foam and rubber parts are used when equipment assemblies need sealing, cushioning, vibration control, or contact protection.
Common parts include:
- Foam gasket frames
- Foam sealing strips
- Adhesive-backed foam pads
- Rubber damping pads
- Rubber cushioning washers
- Foam spacers
- Protective contact pads
- Foam strips for panel gaps
For sealing and cushioning applications, foam gaskets and sealing components can help support sensor housings, covers, control boxes, panels, and internal electronic assemblies.
Foam is useful for gap filling and soft compression.
Rubber is useful for stronger damping and impact protection.
The key is choosing the right thickness, density, hardness, compression recovery, and adhesive structure.
If the foam is too soft, it may collapse.
If the rubber is too hard, it may transfer vibration.
Materials should solve problems, not move them somewhere else.
Protective Films for Panels and Sensitive Surfaces
Semiconductor equipment often includes panels, displays, covers, windows, control interfaces, and precision surfaces that must be protected during assembly and shipping.
Die-cut protective films can help prevent scratches, dust, fingerprints, and handling damage.
Common protective film features include:
- Custom outer shape
- Holes or windows
- Pull tabs
- Easy-peel liner
- Temporary surface protection
- Clean packaging
- Kiss-cut delivery format
Protective films should be easy to apply and remove.
They should not leave residue, trap particles, scratch the surface, or curl during assembly.
For display and panel-related applications, optical film die cut components may include protective films, black PET films, adhesive frames, PET insulation films, and foam spacers.
In visible areas, small defects become very visible.
Non-Woven Felt for Anti-Squeak and Contact Protection
Non-woven felt is useful where two surfaces may rub or vibrate against each other.
In equipment assemblies, felt can reduce friction noise, protect surfaces, and cushion contact points.
Common applications include:
| Application Area | Felt Function |
|---|---|
| Panel contact areas | Anti-squeak and cushioning |
| Cable routing areas | Surface protection and vibration reduction |
| Housing contact points | Reduce friction and rubbing noise |
| Internal covers | Soft contact protection |
| Electronic module support | Light cushioning and anti-rattle support |
Felt can also be supplied with adhesive backing for easier installation.
For equipment with moving panels, covers, or removable modules, felt pads may help reduce unwanted contact noise and surface wear.
Design Tips for Semiconductor Equipment Die-Cut Parts
Good die-cut part design improves both function and manufacturability.
Important design tips include:
| Design Point | Why It Matters |
|---|---|
| Avoid sharp internal corners | Reduces tearing, lifting, and stress concentration |
| Keep enough minimum width | Prevents deformation during die cutting and peeling |
| Add pull tabs when needed | Improves manual handling |
| Confirm hole-to-edge distance | Supports stable cutting and assembly |
| Match adhesive to surface | Reduces lifting and bonding failure |
| Control total thickness | Prevents stack-up and fitting problems |
| Choose the right liner | Improves peeling and assembly speed |
| Plan packaging early | Prevents scratches, curling, and deformation |
For film and adhesive parts, rounded corners often perform better than sharp corners.
For foam gaskets, narrow walls may tear or stretch.
For adhesive parts, poor liner release may deform the part before it even reaches the product.
Good design is not only about the drawing.
It is about how the part will be cut, peeled, placed, and used.

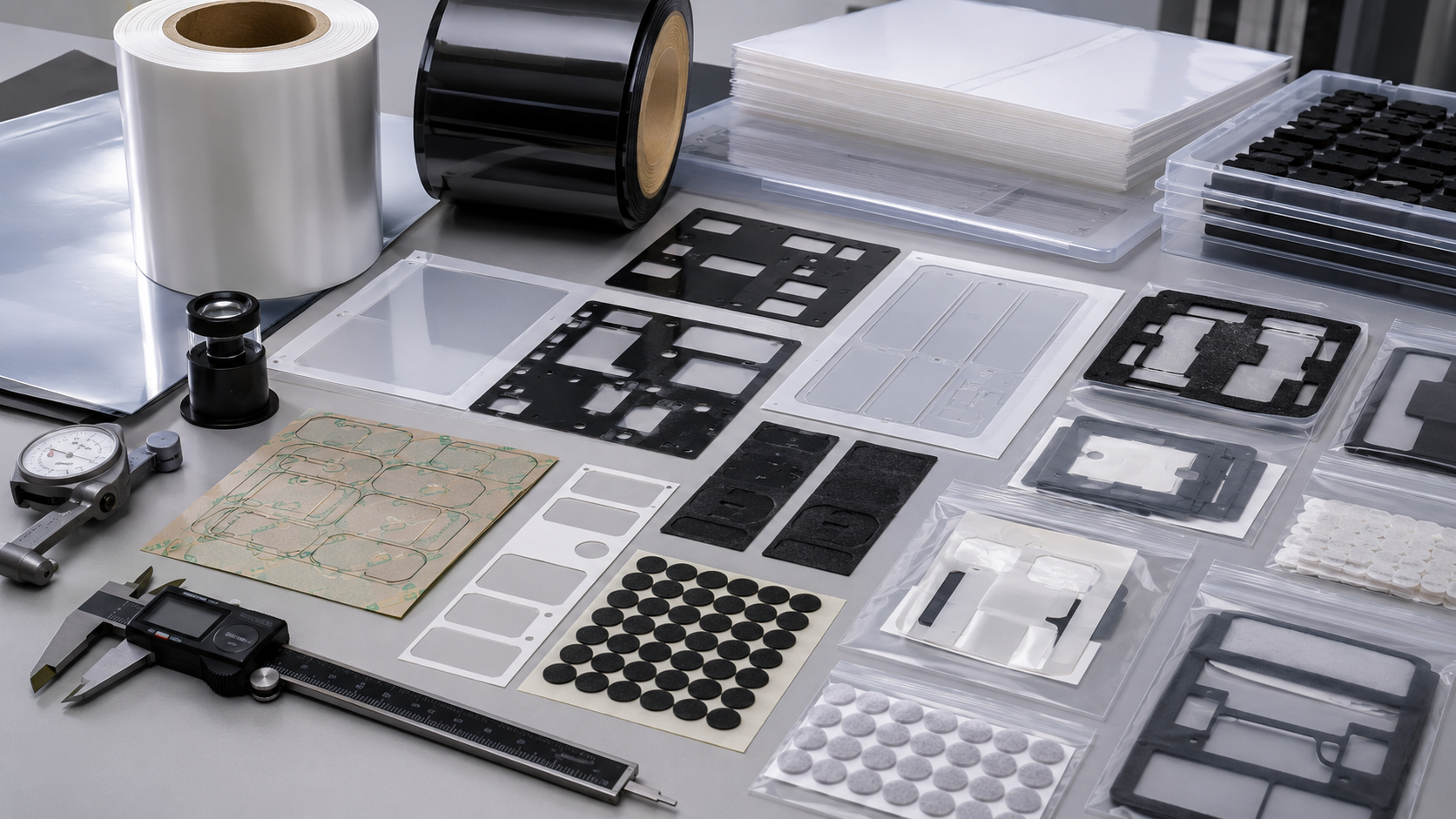

Manufacturing Process for Precision Die-Cut Parts
Most precision die-cut parts are made through material converting, lamination, die cutting, kiss cutting, waste removal, inspection, and packaging.
A typical process includes:
| Step | Purpose |
|---|---|
| Application review | Confirm function, material, surface, and assembly method |
| Material selection | Choose film, foam, rubber, felt, adhesive, or laminated structure |
| Lamination | Add adhesive, liner, film, or protective layer if needed |
| Tooling design | Prepare the die cutting tool based on drawing |
| Die cutting | Cut films, pads, strips, frames, gaskets, or custom shapes |
| Kiss cutting | Keep adhesive-backed parts on release liner |
| Waste removal | Remove unwanted material cleanly |
| Inspection | Check size, thickness, edge, adhesive, and surface quality |
| Packaging | Prevent dust, scratches, curling, sticking, and deformation |
For process background, buyers can review how die cutting transforms raw materials into precision components.
For high-volume roll materials, roll-to-roll die cutting can improve consistency, part spacing, liner control, and production efficiency.

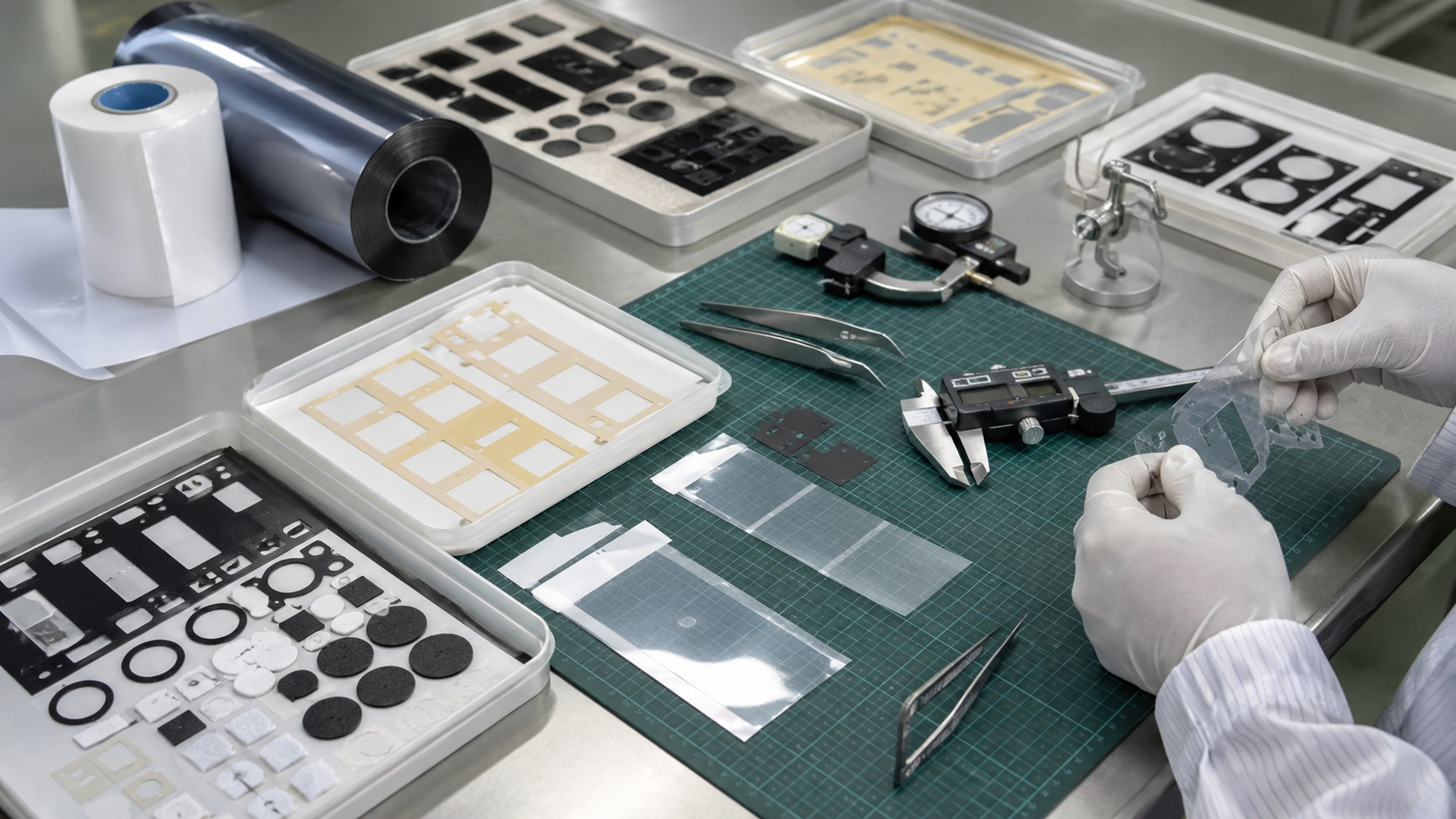

Quality Control Requirements
Precision equipment parts must be stable from sample approval to mass production.
Important inspection points include:
| Inspection Item | Why It Matters |
|---|---|
| Dimensions | Ensures correct fit and coverage |
| Thickness | Controls spacing, compression, and stack-up |
| Hole alignment | Supports accurate assembly |
| Edge quality | Reduces burrs, particles, and poor fitting |
| Adhesive position | Prevents shifting or bonding failure |
| Liner release | Improves peeling and placement |
| Surface cleanliness | Protects panels and electronic modules |
| Flatness | Supports film and adhesive assembly |
| Packaging condition | Prevents scratches, curling, deformation, and dust |
For equipment assemblies, a good sample is only the start.
Repeatability matters more.
The same part must remain stable across production batches.
What Buyers Should Provide Before Quotation
To recommend the right precision die-cut part, we usually need clear project details.
Helpful information includes:
- Drawing or sample
- Equipment application area
- Main function
- Material preference
- Thickness and tolerance
- Adhesive requirement
- Bonding surface
- Electrical insulation requirement
- Sealing or cushioning requirement
- Cleanliness requirement
- Temperature range
- Annual volume
- Delivery format
- Packaging preference
- Validation standard
If the material is not confirmed, Sanken can help compare PET insulation film, protective film, black PET film, adhesive tape, foam, rubber, non-woven felt, and laminated structures.
For supplier selection, buyers can also review how to choose the right die cutting manufacturer before moving from sampling to production.
Need Precision Die-Cut Parts for Semiconductor Equipment?
Precision die-cut parts help semiconductor equipment and electronic modules improve insulation, sealing, cushioning, bonding, surface protection, vibration control, light blocking, and assembly efficiency.
But the final result depends on material selection, adhesive structure, die cutting accuracy, cleanliness, liner release, inspection, and packaging.
If you need PET insulation films, protective films, black PET films, adhesive tape frames, foam gaskets, rubber pads, felt pads, or laminated die-cut components, send us your drawing, sample, application location, material requirement, tolerance, annual volume, and packaging preference.
Sanken can help review material selection, lamination structure, die cutting method, inspection points, and delivery format before mass production.
Related Articles
You may also find these articles helpful:
- Custom Die-Cut Insulation Films for Semiconductor Equipment and Electronic Modules
- How to Choose Custom Die-Cut PET Insulation Films for Electronic Components
- What Is PET Film Used For in Electrical Insulation?
- Why Is PET Film Commonly Used in Electronics?
- What Die Cut Films, Foams, and Adhesive Parts Are Used in Electronic Products?
- What Is Pressure Sensitive Adhesive Tape and Where Is It Used in OEM Assembly?
- How Die Cutting Transforms Raw Materials Into Precision Components
Conclusion
Precision die-cut parts are used in semiconductor equipment to support insulation, bonding, sealing, cushioning, surface protection, vibration control, and assembly stability. The best results come from matching the material, adhesive, thickness, tolerance, delivery format, and packaging method to the real equipment application.
