PET protective films are widely used in OEM assembly because many product surfaces need protection before the final product reaches the customer.
A display window can be scratched during handling.
A control panel can collect fingerprints.
A glossy plastic cover can rub against a fixture.
A metal surface can be marked during transport.
A sensor window can become contaminated before final assembly.
Custom PET protective film die cutting helps solve these problems by converting film roll materials into accurate, clean, easy-to-peel, assembly-ready parts.
At Sanken, we use precision die cutting to convert PET protective films, adhesive-backed PET films, release liners, pull-tab structures, black PET films, and laminated film materials into custom components for electronics, displays, sensors, appliances, automotive interiors, semiconductor equipment, and OEM assembly.
A protective film should protect the surface.
It should not create scratches, residue, curling, dust, or peeling problems.
What Is PET Protective Film Die Cutting?
PET protective film die cutting is the process of cutting PET-based protective films into custom shapes for specific product surfaces or assembly locations.
Instead of applying film manually from a roll, OEM manufacturers can use pre-cut film parts that match the exact surface shape.

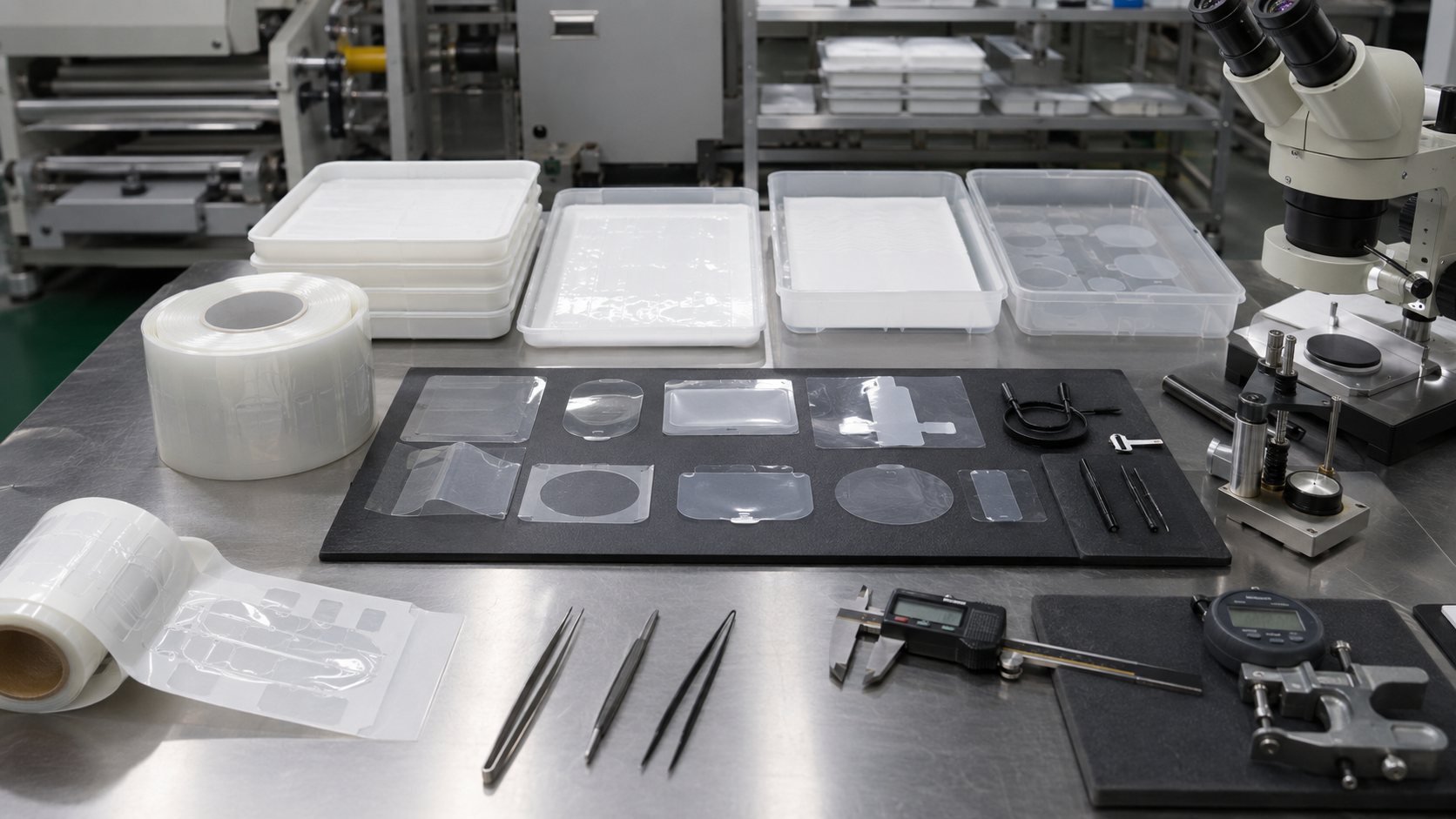

Common PET protective film parts include:
| Film Part | Common Function |
|---|---|
| Clear PET protective films | Scratch and handling protection |
| Adhesive-backed PET films | Temporary surface protection and positioning |
| Pull-tab protective films | Easier removal after assembly |
| Kiss-cut films on liner | Organized peeling and placement |
| PET window films | Protection around display or sensor areas |
| Laminated PET film structures | Combined protection, bonding, and handling support |
| Black PET films | Light blocking and visual masking |
For OEM projects, custom die cut parts help protective films match the real product design instead of forcing operators to trim material during production.
Manual trimming may work for a sample.
Mass production needs repeatability.
Why OEM Assembly Needs Custom Protective Films
OEM products often pass through many production steps before final delivery.
During these steps, surfaces may be touched, moved, pressed, inspected, packed, shipped, and installed.
PET protective films help reduce surface damage during this process.
| OEM Assembly Risk | How PET Protective Film Helps |
|---|---|
| Scratches | Covers sensitive surfaces during handling |
| Fingerprints | Reduces direct contact with visible surfaces |
| Dust contamination | Protects selected areas before final assembly |
| Fixture marks | Reduces rubbing damage during production |
| Transport damage | Protects surfaces before delivery |
| Assembly rework | Helps keep panels cleaner |
| Display surface defects | Protects windows and touch areas |
| Sensor window contamination | Helps preserve surface cleanliness |
For display and optical-related products, optical film die cut components may include protective films, black PET films, adhesive frames, PET insulation films, and foam spacers.
A protective film is often temporary.
But the surface defect it prevents can be permanent.
Step 1: Review the Protected Surface
Before choosing a PET protective film, the protected surface must be reviewed.
Different surfaces need different adhesive behavior and film performance.
Common protected surfaces include:
- Glass display windows
- Plastic covers
- Painted panels
- Metal covers
- Appliance control panels
- Automotive trim
- Sensor windows
- Electronic housings
- Coated decorative surfaces
Important surface questions include:
| Question | Why It Matters |
|---|---|
| Is the surface glossy or matte? | Affects visible defect risk |
| Is the film temporary or long-term? | Affects adhesive choice |
| Does the surface have coating? | Affects residue and removal risk |
| Is the surface flat or curved? | Affects film shape and adhesion |
| Will workers remove it manually? | Affects pull-tab design |
| Is cleanliness important? | Affects packaging and handling |
For surface protection applications, buyers can review when OEM products need custom die-cut surface protection films.
The protected surface decides the film requirement.
Not the other way around.
Step 2: Choose the PET Protective Film Structure
PET protective films can be designed in different structures depending on the application.
| Structure | Best Used For |
|---|---|
| PET film + low-tack adhesive + liner | Temporary protection and clean removal |
| PET film + medium-tack adhesive | Stronger handling protection |
| PET film with pull tab | Easy removal after assembly |
| PET protective film on release liner | Manual picking and placement |
| PET film + masking layer | Selected surface coverage |
| PET film + adhesive + carrier layer | Better handling stability |
| Laminated PET structure | Combined protection and assembly support |
If the film must be removed after assembly, clean removal is critical.
If the film remains in the product, long-term stability may matter more.
If the film covers a visible surface, surface cleanliness and flatness become very important.
For PET film selection logic, buyers can review which PET film to choose for protection, insulation, or light blocking.
Step 3: Add Pull Tabs When Needed
Pull tabs are small extensions or added layers that make protective films easier to remove.
They help operators peel the film without touching the protected area directly.
Pull tabs can improve:
- Peeling speed
- Handling stability
- Surface cleanliness
- Removal accuracy
- Operator convenience
- Reduced film stretching
- Lower fingerprint risk
Pull tab position should match the assembly process.
It should be easy to reach.
It should not interfere with screws, clips, sensor windows, display openings, housings, or final product edges.
A pull tab is a small design detail.
On a busy assembly line, it can save many seconds and many complaints.
Step 4: Use Kiss Cutting for Easier Assembly
PET protective film parts are often supplied kiss-cut on a release liner.
In kiss cutting, the film part is cut while the liner remains intact.
This keeps film parts organized before use and makes them easier to peel.
Kiss cutting is useful for:
| Application | Why Kiss Cutting Helps |
|---|---|
| Small protective films | Prevents missing parts |
| Pull-tab films | Supports easy peeling |
| Display window films | Keeps parts clean and organized |
| Sensor protection films | Improves placement control |
| Sheet supply | Supports manual assembly |
| Roll supply | Supports high-volume production |
For process comparison, buyers can review Die Cut vs Kiss Cut: What OEM Buyers Should Know for Adhesive Parts and Protective Films.
Cut depth must be controlled carefully.
If the cut is too shallow, the film may not release cleanly.
If the cut is too deep, the liner may break.
The liner is part of the assembly experience.
Step 5: Control Shape Accuracy
PET protective film parts may include holes, windows, slots, rounded corners, tabs, or narrow borders.
Shape accuracy matters because the film must protect the right surface without blocking functional areas.
Important design points include:
| Design Point | Why It Matters |
|---|---|
| Outer contour | Matches the protected surface |
| Window position | Avoids covering display or sensor areas |
| Hole alignment | Prevents assembly interference |
| Corner radius | Reduces lifting and tearing |
| Minimum width | Prevents stretching during peeling |
| Pull tab location | Improves removal |
| Part spacing on liner | Improves picking and placement |
| Packaging method | Prevents curling and scratches |
For thin film processing, buyers can review how thin film die cutting supports high-precision OEM manufacturing.
A protective film must be designed for cutting, peeling, placing, staying flat, and removal.
If it only looks good in CAD, that is not enough.

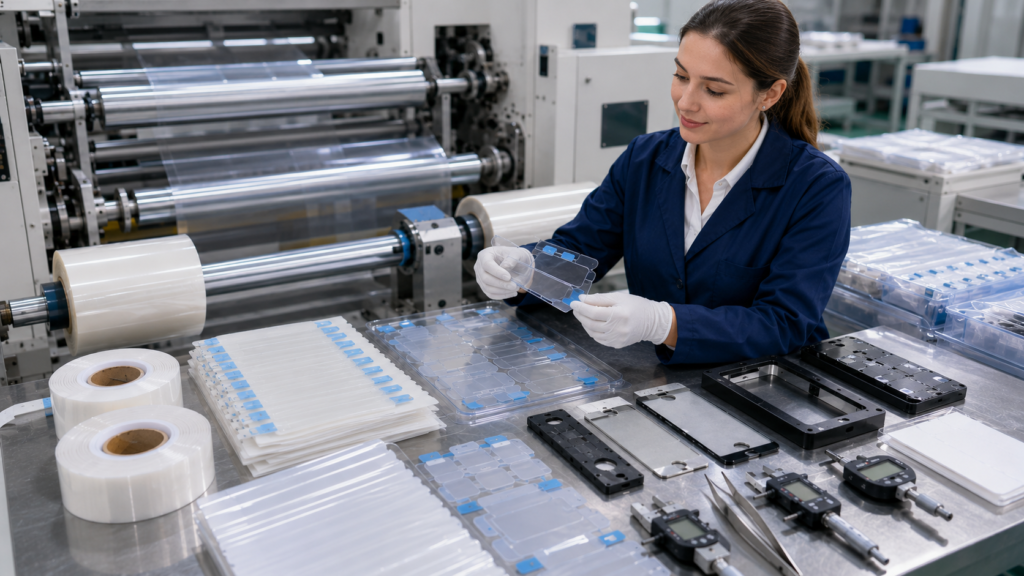

Manufacturing Process for Custom PET Protective Film Parts
Custom PET protective film parts are usually produced through material review, lamination, die cutting, kiss cutting, waste removal, inspection, and packaging.
| Process Step | Purpose |
|---|---|
| Application review | Confirm protected surface and assembly method |
| Material selection | Choose PET protective film, adhesive, liner, or laminate |
| Lamination | Add adhesive, release liner, pull tab, or support layer |
| Tooling design | Prepare die cutting tool based on drawing |
| Die cutting | Cut outer shape, windows, holes, slots, and tabs |
| Kiss cutting | Keep adhesive-backed films on release liner |
| Waste removal | Remove unused film cleanly |
| Inspection | Check size, edge, surface, adhesive, and liner release |
| Packaging | Prevent dust, scratches, curling, and deformation |

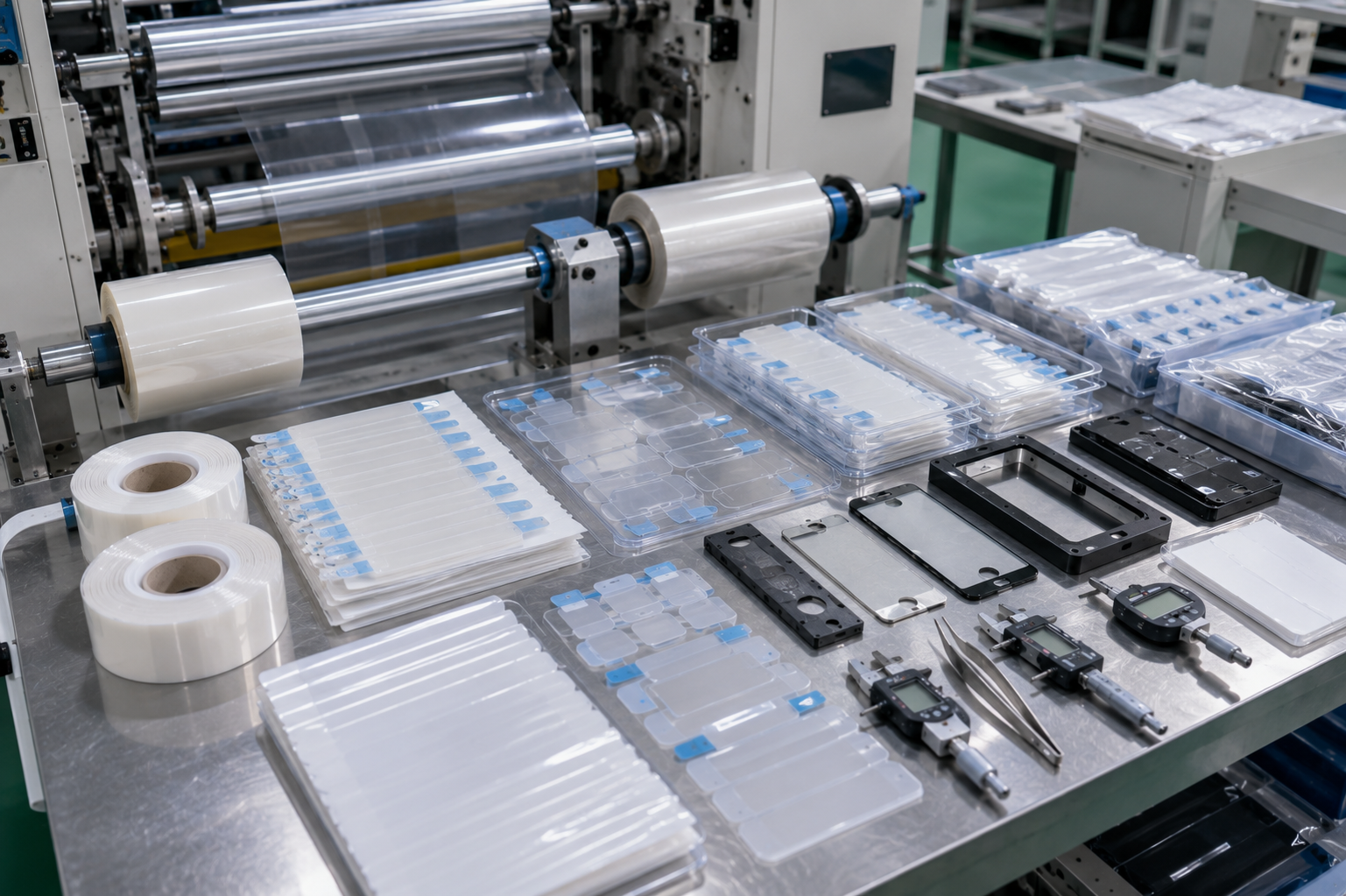

For high-volume PET film parts, roll-to-roll die cutting can improve liner control, part spacing, waste removal, and production consistency.
For lower-volume or complex structures, sheet formats may be more practical.
The right process depends on material thickness, shape, tolerance, adhesive structure, and production quantity.

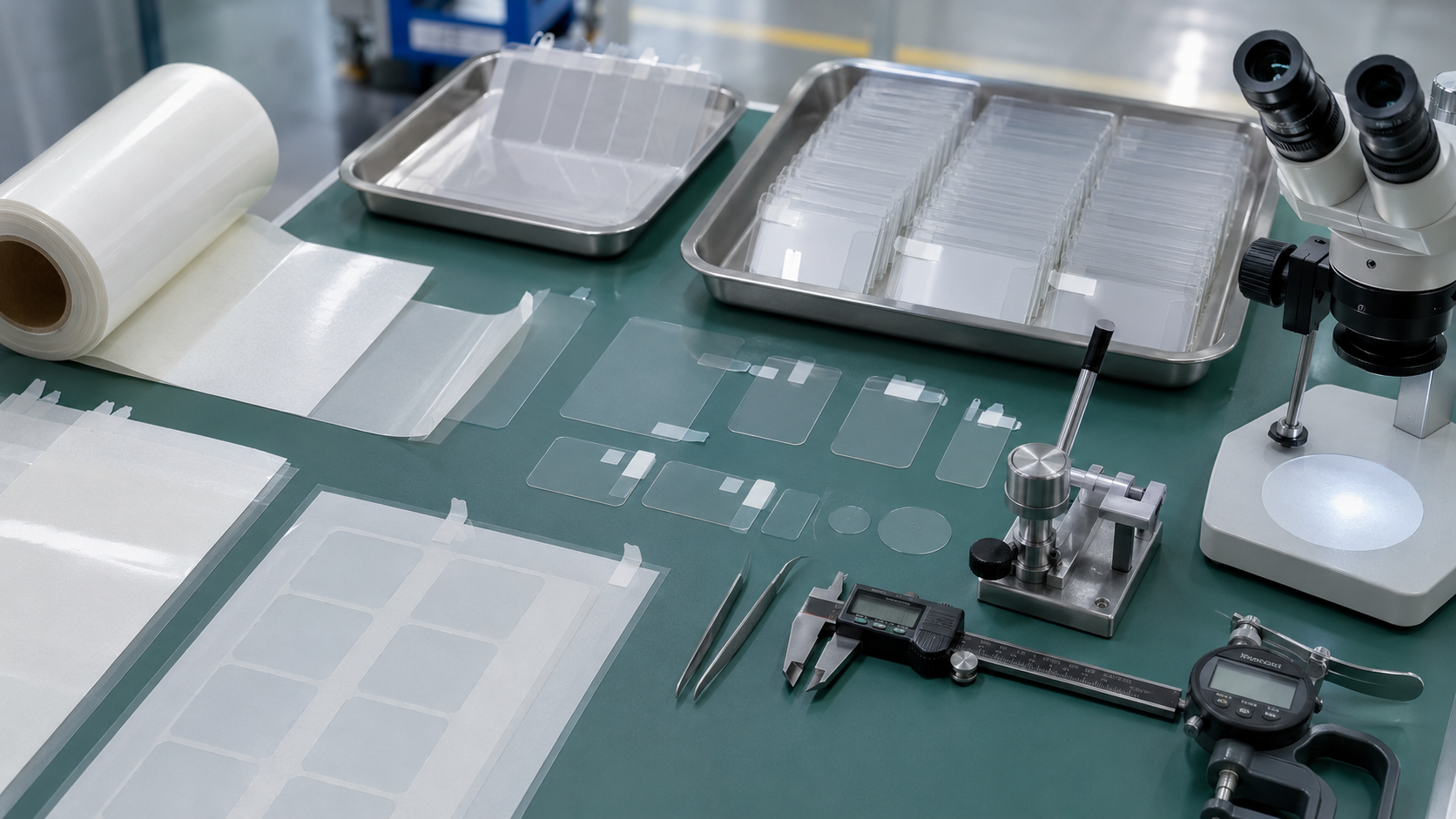

Quality Control for PET Protective Films
PET protective film quality should be checked based on how the part is used.
A display surface film may need stricter visual cleanliness.
A temporary shipping protection film may focus more on coverage and clean removal.
Important inspection items include:
| Inspection Item | Why It Matters |
|---|---|
| Dimensions | Ensures correct surface coverage |
| Window and hole alignment | Prevents interference |
| Edge quality | Reduces burrs, lifting, and particles |
| Surface cleanliness | Protects visible surfaces |
| Adhesive behavior | Controls bonding and removal |
| Liner release | Supports smooth peeling |
| Pull tab position | Improves handling |
| Flatness | Reduces bubbles and curling |
| Packaging condition | Prevents scratches and dust |
For visible surfaces, a small particle can become a visible defect.
A protective film should arrive clean, flat, easy to peel, and ready to use.
Supply Formats for OEM Assembly
PET protective film parts can be supplied in different formats depending on assembly needs.
| Supply Format | Suitable Use |
|---|---|
| Individual pieces | Simple or low-volume placement |
| Sheets | Manual picking and organized production |
| Rolls | High-volume or automated application |
| Kiss-cut on liner | Adhesive-backed PET protective films |
| Pull-tab format | Easier manual removal |
| Kits | Multi-part product or module assembly |
| Clean trays or bags | Dust and scratch protection |
For assembly planning, buyers can review how die cut parts are supplied in sheets, rolls, or kits.
The correct supply format can reduce missing parts, fingerprints, difficult peeling, film curling, surface contact damage, and production delays.
Common Problems to Avoid
Many PET protective film problems can be prevented before tooling and mass production.
Common issues include:
- Adhesive residue after removal
- Film curling during storage
- Pull tab positioned in the wrong area
- Poor liner release
- Window misalignment
- Film blocking a functional area
- Dust or particles on the surface
- Scratches caused during packaging
- Film too thin for easy handling
- Film too thick for the product stack height
The earlier these issues are reviewed, the easier they are to solve.
After mass production begins, a small film issue can create large rework.
What Buyers Should Provide Before Quotation
To recommend the right PET protective film die cutting solution, we usually need clear project details.
Helpful information includes:
- Drawing or sample
- Protected surface
- Product application area
- Temporary or long-term use
- PET film material requirement
- Film thickness
- Adhesive requirement
- Residue requirement
- Pull tab requirement
- Hole or window design
- Surface cleanliness requirement
- Tolerance requirement
- Annual volume
- Delivery format
- Packaging preference
If the material is not confirmed, Sanken can help compare PET protective films, adhesive-backed PET films, release liners, pull-tab structures, black PET films, and laminated film options.
For supplier selection, buyers can also review how to choose the right die cutting manufacturer for your OEM project before moving from sampling to mass production.
Need PET Protective Film Die Cutting for OEM Assembly?
PET protective film die cutting helps OEM manufacturers protect sensitive surfaces, improve assembly cleanliness, reduce scratches, support better handling, and deliver parts in production-friendly formats.
But the final result depends on film material, adhesive behavior, surface compatibility, pull-tab design, die cutting accuracy, liner release, cleanliness, packaging, and supply format.
If you need PET protective films, adhesive-backed PET films, pull-tab films, display protection films, sensor window films, or laminated protective film structures, send us your drawing, sample, protected surface, material requirement, tolerance, annual volume, and packaging preference.
Sanken can help review material selection, lamination structure, die cutting method, inspection points, and supply format before mass production.
Related Articles
You may also find these articles helpful:
- When Do OEM Products Need Custom Die-Cut Surface Protection Films?
- Which PET Film Should You Choose for Protection, Insulation, or Light Blocking?
- How Thin Film Die Cutting Supports High-Precision OEM Manufacturing
- Why Is Precision Film Die Cutting Important for Consumer Electronics Screens?
- How to Solve Residual Adhesive Issues of Die-Cut Optical Protective Films?
- Die Cut vs Kiss Cut: What OEM Buyers Should Know for Adhesive Parts and Protective Films
- How Die Cut Parts Are Supplied in Sheets, Rolls, or Kits
Conclusion
PET protective film die cutting turns roll materials into custom film parts that protect OEM product surfaces during handling, assembly, shipping, and installation. The best result comes from matching the protected surface, adhesive behavior, pull-tab design, film thickness, shape accuracy, liner release, inspection, packaging, and supply format to the real assembly process.
