Custom die-cut foam gaskets are used in many OEM products because they can seal gaps, cushion contact points, reduce vibration, support dust protection, improve assembly stability, and protect sensitive surfaces.
They may be small.
But they often decide whether a product seals properly, assembles smoothly, and performs consistently in mass production.
At Sanken, we use precision die cutting to convert foam materials, adhesive-backed foam, release liners, protective films, and laminated structures into custom foam gaskets for electronics, automotive interiors, appliances, industrial equipment, and OEM assembly.
A good foam gasket is not only a shape cut from foam.
It is a controlled component with the right material, thickness, compression, adhesive, tolerance, edge quality, packaging, and inspection standard.
What Are Custom Die-Cut Foam Gaskets?
Custom die-cut foam gaskets are foam components cut according to a product drawing, sample, or assembly requirement.
They are commonly supplied as frames, strips, pads, rings, spacers, sealing profiles, or adhesive-backed parts.
Common functions include:
| Function | How Foam Gaskets Help |
|---|---|
| Sealing | Compress into gaps and reduce dust, air, or light leakage |
| Cushioning | Reduce hard contact between parts |
| Vibration control | Absorb small movement and reduce rattles |
| Surface protection | Prevent scratches or pressure marks |
| Gap filling | Compensate for assembly tolerance variation |
| Positioning support | Help stabilize parts during assembly |
| Noise reduction | Reduce contact noise and vibration-related sound |
For OEM projects, custom die cut parts should be designed around the real product structure.
The gasket must match the drawing.
More importantly, it must compress correctly inside the final assembly.

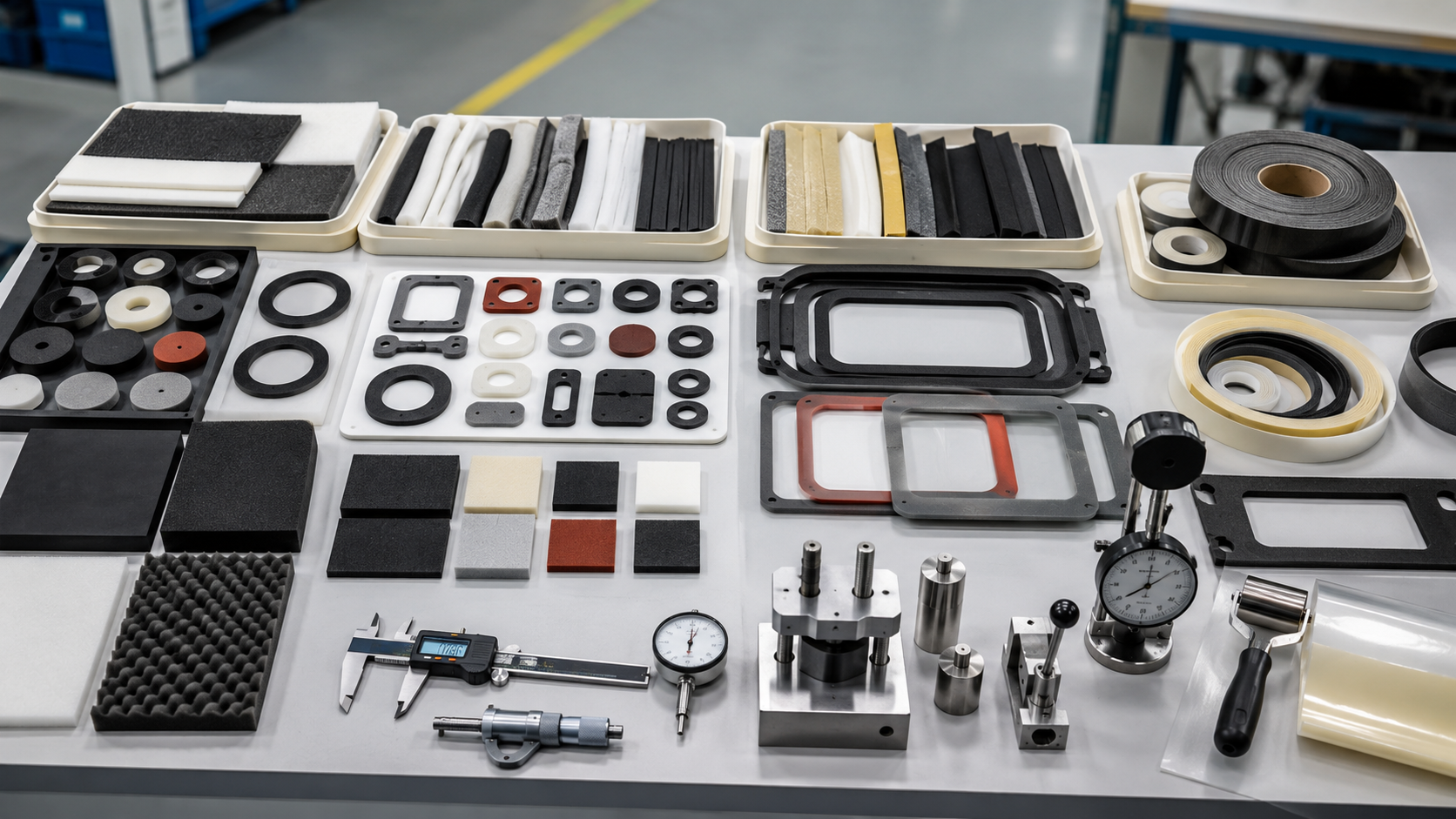

Common Foam Materials for Die-Cut Gaskets
Different foam materials behave differently under compression, heat, vibration, aging, and repeated use.
The correct material depends on the application.
| Foam Material | Common Strength | Typical Use |
|---|---|---|
| EVA foam | Shock absorption and firm cushioning | Protective pads, spacers, cushioning gaskets |
| PE foam | Lightweight cushioning and gap filling | Foam strips, pads, light sealing parts |
| PU foam | Soft compression and surface cushioning | Soft contact pads and cushioning parts |
| EPDM foam | Durable sealing and anti-rattle support | Automotive, appliance, and equipment gaskets |
| Silicone foam | Heat-resistant sealing and cushioning support | Selected applications requiring higher temperature resistance |
| Adhesive-backed foam | Easier placement and stable positioning | Foam tape gaskets, strips, frames, and pads |
For sealing-related applications, foam gaskets and sealing components are often selected because foam can compress into irregular gaps and be cut into custom shapes.
Material choice should start from the function.
Not from the material name alone.
Key Factors When Choosing Foam Gasket Materials
A foam gasket needs to fit the product, compress correctly, and remain stable after assembly.
Important selection factors include:
| Selection Factor | Why It Matters |
|---|---|
| Thickness | Controls compression and assembly height |
| Density | Affects support, cushioning, and sealing pressure |
| Compression recovery | Helps the gasket continue working over time |
| Surface condition | Affects sealing contact and adhesive bonding |
| Temperature exposure | Influences long-term material performance |
| Gasket width | Affects sealing stability and cutting strength |
| Adhesive backing | Supports placement and assembly speed |
| Packaging method | Prevents deformation before use |
The thickest foam is not always the best foam.
The softest foam is not always the safest choice.
A foam gasket must match the actual gap, compression force, application environment, and production method.
Adhesive-Backed Foam Gaskets
Many foam gaskets use pressure-sensitive adhesive backing.
Adhesive helps operators position the gasket quickly and keeps it stable before final assembly.
Common adhesive-backed foam gasket forms include:
- Foam gasket frames
- Foam tape strips
- Adhesive-backed foam pads
- Foam sealing rings
- Foam spacers
- Kiss-cut foam parts on release liner
- Laminated foam and adhesive structures
The adhesive must match the bonding surface.
OEM products may include plastic, metal, glass, painted surfaces, PET film, rubber, foam, coated panels, or textured housings.
These surfaces do not bond the same way.
For adhesive-backed gasket problems, buyers can review why die cut adhesive parts fail after assembly.
A good adhesive-backed foam gasket should peel smoothly, stay flat, bond accurately, and resist lifting during handling, vibration, temperature change, or long-term use.

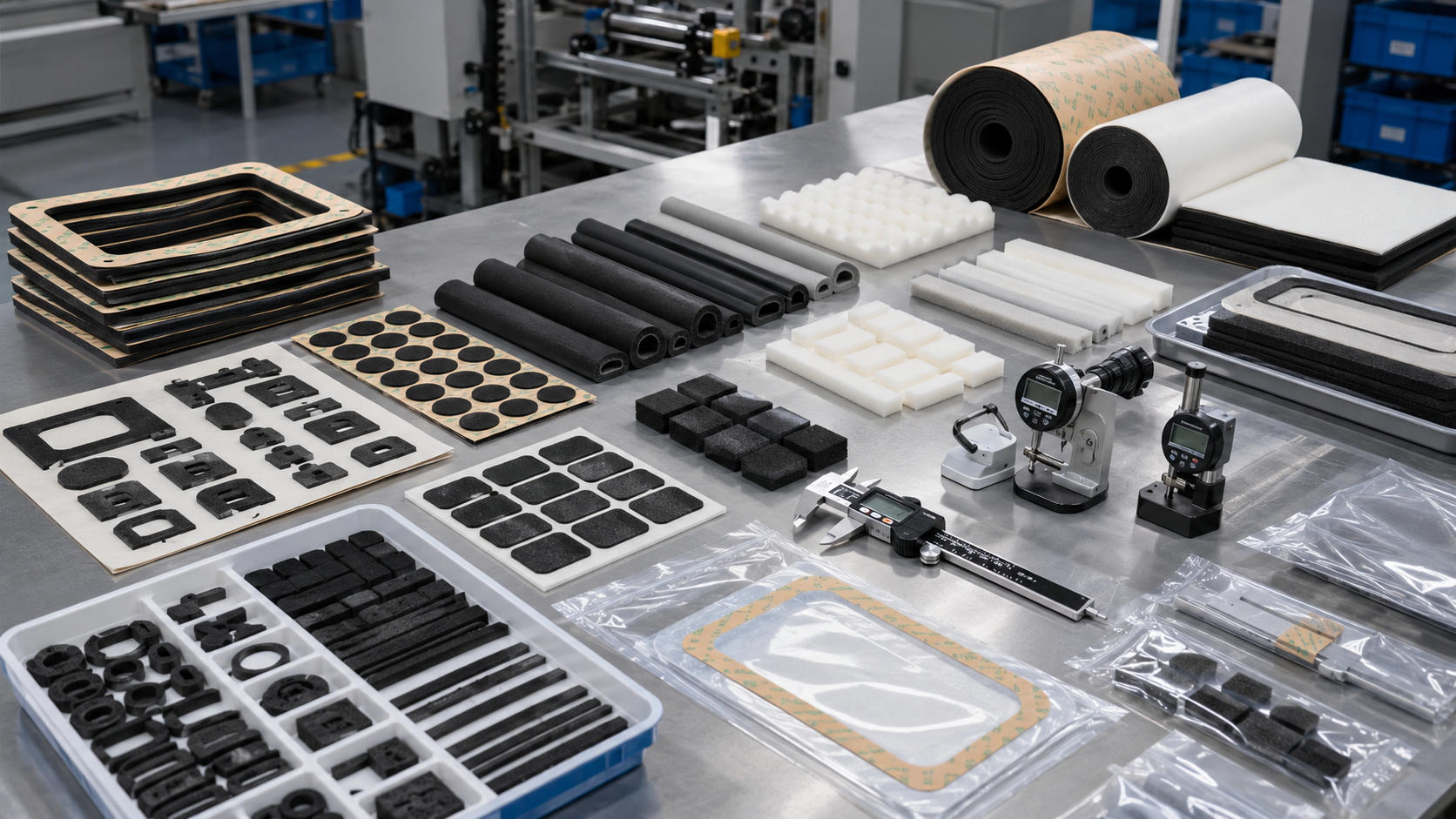

Manufacturing Process for Custom Foam Gaskets
Custom foam gasket manufacturing usually includes material review, lamination, die cutting, kiss cutting, waste removal, inspection, and packaging.
| Process Step | Purpose |
|---|---|
| Application review | Confirm sealing, cushioning, vibration, or protection need |
| Material selection | Choose foam type, thickness, density, adhesive, and liner |
| Lamination | Add adhesive backing, release liner, film, or other support layer |
| Tooling design | Prepare die cutting tool based on drawing and tolerance |
| Die cutting | Cut gasket frames, pads, strips, rings, or custom shapes |
| Kiss cutting | Keep adhesive-backed gaskets on release liner |
| Waste removal | Remove unused foam cleanly |
| Inspection | Check dimensions, thickness, edge, adhesive, and liner release |
| Packaging | Prevent compression marks, dust, sticking, and deformation |
For process background, buyers can review how die cutting works from foam rolls to finished parts.
For high-volume adhesive-backed foam gaskets, roll-to-roll die cutting can improve liner control, part spacing, waste removal, and production consistency.
Why Kiss Cutting Matters for Foam Gaskets
Kiss cutting is commonly used for adhesive-backed foam gaskets.
In kiss cutting, the foam gasket is cut while the release liner remains intact.
This helps operators peel and apply the gasket more easily.
Kiss cutting can improve:
| Benefit | Why It Helps |
|---|---|
| Organized parts | Keeps foam gaskets in position on the liner |
| Easier peeling | Supports faster manual assembly |
| Better handling | Reduces stretching or deformation |
| Cleaner production | Reduces adhesive contamination |
| Sheet or roll supply | Supports different assembly methods |
| Pull-tab design | Makes small parts easier to remove |
Cut depth must be controlled carefully.
If the cut is too shallow, the gasket may not release cleanly.
If the cut is too deep, the liner may break.
A foam gasket is only production-friendly if workers can peel and place it smoothly.
Design Tips for Die-Cut Foam Gaskets
Foam gasket design should consider both performance and manufacturability.
Important design points include:
| Design Point | Why It Matters |
|---|---|
| Minimum gasket width | Prevents tearing and weak sealing paths |
| Corner radius | Reduces stress concentration and edge lifting |
| Hole-to-edge distance | Improves cutting stability |
| Compression area | Supports sealing and cushioning function |
| Adhesive coverage | Prevents shifting during assembly |
| Pull tab location | Improves peeling and handling |
| Part spacing on liner | Improves picking and production speed |
| Packaging direction | Prevents foam deformation |
Sharp corners may look clean in CAD, but foam often performs better with rounded corners.
Very narrow foam walls may tear during die cutting, waste removal, peeling, or assembly.
A small drawing change can prevent a large production issue.

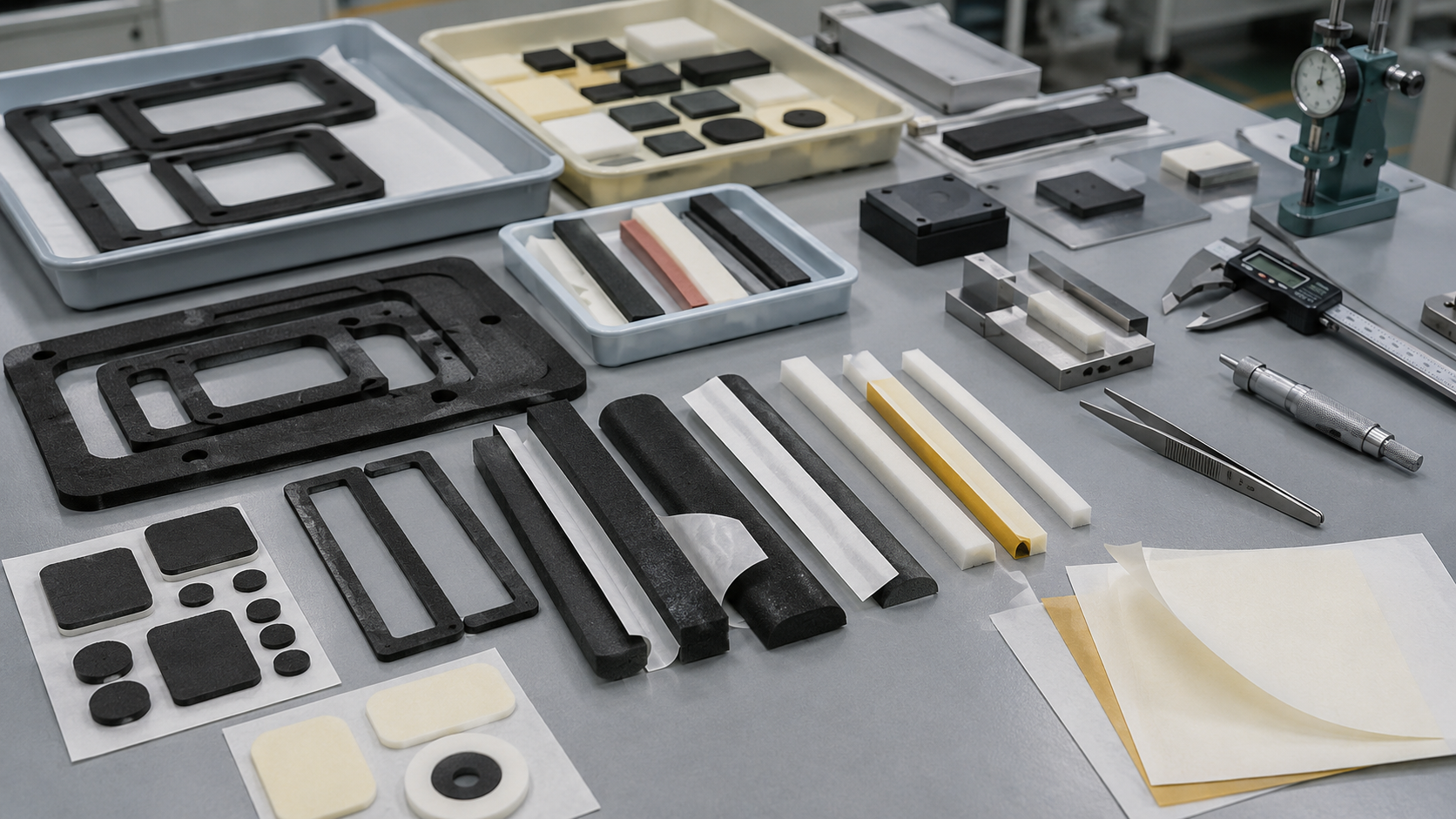

Quality Control for Foam Gaskets
Quality control should match the gasket function.
A sealing gasket needs different inspection focus from a cushioning pad or anti-rattle foam strip.
Important inspection items include:
| Inspection Item | Why It Matters |
|---|---|
| Dimensions | Ensures correct fit and sealing coverage |
| Thickness | Controls compression and assembly height |
| Density | Affects cushioning and support |
| Compression recovery | Supports long-term performance |
| Edge quality | Reduces tearing, particles, and poor fit |
| Adhesive position | Prevents shifting and glue exposure |
| Liner release | Improves peeling and placement |
| Surface cleanliness | Reduces contamination risk |
| Packaging condition | Prevents deformation before use |
For tolerance-related gasket issues, buyers can review how important tolerance is in foam gasket sealing.
One good sample is useful.
Stable batch-to-batch production is better.
Common Foam Gasket Problems to Avoid
Many foam gasket problems can be prevented during early engineering review.
Common issues include:
- Foam thickness not matching the assembly gap
- Poor compression recovery
- Gasket wall too narrow
- Sharp corners causing tearing or lifting
- Adhesive mismatch with bonding surface
- Liner release too tight or too loose
- Poor waste removal around small holes
- Foam compressed during packaging
- Dust or particles on adhesive areas
- No clear inspection standard before mass production
For more examples, buyers can review die cut foam gaskets mistakes that cause poor sealing.
A foam gasket should solve assembly problems.
It should not become the next problem on the production line.
Packaging and Supply Format
Foam gaskets can be supplied in different formats depending on the assembly method.
| Supply Format | Suitable Use |
|---|---|
| Individual pieces | Simple or low-volume assembly |
| Sheets | Manual picking and organized placement |
| Rolls | High-volume or automated production |
| Kiss-cut on liner | Adhesive-backed foam gaskets |
| Kits | Multi-part module assembly |
| Clean trays or bags | Parts needing deformation protection |
For assembly planning, buyers can review how die cut parts are supplied in sheets, rolls, or kits.
Packaging is especially important for foam.
If gaskets are packed under pressure, they may arrive with compression marks or reduced recovery.
If adhesive-backed parts are not protected, they may collect dust or stick together.
Good packaging protects the gasket before the gasket protects the product.
What Buyers Should Provide Before Quotation
To recommend the right custom die-cut foam gasket, we usually need clear project details.
Helpful information includes:
- Drawing or sample
- Application location
- Main function
- Foam material preference
- Thickness and tolerance
- Density requirement
- Compression gap
- Adhesive requirement
- Bonding surface
- Temperature exposure
- Indoor or outdoor use
- Annual volume
- Delivery format
- Packaging preference
- Testing or validation requirement
If the material is not confirmed, Sanken can help compare EVA foam, PE foam, PU foam, EPDM foam, silicone foam, adhesive backing, release liner, and laminated foam structures.
For supplier selection, buyers can also review how to choose the right die cutting manufacturer for your OEM project before moving from sampling to mass production.
Need Custom Die-Cut Foam Gaskets?
Custom die-cut foam gaskets help OEM products improve sealing, cushioning, vibration reduction, dust protection, surface protection, and assembly stability.
But the final result depends on foam type, thickness, density, compression recovery, adhesive backing, bonding surface, shape design, die cutting accuracy, inspection, packaging, and delivery format.
If you need EVA foam gaskets, PE foam strips, PU foam cushioning pads, EPDM foam seals, silicone foam gaskets, adhesive-backed foam parts, foam tape components, or laminated foam structures, send us your drawing, sample, application location, material requirement, tolerance, annual volume, and packaging preference.
Sanken can help review material selection, lamination structure, die cutting method, quality control points, and supply format before mass production.
Related Articles
You may also find these articles helpful:
- Die Cut Foam Gaskets: 7 Mistakes That Cause Poor Sealing
- What Is the Best Foam for Die Cut Sealing Gaskets?
- How Important Is Tolerance in Foam Gasket Sealing?
- Foam Gasket Tape for Industrial Sealing: What OEM Buyers Should Know
- How Are Adhesive Foam Die-Cut Gaskets Manufactured for OEM Sealing Applications?
- Custom Die Cut Foam Gaskets for Electronics, Automotive, and Appliance Assembly
- From Foam Rolls to Finished Parts: How Die Cutting Works
Conclusion
Custom die-cut foam gaskets require careful control of material selection, thickness, density, compression recovery, adhesive backing, gasket geometry, die cutting process, inspection, and packaging. A reliable foam gasket should fit the product, compress correctly, peel smoothly if adhesive-backed, and remain consistent from sample approval to mass production. When these details are reviewed early, foam gaskets can improve OEM sealing, cushioning, vibration control, and assembly stability.
