Light leakage is a small defect that can make an electronic product look poorly designed.
A display edge glows where it should be dark.
A sensor window shows an uneven border.
An LED indicator spreads light into the wrong area.
A black frame looks misaligned after assembly.
A thin internal gap becomes visible when the product is powered on.
Black PET film helps prevent these problems by blocking unwanted light, masking openings, controlling visual borders, and supporting clean assembly in display and sensor modules.
At Sanken, we use precision die cutting to convert black PET films, adhesive-backed black films, protective films, release liners, and laminated film structures into custom parts for displays, sensors, electronic modules, appliances, automotive interiors, and OEM assembly.
A black PET film part may be thin.
But in a display or sensor module, it can decide whether the final appearance looks clean or defective.
What Is Black PET Film?
Black PET film is a thin black polyester film used for light blocking, visual masking, surface coverage, and selected structural support in OEM products.
It can be used with or without adhesive backing depending on the application.
Common forms include:
| Black PET Film Form | Common Function |
|---|---|
| Black PET film frame | Display border masking |
| Adhesive-backed black PET film | Easy placement and stable bonding |
| Black masking film | Covers selected areas or gaps |
| Sensor window black film | Creates a controlled opening |
| LED light-control film | Reduces unwanted light spread |
| Kiss-cut black PET film | Easier peeling from liner |
| Laminated black film structure | Combines light blocking, bonding, and protection |
For OEM projects, custom die cut parts help black PET film match the exact module shape, window size, hole position, and assembly process.
This is much more consistent than manually cutting film during production.
Manual trimming may save time during a prototype.
It usually creates variation in mass production.
Why Light Leakage Happens
Light leakage usually appears when light escapes through an unwanted gap, edge, opening, or transparent area inside a module.
Common causes include:
| Cause | Result |
|---|---|
| Display edge gap | Visible glow around the border |
| Poor masking alignment | Uneven black frame |
| Thin or weak light-blocking material | Light passes through the film |
| Rough die cut edge | Visible shadow or irregular border |
| Adhesive overflow | Contamination near the visible area |
| Film lifting | Light enters through lifted edges |
| Dust or particles | Visible defects around display or sensor windows |
For display and sensor modules, light control is not only a functional requirement.
It is also a visual quality requirement.
The product may work electrically, but still fail appearance inspection if the light border looks uneven.
How Black PET Film Blocks Light
Black PET film helps reduce light leakage by creating a dark barrier between light sources and visible areas.
It can be placed around display windows, sensor openings, LED zones, or internal housing gaps.
Common light-blocking functions include:
- Blocking display edge light leakage
- Masking uneven borders
- Reducing internal light reflection
- Controlling LED indicator light spread
- Creating clean sensor window openings
- Covering internal gaps or structures
- Improving the visual consistency of black areas
For display and optical-related assemblies, optical film die cut components may include black PET films, protective films, adhesive frames, PET insulation films, and foam spacers.
When black PET film is correctly selected and accurately die cut, it helps the product look cleaner after assembly.
When it is poorly designed, even a small offset can be obvious.

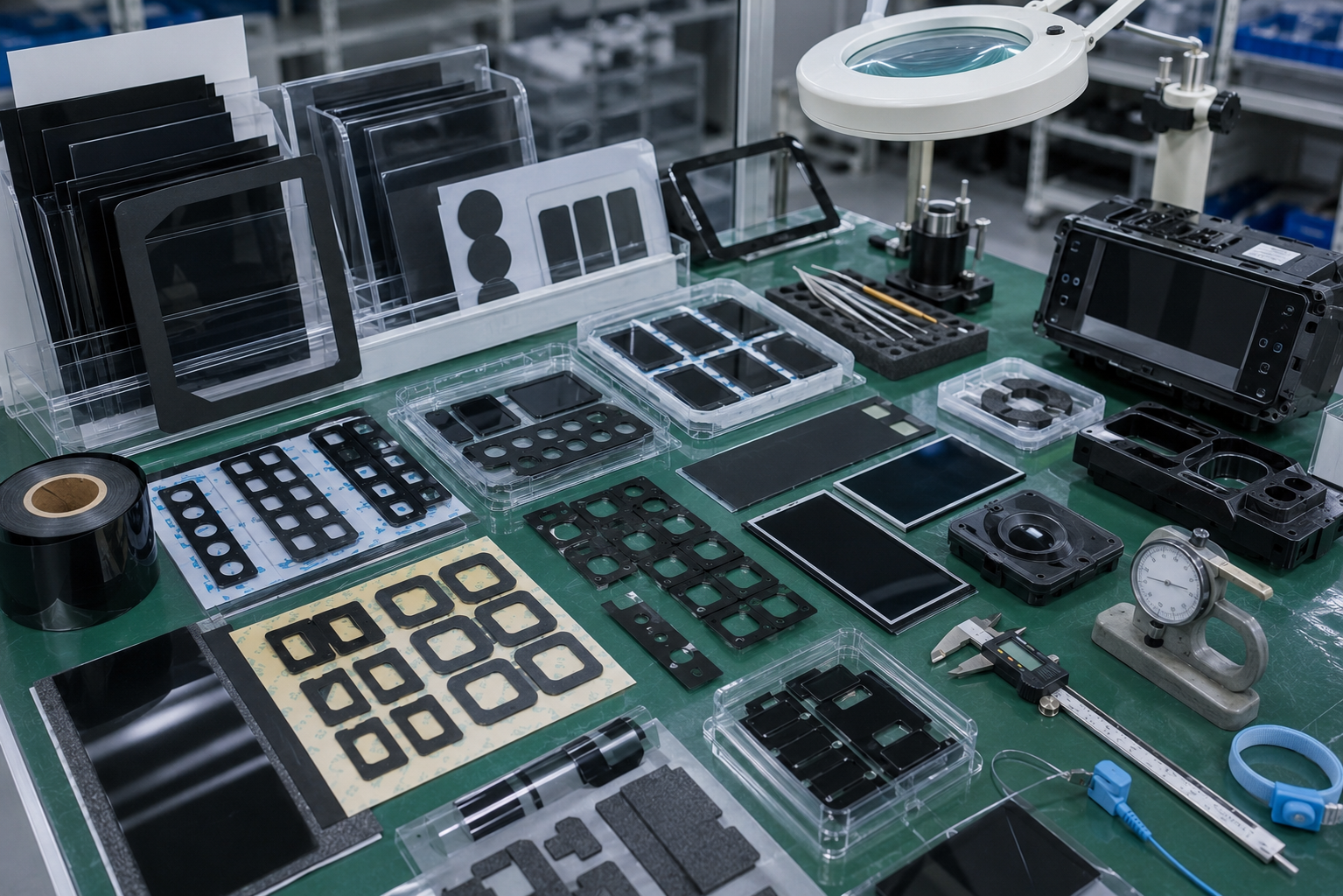

Applications in Display Modules
Display modules often need black PET film around edges, borders, windows, and light-sensitive areas.
Common applications include:
| Display Area | Black PET Film Use |
|---|---|
| Display border | Light leakage control |
| Touch panel frame | Clean black edge appearance |
| Backlight edge area | Reduces unwanted glow |
| Indicator window | Controls visible light area |
| Control panel cover | Masks internal structure |
| Display adhesive frame | Combines bonding and light blocking |
For thin display films, accuracy is important because the film is close to visible surfaces.
A black PET frame must align with the display opening.
If the window is too small, it may block the active area.
If it is too large, it may allow light leakage.
If the edge is rough, the defect may be visible after assembly.
For more background, buyers can review why precision film die cutting is important for consumer electronics screens.
Applications in Sensor Modules
Sensor modules often need controlled openings and clean borders.
Black PET film can help define the visible window while covering surrounding areas.
Common sensor-related uses include:
- Sensor window masking
- Camera opening border control
- Optical sensor light control
- LED and sensor separation
- Internal gap coverage
- Thin spacer and masking support
- Protective masking around sensitive areas
For sensor applications, window accuracy is especially important.
If the opening is misaligned, the film may interfere with the sensing area.
If the opening is too large, it may expose internal structures.
If the adhesive flows into the window area, contamination may affect appearance or assembly.
Black PET film should guide light.
Not fight the sensor.
Why Adhesive Backing Matters
Many black PET film parts use pressure-sensitive adhesive backing.
Adhesive backing helps the film stay in the correct position during assembly and final use.
Common structures include:
| Structure | Common Use |
|---|---|
| Black PET + adhesive + liner | Display and sensor masking |
| Black PET frame on release liner | Easy picking and placement |
| Black PET film with pull tab | Easier manual handling |
| Black PET + protective liner | Surface protection before use |
| Laminated black PET structure | Light blocking plus bonding support |
Adhesive selection must match the bonding surface.
Display and sensor modules may include glass, PET film, plastic housing, coated panels, painted surfaces, metal covers, rubber, or textured materials.
These surfaces do not bond the same way.
For adhesive-related risks, buyers can review why die cut adhesive parts fail after assembly.
The adhesive must hold the film accurately without glue overflow, edge lifting, residue, or difficult peeling.
Die Cutting Accuracy Controls Visual Quality
Black PET film parts often include narrow frames, small holes, windows, slots, and complex contours.
Precision die cutting helps control these features before the part reaches the assembly line.
Important die cutting requirements include:
| Requirement | Why It Matters |
|---|---|
| Window accuracy | Controls visible display or sensor area |
| Border width | Affects light-blocking coverage |
| Edge quality | Reduces burrs, particles, and visual defects |
| Hole alignment | Prevents assembly interference |
| Adhesive alignment | Prevents exposed glue or overflow |
| Flatness | Reduces bubbles and lifting |
| Liner release | Supports smooth peeling and placement |
For adhesive-backed black PET films, kiss cutting is often useful.
In kiss cutting, the black PET film part is cut while the release liner remains intact. This keeps parts organized and easier to peel.
For process comparison, buyers can review Die Cut vs Kiss Cut: What OEM Buyers Should Know for Adhesive Parts and Protective Films.
A film that shifts during peeling may lose the accuracy created by die cutting.
So liner release and handling design matter.
Design Tips for Black PET Light-Blocking Film
Good design helps reduce light leakage, lifting, adhesive overflow, and assembly variation.
Important design points include:
| Design Point | Why It Matters |
|---|---|
| Window size | Controls display or sensor opening |
| Border width | Supports light blocking and part strength |
| Corner radius | Reduces lifting and tearing |
| Minimum width | Prevents stretching during peeling |
| Hole-to-edge distance | Improves die cutting stability |
| Adhesive coverage | Prevents weak bonding or overflow |
| Pull tab position | Improves manual placement |
| Part spacing on liner | Supports cleaner assembly |
Very narrow black PET frames may stretch during peeling.
Sharp corners may lift after bonding.
Small inner waste areas may be difficult to remove cleanly.
The best design considers cutting, waste removal, peeling, placement, bonding, and final visual inspection.
Manufacturing Process for Black PET Film Parts
Custom black PET film components are usually produced through material review, lamination, die cutting, kiss cutting, waste removal, inspection, and packaging.
| Step | Purpose |
|---|---|
| Application review | Confirm display, sensor, or light-blocking requirement |
| Material selection | Choose black PET film, adhesive, liner, or laminate |
| Lamination | Add adhesive backing, release liner, or protective layer |
| Tooling design | Prepare die cutting tool based on drawing |
| Die cutting | Cut outer shape, windows, holes, slots, and frames |
| Kiss cutting | Keep adhesive-backed films on release liner |
| Waste removal | Remove unused film cleanly |
| Inspection | Check size, edge, adhesive, surface, and liner release |
| Packaging | Prevent dust, scratches, curling, and deformation |
For thin film process details, buyers can review how thin film die cutting supports high-precision OEM manufacturing.
For high-volume black PET film components, roll-to-roll die cutting can improve liner control, part spacing, waste removal, and production consistency.

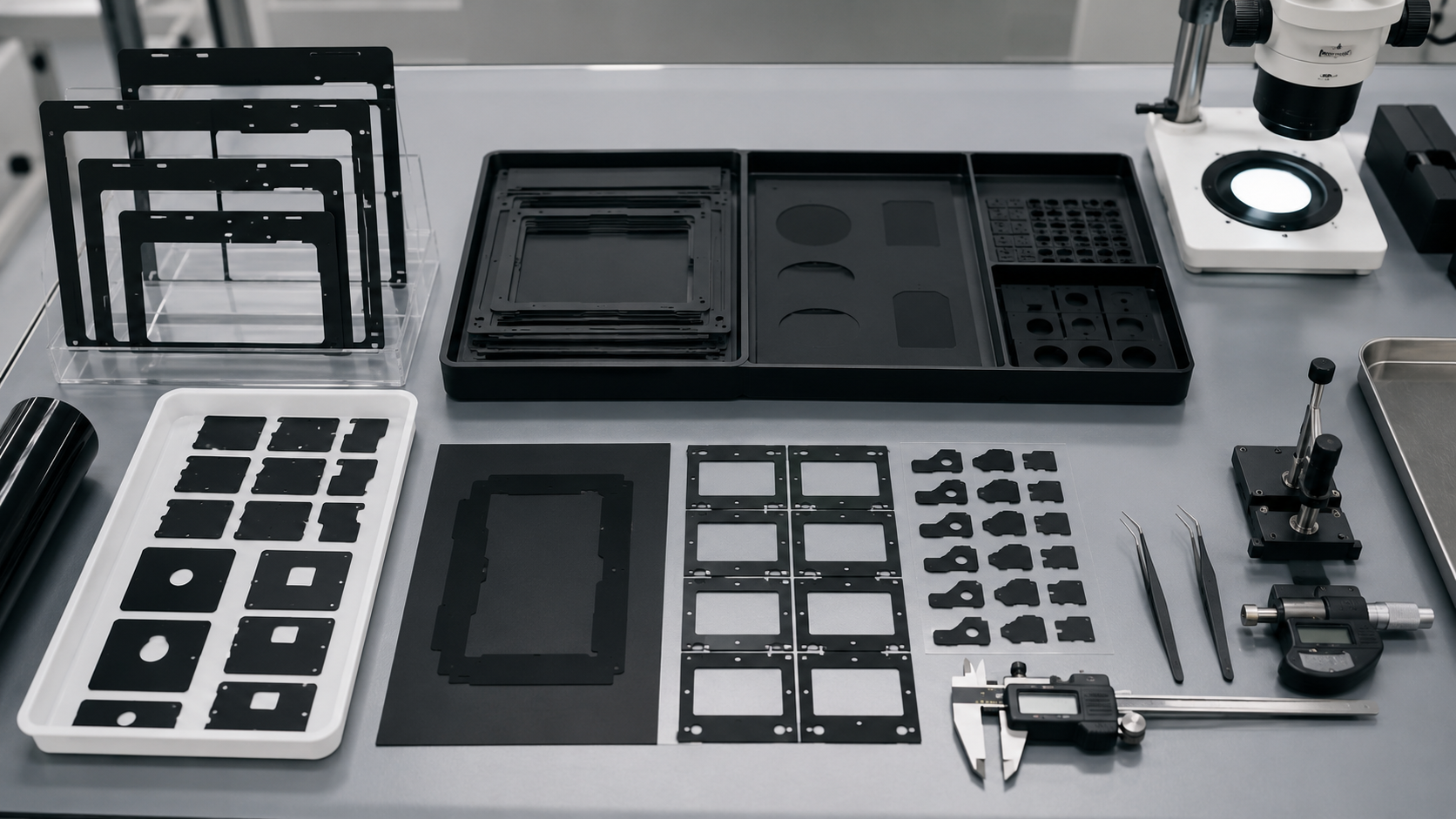

Quality Checks Before Mass Production
Black PET film parts are often close to visible product areas, so quality control must be strict.
Important inspection items include:
| Inspection Item | Why It Matters |
|---|---|
| Dimensions | Ensures correct fit |
| Window alignment | Controls display or sensor opening |
| Edge quality | Reduces burrs and visual defects |
| Adhesive position | Prevents glue overflow |
| Surface cleanliness | Reduces particles and marks |
| Flatness | Prevents bubbles and lifting |
| Liner release | Improves peeling and placement |
| Packaging condition | Prevents scratches and dust |
For black film components, appearance is part of function.
A part can block light and still fail if it is scratched, dirty, misaligned, curled, or difficult to apply.

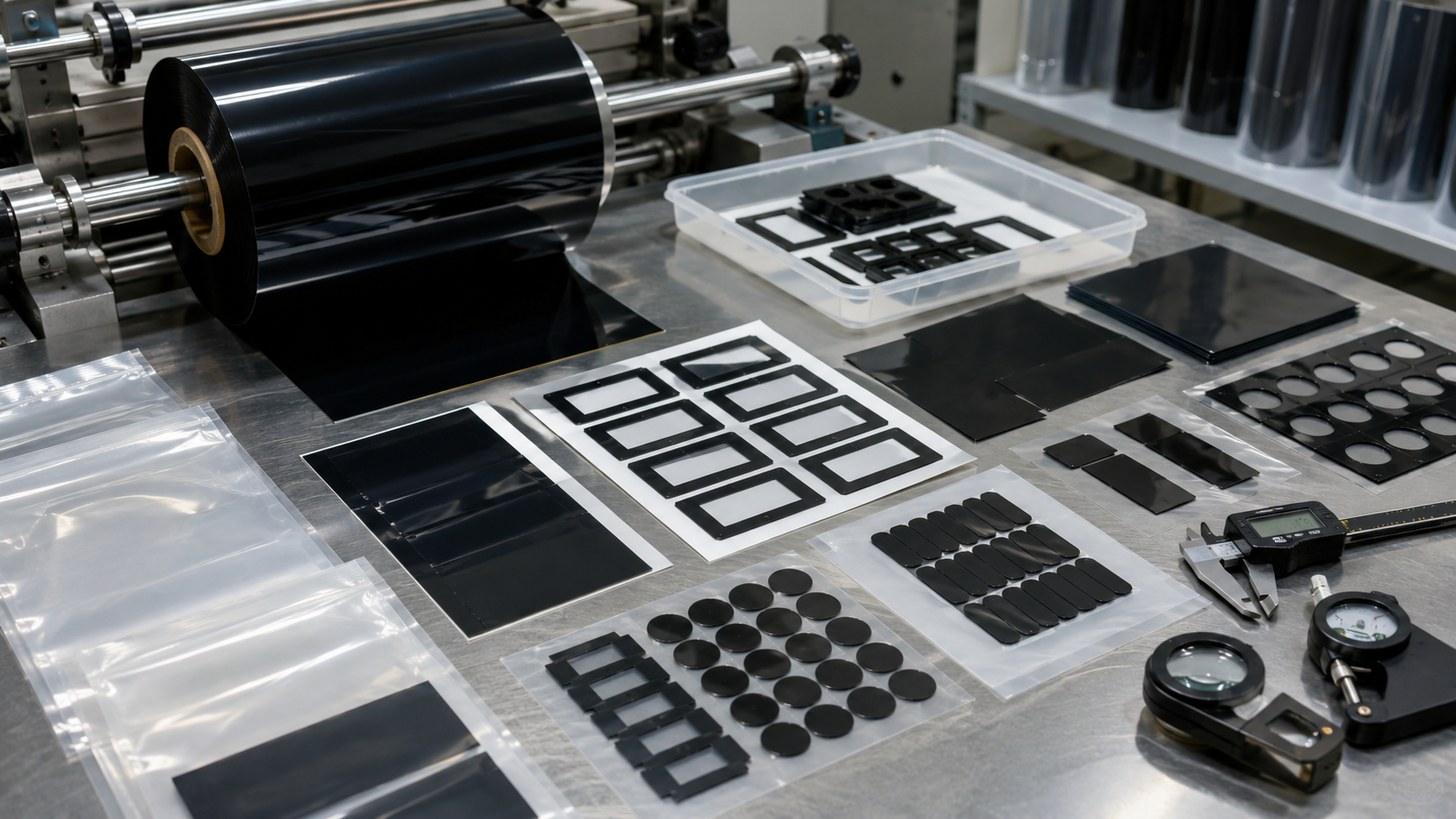

Packaging and Supply Format
Black PET film parts can be supplied in different formats based on the assembly process.
| Supply Format | Suitable Use |
|---|---|
| Individual pieces | Simple placement or lower-volume production |
| Sheets | Manual picking and organized assembly |
| Rolls | High-volume or automated application |
| Kiss-cut on liner | Adhesive-backed black PET films |
| Pull-tab format | Easier peeling and positioning |
| Kits | Multi-part module assembly |
| Clean trays or bags | Dust and scratch protection |
For assembly planning, buyers can review how die cut parts are supplied in sheets, rolls, or kits.
Packaging should prevent dust, scratches, film curling, adhesive contamination, and edge damage.
Black surfaces often make defects easier to see, so packaging should be planned early.
What Buyers Should Provide Before Quotation
To recommend the right black PET light-blocking film, we usually need clear project details.
Helpful information includes:
- Drawing or sample
- Display or sensor module application
- Light leakage problem or masking requirement
- Black PET film material requirement
- Film thickness
- Adhesive requirement
- Bonding surface
- Window or hole design
- Surface finish requirement
- Pull tab requirement
- Cleanliness requirement
- Tolerance requirement
- Annual volume
- Delivery format
- Packaging preference
If the material is not confirmed, Sanken can help compare black PET film, adhesive-backed black film, release liner, pull-tab structure, protective film, and laminated black film options.
For supplier selection, buyers can also review how to choose the right die cutting manufacturer for your OEM project before moving from sampling to mass production.
Need Black PET Film for Display or Sensor Modules?
Black PET film helps prevent light leakage in display and sensor modules by blocking unwanted light, masking borders, controlling openings, and supporting cleaner visual appearance.
But the final result depends on material opacity, adhesive behavior, window accuracy, edge quality, liner release, cleanliness, packaging, and repeatable die cutting.
If you need black PET film frames, adhesive-backed black PET films, display masking films, sensor window films, pull-tab black films, or laminated black PET structures, send us your drawing, sample, application location, material requirement, tolerance, annual volume, and packaging preference.
Sanken can help review material selection, lamination structure, die cutting method, inspection points, and supply format before mass production.
