Die cut foam gaskets are used when OEM products need sealing, cushioning, vibration control, dust protection, sound reduction, or assembly support.
They are small parts.
But they often sit in important places.
At Sanken, we manufacture foam gaskets through precision die cutting, material converting, adhesive lamination, kiss cutting, inspection, and controlled packaging.
For automotive, electronics, and appliance customers, the goal is not just to cut foam into a shape.
The real goal is to make a gasket that fits, seals, compresses, bonds, and performs reliably in mass production.

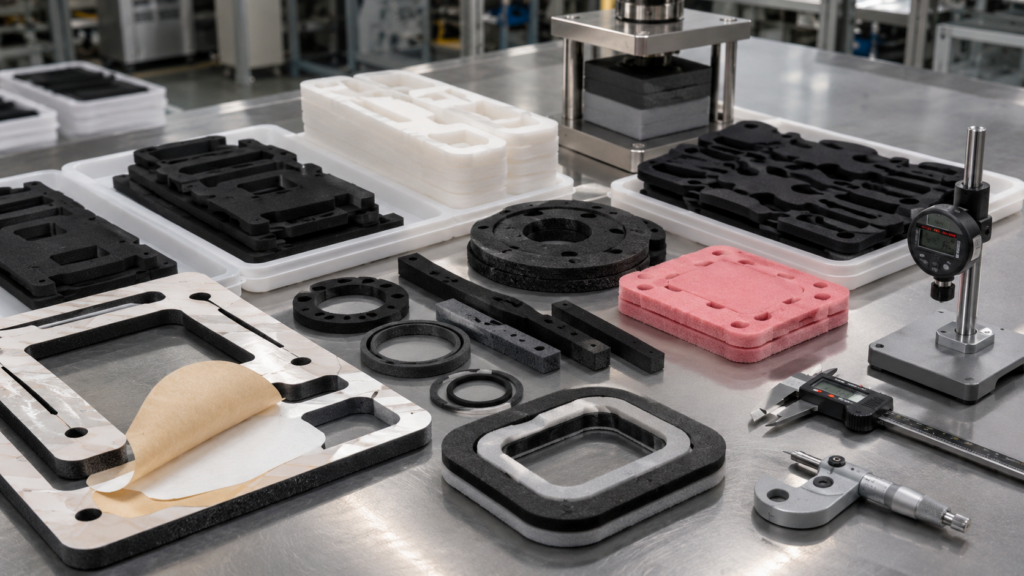

What Are Die Cut Foam Gaskets?
Die cut foam gaskets are foam materials cut into custom shapes for functional use.
They can be made from PE foam, EVA foam, PU foam, EPDM foam, silicone foam, acrylic foam tape, or laminated foam structures.
Many foam gaskets also include adhesive backing.
This helps customers peel and apply the gasket directly during assembly.
Common foam gasket functions include:
| Function | Why It Matters |
|---|---|
| Sealing | Blocks air, dust, moisture, and gaps |
| Cushioning | Protects components from impact |
| Vibration control | Reduces rattling and movement |
| Noise reduction | Helps control unwanted sound |
| Gap filling | Compensates for assembly space |
| Surface protection | Prevents scratches and contact damage |
| Bonding support | Helps parts stay in position |
For sealing projects, foam gaskets and sealing components are commonly used when standard seals cannot match the shape, space, or production requirement.
Automotive Uses for Die Cut Foam Gaskets
Automotive manufacturing uses many hidden foam gaskets.
They support sealing, NVH control, vibration reduction, dust protection, and assembly stability.
In vehicle systems, foam gaskets are often used around:
- ECUs and electronic housings
- EV battery modules
- Lighting modules
- HVAC air ducts
- Door systems
- Interior trim parts
- Display and infotainment modules
- Camera and sensor housings
- Wire harness protection areas
For automotive die cut components, foam gaskets often need stable compression and long-term durability.
A gasket in an ECU housing may need dust sealing.
A gasket in an HVAC system may need air sealing.
A foam pad inside a dashboard may need anti-rattle performance.
A gasket in a lighting module may need moisture and dust protection.
Different location.
Different requirement.
Same lesson: the foam must match the real application.
Electronics Uses for Die Cut Foam Gaskets
Electronics products use foam gaskets for sealing, spacing, shock absorption, and protection.
They may be used in control panels, PCB housings, display modules, sensor assemblies, connectors, battery compartments, and plastic enclosures.
Common electronics applications include:
| Electronics Area | Foam Gasket Use |
|---|---|
| PCB housings | Dust sealing and cushioning |
| Display modules | Spacing, protection, and light pressure control |
| Sensors | Dust protection and vibration reduction |
| Connectors | Gap filling and protection |
| Battery compartments | Cushioning and insulation support |
| Control panels | Sealing and adhesive positioning |
| Plastic housings | Anti-rattle and impact protection |
Electronics foam gaskets are often thin, small, and shape-sensitive.
This means edge quality, hole position, adhesive placement, and packaging must be controlled carefully.
If the foam gasket is too thick, assembly may become difficult.
If it is too thin, the sealing or cushioning function may fail.
If the adhesive shifts, the gasket may not align with the housing.
For display and film-related assemblies, optical film die cut components may also work together with foam spacers, protective films, light-blocking films, and adhesive frames.
Appliance Uses for Die Cut Foam Gaskets
Home appliances also use many foam gaskets.
They help reduce vibration, prevent air leakage, cushion parts, protect surfaces, and improve assembly quality.
Common appliance applications include:
- Air conditioner sealing foam
- Refrigerator air sealing parts
- Washing machine vibration pads
- Control panel foam gaskets
- Dustproof foam strips
- Motor cushioning pads
- Speaker foam seals
- Plastic housing foam pads
- Decorative panel protection parts
In appliances, foam gaskets often need to support both function and cost control.
The part should be reliable.
But it also needs to be suitable for high-volume production.
That means the material should be easy to process, stable in size, and efficient to assemble.
For appliance projects, we usually check compression space, bonding surface, temperature range, vibration level, expected lifetime, and packaging method before recommending a foam structure.
Adhesive-Backed Foam Gaskets
Many OEM foam gaskets use adhesive backing.
This makes assembly easier.
Operators can peel the gasket from the release liner and apply it directly to the product.
Common adhesive-backed foam gasket structures include:
- Single-sided adhesive foam
- Double-sided adhesive foam
- Foam tape gasket
- Foam with PET backing
- Foam with pull tab
- Foam laminated with protective film
- Multilayer foam and adhesive structure
Adhesive selection is important.
Plastic, metal, glass, painted surfaces, and rubber surfaces do not bond the same way.
A gasket may stick well during sampling but lift during heat aging or vibration testing.
That is why we review the bonding surface, temperature range, compression requirement, liner type, and assembly method before production.
A good foam gasket should not only seal.
It should also peel smoothly, apply easily, and stay in position.
How Die Cut Foam Gaskets Are Manufactured
Foam gasket manufacturing usually starts with foam rolls or sheets.
The foam may be laminated with adhesive, PET film, release liner, or protective material before cutting.
For foam production details, buyers can review how die cutting works from foam rolls to finished parts.
A typical manufacturing process includes:
| Step | Purpose |
|---|---|
| Material review | Confirm foam type, thickness, density, and function |
| Adhesive lamination | Add adhesive and release liner if required |
| Tooling design | Prepare die cutting tool based on drawing |
| Die cutting | Cut gasket shape, holes, and frames |
| Waste removal | Remove unused foam and adhesive areas |
| Inspection | Check size, thickness, edge quality, and adhesive position |
| Packaging | Protect parts from dust, deformation, and damage |
For adhesive-backed foam gaskets, kiss cutting is often used.
The foam and adhesive are cut, while the liner remains uncut.
This makes it easier for the customer to peel and apply the gasket during assembly.
Material Selection Guide
There is no one best foam for every gasket.
The right material depends on the function and environment.
| Foam Material | Common Use |
|---|---|
| PE foam | General sealing, cushioning, and gap filling |
| EVA foam | Shock absorption and assembly support |
| PU foam | Soft compression and surface cushioning |
| EPDM foam | Weather resistance and automotive sealing |
| Silicone foam | Heat-resistant sealing |
| Acrylic foam tape | Bonding, mounting, and vibration control |
Foam selection should consider density, thickness, hardness, compression recovery, temperature resistance, aging performance, adhesive compatibility, and cleanliness.
Small foam differences can create large assembly differences.
That is why sample testing matters before mass production.

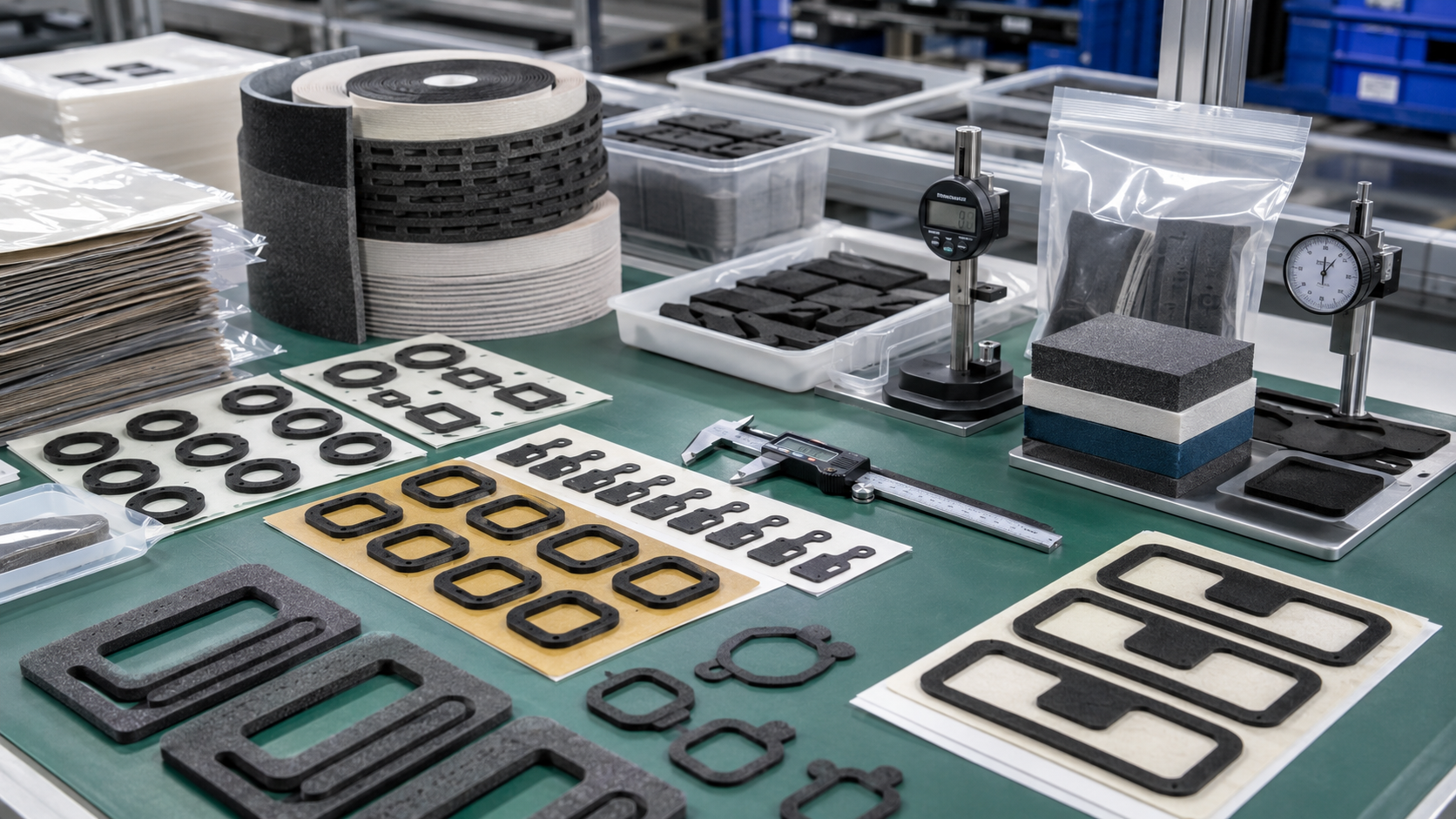

Supply Formats for OEM Assembly
Foam gaskets can be supplied in different formats.
The right format depends on how the customer uses the part.
| Supply Format | Suitable Use |
|---|---|
| Individual pieces | Simple assembly or small batches |
| Sheets | Manual picking and organized production |
| Rolls | Automated or high-volume application |
| Kiss-cut on liner | Adhesive-backed foam gaskets |
| Kits | Multi-part OEM assembly |
| Trays or bags | Parts needing deformation protection |
For production planning, this guide explains how die cut parts supplied in sheets, rolls, or kits can improve handling and assembly efficiency.
Delivery format is not only a packaging detail.
It affects labor cost, assembly speed, peeling behavior, and defect risk.
Common Problems Foam Gaskets Help Solve
OEM customers often choose foam gaskets to solve practical assembly problems.
Common problems include:
- Air leakage
- Dust entry
- Water intrusion
- Component rattling
- Surface scratching
- Vibration damage
- Poor fit between parts
- Noise from plastic contact
- Assembly gaps
- Difficult manual sealing
But foam gaskets can also create problems if they are not designed correctly.
Common gasket defects include adhesive lifting, liner release failure, thickness variation, edge tearing, glue overflow, hole misalignment, and packaging deformation.
These issues should be reviewed before mass production.
The best gasket problem is the one we prevent before the first large order.
What Buyers Should Provide Before Quotation
To recommend the right foam gasket, we usually need application details.
Helpful information includes:
- Drawing or sample
- Foam type or performance requirement
- Thickness
- Density or hardness
- Adhesive requirement
- Bonding surface
- Compression gap
- Application location
- Temperature range
- Sealing requirement
- Tolerance
- Annual volume
- Delivery format
- Packaging preference
- Validation standard
If the material is not confirmed, we can help compare foam density, rubber hardness, adhesive strength, film thickness, compression behavior, and lamination structure before sample production.
Early review helps reduce trial errors.
It also saves everyone from the famous sentence: “The sample passed, but mass production failed.”
Nobody enjoys that sentence.
Need Custom Die Cut Foam Gaskets?
Die cut foam gaskets are used in automotive, electronics, and appliances for sealing, cushioning, vibration control, dust protection, noise reduction, and assembly support.
If you need custom die cut parts for OEM assembly, send us your drawing, sample, material requirement, adhesive structure, tolerance, application location, compression requirement, annual volume, and packaging preference.
Sanken can help review foam selection, adhesive backing, gasket structure, die cutting method, inspection points, and delivery format before mass production.
Related Articles
You may also find these articles helpful:
- How Are Adhesive Foam Die-Cut Gaskets Manufactured for OEM Sealing Applications?
- Custom Die Cut Foam Gaskets for Automotive Electronics
- Die Cut Gaskets for Automotive Electronics: What to Check First
- What Is the Best Foam for Die Cut Sealing Gaskets?
- Why Do Foam Gaskets Lose Sealing Performance Over Time?
- How Important Is Tolerance in Foam Gasket Sealing?
- Foam, Rubber or Silicone: Which Is Better for Die Cut Gaskets?
- From Foam Rolls to Finished Parts: How Die Cutting Works
Conclusion
Die cut foam gaskets help OEM products seal, cushion, protect, and assemble more efficiently. In automotive, electronics, and appliances, the right foam, adhesive, liner, die cutting process, and delivery format decide whether the gasket performs reliably in real production.
