EPDM foam is a flexible rubber-based foam material often used for sealing, cushioning, dust protection, vibration control, and weather-resistant gasket applications.
In OEM manufacturing, it is commonly die cut into custom gasket shapes for automotive parts, electronics housings, appliance assemblies, HVAC systems, lighting modules, and industrial equipment.
At Sanken, we use precision die cutting to convert EPDM foam, adhesive-backed foam, rubber, PET film, PI film, protective film, and laminated materials into production-ready components.
EPDM foam is not the right material for every gasket.
But when the application needs compression, outdoor resistance, dust sealing, and long-term durability, it is often a strong choice.
What Is EPDM Foam?
EPDM foam is a closed-cell or semi-closed-cell foam material made from EPDM rubber.
EPDM stands for ethylene propylene diene monomer.
In practical OEM use, buyers care less about the long chemical name and more about what it does.
EPDM foam can compress.
It can recover.
It can help seal gaps.
It can resist weather exposure better than many general foam materials.
This makes it useful for die cut gaskets that need to block dust, air, light moisture, vibration, or noise.
For many OEM sealing projects, foam gaskets and sealing components are made from EPDM foam when the part needs better durability than basic cushioning foam.

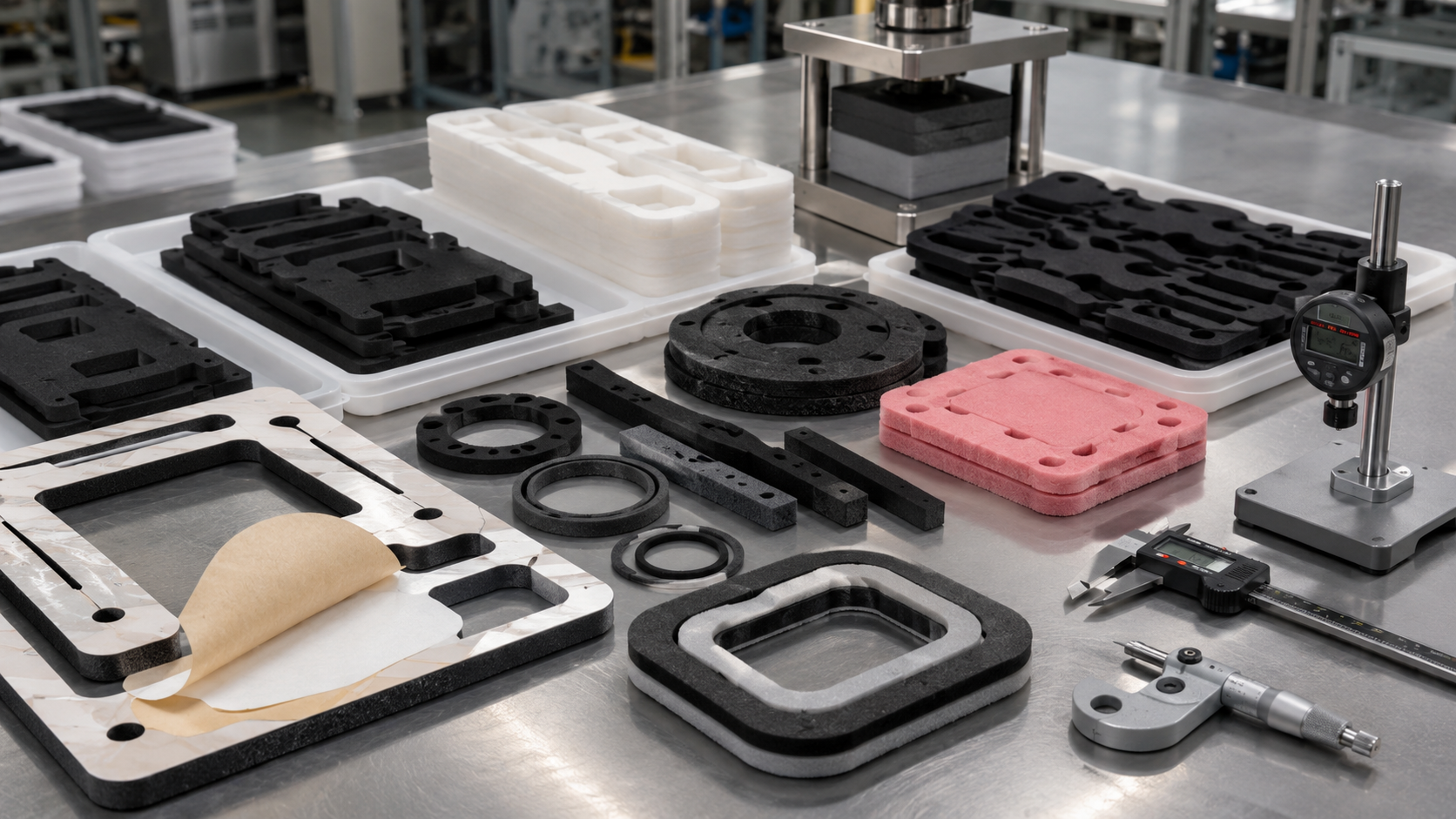

Why EPDM Foam Is Used for Die Cut Gaskets
EPDM foam is popular because it balances softness, sealing performance, and environmental resistance.
It is usually selected when the gasket must perform under repeated compression or changing conditions.
Common reasons to choose EPDM foam include:
| Requirement | Why EPDM Foam Helps |
|---|---|
| Dust sealing | Compresses into gaps and blocks particles |
| Air sealing | Helps reduce air leakage in housings and ducts |
| Cushioning | Absorbs vibration and light impact |
| Weather resistance | Performs better in outdoor or exposed areas |
| Gap filling | Compensates for uneven assembly spaces |
| Noise reduction | Reduces rattling between hard parts |
| Adhesive backing | Can be laminated with PSA for easier assembly |
A good EPDM foam gasket should not only fit the drawing.
It should fit the real working environment.
That includes temperature, pressure, surface material, compression gap, assembly method, and expected lifetime.
When Should EPDM Foam Be Used?
EPDM foam should be used when the gasket needs sealing and durability at the same time.
It is especially useful when the part is exposed to vibration, compression, outdoor conditions, or repeated assembly pressure.
Typical applications include:
- Automotive lighting seals
- EV battery housing gaskets
- ECU housing dust seals
- HVAC air duct seals
- Appliance panel gaskets
- Industrial enclosure seals
- Door and window sealing strips
- Sensor and camera module seals
- Control panel cushioning pads
- Anti-rattle foam pads
For automotive die cut components, EPDM foam is often used where sealing, cushioning, and long-term reliability matter.
A gasket inside a vehicle may look small.
But if it fails, the problem may become water entry, dust contamination, rattling noise, or assembly rework.
Small part.
Large headache.
We prefer to prevent the headache before mass production.
EPDM Foam vs PE Foam, EVA Foam, and PU Foam
EPDM foam is not the only foam used for gaskets.
Different foams solve different problems.
| Foam Material | Best Used For | Main Advantage |
|---|---|---|
| EPDM foam | Weather-resistant sealing and durable gaskets | Better outdoor and sealing performance |
| PE foam | General cushioning, gap filling, and protection | Lightweight and cost-effective |
| EVA foam | Shock absorption and soft cushioning | Flexible and easy to process |
| PU foam | Soft compression and surface protection | Good for gentle cushioning |
| Silicone foam | Heat-resistant sealing | Better high-temperature performance |
If the application is simple cushioning, PE or EVA foam may be enough.
If the gasket needs stronger sealing and better durability, EPDM foam may be better.
If the part faces higher heat, silicone foam may be considered.
Material choice should not be based only on price.
It should be based on function.
Adhesive-Backed EPDM Foam Gaskets
Many EPDM foam gaskets are supplied with adhesive backing.
This helps OEM customers install the gasket faster.
The operator can peel the gasket from the release liner and apply it directly to the product surface.
Common structures include:
- Single-sided adhesive EPDM foam
- Double-sided adhesive EPDM foam
- EPDM foam with PET liner
- EPDM foam with pull tab
- EPDM foam laminated with film
- EPDM foam gasket supplied on kiss-cut liner
Adhesive selection is important.
Plastic, painted metal, glass, rubber, and textured surfaces do not bond the same way.
If the adhesive is too weak, the gasket may lift.
If the adhesive is too strong or poorly matched, peeling and repositioning may become difficult.
If the liner release is unstable, assembly speed drops.
Good adhesive-backed EPDM foam gaskets must balance bonding strength, liner release, handling, and final sealing performance.
How EPDM Foam Gaskets Are Manufactured
EPDM foam gaskets are usually made through material converting and die cutting.
The process depends on the foam thickness, adhesive structure, gasket shape, and production volume.
A typical process includes:
| Step | Purpose |
|---|---|
| Material review | Confirm EPDM foam thickness, density, and performance |
| Adhesive lamination | Add adhesive and release liner if required |
| Tooling design | Prepare the die cutting tool based on drawing |
| Die cutting | Cut outer shape, holes, slots, or frames |
| Kiss cutting | Cut gasket layer while keeping liner intact |
| Waste removal | Remove unwanted foam and adhesive areas |
| Inspection | Check dimensions, thickness, edge quality, and adhesive position |
| Packaging | Prevent deformation, dust, and damage during delivery |
For foam production details, buyers can also review how die cutting works from foam rolls to finished parts.
For roll materials or high-volume adhesive-backed parts, roll-to-roll die cutting can improve consistency and production efficiency.
For thicker foam or sheet-based production, flatbed die cutting may be more suitable.
Key Design Points for EPDM Foam Gaskets
EPDM foam gasket design should consider more than the outside shape.
The gasket must compress correctly.
It must not tear during cutting.
It must stay flat during assembly.
It must also be easy to peel from the liner if adhesive backing is used.
Important design points include:
| Design Point | Why It Matters |
|---|---|
| Gasket width | Narrow walls may tear or deform |
| Hole position | Affects assembly alignment |
| Compression gap | Controls sealing force |
| Foam thickness | Affects fit and pressure |
| Adhesive area | Affects bonding stability |
| Pull tab | Improves peeling and assembly |
| Liner type | Affects release performance |
| Packaging format | Prevents deformation before use |
If the gasket has very thin borders, sharp corners, or narrow holes, we usually review tooling risk before sampling.
A design that looks fine in CAD may not be friendly to foam.
Foam has personality.
Sometimes too much personality.
Common Problems EPDM Foam Gaskets Help Prevent
EPDM foam gaskets are used to prevent practical assembly and product problems.
Common problems include:
- Dust entering housings
- Air leakage in ducts or enclosures
- Rattling between plastic parts
- Vibration damage
- Poor fit between uneven surfaces
- Light moisture exposure
- Surface scratching
- Assembly gaps
- Noise from hard-part contact
However, EPDM foam gaskets can also fail if the material or process is wrong.
Possible failure issues include:
| Problem | Possible Cause |
|---|---|
| Poor sealing | Wrong thickness, low compression, poor gasket design |
| Adhesive lifting | Wrong adhesive, dirty surface, low bonding pressure |
| Foam tearing | Narrow gasket width or poor tool design |
| Edge roughness | Dull tool, wrong cutting method, material stress |
| Difficult peeling | Poor liner choice or weak pull-tab design |
| Size variation | Material tension, tool wear, process instability |
| Packaging deformation | Poor stacking, pressure, or bagging method |
Many of these issues can be reduced before mass production.
That is why we review both the part drawing and the assembly environment.
Quality Checks Before Mass Production
For OEM sealing projects, inspection is not optional.
It is what keeps the approved sample and mass production part consistent.
Common inspection points include:
| Inspection Item | Purpose |
|---|---|
| Dimensions | Ensure correct assembly fit |
| Thickness | Control compression and sealing pressure |
| Hole alignment | Prevent positioning problems |
| Edge quality | Reduce particles and poor sealing |
| Adhesive position | Improve bonding reliability |
| Liner release | Improve assembly efficiency |
| Compression recovery | Confirm long-term sealing behavior |
| Surface cleanliness | Reduce contamination risk |
| Packaging condition | Prevent deformation before assembly |
The approved sample is only the beginning.
The real test is whether every batch can keep the same performance.

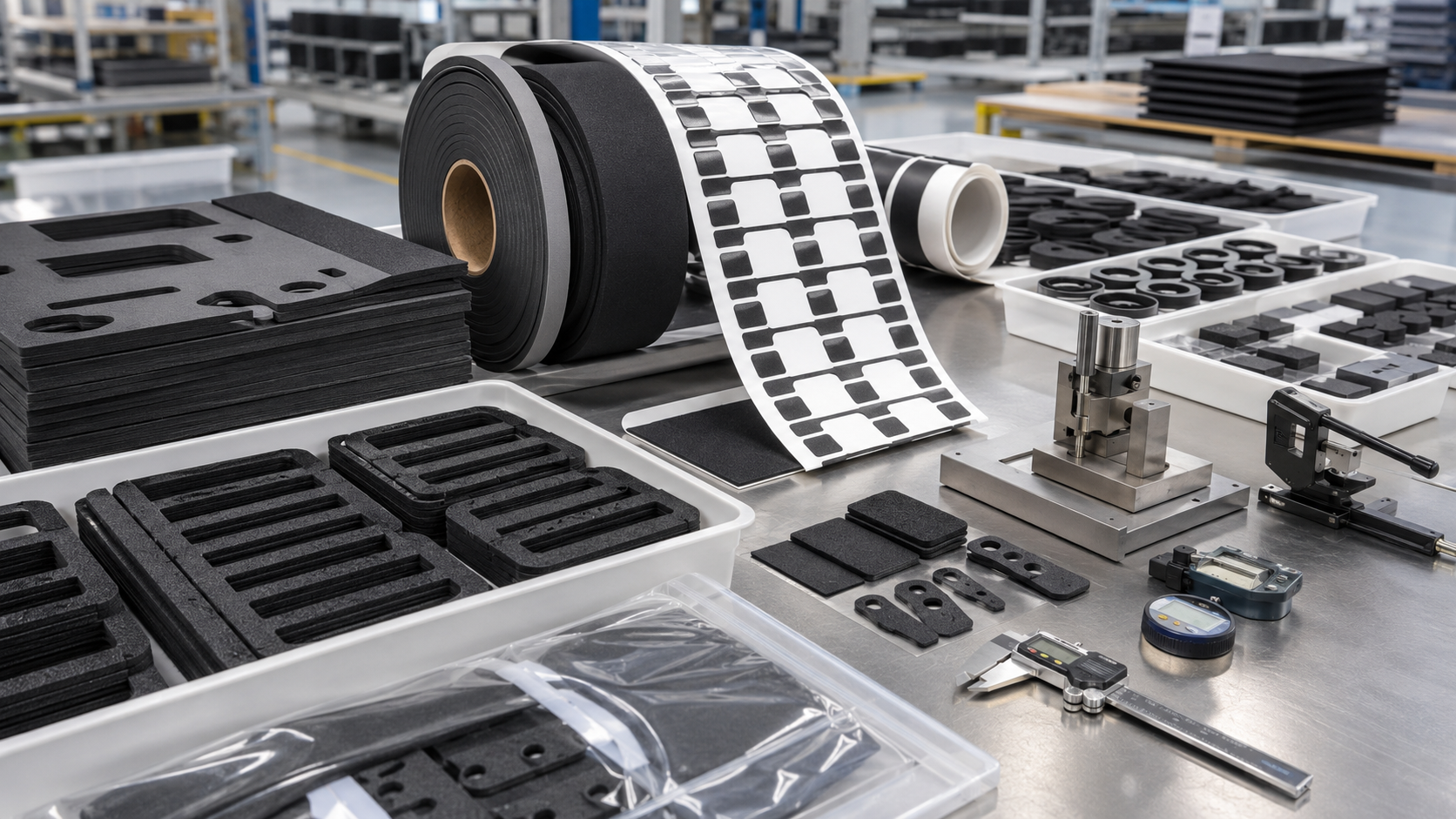

Supply Formats for OEM Assembly
EPDM foam gaskets can be supplied in different formats.
The right format depends on the customer’s assembly process.
| Supply Format | Suitable Use |
|---|---|
| Individual pieces | Simple assembly or low-volume projects |
| Sheets | Manual picking and organized assembly |
| Rolls | Automated or high-volume application |
| Kiss-cut on liner | Adhesive-backed foam gaskets |
| Kits | Multi-part OEM assembly |
| Trays or bags | Parts needing deformation protection |
For manual assembly, sheets are often convenient.
For automation, rolls may be more efficient.
For multi-part products, kits can reduce missing parts and simplify production.
Buyers can review how die cut parts are supplied in sheets, rolls, or kits when choosing a delivery format.
What Buyers Should Provide Before Quotation
To recommend the right EPDM foam gasket, we usually need more than shape and quantity.
Helpful information includes:
- Drawing or sample
- EPDM foam thickness
- Foam density or hardness requirement
- Adhesive requirement
- Bonding surface
- Compression gap
- Application location
- Temperature range
- Sealing requirement
- Tolerance
- Annual volume
- Delivery format
- Packaging preference
- Validation standard
If the material is not confirmed, we can help compare EPDM foam with PE foam, EVA foam, PU foam, rubber, or silicone foam.
For new OEM projects, it is also useful to review how to choose the right die cutting manufacturer before moving from sample approval to mass production.
Need EPDM Foam Die Cut Gaskets?
EPDM foam is a strong choice when a gasket needs sealing, cushioning, weather resistance, vibration control, and long-term durability.
But the final result depends on foam thickness, adhesive backing, gasket design, die cutting accuracy, liner release, inspection, and packaging.
If you need custom die cut parts for OEM assembly, send us your drawing, sample, material requirement, adhesive structure, tolerance, application location, compression requirement, annual volume, and packaging preference.
Sanken can help review EPDM foam selection, adhesive backing, gasket structure, die cutting method, inspection points, and delivery format before mass production.
