Consumer electronics are getting thinner, lighter, smarter, and more tightly assembled.
That sounds beautiful.
It also leaves very little room for mistakes.
Inside phones, tablets, laptops, smart wearables, control panels, sensors, speakers, and display modules, many hidden films, foams, and adhesive parts help the product work reliably.
At Sanken, we use precision die cutting to manufacture custom films, foams, adhesive tapes, protective films, insulation parts, and laminated components for OEM electronic products.
These parts may be small.
But they help control bonding, insulation, cushioning, sealing, protection, and assembly efficiency.
Why Small Die Cut Parts Matter in Electronics
Consumer electronics often have limited internal space.
A display module may need bonding, light blocking, dust protection, and surface protection at the same time.
A PCB area may need insulation and shielding.
A speaker module may need foam sealing.
A sensor may need dustproof cushioning.
A housing may need adhesive-backed parts for assembly.
This is why custom die cut parts are widely used in electronic products.
They help convert flat materials into accurate shapes that match the product structure.
The part may be a thin PET film.
Or a soft foam spacer.
Or a double-sided adhesive frame.
The function is different.
The requirement is the same: stable, clean, accurate, and easy to assemble.

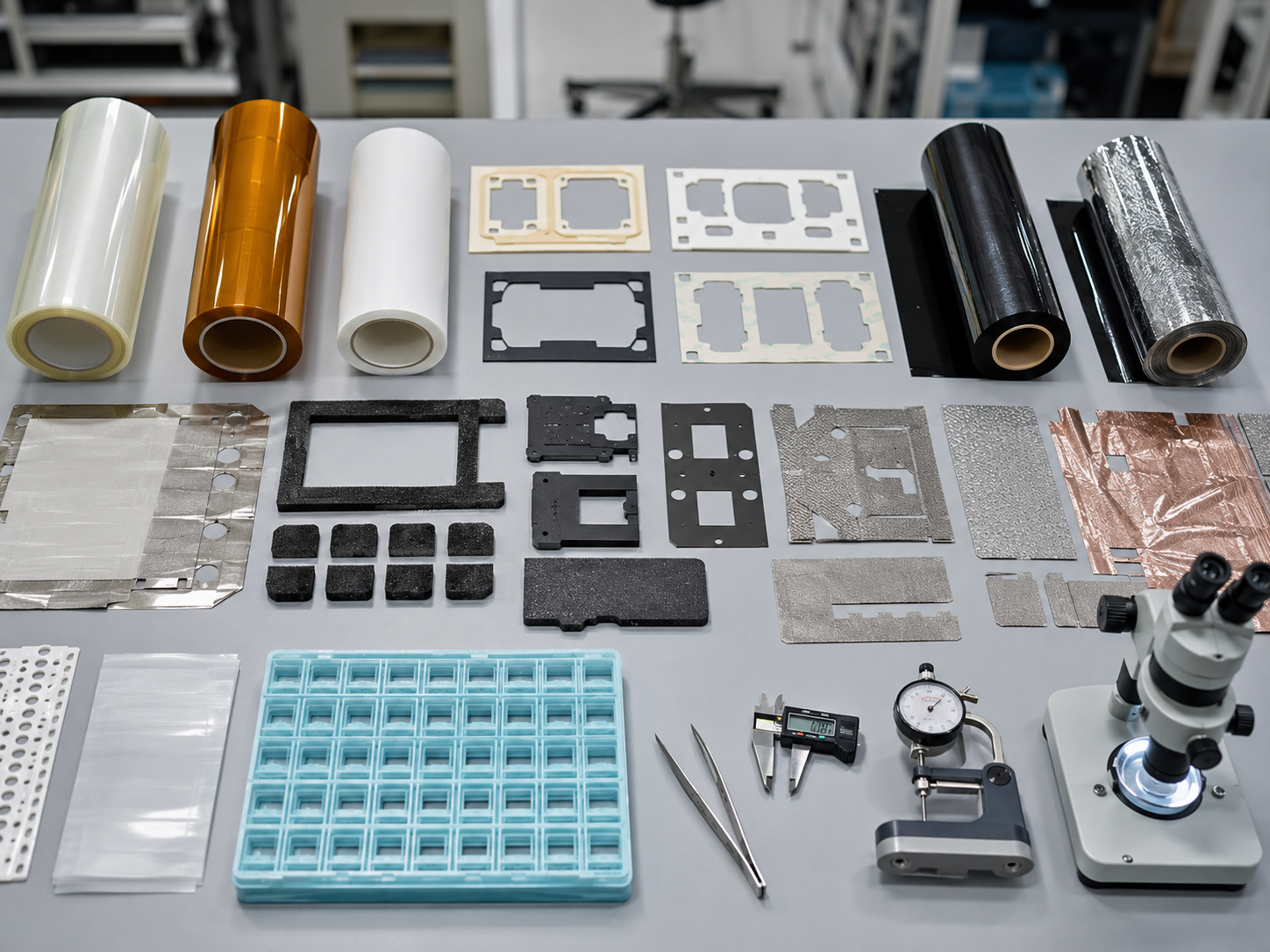

Die Cut Films for Insulation and Protection
Films are common in electronic products because they are thin, stable, and easy to convert.
Common die cut films include PET film, PI film, PC film, protective film, black PET film, release liner, and shielding film.
| Film Type | Common Function |
|---|---|
| PET film | Electrical insulation, protection, separation |
| PI film | Heat-resistant insulation |
| Protective film | Scratch and contamination protection |
| Black PET film | Light blocking and appearance control |
| PC film | Structural support and surface protection |
| EMI shielding film | Shielding and grounding support |
| Release liner | Supports adhesive part handling |
PET film is often used around PCBs, batteries, connectors, sensors, and display modules.
PI film is used when higher heat resistance is required.
Protective film protects surfaces during production, transportation, and final assembly.
For more details, buyers can review why PET film is commonly used in electronics.

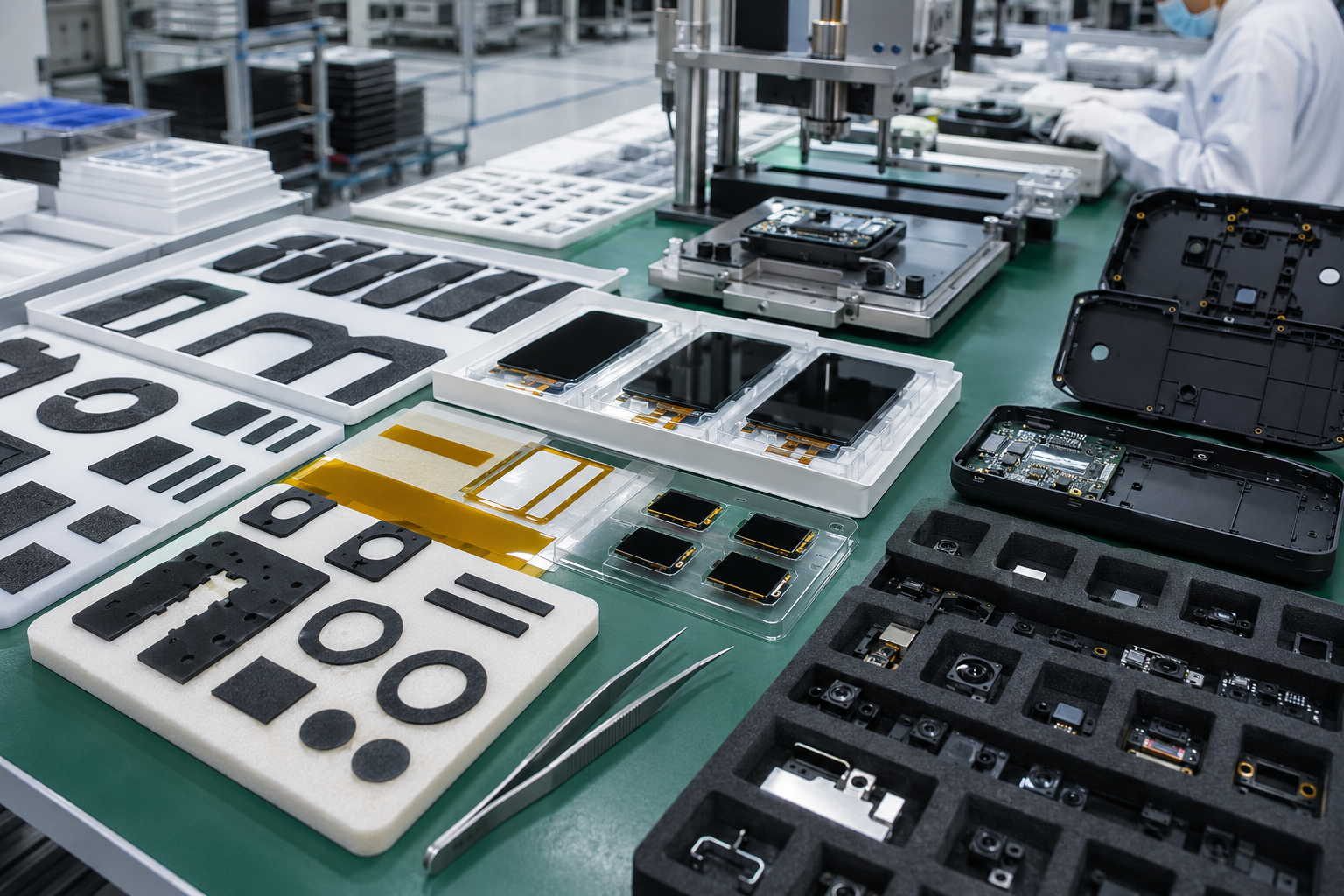

Die Cut Foams for Cushioning, Sealing, and Spacing
Foam parts are used when electronics need soft contact, gap filling, dust sealing, or cushioning.
Common foam materials include PE foam, EVA foam, PU foam, EPDM foam, silicone foam, and acrylic foam tape.
Typical foam parts include:
- Foam gaskets
- Foam spacers
- Cushioning pads
- Speaker foam seals
- Dustproof foam strips
- Anti-rattle foam pads
- Display support foam
- Battery cushioning pads
For sealing and cushioning projects, foam gaskets and sealing components are often used around housings, speakers, displays, sensors, and control panels.
Foam selection depends on thickness, density, compression recovery, cleanliness, adhesive compatibility, and assembly gap.
If the foam is too soft, it may collapse.
If it is too hard, it may affect assembly.
If it is not cut cleanly, particles may create quality problems.
Foam is friendly.
Until it is not.
Adhesive Die Cut Parts for Bonding and Assembly
Adhesive parts are used to bond, mount, position, seal, and support components.
They help reduce messy manual glue application and improve assembly repeatability.
Common adhesive die cut parts include:
| Adhesive Part | Common Use |
|---|---|
| Double-sided tape frames | Display bonding and housing assembly |
| Transfer adhesive parts | Thin bonding applications |
| PET-backed adhesive parts | Stable adhesive positioning |
| Foam tape parts | Bonding with cushioning |
| Pull-tab adhesive films | Easier peeling and assembly |
| Adhesive gasket frames | Bonding and sealing |
| Laminated adhesive structures | Combined bonding, insulation, and protection |
Adhesive selection must match the bonding surface.
Plastic, glass, metal, film, rubber, and painted surfaces do not bond the same way.
Temperature, surface energy, pressure, peel strength, liner release, and aging performance all matter.
A good adhesive part should peel smoothly, stay flat, bond accurately, and avoid adhesive overflow.
If the operator fights the liner, the production line loses time.
If the adhesive shifts, the part may fail after assembly.
Display and Optical Module Applications
Displays are one of the most sensitive areas in consumer electronics.
They often require thin, clean, and accurate die cut parts.
Common display-related parts include:
- Protective films
- Black light-blocking films
- OCA-related adhesive structures
- Foam spacers
- PET insulation films
- Double-sided tape frames
- Dustproof foam gaskets
- Anti-static protective films
For display and protective film projects, optical film die cut components must be controlled carefully.
Dust, bubbles, scratches, adhesive residue, curling, and poor liner release can create visible defects.
A small particle may ruin the appearance.
A small adhesive overflow may affect fitting.
A small film curl may slow assembly.
This is why cleanliness and packaging are as important as cutting accuracy.
Batteries, PCBs, Sensors, and Connectors
Consumer electronics contain many internal components that need insulation and protection.
Battery areas may need PET or PI insulation films.
PCBs may need protective films or shielding materials.
Sensors may need foam seals or adhesive positioning parts.
Connectors may need insulation films, cushioning pads, or dustproof parts.
| Electronic Area | Common Die Cut Parts |
|---|---|
| Battery area | PET films, PI films, cushioning foams |
| PCB area | Insulation films, shielding parts, protective layers |
| Sensor module | Foam seals, adhesive pads, dustproof films |
| Connector area | PET films, cushioning pads, protective covers |
| Speaker module | Foam seals and acoustic cushioning |
| Housing assembly | Adhesive tapes, foam gaskets, rubber pads |
For battery and electronics applications, die cut PET insulation films for battery and electronics are commonly used because they are thin, stable, and suitable for custom shapes.
Manufacturing Process for Precision Die Cut Electronic Parts
Most electronic die cut parts are made through material converting, lamination, die cutting, waste removal, inspection, and packaging.
The process depends on material type, thickness, adhesive structure, cleanliness requirement, and production volume.
| Step | Purpose |
|---|---|
| Application review | Confirm function, surface, material, and assembly method |
| Material selection | Choose film, foam, adhesive, rubber, or laminated structure |
| Lamination | Combine adhesive, film, foam, liner, or protective layer |
| Tooling design | Prepare die cutting tool based on drawing |
| Die cutting | Cut films, pads, frames, gaskets, or spacers |
| Kiss cutting | Cut adhesive parts while keeping liner intact |
| Waste removal | Remove unwanted material cleanly |
| Inspection | Check size, thickness, edge, adhesive, and surface quality |
| Packaging | Protect parts from dust, scratches, deformation, and sticking |
For process background, buyers can review how die cutting transforms raw materials into precision components.

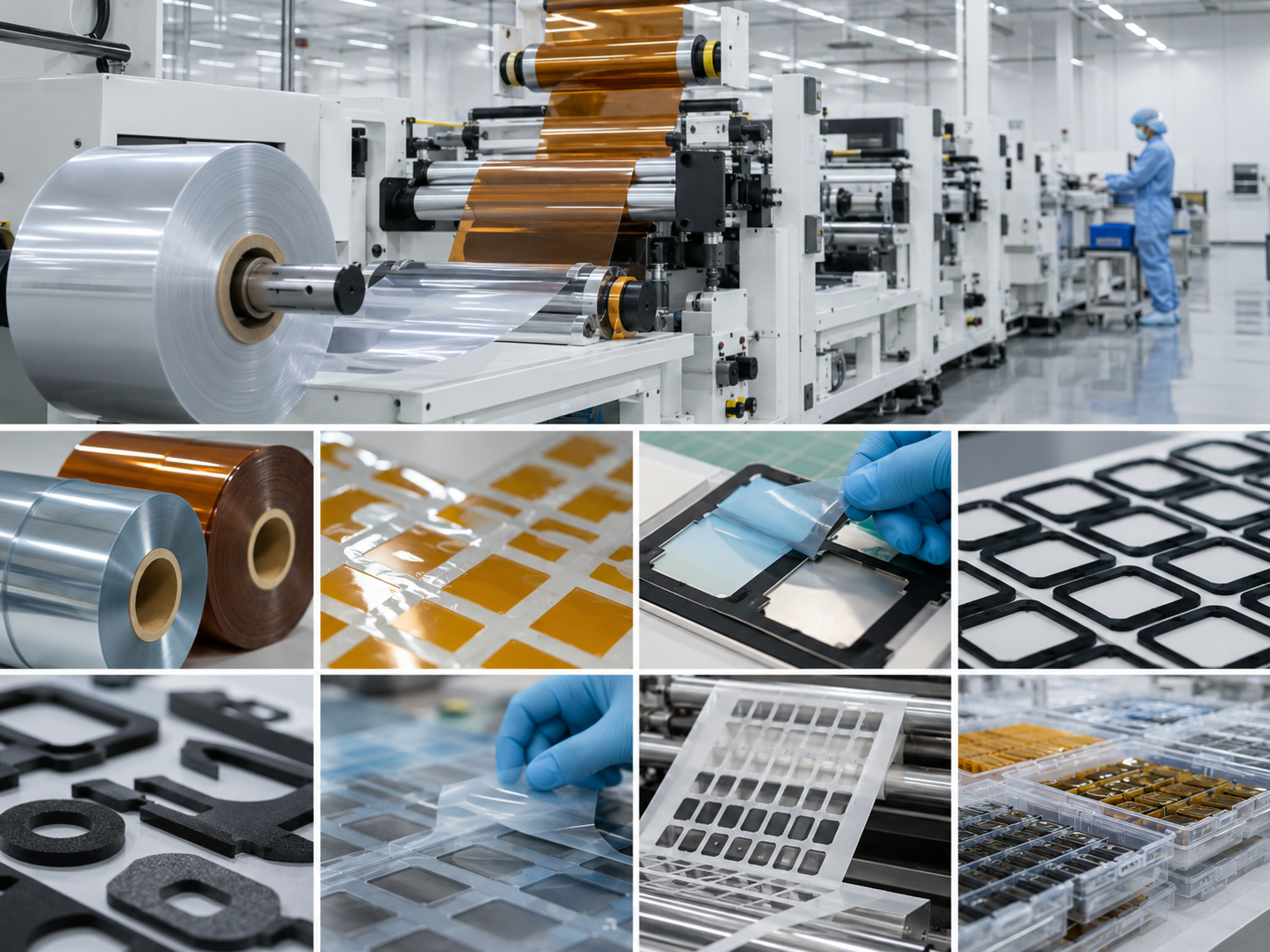

For roll materials and high-volume adhesive or film parts, roll-to-roll die cutting can improve repeatability and production efficiency.
Quality Control Requirements
Consumer electronics often require high visual quality and tight assembly control.
A small defect can affect appearance, function, or production efficiency.
Important inspection points include:
| Inspection Item | Why It Matters |
|---|---|
| Dimensions | Ensures correct fit |
| Thickness | Controls spacing and compression |
| Hole alignment | Supports accurate assembly |
| Edge quality | Reduces particles and burrs |
| Adhesive position | Prevents bonding failure |
| Liner release | Improves assembly speed |
| Surface cleanliness | Protects displays and electronics |
| Packaging condition | Prevents scratches and deformation |
The approved sample is only the beginning.
The real goal is stable mass production.
Delivery Formats for Electronics Assembly
Delivery format affects how easy the parts are to use on the assembly line.
Some parts should be supplied in sheets.
Some should be supplied in rolls.
Some should be supplied as kits.
| Delivery Format | Suitable Use |
|---|---|
| Sheets | Manual picking and organized assembly |
| Rolls | Automated or high-volume application |
| Kiss-cut on liner | Adhesive films, tape frames, foam gaskets |
| Individual pieces | Low-volume or simple assembly |
| Kits | Multi-part electronic module assembly |
| Clean trays or bags | Parts needing dust or deformation protection |
For assembly planning, buyers can review how die cut parts supplied in sheets, rolls, or kits affect handling, peeling, and production efficiency.
Good delivery format can reduce missing parts, sticking, surface damage, and assembly delays.
Need Die Cut Films, Foams, or Adhesive Parts for Consumer Electronics?
Consumer electronics need precision die cut parts for insulation, bonding, cushioning, sealing, display protection, dust control, and assembly efficiency.
If you need custom die cut parts for OEM assembly, send us your drawing, sample, material requirement, adhesive structure, tolerance, application location, cleanliness requirement, annual volume, and packaging preference.
Sanken can help review material selection, lamination structure, die cutting method, inspection points, and delivery format before mass production.
Related Articles
You may also find these articles helpful:
- What Die Cut Films, Foams, and Adhesive Parts Are Used in Electronic Products?
- Why Is PET Film Commonly Used in Electronics?
- Can PET Film Be Laminated With Adhesives?
- Die Cut PET Insulation Films for Battery and Electronics
- Why Insulation Films Must Be Precision Die Cut for Electronics
- Why Is Precision Film Die Cutting Important for Consumer Electronics Screens?
- Why Do Die Cut Adhesive Parts Fail After Assembly?
Conclusion
Consumer electronics need precision die cut films, foams, and adhesive parts because small hidden components affect insulation, bonding, cushioning, display quality, dust control, and assembly reliability. The best results come from matching the right material, adhesive structure, die cutting process, cleanliness control, and delivery format.
