Adhesive tape is not only used for sticking two parts together.
In OEM manufacturing, converted adhesive tape components can support sealing, bonding, insulation, cushioning, surface protection, light blocking, positioning, and cleaner assembly.
A tape part may become a foam gasket.
A PET-backed adhesive film may support insulation.
A double-sided tape frame may bond a control panel.
A protective film with pull tab may prevent scratches.
A foam tape strip may seal a housing gap.
At Sanken, we use precision die cutting and adhesive material converting to manufacture custom double-sided tape frames, foam tape gaskets, PET-backed adhesive parts, transfer adhesive films, adhesive-backed PET films, protective films with pull tabs, and laminated tape structures for OEM assembly.
The tape roll is only the beginning.
The converted part is what the production line actually uses.

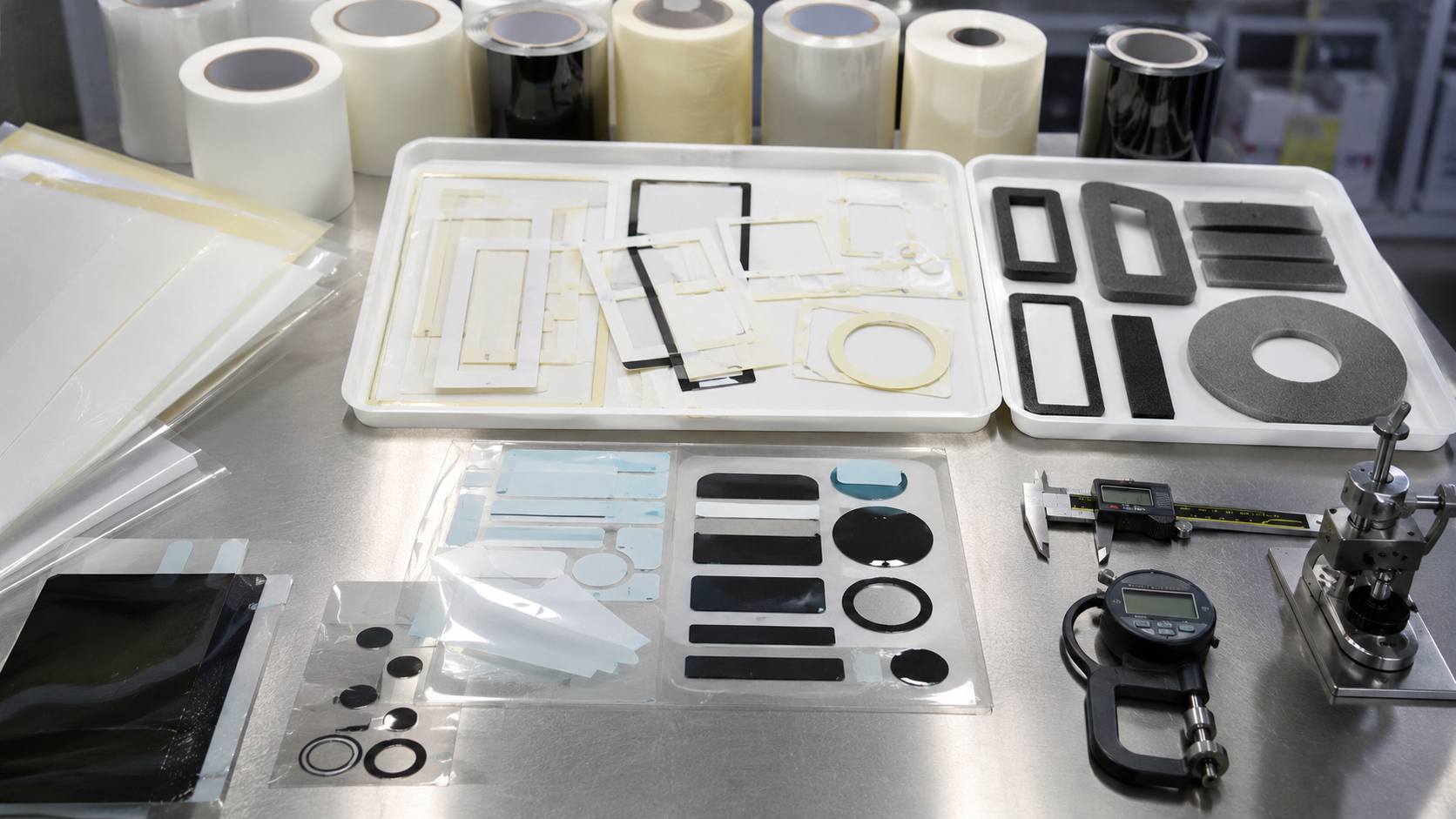

What Is Adhesive Tape Converting?
Adhesive tape converting is the process of transforming adhesive materials into custom shapes, structures, and delivery formats for production use.
Instead of applying tape manually from a roll, OEMs can use pre-cut tape parts designed for the exact product shape and assembly method.
Common converting processes include:
| Process | Purpose |
|---|---|
| Slitting | Cut wide rolls into narrower rolls |
| Lamination | Combine tape, foam, film, liner, or protective layer |
| Die cutting | Cut tape into custom shapes |
| Kiss cutting | Cut the tape part while keeping the liner intact |
| Waste removal | Remove unused material cleanly |
| Pull-tab design | Improve peeling and handling |
| Sheet or roll supply | Match manual or automated assembly |
| Packaging | Protect parts from dust, deformation, and sticking |
For OEM projects, custom die cut parts are designed around the real assembly need, not only the tape material.
The goal is to make the part easier to peel, easier to place, and more reliable after bonding.
Adhesive Tape Components for Sealing
Adhesive tape converting is widely used for sealing applications.
Foam tape gaskets and adhesive-backed foam strips can help block dust, fill gaps, cushion contact points, and improve assembly stability.
Common sealing components include:
- Foam tape gaskets
- Adhesive-backed foam strips
- Foam gasket frames
- Dust sealing rings
- Foam sealing pads
- Adhesive-backed EPDM foam seals
- Laminated foam and tape structures
For sealing and cushioning applications, foam gaskets and sealing components are often selected because foam can compress into gaps and provide soft contact.
Important sealing factors include foam thickness, density, compression recovery, adhesive type, gasket width, liner release, and packaging.
If the foam is too thin, it may not seal.
If the foam is too thick, the product may not assemble correctly.
If the adhesive lifts, the gasket may move before it can do its job.
A gasket should stay where the engineer designed it.
Adhesive Tape Components for Bonding
Bonding is one of the most common uses of converted adhesive tape.
Double-sided tape frames, PET-backed adhesive parts, transfer adhesive films, and foam tape parts can replace or support screws, clips, liquid glue, or manual tape application in selected areas.
Common bonding applications include:
| Application Area | Converted Tape Component |
|---|---|
| Control panels | Double-sided tape frames |
| Display areas | Adhesive tape frames and protective films |
| Plastic housings | PET-backed adhesive parts |
| Metal covers | Double-sided tape or foam tape |
| Electronic modules | Thin adhesive films and PET-backed adhesive parts |
| Appliance panels | Tape frames and foam tape strips |
| Automotive interiors | Adhesive-backed foam, felt, or tape parts |
Adhesive selection must match the bonding surface.
Plastic, metal, glass, coated surfaces, rubber, foam, PET film, painted panels, and textured surfaces do not bond the same way.
For adhesive-related risks, buyers can review why die cut adhesive parts fail after assembly.
The strongest adhesive is not always the best choice.
The right adhesive is the one that matches the surface, pressure, temperature, aging condition, and assembly method.
Adhesive Tape Components for Insulation
Converted adhesive tape parts can also support insulation in electronic and equipment assemblies.
PET-backed adhesive films and adhesive-backed PET insulation films are commonly used when a thin, stable, accurately cut part is needed.
Common insulation-related tape parts include:
| Part Type | Common Function |
|---|---|
| Adhesive-backed PET films | Electrical separation and easy placement |
| PET-backed adhesive parts | Stable bonding and positioning |
| Die cut PET insulation films | Thin protection around electronic areas |
| Laminated PET structures | Combined insulation, bonding, and protection |
| Protective PET films | Temporary or selected surface protection |
For more detail on PET applications, buyers can review what PET film is used for in electrical insulation.
Insulation film parts must be clean, flat, accurately cut, and easy to peel from the liner.
Burrs, scratches, particles, curling, or poor adhesive alignment can create assembly problems.
Thin films need careful converting.
Small thickness does not mean small risk.
Adhesive Tape Components for Cushioning
Foam tape converting is useful when OEM products need bonding plus cushioning.
The foam layer can absorb small impacts, fill uneven gaps, reduce hard contact, and help control vibration.
Common cushioning components include:
- Foam tape pads
- Adhesive-backed foam cushions
- Foam spacers
- Anti-rattle foam strips
- Foam gasket tape
- Adhesive-backed EVA foam parts
- Adhesive-backed PE foam parts
- Adhesive-backed PU or EPDM foam parts
Cushioning performance depends on foam material, thickness, density, compression force, recovery, and contact area.
If the foam is too soft, it may collapse.
If it is too hard, it may transfer vibration.
If the adhesive does not match the surface, the foam part may shift during use.
For automotive, electronics, appliances, and industrial products, cushioning parts should be reviewed with the full assembly condition, not only the material datasheet.
Adhesive Tape Components for Surface Protection
Protective films with adhesive backing are used to prevent scratches, fingerprints, dust, and handling damage during production, shipping, or final assembly.
Common protective film components include:
| Protective Film Part | Common Use |
|---|---|
| PET protective films | Scratch and surface protection |
| Pull-tab protective films | Easy removal after assembly |
| Adhesive-backed protective films | Temporary surface protection |
| Black PET films | Light blocking and appearance control |
| Kiss-cut protective films | Easy picking and placement |
For display, sensor, panel, and optical-related parts, optical film die cut components may include protective films, black PET films, adhesive frames, PET insulation films, and foam spacers.
Protective films need balanced adhesive behavior.
They should stay in place during handling.
They should also remove cleanly when required.
A protective film that leaves residue is not finished protecting. It is starting a new problem.
Why Kiss Cutting Is Important for Adhesive Tape Parts
Kiss cutting is one of the most useful processes for adhesive tape converting.
In kiss cutting, the tape part is cut while the release liner remains intact.
This keeps adhesive parts organized and easier to peel.
Kiss cutting is useful for:
- Double-sided tape frames
- Foam tape gaskets
- PET-backed adhesive parts
- Protective films
- Pull-tab films
- Adhesive-backed PET insulation films
- Small adhesive pads
- Sheet or roll delivery
For process comparison, buyers can review Die Cut vs Kiss Cut: What OEM Buyers Should Know for Adhesive Parts and Protective Films.
Good kiss cutting requires controlled cutting depth.
If the cut is too shallow, the part may not release cleanly.
If the cut is too deep, the liner may break or lose stability.
The liner is not just packaging.
It is part of the assembly experience.
Design Tips for Converted Adhesive Tape Parts
Good adhesive tape design improves both bonding performance and production efficiency.
Important design points include:
| Design Point | Why It Matters |
|---|---|
| Bonding surface | Determines adhesive selection |
| Tape thickness | Controls fit and stack height |
| Minimum width | Prevents stretching, tearing, or weak bonding |
| Corner radius | Reduces edge lifting and stress concentration |
| Pull tab position | Improves peeling and handling |
| Liner release | Affects assembly speed and part stability |
| Part spacing | Improves picking and placement |
| Packaging method | Prevents dust, curling, sticking, and deformation |
Sharp corners often increase edge lift risk.
Very narrow tape frames may stretch during peeling.
Unsupported transfer adhesive may be difficult to handle in complex shapes.
PET-backed adhesive parts may provide better stability for thin or narrow designs.
For more design guidance, buyers can review how to design custom adhesive tape parts for easier assembly and better bonding.
Manufacturing Process for Adhesive Tape Converting
Custom adhesive tape components are usually produced through material selection, lamination, die cutting, kiss cutting, waste removal, inspection, and packaging.
A typical process includes:
| Step | Purpose |
|---|---|
| Application review | Confirm sealing, bonding, insulation, cushioning, or protection need |
| Material selection | Choose adhesive tape, foam, PET film, protective film, liner, or laminated structure |
| Lamination | Combine adhesive, carrier, foam, film, liner, or protective layer |
| Tooling design | Prepare die cutting tool based on drawing |
| Die cutting | Cut frames, pads, strips, gaskets, films, or custom shapes |
| Kiss cutting | Keep adhesive-backed parts on release liner |
| Waste removal | Remove unwanted material cleanly |
| Inspection | Check size, edge, adhesive position, and liner release |
| Packaging | Prevent dust, scratches, sticking, curling, and deformation |
For high-volume adhesive tape parts, roll-to-roll die cutting can improve part spacing, liner control, waste removal, and production consistency.
For thicker foam tape gaskets or special shapes, process selection should be reviewed based on material thickness, structure, tolerance, and delivery format.

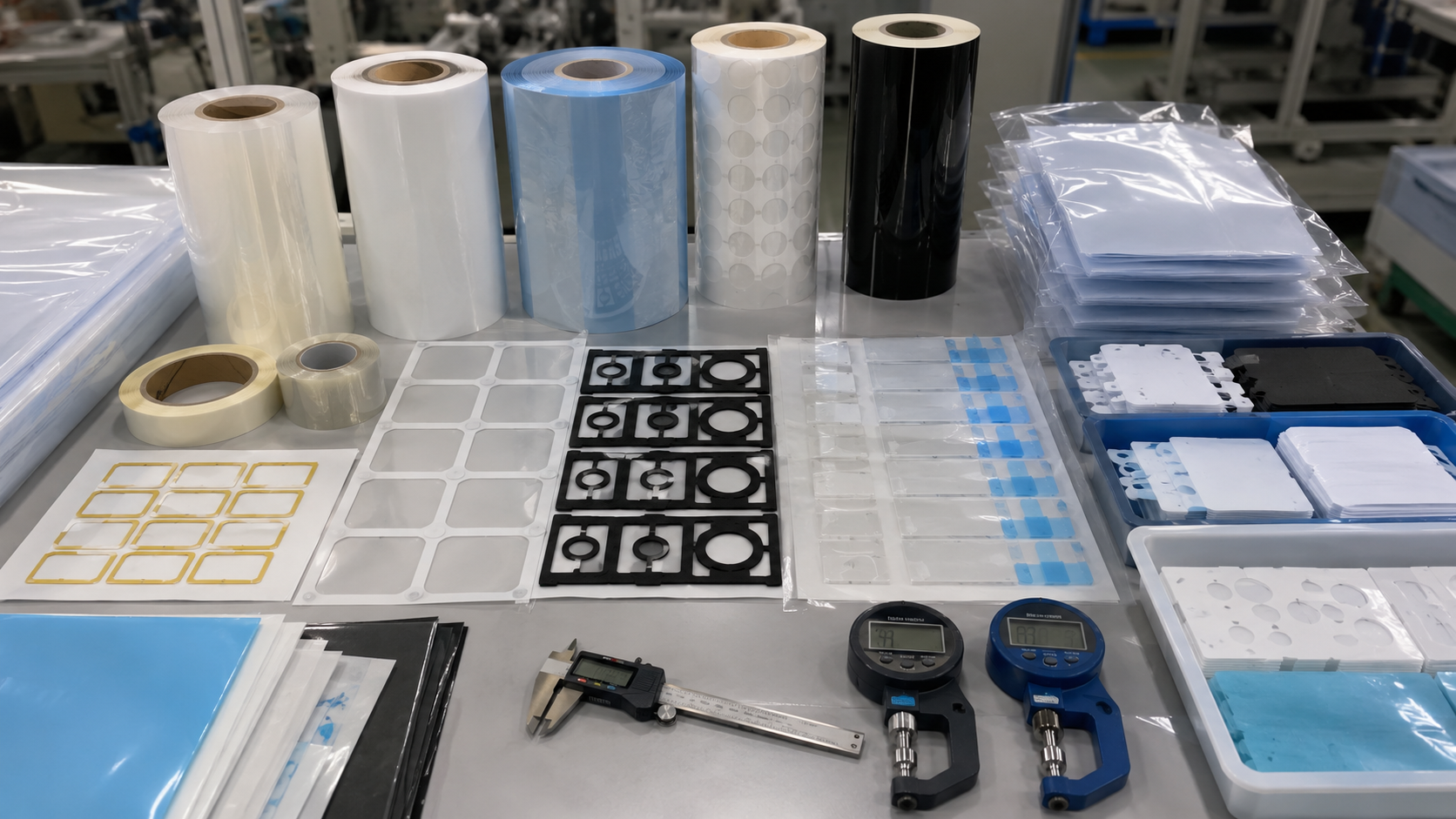

Supply Formats for OEM Assembly
Converted adhesive tape parts can be supplied in different formats depending on the production method.
| Supply Format | Suitable Use |
|---|---|
| Individual pieces | Simple assembly or low-volume projects |
| Sheets | Manual picking and organized placement |
| Rolls | High-volume or automated application |
| Kiss-cut on liner | Adhesive-backed parts and protective films |
| Pull-tab format | Easier manual peeling and removal |
| Kits | Multi-part module or product assembly |
| Clean trays or bags | Dust and deformation protection |
For assembly planning, buyers can review how die cut parts are supplied in sheets, rolls, or kits.
The right format can reduce missing parts, difficult peeling, adhesive contamination, film curling, gasket deformation, and line delays.

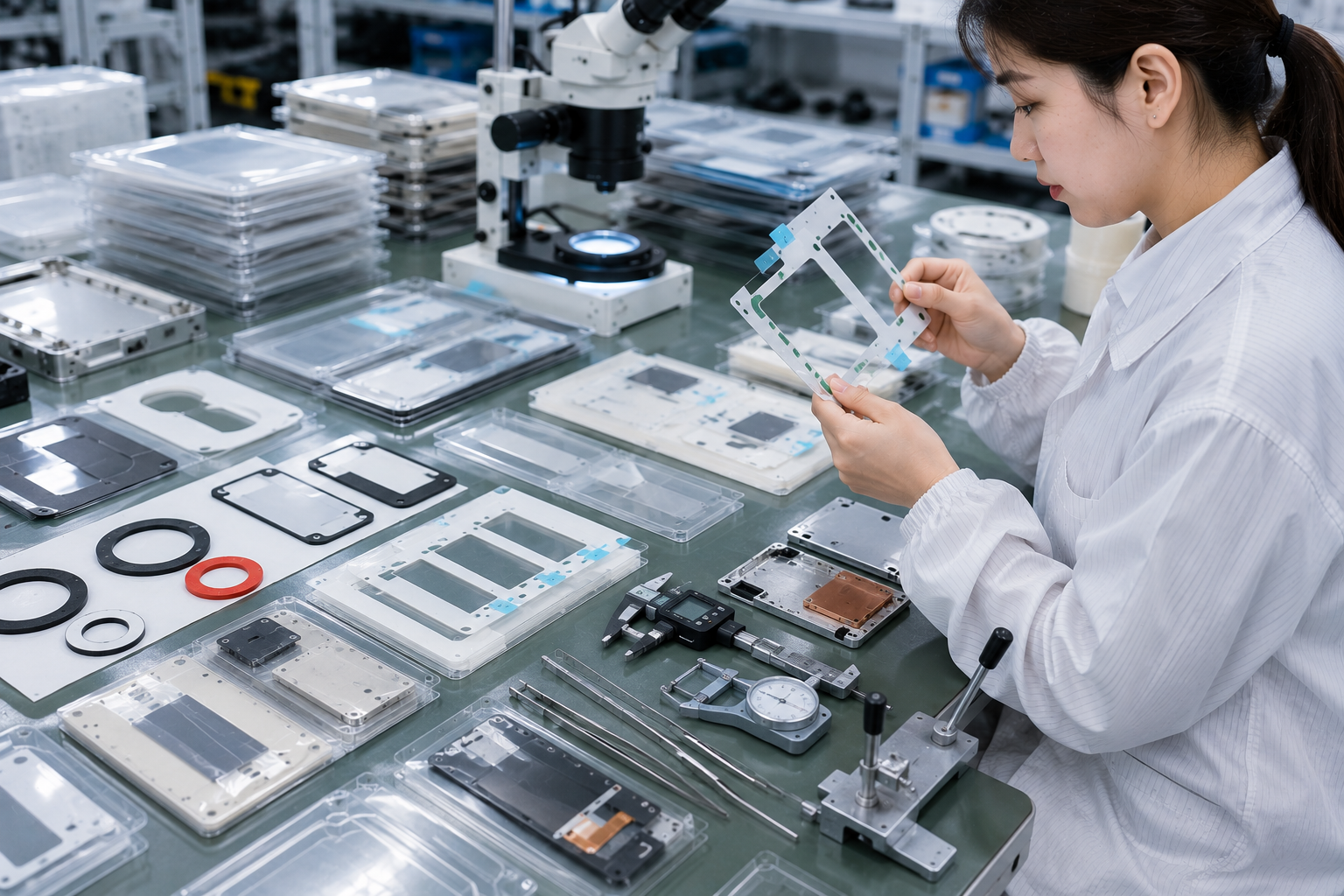

Quality Checks Before Mass Production
Adhesive tape components must remain consistent from sample approval to production.
Important inspection items include:
| Inspection Item | Why It Matters |
|---|---|
| Dimensions | Ensures correct fit and coverage |
| Tape thickness | Controls stack height |
| Adhesive position | Prevents shifting and overflow |
| Edge quality | Reduces burrs, particles, and lifting |
| Liner release | Improves peeling and placement |
| Peel performance | Confirms bonding behavior |
| Surface cleanliness | Protects product and assembly quality |
| Flatness | Supports accurate placement |
| Packaging condition | Prevents deformation before use |
A tape part that looks correct on the drawing must also peel, place, bond, and perform correctly on the line.
That is the real test.
What Buyers Should Provide Before Quotation
To recommend the right adhesive tape converting solution, we usually need clear project details.
Helpful information includes:
- Drawing or sample
- Application location
- Main function
- Bonding surface
- Tape material preference
- Adhesive requirement
- Thickness and tolerance
- Liner requirement
- Pull tab requirement
- Manual or automated assembly
- Cleanliness requirement
- Temperature exposure
- Annual volume
- Delivery format
- Packaging preference
If the material is not confirmed, Sanken can help compare double-sided tape, transfer adhesive, foam tape, PET-backed adhesive tape, adhesive-backed PET film, protective film, black PET film, release liner, and laminated adhesive structures.
For supplier selection, buyers can also review how to choose the right die cutting manufacturer before moving from sampling to mass production.
Need Adhesive Tape Converting for OEM Assembly?
Adhesive tape converting helps OEM products improve sealing, bonding, insulation, cushioning, protection, light blocking, positioning, and assembly efficiency.
But the final result depends on adhesive selection, bonding surface, material structure, die cutting accuracy, liner release, delivery format, inspection, and packaging.
If you need double-sided tape frames, foam tape gaskets, PET-backed adhesive parts, transfer adhesive films, adhesive-backed PET films, protective films with pull tabs, black PET adhesive films, or laminated tape structures, send us your drawing, sample, bonding surface, material requirement, tolerance, annual volume, and packaging preference.
Sanken can help review material selection, lamination structure, die cutting method, quality control points, and supply format before mass production.
Related Articles
You may also find these articles helpful:
- What Is Pressure Sensitive Adhesive Tape and Where Is It Used in OEM Assembly?
- How to Design Custom Adhesive Tape Parts for Easier Assembly and Better Bonding
- What Information Should You Provide for a Custom Adhesive Tape Die-Cut Part Quotation?
- Adhesive Backed Die Cut Components for OEM Assembly
- Why Do Die Cut Adhesive Parts Fail After Assembly?
- How to Avoid Edge Lift, Glue Overflow, and Adhesive Failure in Die-Cut Tape Parts
- Die Cut vs Kiss Cut: What OEM Buyers Should Know for Adhesive Parts and Protective Films
Conclusion
Adhesive tape converting turns pressure-sensitive tape materials into custom OEM components for sealing, bonding, insulation, cushioning, and protection. The best converted tape part is not only adhesive enough. It must match the bonding surface, function, thickness, shape, liner release, packaging, and production method. When these details are controlled early, converted adhesive tape parts can improve assembly speed, product reliability, and manufacturing consistency.
