Electric vehicle interior trim looks smooth, quiet, and clean.
Behind that clean appearance, many small die cut materials are working between panels, displays, brackets, wire harnesses, control modules, decorative surfaces, and electronic parts.
At Sanken, we use precision die cutting to convert foam, non-woven felt, rubber, adhesive tape, PET film, PI film, protective film, and laminated materials into custom EV interior trim components.
These parts help control noise, vibration, bonding, insulation, surface protection, dust sealing, and assembly stability.
The material may be hidden after installation.
But the result is very easy to notice when the material is wrong.
Why Material Selection Matters in EV Interior Trim
EV interiors are quieter than traditional vehicle interiors.
That means small noises become more obvious.
A loose plastic panel, a vibrating wire harness, a squeaking trim edge, or a poorly bonded display frame can quickly affect the user experience.
For automotive die cut components, the material must match the real function of the part.
Common functions include:
| Function | Common Material Choice |
|---|---|
| Anti-rattle control | Foam, felt, rubber |
| Squeak reduction | Non-woven felt, soft foam |
| Gap filling | PE foam, EVA foam, PU foam |
| Vibration damping | Rubber, EPDM foam, dense foam |
| Bonding | Double-sided tape, foam tape, transfer adhesive |
| Electrical insulation | PET film, PI film |
| Surface protection | Protective film |
| Light blocking | Black PET film, foam spacer |
| Dust sealing | Foam gasket, adhesive-backed foam |
The same EV interior trim area may need more than one function.
That is why laminated materials are often used.
Non-Woven Felt for Anti-Squeak and NVH Control
Non-woven felt is one of the most common materials used in EV interior trim die cutting.
It is soft, flexible, and useful where plastic, metal, or decorative surfaces may contact each other.
Typical applications include:
- Door panel anti-squeak pads
- Dashboard contact strips
- Center console cushioning pads
- Seat trim anti-rattle parts
- Wire harness protection pads
- Interior decorative panel backing
- HVAC duct contact areas
Non-woven felt helps reduce friction noise and small vibration sounds.
It can also provide light cushioning without adding too much thickness.
For EV interiors, this matters because the cabin is quiet.
Small squeaks are not background noise anymore.
They are the main performance complaint.
Foam Materials for Cushioning, Gap Filling, and Sealing
Foam is widely used in EV interior trim because it compresses into gaps and supports soft contact between parts.
Common foam materials include PE foam, EVA foam, PU foam, EPDM foam, and acrylic foam tape.
| Foam Material | Common EV Interior Use |
|---|---|
| PE foam | General gap filling and cushioning |
| EVA foam | Shock absorption and soft support |
| PU foam | Soft compression and surface cushioning |
| EPDM foam | Durable sealing and anti-rattle areas |
| Acrylic foam tape | Bonding with cushioning |
| Silicone foam | Heat-resistant cushioning in selected areas |
Foam parts may be used around dashboards, door panels, center consoles, display modules, speakers, HVAC ducts, and electronic housings.
For sealing and cushioning needs, foam gaskets and sealing components can support dust sealing, gap control, and vibration reduction in interior trim assemblies.
Foam selection depends on thickness, density, compression recovery, adhesive compatibility, and long-term aging behavior.
If the foam collapses too early, the noise comes back.
Very rude of the foam.
Rubber Materials for Stronger Vibration Damping
Rubber is used when EV interior trim needs stronger damping, impact resistance, or durable cushioning.
Common rubber materials include EPDM rubber, silicone rubber, neoprene rubber, and other synthetic rubber materials.
Rubber die cut parts are often used in:
- Motor or actuator areas
- Speaker vibration areas
- Control module contact points
- Door trim damping areas
- Anti-slip pads
- Protective washers
- Impact cushioning areas
Rubber is denser than foam.
That makes it useful when vibration energy is stronger.
But hardness must be selected carefully.
If rubber is too hard, it may transfer vibration.
If it is too soft, it may lose support.
For interior trim, the goal is not simply to add rubber.
The goal is to control vibration without affecting fit.
Adhesive Tape Materials for Bonding and Positioning
Adhesive materials are used throughout EV interior trim assembly.
They help bond decorative panels, attach foam pads, position felt strips, mount protective films, and simplify production.
Common adhesive materials include:
| Adhesive Material | Common Use |
|---|---|
| Double-sided tape | Trim bonding and panel mounting |
| Transfer adhesive | Thin bonding applications |
| Foam tape | Bonding with cushioning |
| PET-backed adhesive tape | Stable adhesive positioning |
| Acrylic foam tape | Strong bonding and gap compensation |
| PSA-backed felt or foam | Quick manual assembly |
| Pull-tab adhesive film | Easier peeling and placement |
Adhesive selection depends on the bonding surface.
EV interiors may include plastic, metal, glass, rubber, foam, fabric, painted parts, and textured decorative panels.
These surfaces do not bond the same way.
A good adhesive die cut part should peel smoothly, stay flat, bond accurately, and avoid glue overflow.
For high-volume adhesive-backed parts, roll-to-roll die cutting can improve production consistency and assembly efficiency.
PET and PI Films for Insulation and Protection
EV interiors include many electronic parts.
Displays, switches, sensors, lighting modules, wire harnesses, control panels, and charging areas may need insulation films.
PET and PI films are commonly used for these applications.
| Film Material | Main Function |
|---|---|
| PET film | Electrical insulation, protection, separation |
| PI film | Heat-resistant insulation |
| Black PET film | Light blocking and appearance control |
| Protective film | Scratch and contamination protection |
| Release liner | Supports adhesive part handling |
| Laminated film | Combined insulation, bonding, and protection |
PET film is often used for general insulation and protection.
PI film is selected when higher heat resistance is needed.
For display and glossy trim areas, optical film die cut components may include protective films, black light-blocking films, adhesive frames, and PET insulation parts.
Cleanliness is very important for film parts.
Dust, scratches, curling, adhesive residue, or poor liner release can create visible defects or assembly delays.
Laminated Materials for Multi-Function Trim Parts
Many EV interior trim parts need more than one function.
For example, a single part may need to bond, cushion, seal, and protect at the same time.
This is where laminated structures are useful.
Common laminated materials include:
- Foam with adhesive backing
- Felt with PSA backing
- PET film with adhesive and liner
- Rubber with adhesive backing
- Foam plus film plus adhesive
- Protective film with pull tab
- Black film plus adhesive structure
Lamination allows several materials to work as one die cut part.
But it also increases process requirements.
Adhesive alignment, thickness control, curling control, liner release, and waste removal all become important.
For EV interior trim, the supplier must understand both the material and the assembly process.
Common EV Interior Trim Applications
Different interior areas need different materials.
| EV Interior Area | Common Die Cut Materials |
|---|---|
| Dashboard | Foam pads, felt strips, PET films, adhesive tapes |
| Door panels | Felt pads, foam strips, rubber pads |
| Center console | Protective films, adhesive frames, foam spacers |
| Display area | PET films, black films, protective films, adhesive frames |
| Wire harness area | Felt pads, PET films, foam tape |
| Seat trim | Foam cushioning pads, felt anti-squeak parts |
| HVAC ducts | Foam seals, felt pads, rubber damping parts |
| Interior lighting | Black PET films, foam spacers, adhesive tapes |

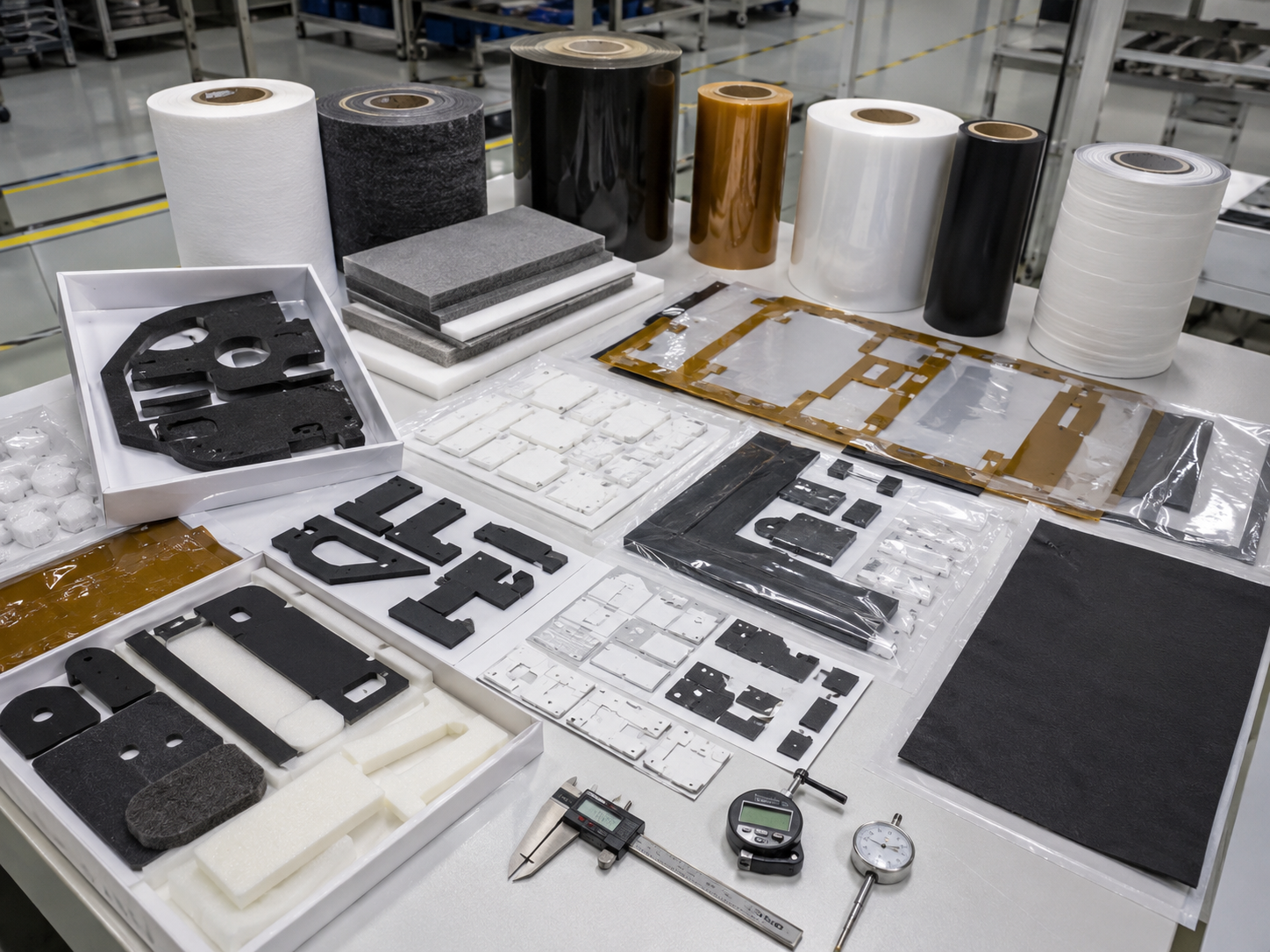

For assembly planning, die cut parts supplied in sheets can support manual picking and organized installation.
For automated or high-volume production, rolls or kiss-cut formats may be better.
This guide on die cut parts supplied in sheets, rolls, or kits explains how delivery format affects handling and production efficiency.

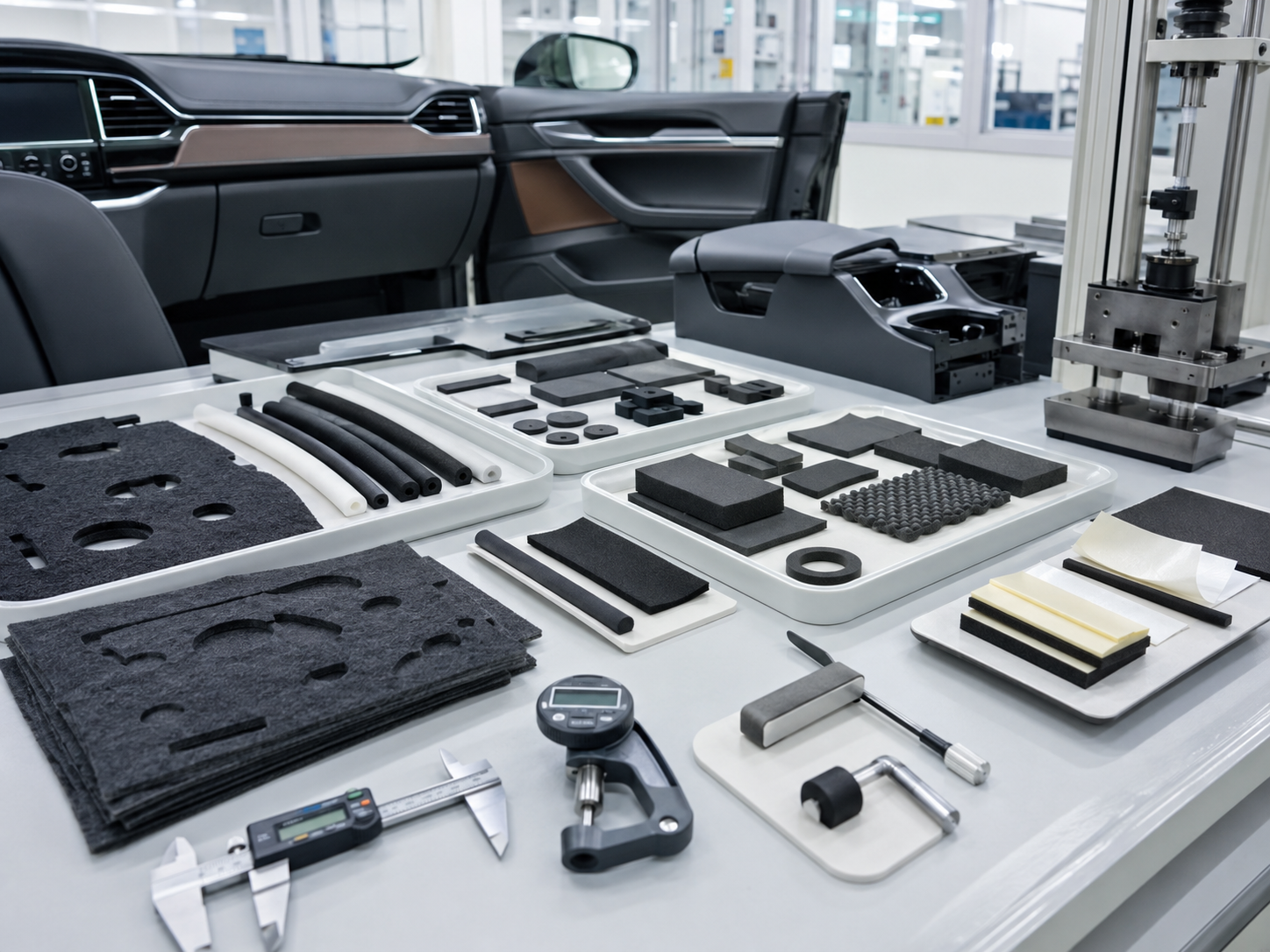

Quality Checks Before Mass Production
Material selection is only the first step.
The material must also be converted consistently.
Important quality checks include:
| Inspection Item | Why It Matters |
|---|---|
| Dimensions | Ensures correct fit in trim assembly |
| Thickness | Controls compression and spacing |
| Density or hardness | Affects cushioning and damping |
| Edge quality | Reduces particles and poor fitting |
| Adhesive position | Prevents lifting or shifting |
| Liner release | Improves assembly speed |
| Surface cleanliness | Protects visible trim and electronics |
| Packaging condition | Prevents deformation before use |
For EV interior trim, sample success is not enough.
The part must remain stable in repeat production.
What Buyers Should Provide Before Quotation
To recommend the right material, we usually need clear project details.
Helpful information includes:
- Drawing or sample
- Interior trim application area
- Material preference
- Main function
- Thickness and tolerance
- Adhesive requirement
- Bonding surface
- Compression gap
- Temperature range
- Noise or vibration issue
- Cleanliness requirement
- Annual volume
- Delivery format
- Packaging preference
If the material is not confirmed, we can help compare foam, non-woven felt, rubber, PET film, PI film, protective film, adhesive tape, and laminated structures.
For new projects, buyers can also review how to choose the right die cutting manufacturer before moving from sample approval to mass production.
Need Die Cut Materials for EV Interior Trim?

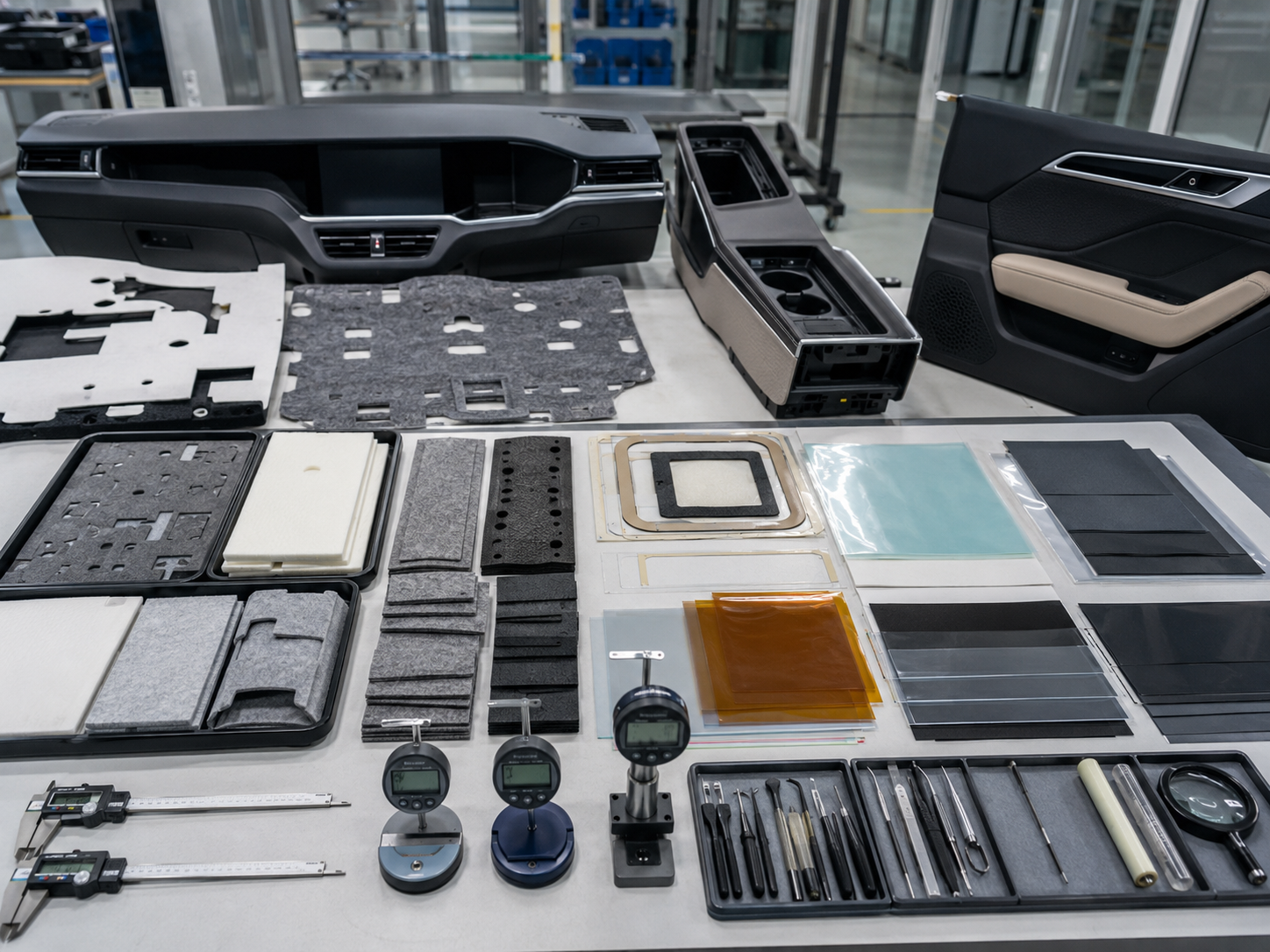

EV interior trim die cutting commonly uses foam, non-woven felt, rubber, adhesive tape, PET film, PI film, protective film, black film, and laminated materials.
The right material depends on function, fit, bonding surface, thickness, compression, cleanliness, and delivery format.
If you need custom die cut parts for OEM assembly, send us your drawing, sample, interior trim location, material requirement, adhesive structure, tolerance, annual volume, and packaging preference.
Sanken can help review material selection, lamination structure, die cutting method, inspection points, and delivery format before mass production.
Related Articles
You may also find these articles helpful:
- Why Vehicles Have Noise and Vibration Problems — and How Die Cut NVH Parts Help
- Where Are Die Cut Parts Used in Automotive Manufacturing?
- What Is Die Cutting in Automotive OEM Manufacturing? Materials, Process, and Applications
- How Automation Improves Precision Die Cutting for Automotive OEM Parts
- Custom Die Cut Foam Gaskets for Automotive Electronics
- Adhesive Backed Die Cut Components for OEM Assembly
- How Die Cutting Transforms Raw Materials Into Precision Components
Conclusion
EV interior trim die cutting uses materials such as non-woven felt, foam, rubber, adhesive tape, PET film, PI film, protective film, black film, and laminated structures. Each material solves a different problem, from anti-squeak and vibration control to insulation, bonding, sealing, and surface protection. The best choice always starts with the application function.
