Vehicles can look perfect from the outside and still create noise, vibration and rattling inside.
That is the tricky part of automotive manufacturing.
A small gap, a hard plastic contact point, a loose wire harness, an uneven panel or a vibrating electronic module can create noise that drivers notice immediately.
At Sanken, we use precision die cutting to manufacture foam, non-woven felt, rubber, adhesive tape and laminated NVH parts for automotive OEM and Tier supplier applications.
These parts are usually hidden after assembly.
But they help vehicles feel quieter, more stable and better built.
What Does NVH Mean in Automotive Manufacturing?
NVH means noise, vibration and harshness.
In simple words, it describes the unwanted sounds and vibrations inside a vehicle.
Noise may come from airflow, road contact, plastic parts, motors, pumps, electronics or loose components.
Vibration may come from the engine, motor, battery system, road surface, HVAC system or moving parts.
Harshness is the uncomfortable feeling caused by sudden vibration or impact.
For automotive OEMs, NVH control is not only about comfort.
It also affects product quality perception.
A small rattle can make a customer think the whole vehicle is poorly made.
That is why automotive die cut components are often used in hidden areas to reduce noise, fill gaps, cushion contact points and isolate vibration.
Why Vehicles Have Noise and Vibration Problems
Noise and vibration usually come from contact, movement or poor isolation.
In modern vehicles, many plastic, metal, electronic and interior parts are assembled very close together.
When these parts move, rub or vibrate, noise appears.
Common causes include:
| Cause | What Happens |
|---|---|
| Hard part contact | Plastic, metal or housing parts create rattling |
| Assembly gaps | Components move during driving |
| Vibration transfer | Motor, road or HVAC vibration reaches the cabin |
| Loose wire harnesses | Cables hit nearby surfaces |
| Poor cushioning | Parts have no soft material between them |
| Panel movement | Door, dashboard or trim parts vibrate |
| Material mismatch | Hard materials touch without damping |
| Adhesive failure | Pads or strips lift after assembly |
The annoying part?
Many NVH problems do not appear clearly during simple visual inspection.
They appear during road testing, vibration testing or long-term use.
By then, fixing them becomes more expensive.
How Die Cut NVH Parts Help
Die cut NVH parts are custom-shaped soft material components.
They are placed between, around or behind vehicle parts to reduce noise and vibration.
They can absorb sound, cushion contact, isolate vibration, fill gaps and prevent rattling.
Common die cut NVH parts include:
- Non-woven felt pads
- Foam anti-rattle pads
- Adhesive-backed foam strips
- Rubber damping pads
- Cushioning washers
- Wire harness protection pads
- Door trim foam parts
- Dashboard felt strips
- HVAC foam seals
- Battery pack cushioning pads
- Motor vibration isolation pads
For OEM projects, these parts must fit the actual assembly space.
A standard pad may not work.
A custom die cut shape usually works better because it matches the part geometry, compression area and installation position.

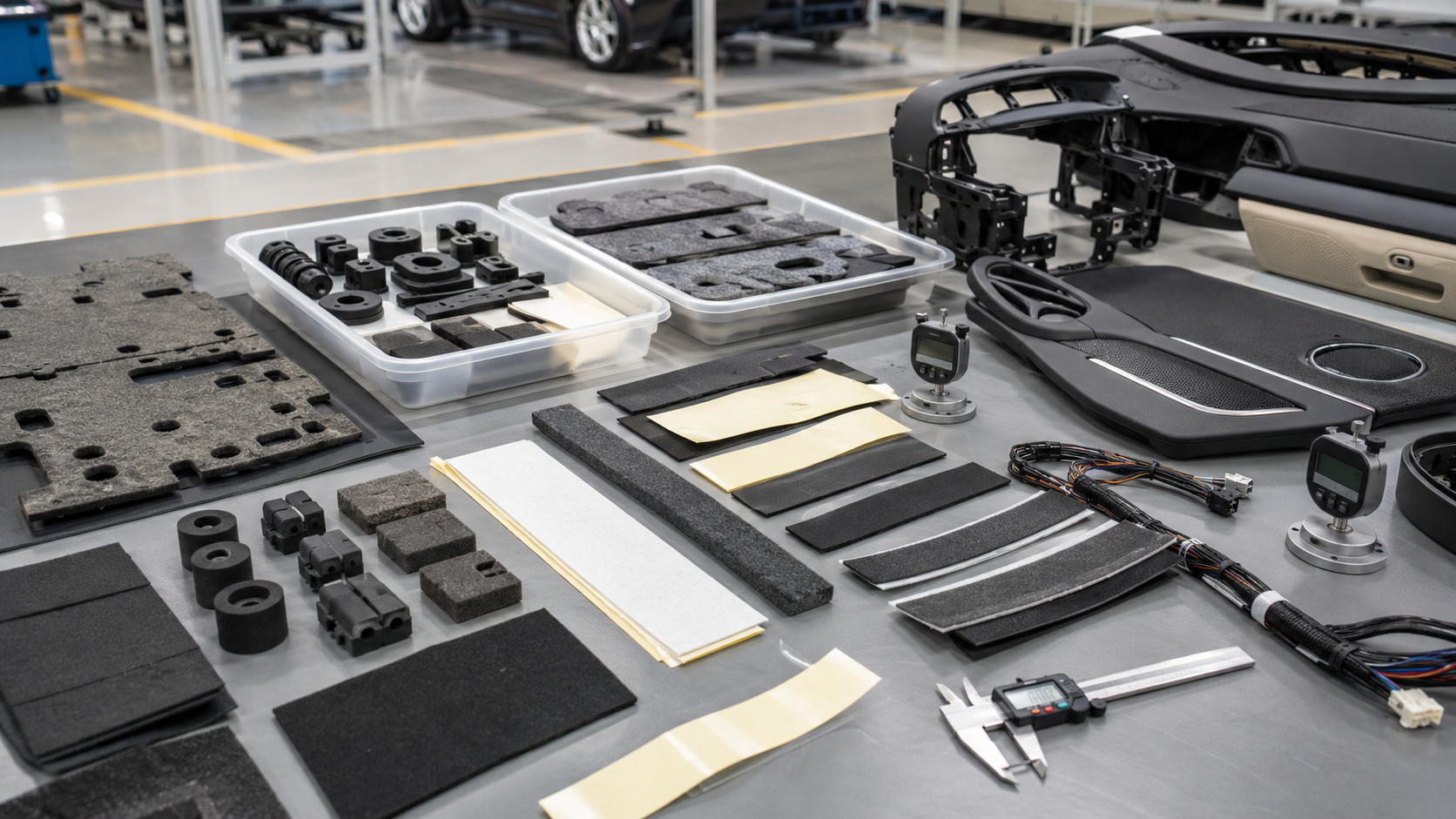

Common Materials for Die Cut NVH Parts
Different NVH problems need different materials.
| Material | Common Function |
|---|---|
| Non-woven felt | Sound absorption, anti-squeak, surface cushioning |
| PE foam | Gap filling, cushioning, light sealing |
| EVA foam | Shock absorption and vibration cushioning |
| PU foam | Soft cushioning and contact protection |
| EPDM foam | Sealing, dust protection and durable cushioning |
| Rubber | Vibration isolation and impact damping |
| Adhesive tape | Mounting, positioning and bonding |
| Laminated structures | Combined cushioning, bonding and protection |
For example, non-woven felt may be better for reducing rubbing noise between interior parts.
Foam may be better for filling gaps and cushioning.
Rubber may be better when stronger vibration isolation is needed.
Adhesive-backed materials are often used when the customer needs faster assembly and stable positioning.
For related sealing and cushioning needs, foam gaskets and sealing components can also be used in automotive interiors, electronics housings, HVAC systems and door assemblies.

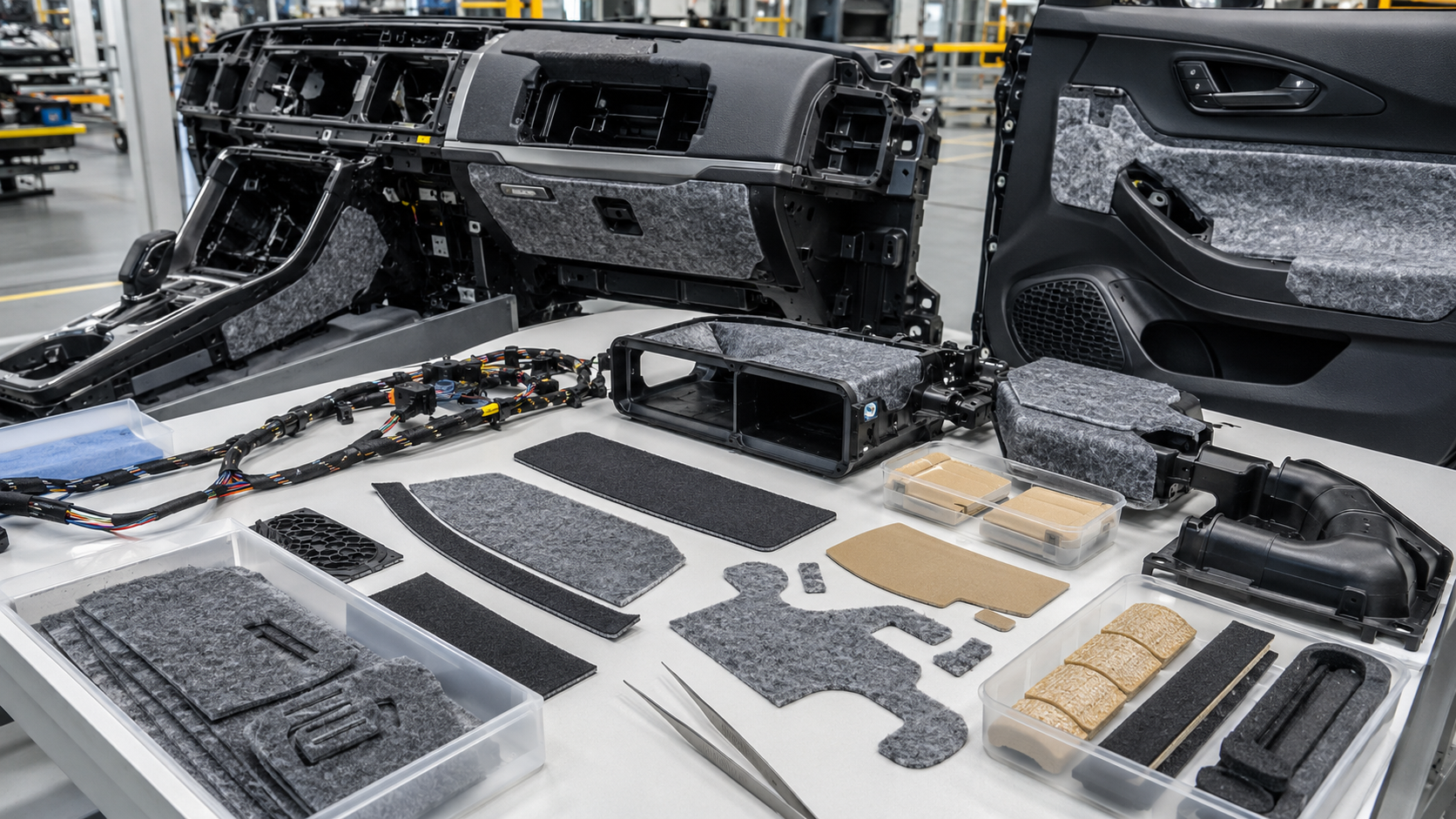

Where Die Cut NVH Parts Are Used in Vehicles
Die cut NVH parts are used in many vehicle areas.
They are usually not visible to the final driver, but they affect comfort every day.
| Vehicle Area | Typical Die Cut NVH Parts |
|---|---|
| Dashboard | Foam pads, felt strips, anti-rattle parts |
| Door panels | Felt pads, foam strips, vibration pads |
| Center console | Cushioning pads and adhesive-backed foam |
| HVAC system | Foam seals and anti-vibration parts |
| Wire harnesses | Felt wraps, foam pads and protection pieces |
| Seats | Cushioning and anti-squeak materials |
| EV-related assemblies | Foam pads, insulation support and vibration cushioning |
| Motor area | Rubber pads and damping components |
| Speaker area | Foam seals and acoustic cushioning |
| Camera and sensor modules | Small foam spacers and anti-vibration pads |
In many cases, the NVH part is not only for noise reduction.
It may also support sealing, insulation, bonding or protection.
That is why material selection must consider the full application, not only the sound problem.
Why Precision Die Cutting Matters for NVH Parts
NVH parts often sit in narrow spaces.
If the part is too large, it may wrinkle or interfere with assembly.
If it is too small, it may not touch the right area.
If it is too thick, the panel may not close.
If it is too thin, the noise may remain.
This is why precision die cutting matters.
Good NVH parts need controlled:
- Shape
- Thickness
- Hole position
- Edge quality
- Adhesive placement
- Compression behavior
- Liner release
- Packaging format
For adhesive-backed NVH pads, kiss cutting is often used.
The part is cut while the release liner stays intact.
This helps operators peel and apply the part more efficiently during automotive assembly.
For production planning, buyers can also review how die cut parts supplied in sheets, rolls, or kits affect assembly speed and handling.
Adhesive-Backed NVH Parts
Many adhesive-backed die cut components are used in NVH applications to support faster placement and stable positioning.
This helps keep the pad or strip in place during assembly and long-term vehicle use.
But adhesive selection is important.
Automotive surfaces may include plastic, metal, painted surfaces, rubber, foam, fabric or textured materials.
The adhesive must match the surface.
It must also resist heat, vibration, aging and compression.
Common adhesive-backed NVH structures include:
| Structure | Use |
|---|---|
| Felt with adhesive backing | Anti-squeak and surface cushioning |
| Foam with single-sided adhesive | Gap filling and anti-rattle support |
| Rubber pad with adhesive | Vibration damping and positioning |
| Foam tape strip | Cushioning and bonding |
| Multilayer foam and film structure | Combined damping, insulation and bonding |
A good adhesive NVH part should not lift, shift or leave residue.
It should be easy to peel, easy to position and stable after assembly.
Simple to say.
Not always simple to manufacture.
Manufacturing Process for Die Cut NVH Parts
Most die cut NVH parts are made through material converting and die cutting.
The process depends on the material, thickness, adhesive structure and production volume.
A typical process includes:
| Step | Purpose |
|---|---|
| Application review | Understand noise, vibration and assembly problem |
| Material selection | Choose felt, foam, rubber or laminated structure |
| Adhesive lamination | Add adhesive and release liner if needed |
| Tooling design | Prepare the die cutting tool |
| Die cutting | Cut pads, strips, frames or custom shapes |
| Waste removal | Remove unwanted material |
| Inspection | Check size, thickness, edge and adhesive position |
| Packaging | Protect parts from deformation and contamination |
For foam-related converting, buyers can review how die cutting works from foam rolls to finished parts.
For roll materials and high-volume adhesive-backed parts, roll-to-roll die cutting can improve efficiency and repeatability.

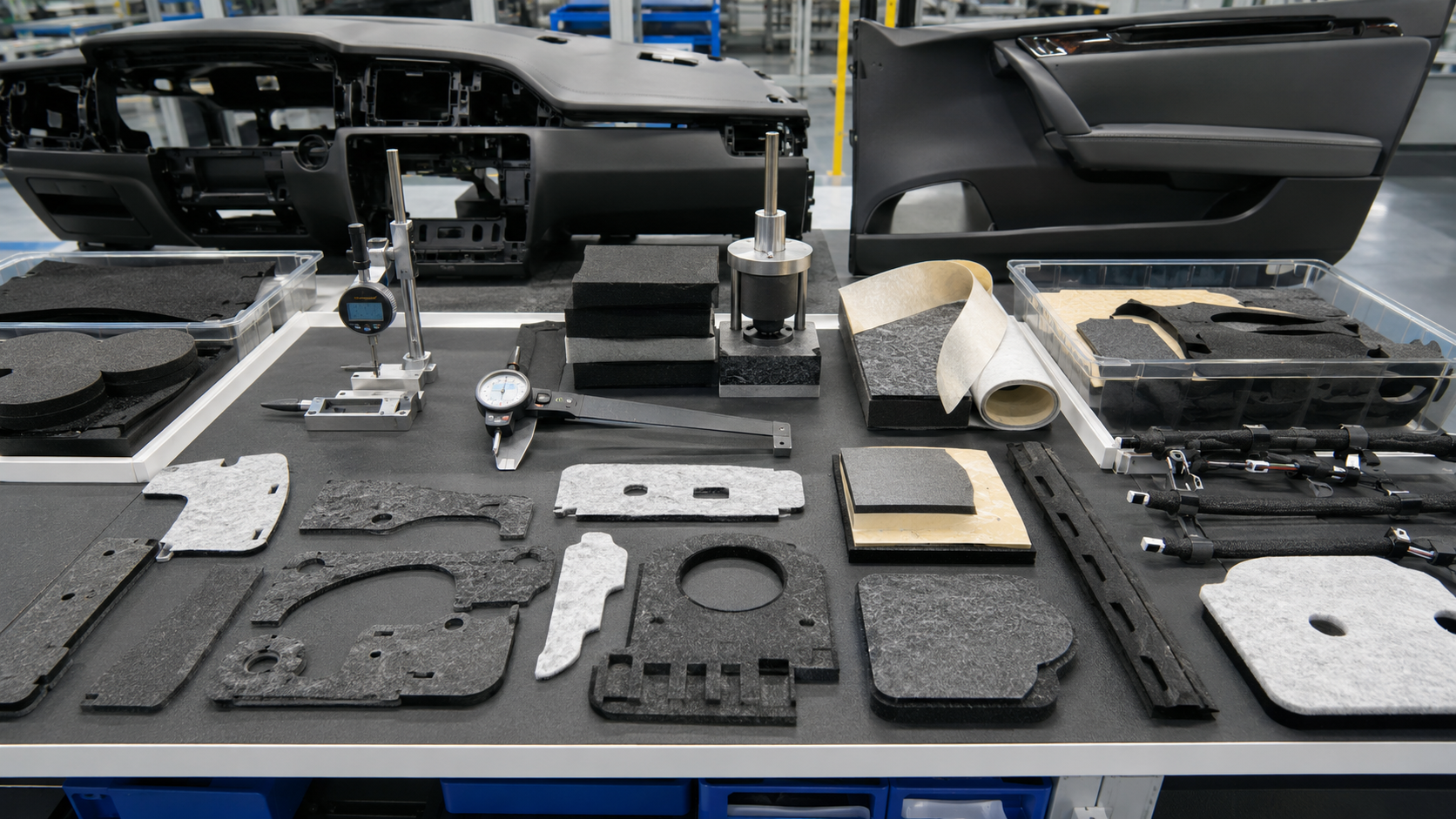

Quality Checks for Automotive NVH Parts
Automotive NVH parts must be stable from sample to mass production.
The approved sample is only the beginning.
The real target is repeatable production.
| Inspection Item | Why It Matters |
|---|---|
| Dimensions | Ensures correct installation |
| Thickness | Controls compression and fit |
| Material density | Affects sound absorption and cushioning |
| Adhesive position | Prevents lifting or shifting |
| Edge quality | Reduces particles and poor fit |
| Liner release | Improves assembly efficiency |
| Surface cleanliness | Reduces contamination risk |
| Packaging condition | Prevents deformation before use |
For OEM customers, consistency matters because NVH issues are difficult to fix after vehicle assembly.
A small pad placed in the wrong position can bring back the noise.
That is not music.
That is a warranty complaint warming up.
What Buyers Should Provide Before Quotation
To recommend the right die cut NVH part, we usually need application details.
Useful information includes:
- Drawing or sample
- Vehicle application area
- Noise or vibration problem
- Material preference
- Thickness requirement
- Adhesive requirement
- Bonding surface
- Compression space
- Temperature range
- Tolerance
- Annual volume
- Delivery format
- Packaging preference
- Testing requirement
If the material is not confirmed, we can help compare non-woven felt, PE foam, EVA foam, PU foam, EPDM foam, rubber and adhesive-backed laminated materials.
For new OEM projects, buyers can review how to choose the right die cutting manufacturer before moving from sample approval to mass production.
Related Articles
You may also find these articles helpful:
- Where Are Die Cut Parts Used in Automotive Manufacturing?
- What Is Die Cutting in Automotive OEM Manufacturing? Materials, Process, and Applications
- How Automation Improves Precision Die Cutting for Automotive OEM Parts
- Why OEM Manufacturers Rely on Die Cutting Every Day
- The Hidden Manufacturing Process Inside Cars, Phones and Medical Devices
- How Die Cutting Transforms Raw Materials Into Precision Components
- From Foam Rolls to Finished Parts: How Die Cutting Works
Conclusion
Vehicle noise and vibration problems often start from small gaps, hard contact points, loose components and poor material isolation. Die cut NVH parts made from non-woven felt, foam, rubber and adhesive-backed materials help automotive OEMs reduce rattling, absorb sound, isolate vibration and improve assembly stability.
The best NVH solution depends on the actual vehicle area, contact surface, compression space, temperature condition, bonding surface and assembly method.
Need Die Cut NVH Parts for Automotive OEM Assembly?
Vehicle noise and vibration problems often come from small gaps, hard contact points, loose parts and poor damping.
Die cut NVH parts help reduce these problems by absorbing sound, cushioning contact, isolating vibration and stabilizing assembly.
If you need custom die cut parts for OEM assembly, send us your drawing, sample, application location, noise or vibration issue, material requirement, adhesive structure, tolerance, annual volume and packaging preference.
Sanken can help review material selection, die cutting method, adhesive backing, inspection points and delivery format before mass production.
