Adhesive tape looks simple when it is still in roll form.
But in OEM assembly, the tape must be placed in the right position, peeled smoothly, bonded evenly, and perform consistently after the product is assembled.
That is where precision die cutting becomes important.
A roll of double-sided tape can become a bonding frame.
A foam tape roll can become a sealing gasket.
A PET-backed adhesive tape can become an insulation or positioning part.
A protective film can become a pull-tab surface protection film.
At Sanken, we use precision die cutting and adhesive tape converting to manufacture custom tape parts for electronics, automotive interiors, appliances, displays, sensors, semiconductor equipment, and other OEM products.
The goal is not only to cut tape into a shape.
The goal is to make adhesive parts easier to peel, easier to place, and more accurate in assembly.
Why Adhesive Tape Assembly Accuracy Matters
Adhesive tape parts are often used in areas where position, shape, and surface contact matter.
If the tape shifts, stretches, lifts, or bonds unevenly, the final product may face assembly defects.
| Assembly Issue | Possible Result |
|---|---|
| Tape placed off-position | Poor fit or visible misalignment |
| Adhesive overflow | Contamination or rework |
| Tape frame too narrow | Weak bonding or tearing |
| Poor liner release | Difficult peeling and slow assembly |
| Uneven pressure | Weak bonding area |
| Edge lifting | Long-term bonding failure |
| Manual cutting variation | Inconsistent quality |
For OEM projects, custom die cut parts help make adhesive tape components repeatable instead of relying on manual trimming or hand-applied tape.
Manual tape application may work for prototypes.
Mass production needs repeatability.
How Precision Die Cutting Controls Tape Shape
Precision die cutting allows adhesive materials to be cut into controlled shapes before they reach the assembly line.
Common adhesive tape shapes include:
- Double-sided tape frames
- Foam tape gaskets
- PET-backed adhesive parts
- Transfer adhesive films
- Adhesive-backed PET insulation films
- Protective films with pull tabs
- Black PET adhesive frames
- Small adhesive pads and strips
Shape control is important because adhesive tape usually needs to match an exact bonding area.
A tape frame for a control panel must align with the panel border.
A foam tape gasket must follow the sealing path.
A PET-backed adhesive part must fit the insulation or positioning area.
When the shape is pre-cut accurately, operators do not need to adjust the tape by hand.
That improves speed and reduces variation.
Kiss Cutting Makes Adhesive Parts Easier to Use
Kiss cutting is one of the most important processes for adhesive tape assembly.
In kiss cutting, the adhesive part is cut while the release liner remains intact.
This allows the parts to stay organized on the liner until the operator peels them.
Kiss cutting improves:
| Benefit | Why It Helps Assembly |
|---|---|
| Organized parts | Reduces missing or mixed parts |
| Easier peeling | Improves operator handling |
| Better placement | Keeps shape stable before application |
| Cleaner production | Reduces adhesive contamination |
| Faster assembly | Supports manual and automated processes |
| Roll or sheet supply | Matches production line needs |
For more detail, buyers can review Die Cut vs Kiss Cut: What OEM Buyers Should Know for Adhesive Parts and Protective Films.
Cut depth matters.
If the cut is too shallow, the part may not release cleanly.
If the cut is too deep, the liner may break.
The liner is not just backing material.
It is part of the assembly process.
Liner Release Affects Placement Accuracy
A good adhesive part should peel smoothly from the liner.
If the liner release is too tight, the part may stretch, curl, or deform during peeling.
If the release is too loose, the part may shift before use.
Important liner factors include:
| Liner Factor | Why It Matters |
|---|---|
| Release force | Controls peeling behavior |
| Liner thickness | Supports part stability |
| Liner flatness | Reduces curling and bubbles |
| Part spacing | Improves picking and handling |
| Pull tab design | Reduces direct adhesive contact |
| Sheet or roll direction | Matches assembly workflow |
For thin adhesive frames, PET-backed adhesive parts, and protective films, liner design can be just as important as adhesive selection.
A tape part that is difficult to peel may be accurate on paper but inaccurate in real assembly.
Adhesive Alignment Prevents Overflow and Weak Bonding
Precision die cutting helps control where adhesive is located.
This is especially important for frames, windows, holes, and narrow bonding areas.
Poor adhesive alignment can cause:
- Glue overflow
- Exposed adhesive edges
- Dust sticking to unwanted areas
- Assembly interference
- Weak bonding zones
- Visual defects
- Difficult waste removal
For display frames, sensor areas, control panels, and electronic housings, adhesive must stay inside the designed bonding area.
For adhesive-related design issues, buyers can review how to avoid edge lift, glue overflow, and adhesive failure in die-cut tape parts.
The adhesive should bond the product.
It should not decorate the surrounding area.
Material Structure Supports Assembly Accuracy
Different adhesive tape structures support different assembly needs.
| Tape Structure | Assembly Advantage |
|---|---|
| Double-sided tape | Thin bonding and clean placement |
| Foam tape | Bonding plus cushioning or sealing |
| PET-backed adhesive tape | Better handling stability |
| Transfer adhesive | Very thin bonding layer |
| Adhesive-backed PET film | Insulation and positioning support |
| Protective film with pull tab | Surface protection and easy removal |
| Laminated tape structure | Multiple functions in one part |
For sealing applications, foam gaskets and sealing components are often used when the tape part must compress into a gap.
For electronics or control panels, PET-backed adhesive parts may offer better stability than unsupported adhesive films.
For adhesive tape background, buyers can review what pressure sensitive adhesive tape is and where it is used in OEM assembly.
The right tape structure makes assembly more stable before the operator even touches the part.
Pull Tabs Reduce Handling Errors
Pull tabs are small, but they can improve assembly accuracy.
They allow operators to peel and position adhesive parts without touching the adhesive surface directly.
Pull tabs can help reduce:
- Fingerprint contamination
- Adhesive stretching
- Difficult peeling
- Part deformation
- Misalignment during placement
- Slow manual assembly
Pull tab location should be designed around the actual assembly process.
It should be easy to reach.
It should not interfere with screws, sensors, windows, connectors, or final product surfaces.
For protective films and thin adhesive parts, a well-designed pull tab can make the difference between smooth assembly and daily frustration.
Design Details That Improve Tape Assembly Accuracy
Good adhesive tape design should consider cutting, peeling, placement, bonding, and inspection.
Important design details include:
| Design Point | Why It Matters |
|---|---|
| Corner radius | Reduces edge lifting and tearing |
| Minimum width | Prevents stretching and weak bonding |
| Hole-to-edge distance | Improves cutting stability |
| Adhesive coverage | Prevents overflow or weak areas |
| Pull tab position | Improves peeling and handling |
| Part spacing on liner | Supports faster picking |
| Liner selection | Controls release and flatness |
| Packaging method | Prevents curling, dust, and deformation |
Very narrow tape frames may stretch during peeling.
Sharp corners may lift after bonding.
Small holes may make waste removal difficult.
A good design should be easy to manufacture and easy to assemble.
Manufacturing Process for Die Cut Adhesive Tape Parts
Custom adhesive tape parts are usually produced through material review, lamination, die cutting, kiss cutting, waste removal, inspection, and packaging.
A typical process includes:
| Step | Purpose |
|---|---|
| Application review | Confirm bonding, sealing, insulation, cushioning, or protection need |
| Material selection | Choose tape, foam, PET film, protective film, adhesive, or liner |
| Lamination | Combine adhesive, carrier, foam, film, liner, or pull-tab layer |
| Tooling design | Prepare die cutting tool based on drawing |
| Die cutting | Cut tape frames, pads, strips, films, or custom shapes |
| Kiss cutting | Keep adhesive-backed parts on release liner |
| Waste removal | Remove unwanted adhesive material cleanly |
| Inspection | Check dimensions, adhesive position, edge, and liner release |
| Packaging | Prevent dust, sticking, curling, and deformation |
For more converting background, buyers can review adhesive tape converting for sealing, bonding, insulation, cushioning, and protection.
For high-volume adhesive tape parts, roll-to-roll die cutting can improve spacing, liner control, waste removal, and production consistency.

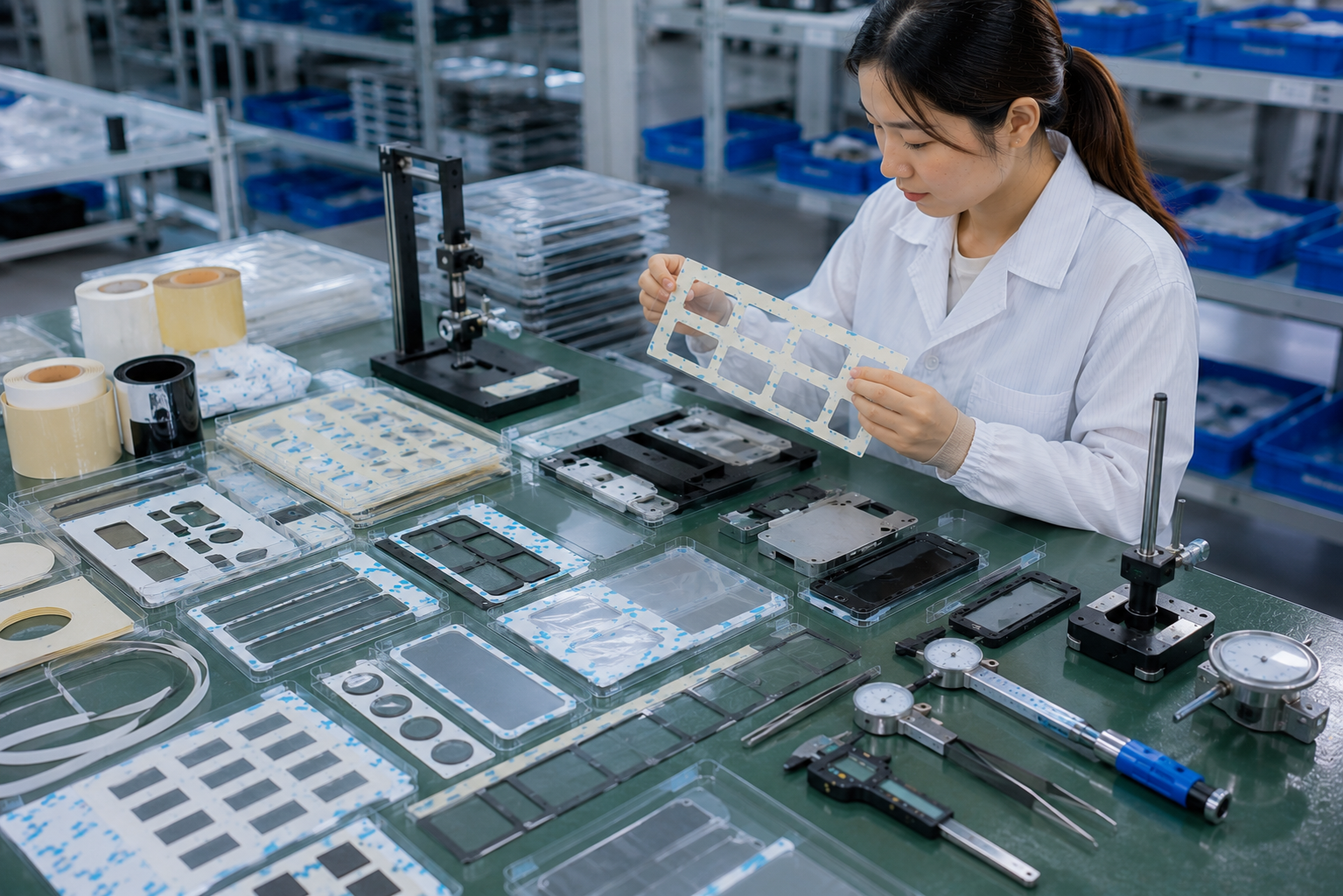

Quality Checks Before Mass Production
Adhesive tape parts must remain consistent from sample approval to mass production.
Important quality checks include:
| Inspection Item | Why It Matters |
|---|---|
| Dimensions | Ensures correct fit |
| Tape thickness | Controls stack height |
| Adhesive position | Prevents overflow and misalignment |
| Edge quality | Reduces lifting and contamination |
| Liner release | Supports smooth peeling |
| Peel behavior | Confirms bonding performance |
| Flatness | Reduces bubbles and placement issues |
| Surface cleanliness | Protects product quality |
| Packaging condition | Prevents deformation before use |
A tape part that looks correct in inspection must also peel, place, and bond correctly on the production line.
Assembly accuracy is the real test.
Supply Format Also Improves Accuracy
The same adhesive tape part can be supplied in different formats.
The right format can improve placement speed and reduce mistakes.
| Supply Format | Suitable Use |
|---|---|
| Individual pieces | Simple or low-volume assembly |
| Sheets | Manual picking and organized placement |
| Rolls | High-volume or automated application |
| Kiss-cut on liner | Adhesive-backed tape parts |
| Pull-tab format | Easier manual peeling |
| Kits | Multi-part module assembly |
| Clean trays or bags | Dust and deformation protection |
For assembly planning, buyers can review how die cut parts are supplied in sheets, rolls, or kits.
Good supply format helps reduce missing parts, wrong placement, adhesive contamination, curling, and slow assembly.
Packaging is not only logistics.
It is part of production accuracy.
What Buyers Should Provide Before Quotation
To recommend the right die cut adhesive tape solution, we usually need clear project details.
Helpful information includes:
- Drawing or sample
- Application location
- Main function
- Tape material preference
- Adhesive requirement
- Bonding surface
- Thickness and tolerance
- Liner requirement
- Pull tab requirement
- Manual or automated assembly
- Cleanliness requirement
- Temperature exposure
- Annual volume
- Delivery format
- Packaging preference
If the material is not confirmed, Sanken can help compare double-sided tape, foam tape, transfer adhesive, PET-backed adhesive tape, adhesive-backed PET film, protective film, black PET film, release liner, and laminated adhesive structures.
For supplier selection, buyers can also review how to choose the right die cutting manufacturer for your OEM project before moving from sampling to mass production.
Need Die Cut Adhesive Tape Parts for Accurate OEM Assembly?
Precision die cutting improves adhesive tape assembly accuracy by controlling shape, liner release, adhesive position, pull-tab design, part spacing, delivery format, and packaging.
But the final result depends on material selection, bonding surface, adhesive behavior, tolerance, die cutting process, inspection, and real assembly conditions.
If you need double-sided tape frames, foam tape gaskets, PET-backed adhesive parts, transfer adhesive films, adhesive-backed PET films, protective films with pull tabs, black PET adhesive films, or laminated adhesive structures, send us your drawing, sample, bonding surface, material requirement, tolerance, annual volume, and packaging preference.
Sanken can help review material selection, lamination structure, die cutting method, quality control points, and supply format before mass production.
Related Articles
You may also find these articles helpful:
- Adhesive Tape Converting for Sealing, Bonding, Insulation, Cushioning, and Protection
- 3M Tape Converting: How OEM Adhesive Parts Are Made from Roll Materials
- What Is Pressure Sensitive Adhesive Tape and Where Is It Used in OEM Assembly?
- How to Design Custom Adhesive Tape Parts for Easier Assembly and Better Bonding
- What Information Should You Provide for a Custom Adhesive Tape Die-Cut Part Quotation?
- Why Do Die Cut Adhesive Parts Fail After Assembly?
- Die Cut vs Kiss Cut: What OEM Buyers Should Know for Adhesive Parts and Protective Films
Conclusion
Precision die cutting improves adhesive tape assembly accuracy by turning tape roll materials into controlled, repeatable, assembly-ready components. Accurate tape shapes, kiss-cut liners, pull tabs, clean edges, controlled adhesive position, and suitable packaging help reduce manual variation and improve OEM production efficiency. The best adhesive tape part should be easy to peel, easy to place, stable after bonding, and consistent from sample to mass production.
