Adhesive-backed foam gaskets are used in many OEM products because they combine sealing, cushioning, positioning, vibration control, and easier assembly in one part.
They are used in electronics, automotive interiors, appliances, display modules, industrial enclosures, control panels, sensors, HVAC systems, and many other assemblies.
At Sanken, we use precision die cutting to manufacture custom adhesive-backed foam gaskets, foam tape seals, foam frames, foam strips, cushioning pads, and laminated sealing components for OEM production.
A foam gasket may look simple.
But the right choice depends on foam material, adhesive backing, bonding surface, thickness, compression, liner release, tolerance, packaging, and long-term working conditions.
What Are Adhesive-Backed Foam Gaskets?
Adhesive-backed foam gaskets are foam sealing or cushioning parts with pressure-sensitive adhesive on one side or both sides.
The foam provides compression.
The adhesive helps keep the gasket in position during assembly.
The die cutting process creates the final shape.
Common forms include:
| Gasket Form | Common Use |
|---|---|
| Foam strips | Long edge sealing and gap filling |
| Foam frames | Housing, display, and panel sealing |
| Foam rings | Sensor, speaker, or opening protection |
| Foam pads | Cushioning and vibration control |
| Kiss-cut foam gaskets | Easy peeling from release liner |
| Laminated foam structures | Combined sealing, bonding, insulation, and protection |
For OEM projects, custom die cut parts are designed around the real application, not only the drawing shape.
A gasket must fit the part.
More importantly, it must keep working after assembly.
Start With the Function
Before choosing foam or adhesive, define what the gasket needs to do.
An adhesive-backed foam gasket may be used for sealing, cushioning, dust protection, vibration control, sound reduction, light blocking, or assembly positioning.
| Function | What to Consider |
|---|---|
| Sealing | Compression gap, foam recovery, gasket width |
| Cushioning | Foam softness, thickness, contact pressure |
| Vibration control | Density, hardness, recovery, bonding strength |
| Dust protection | Edge contact, gasket continuity, adhesive stability |
| Light blocking | Foam color, edge coverage, positioning accuracy |
| Assembly support | Liner release, pull tab, delivery format |
| Surface protection | Foam softness and adhesive removability |
If the function is unclear, the material choice becomes a guess.
And in OEM assembly, guesses often become trial failures.
Choose the Right Foam Material
Different foam materials behave differently under compression, temperature, vibration, and aging.
The best foam is not always the softest or cheapest one.
It is the one that matches the application.
| Foam Material | Common Use |
|---|---|
| PE foam | General cushioning, gap filling, and light sealing |
| EVA foam | Shock absorption and soft support |
| PU foam | Soft compression and surface cushioning |
| EPDM foam | Durable sealing and anti-rattle applications |
| CR / neoprene foam | Sealing and cushioning in selected industrial uses |
| Silicone foam | Heat-resistant cushioning in selected areas |
| Acrylic foam tape | Bonding with cushioning and gap compensation |
For sealing applications, foam gaskets and sealing components are often selected when the product needs soft compression, custom shape, adhesive backing, and easy installation.
Foam selection should consider thickness, density, compression recovery, temperature range, surface cleanliness, and required service life.
Foam has one job: compress and recover.
If it only compresses, it is just slowly giving up.
Match the Adhesive to the Bonding Surface
The adhesive backing is just as important as the foam.
A gasket with the right foam but the wrong adhesive may lift, shift, peel, or fail after assembly.
Different bonding surfaces need different adhesive solutions.
| Bonding Surface | What to Check |
|---|---|
| Plastic | ABS, PC, PP, PE, texture, surface energy |
| Metal | Aluminum, steel, coating, painted surface |
| Glass | Cleanliness, coating, handling method |
| Rubber | Surface energy and possible material migration |
| Foam | Porosity and bonding pressure |
| Painted surface | Paint type and curing condition |
| Film surface | PET, PI, PC, protective coating |
Adhesive-backed foam gaskets may be applied to electronics housings, appliance panels, automotive trim parts, display frames, sensors, ducts, or metal enclosures.
These surfaces do not bond the same way.
A good adhesive should peel smoothly from the liner, bond accurately, resist lifting, and avoid adhesive overflow.
For adhesive failure risks, buyers can review why die cut adhesive parts fail after assembly.
Check Thickness and Compression
Foam gaskets seal by compression.
That means thickness and compression gap must be reviewed together.
If the foam is too thin, it may not contact both surfaces.
If the foam is too thick, the product may not assemble correctly.
If the foam is too soft, it may collapse.
If the foam is too hard, it may create stress or prevent proper closure.
Important compression factors include:
| Factor | Why It Matters |
|---|---|
| Foam thickness | Controls gap filling and assembly fit |
| Foam density | Affects compression force and recovery |
| Compression set | Shows long-term sealing stability |
| Adhesive thickness | Adds to total gasket height |
| Surface flatness | Affects sealing consistency |
| Gasket width | Influences sealing area and die cutting stability |
| Corner radius | Reduces tearing and edge lifting |
The goal is not maximum compression.
The goal is controlled compression.
A well-designed foam gasket compresses enough to seal, but not so much that it loses recovery after use.
Review Shape, Width, and Corner Design
Adhesive-backed foam gaskets are often cut into rings, strips, frames, narrow pads, and complex shapes.
Design affects both performance and manufacturability.
Important design points include:
- Minimum gasket width
- Inner and outer corner radius
- Hole-to-edge distance
- Pull tab location
- Part spacing on liner
- Adhesive coverage area
- Waste removal direction
- Assembly orientation
Sharp corners may look clean in CAD.
But in foam gaskets, sharp corners can increase tearing, edge lifting, and deformation risk.
Rounded corners are often better for cutting stability and long-term adhesion.
A small corner can cause a big complaint.
Very ambitious for such a tiny feature.
Choose the Right Liner and Peeling Format
The release liner affects assembly speed and part handling.
If the liner is too difficult to peel, operators may stretch the foam gasket.
If it releases too easily, parts may shift during transport.
Common liner and peeling options include:
| Option | Benefit |
|---|---|
| Paper liner | Common for many adhesive foam parts |
| Film liner | Better flatness and clean handling in selected uses |
| Single liner | Simple adhesive-backed structure |
| Double liner | Used for double-sided adhesive structures |
| Pull tab | Easier manual peeling |
| Kiss-cut on liner | Keeps parts organized before assembly |
| Roll format | Supports continuous or high-volume application |
Kiss cutting is often useful for adhesive-backed foam gaskets.
The gasket is cut while the release liner remains intact.
This makes peeling, picking, and positioning easier for OEM assembly.
For more details, buyers can review Die Cut vs Kiss Cut: What OEM Buyers Should Know for Adhesive Parts and Protective Films.
Select the Right Die Cutting Process
Adhesive-backed foam gaskets can be produced through lamination, die cutting, kiss cutting, slitting, waste removal, inspection, and packaging.
A typical process includes:
| Process Step | Purpose |
|---|---|
| Application review | Confirm sealing, cushioning, or bonding need |
| Material selection | Choose foam, adhesive, liner, and thickness |
| Lamination | Combine foam, adhesive, liner, or backing film |
| Tooling design | Control shape, radius, spacing, and cutting depth |
| Die cutting | Cut foam strips, pads, frames, rings, or custom shapes |
| Kiss cutting | Keep adhesive-backed gaskets on release liner |
| Waste removal | Remove extra foam cleanly |
| Inspection | Check size, thickness, edge, adhesive, and liner release |
| Packaging | Prevent deformation, dust, sticking, and compression marks |
For foam process background, buyers can review how die cutting works from foam rolls to finished parts.
For high-volume adhesive-backed foam parts, roll-to-roll die cutting can improve consistency, part spacing, liner control, and production efficiency.
Choose the Right Delivery Format
Delivery format affects how easily workers use the foam gasket on the production line.
| Delivery Format | Suitable Use |
|---|---|
| Individual pieces | Simple parts or low-volume projects |
| Sheets | Manual picking and organized assembly |
| Rolls | Automated or high-volume application |
| Kiss-cut on liner | Adhesive-backed foam gaskets |
| Kits | Multi-part module assembly |
| Trays or bags | Parts needing deformation protection |

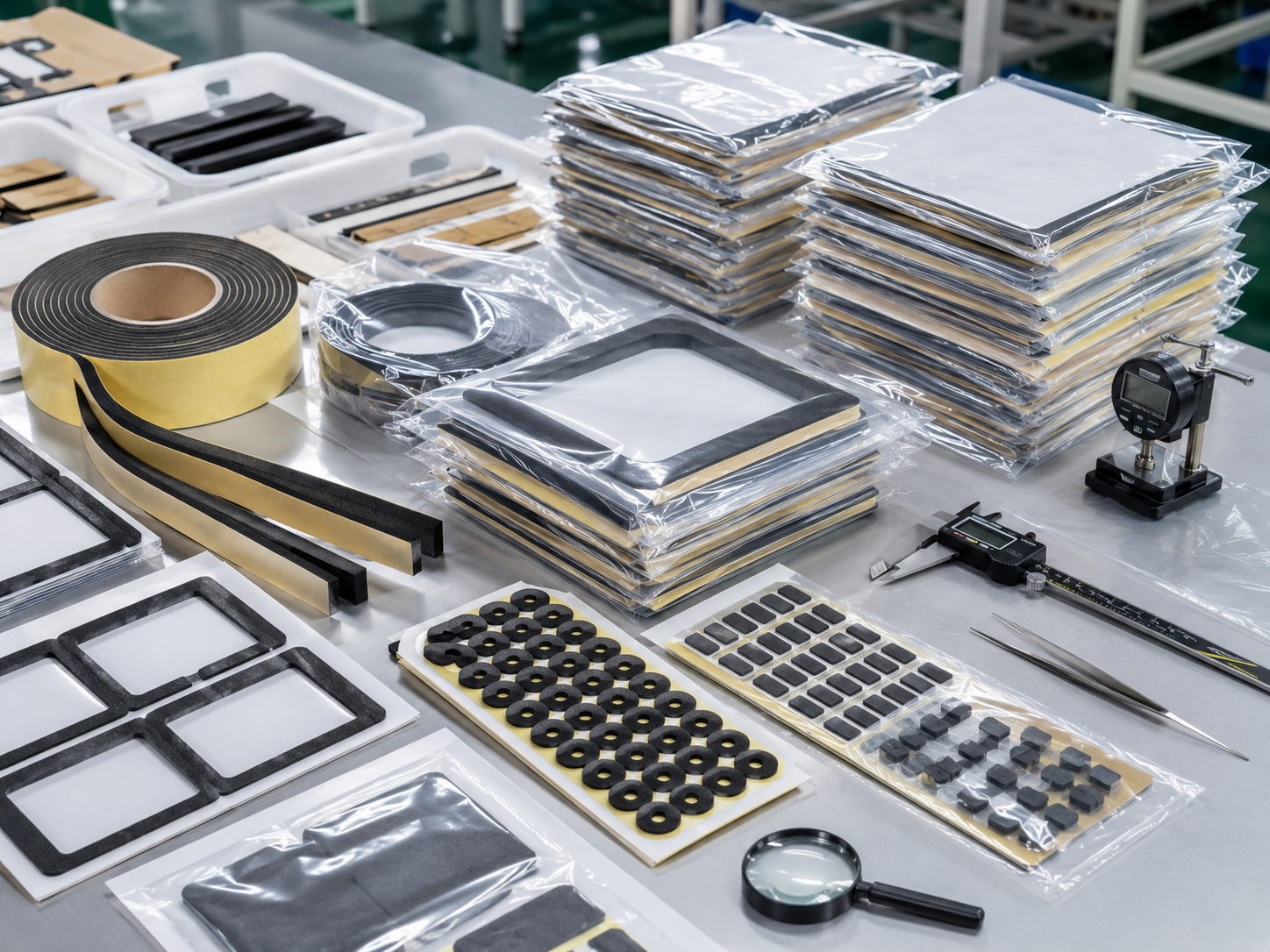

For assembly planning, buyers can review how die cut parts are supplied in sheets, rolls, or kits.
Good packaging helps prevent foam compression, adhesive contamination, sticking, missing parts, and difficult peeling.
Packaging is not decoration.
It protects the gasket before the gasket protects the product.

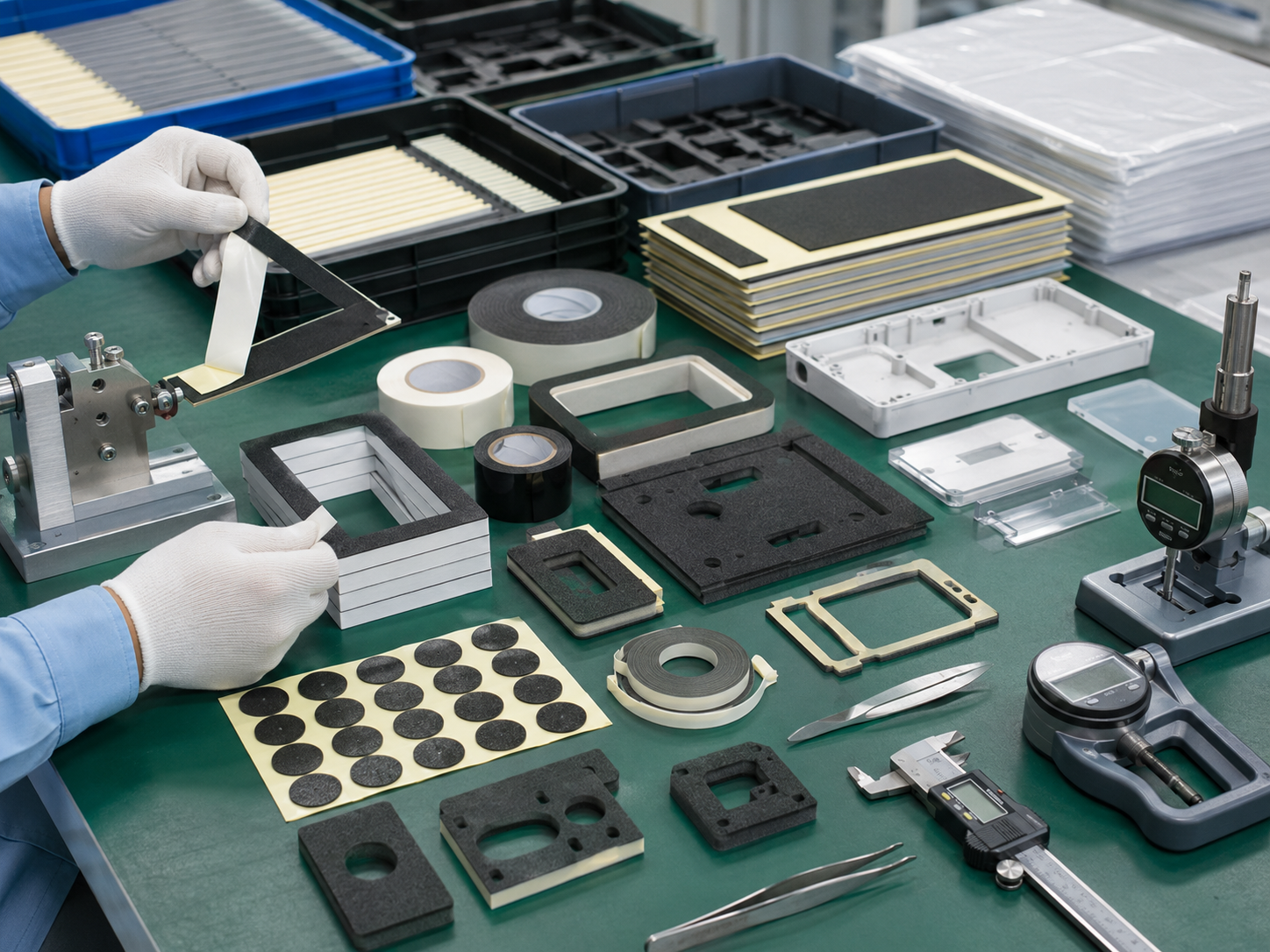

Quality Checks Before Mass Production
Sample approval is only the beginning.
Adhesive-backed foam gaskets must stay stable in repeat production.
Important quality checks include:
| Inspection Item | Why It Matters |
|---|---|
| Dimensions | Ensures correct fit |
| Thickness | Controls compression and spacing |
| Density | Affects sealing and cushioning behavior |
| Compression recovery | Supports long-term performance |
| Edge quality | Reduces tearing and poor fit |
| Adhesive position | Prevents lifting or shifting |
| Liner release | Improves assembly efficiency |
| Surface cleanliness | Prevents bonding and appearance defects |
| Packaging condition | Prevents deformation before use |
For electronics, automotive, appliance, and industrial products, these details can affect assembly reliability.
A good gasket must match the approved sample batch after batch.
Common Mistakes to Avoid
Many foam gasket problems can be reduced during design review and sampling.
Common mistakes include:
- Choosing foam only by thickness
- Ignoring the bonding surface
- Using sharp corners in narrow gasket designs
- Selecting adhesive without temperature or aging review
- Making the gasket too narrow for stable die cutting
- Ignoring compression recovery
- Using the wrong liner release force
- Packaging soft foam parts under pressure
- Skipping trial assembly before mass production
- Not defining inspection standards clearly
The earlier these issues are reviewed, the easier they are to fix.
After mass production starts, every small mistake becomes larger and more expensive.
What Buyers Should Provide Before Quotation
To recommend the right adhesive-backed foam gasket, we usually need clear project information.
Helpful details include:
- Drawing or sample
- Application location
- Foam material preference
- Foam thickness and density
- Adhesive requirement
- Bonding surface
- Compression gap
- Temperature range
- Sealing or cushioning requirement
- Indoor or outdoor use
- Liner requirement
- Annual volume
- Delivery format
- Packaging preference
- Testing requirement
If the material is not confirmed, Sanken can help compare PE foam, EVA foam, PU foam, EPDM foam, CR foam, silicone foam, adhesive tape, liner, and laminated structures.
For supplier selection, buyers can also review how to choose the right die cutting manufacturer before moving from sampling to mass production.
Need Adhesive-Backed Foam Gaskets for OEM Assembly?
Adhesive-backed foam gaskets help OEM products improve sealing, cushioning, vibration control, dust protection, bonding, and assembly efficiency.
But the final result depends on foam material, adhesive backing, compression design, bonding surface, die cutting accuracy, liner release, inspection, and packaging.
If you need custom adhesive-backed foam gaskets, foam tape seals, foam strips, foam frames, or cushioning pads, send us your drawing, sample, material requirement, adhesive structure, tolerance, annual volume, and packaging preference.
Sanken can help review material selection, lamination structure, die cutting method, quality control points, and delivery format before mass production.
Related Articles
You may also find these articles helpful:
- Custom Die Cut Foam Gaskets for Electronics, Automotive, and Appliance Assembly
- Foam Gasket Tape for Industrial Sealing: What OEM Buyers Should Know
- How Are Adhesive Foam Die-Cut Gaskets Manufactured for OEM Sealing Applications?
- What Is the Best Foam for Die Cut Sealing Gaskets?
- Die Cut Foam Gaskets: 7 Mistakes That Cause Poor Sealing
- Why Do Foam Gaskets Lose Sealing Performance Over Time?
- Why Do Narrow Foam Gaskets Tear During Die Cutting?
Conclusion
Choosing adhesive-backed foam gaskets for OEM assembly requires more than selecting a foam thickness. Buyers should review the gasket function, foam material, adhesive backing, bonding surface, compression gap, liner release, die cutting design, delivery format, and packaging. When these details are controlled early, foam gaskets can improve sealing, cushioning, assembly speed, and long-term reliability.
