How to Choose Die Cut NVH Materials for Automotive Interior Vibration Control

Automotive interiors are becoming quieter.

That sounds good.

It also means every small rattle, squeak, buzz, and vibration becomes easier for drivers to notice.

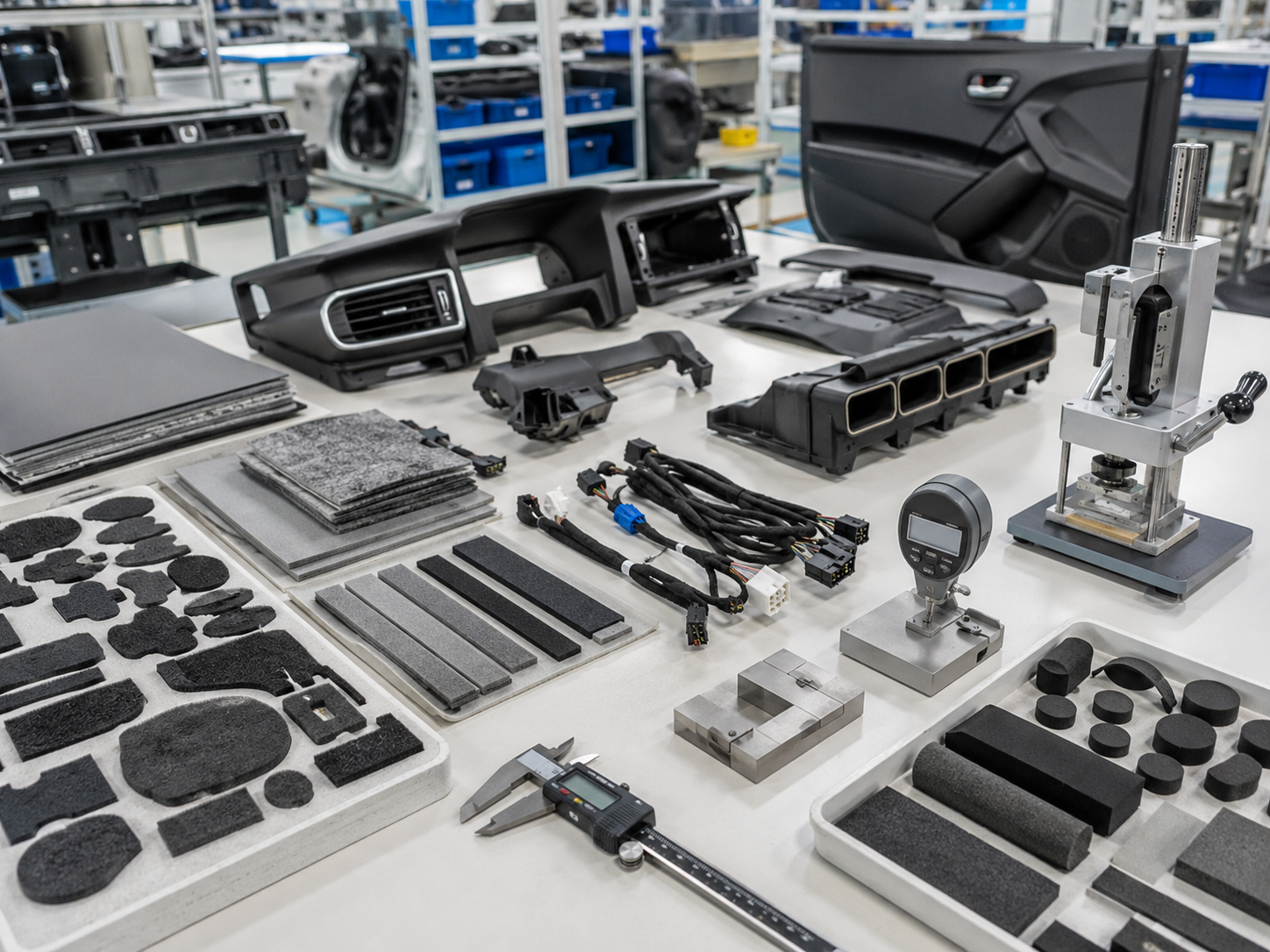

At Sanken, we use precision die cutting to manufacture foam pads, non-woven felt parts, rubber damping pads, adhesive-backed strips, and laminated NVH materials for automotive interior assembly.

Choosing the right die cut NVH material is not only about reducing noise.

It is about matching material behavior, thickness, compression, adhesive performance, installation position, and long-term durability.

What Are Die Cut NVH Materials?

NVH means noise, vibration, and harshness.

In automotive interiors, die cut NVH materials are used to reduce unwanted sound, absorb vibration, cushion contact points, fill gaps, and prevent hard parts from rubbing against each other.

Common die cut NVH materials include:

For automotive die cut components, NVH parts are often hidden inside dashboards, doors, consoles, seats, HVAC systems, and trim assemblies.

The customer may never see them.

But they will hear the problem if the part is wrong.

Start With the Noise or Vibration Source

Before choosing a material, we first identify the problem.

Different NVH issues need different solutions.

A squeak from two plastic parts does not need the same material as vibration from a motor area.

A rattling wire harness does not need the same material as a loose door trim panel.

The best NVH material starts with the actual source of noise.

Not with the cheapest foam available.

That shortcut usually becomes expensive later.

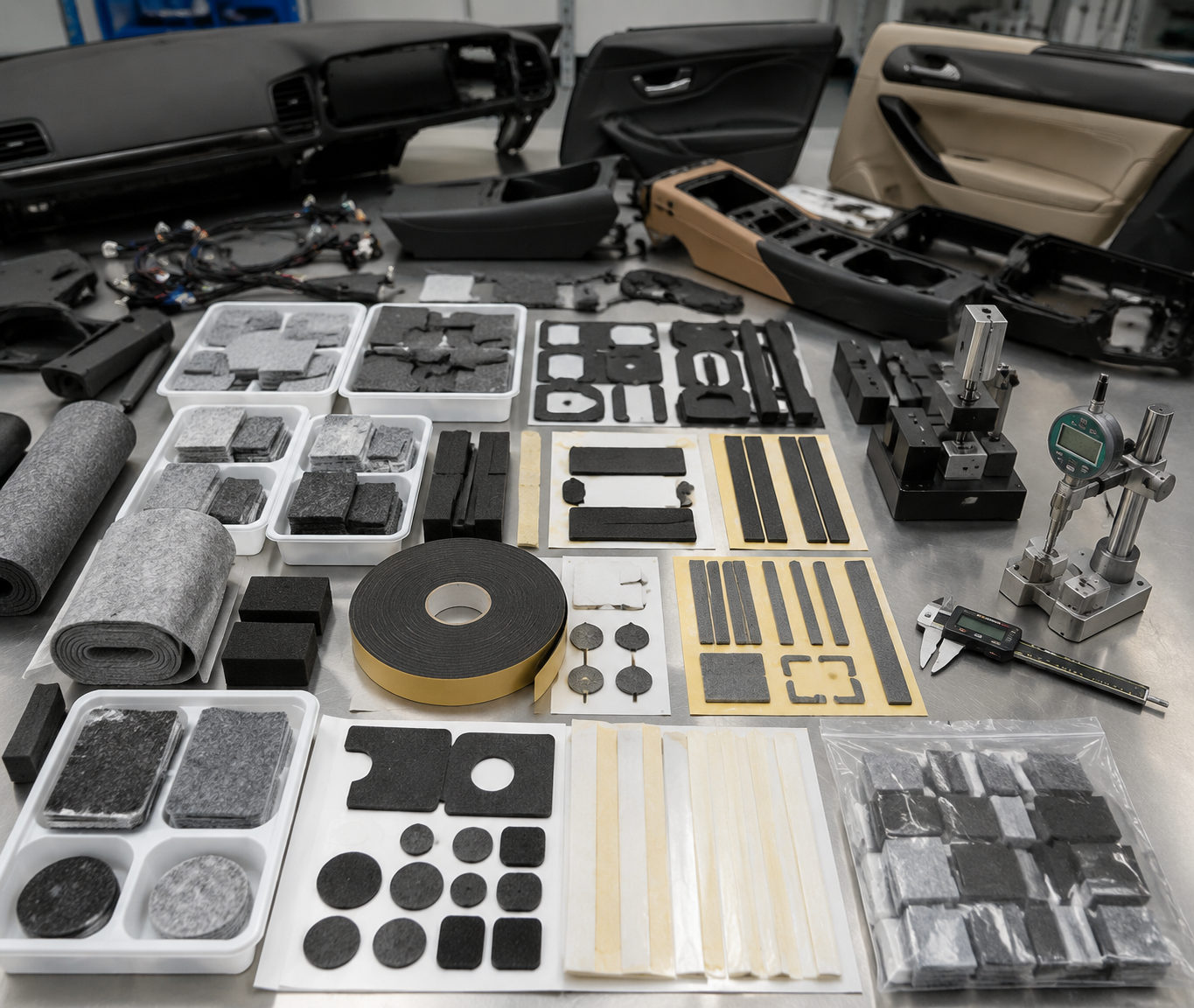

Choose the Right Material by Function

Each material has its own personality.

Foam compresses and fills gaps.

Felt reduces friction and squeak.

Rubber absorbs stronger vibration.

Adhesive tape keeps the part in position.

A laminated structure can combine several functions in one part.

For interior trim, non-woven felt is often used where two hard surfaces may rub.

For dashboard gaps, foam can reduce rattling and support fit.

For motor or speaker vibration areas, rubber or denser foam may be better.

For sealing and cushioning needs, foam gaskets and sealing components may also support interior electronics housings, HVAC ducts, door panels, and acoustic areas.

The right material should solve the problem without creating a new one.

That is the real art.

Check Thickness and Compression

Thickness is one of the most important factors in NVH part design.

If the material is too thin, it may not touch the contact area.

If it is too thick, the interior part may not assemble correctly.

If it compresses too much, it may lose function over time.

We usually check:

For automotive interiors, comfort depends on consistency.

A part that works during sample testing must also work after repeated vibration, heat exposure, and long-term use.

A good NVH pad should stay useful after the vehicle leaves the factory.

Not retire early.

Review Adhesive Backing Carefully

Many automotive NVH parts need adhesive backing.

This helps operators position the material quickly during assembly.

But adhesive selection must match the bonding surface.

Interior surfaces may include plastic, painted metal, fabric, rubber, foam, glass, or textured decorative panels.

These surfaces do not bond the same way.

Common adhesive-backed NVH parts include:

• Felt pads with PSA backing
• Foam anti-rattle pads
• Rubber damping pads with adhesive
• Adhesive-backed foam strips
• Foam tape parts
• Laminated felt and adhesive structures
• Protective pads with pull tabs

A good adhesive-backed NVH part should peel smoothly, stay flat, bond accurately, and resist lifting after heat and vibration.

If the liner is hard to remove, assembly slows down.

If the adhesive lifts, the noise may return.

And nobody wants a comeback tour from a rattle.

Consider Shape, Width, and Edge Quality

Die cut NVH parts often fit into narrow spaces.

This makes the design important.

A very narrow foam strip may tear during cutting.

A felt pad with sharp corners may lift.

A rubber pad with poor edge quality may not sit flat.

Important design points include:

For adhesive-backed parts, kiss cutting is often useful.

The NVH part is cut while the release liner remains intact.

This makes it easier for operators to peel and apply the part during automotive assembly.

Match the Delivery Format to the Assembly Line

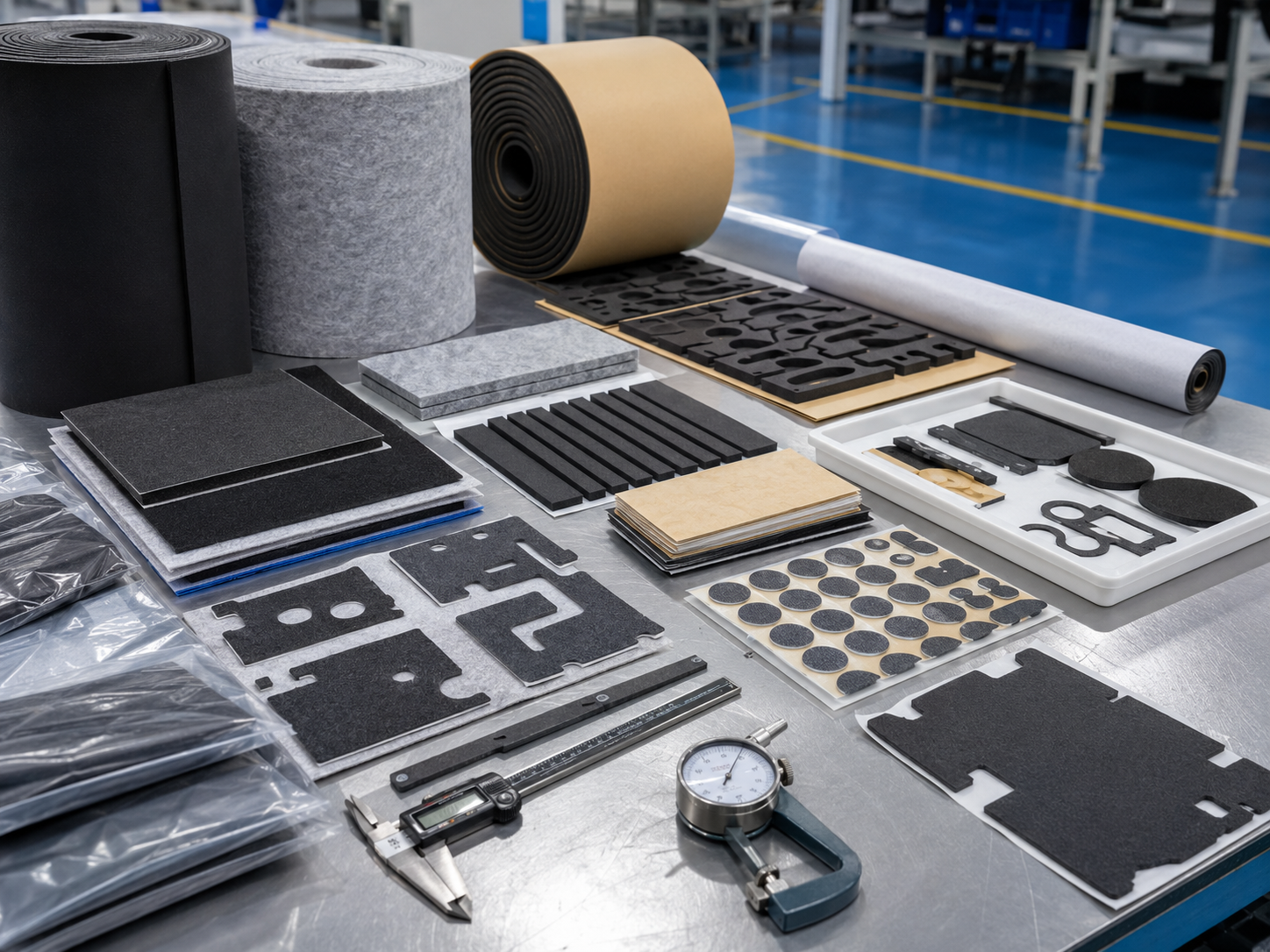

The same NVH part can be supplied in different formats.

The right format depends on how the customer uses it.

For manual assembly, die cut parts supplied in sheets can make picking and placement easier.

For higher-volume adhesive-backed parts, roll format may improve speed.

This article also explains how die cut parts are supplied in sheets, rolls, or kits for different OEM assembly processes.

Good delivery format reduces missing parts, deformation, difficult peeling, and line delays.

Manufacturing Process for Die Cut NVH Parts

Most die cut NVH parts are made through material converting, lamination, die cutting, waste removal, inspection, and packaging.

A typical process includes:

For foam-related processes, buyers can review how die cutting works from foam rolls to finished parts.

For roll materials and repeat production, roll-to-roll die cutting can help improve production stability.

Quality Checks Before Mass Production

Automotive NVH materials must be stable from sample to mass production.

A small change in thickness, adhesive position, or material density can affect performance.

Important inspection points include:

The approved sample is only the beginning.

The real target is stable repeat production.

Buyer Checklist Before Choosing NVH Materials

Before starting an automotive interior NVH project, prepare as much information as possible.

Helpful details include:

• Drawing or sample
• Vehicle interior location
• Noise or vibration problem
• Material preference
• Thickness requirement
• Adhesive requirement
• Bonding surface
• Compression gap
• Temperature range
• Tolerance
• Annual volume
• Delivery format
• Packaging preference
• Testing requirement

If the material is not confirmed, we can help compare non-woven felt, PE foam, EVA foam, PU foam, EPDM foam, rubber, adhesive tape, and laminated structures.

For new projects, buyers can also review how to choose the right die cutting manufacturer before moving from sample approval to mass production.

Need Die Cut NVH Materials for Automotive Interiors?

Choosing die cut NVH materials requires more than selecting a soft pad.

The right part depends on the noise source, material behavior, thickness, compression, adhesive backing, die cutting accuracy, and delivery format.

If you need custom die cut parts for OEM assembly, send us your drawing, sample, vehicle application area, noise or vibration issue, material requirement, adhesive structure, tolerance, annual volume, and packaging preference.

Sanken can help review material selection, die cutting method, adhesive backing, inspection points, and delivery format before mass production.

Related Articles

You may also find these articles helpful:

• Why Vehicles Have Noise and Vibration Problems — and How Die Cut NVH Parts Help
• Where Are Die Cut Parts Used in Automotive Manufacturing?
• What Is Die Cutting in Automotive OEM Manufacturing? Materials, Process, and Applications
• How Automation Improves Precision Die Cutting for Automotive OEM Parts
• Custom Die Cut Foam Gaskets for Automotive Electronics
• The Hidden Manufacturing Process Inside Cars, Phones and Medical Devices
• How Die Cutting Transforms Raw Materials Into Precision Components

Conclusion

Die cut NVH materials help automotive interiors reduce rattling, squeaking, vibration, and harsh contact between parts. The right choice depends on the noise source, material type, thickness, compression, adhesive backing, die cutting precision, and assembly format. Choose the material by function first. The shape comes after.
